Transporto priemonė: OF 1313/1314; VIN numerio dalis: 345050

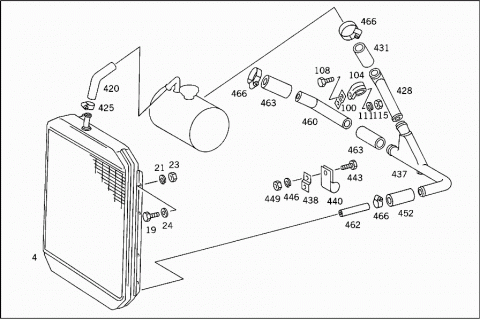

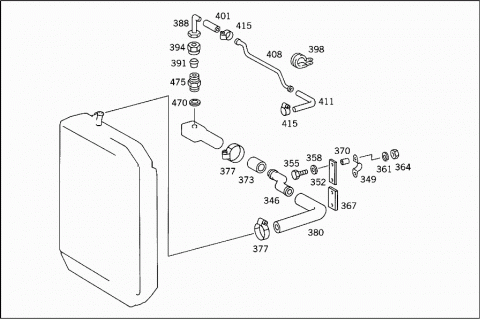

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

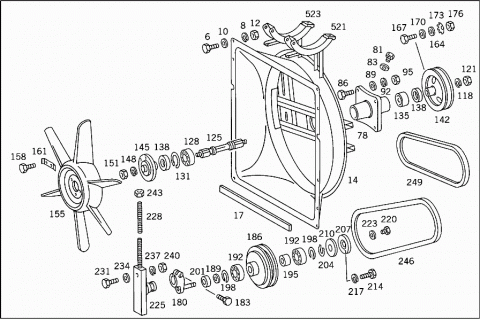

| 004 | A 0455010001 | RADIATOR |
| Repalced by: A 3645017101 | ||
| 004 | A 3645017101 | RADIATOR |
| 006 | N 000933008228 | SCREW |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| M 8X16 | ||
| 006 | N 000933008282 | SCREW |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| M 8X20 | ||
| 008 | N 000127008104 | LOCK WASHER |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 010 | N 000125008417 | WASHER |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 012 | N 000934008000 | NUT |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 014 | A 3025000027 | SUPPORT |
| RADIATOR | ||
| 014 | A 3445007327 | SUPPORT |
| RADIATOR | ||
| 017 | A 3219870014 | RUBBER STRIP |
| 019 | N 000933008282 | SCREW |
| RADIATOR TO SUPPORT | ||
| M 8X20 | ||
| 021 | N 000127008104 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 023 | N 000934008000 | NUT |
| RADIATOR TO SUPPORT | ||
| 024 | N 000125008417 | WASHER |
| RADIATOR TO SUPPORT | ||

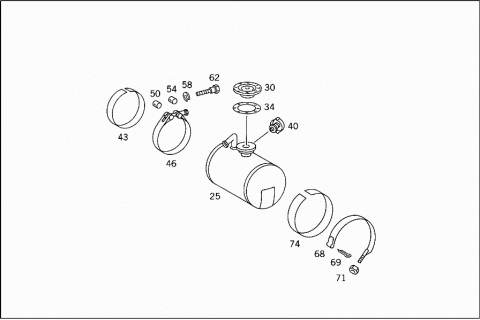

| 025 | A 0455000049 | TANK |
| Repalced by: A 3455007049 | ||
| 025 | A 3455007049 | TANK |
| EXPANSION TANK | ||
| 025 | A 3455007349 | TANK |
| EXPANSION TANK | ||
| 025 | A 3455007449 | TANK |
| Repalced by: A 3455007549 | ||
| 025 | A 3455007549 | TANK |
| 030 | A 3505017139 | VALVE |
| EXPANSION TANK | ||
| TO 345 500 70 49,73 49,74 49,75 49 | ||
| 034 | A 3505017080 | GASKET |
| EXPANSION TANK | ||
| TO 345 500 70 49,73 49,74 49,75 49 | ||
| 040 | A 3455017015 | RADIATOR CAP |
| EXPANSION TANK | ||
| 043 | A 3029870814 | RUBBER STRIP |
| EXPANSION TANK | ||
| 046 | A 3225000331 | BRACKET |
| EXPANSION TANK TO SUPPORT | ||
| 050 | A 1861550174 | PIN |
| 054 | A 1861550074 | PIN |
| 058 | N 912004008100 | LOCK WASHER |
| 062 | A 3225010071 | SCREW |
| 068 | A 3445007345 | STRAP |
| EXPANSION TANK TO SUPPORT | ||
| 069 | N 000094006317 | COTTER PIN |
| EXPANSION TANK TO SUPPORT | ||
| 071 | N 000934008000 | NUT |
| EXPANSION TANK TO SUPPORT | ||
| 074 | A 3449870214 | RUBBER STRIP |
| EXPANSION TANK TO SUPPORT | ||
| 078 | A 3212050405 | BEARING BODY |
| FAN DRIVE | ||
| 081 | N 007604010100 | SCREW PLUG |
| BEARING BODY | ||
| 083 | N 007603010110 | SEAL RING |
| BEARING BODY | ||
| 086 | N 000931008238 | SCREW |
| PULLEY TO FAN SHAFT | ||
| 089 | N 000125008417 | WASHER |
| PULLEY TO FAN SHAFT | ||
| 092 | N 000127008104 | LOCK WASHER |
| PULLEY TO FAN SHAFT | ||
| 095 | N 000934008000 | NUT |
| PULLEY TO FAN SHAFT | ||
| 100 | A 3525041740 | BRACKET |
| WITH FAN DRIVE TO RADIATOR BASE FRAME | ||
| 104 | A 3459957101 | CLAMP |
| COOLING WATER LINE TO BASE FRAME | ||
| 108 | N 000933008288 | SCREW |
| BRACKET TO SUPPORT | ||
| 111 | N 000127008104 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 115 | N 000934008000 | NUT |
| BRACKET TO SUPPORT | ||
| 118 | N 000127016201 | LOCK WASHER |
| PULLEY TO FAN SHAFT | ||
| 121 | N 000934016003 | NUT |
| PULLEY TO FAN SHAFT | ||
| 125 | A 3212050302 | FAN SHAFT |
| 128 | N 000628003304 | ANG. CONTACT BALL BEARING |
| FAN SHAFT | ||
| 128 | A 3459817125 | BALL BEARING |
| FAN SHAFT | ||
| 131 | N 000472052000 | LOCK RING |
| BEARING TO SHAFT | ||
| 135 | N 000625006304 | GROOVED BALL BEARING |
| Repalced by: A 3449817025 | ||
| 135 | A 3449817025 | BALL BEARING |
| FAN SHAFT | ||
| 138 | N 003760030300 | RADIAL SEAL RING |
| Repalced by: A 0019978447 | ||
| 138 | A 0019978447 | SEAL RING |
| FAN SHAFT | ||
| 142 | A 3022050310 | PULLEY |
| Repalced by: A 3762057010 | ||
| 142 | A 3762057010 | PULLEY |
| FAN DRIVE | ||
| 145 | A 3212050012 | HUB |
| FAN | ||
| 148 | N 000127016201 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 151 | N 000934016003 | NUT |
| HUB TO FAN SHAFT | ||
| 155 | A 3212050006 | FAN |
| 158 | N 000933008288 | SCREW |
| FAN TO HUB | ||
| 161 | A 3159940030 | LOCK |
| FAN TO HUB | ||
| 164 | A 3219900540 | WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 164 | A 3219900840 | WASHER |
| AS REQUIRED | ||
| 2.5 MM | ||
| 164 | A 3219900440 | WASHER |
| AS REQUIRED | ||
| 3.2 MM | ||
| 167 | N 000912006003 | SCREW |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| M 6X20 | ||
| 167 | N 000912006003 | SCREW |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| M 6X15 | ||
| 167 | N 000912006003 | SCREW |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| M 6X12 | ||
| 170 | N 000125006420 | WASHER |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 173 | N 006797006146 | TOOTHED WASHER |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 176 | N 000934006006 | NUT |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 180 | A 3022000073 | LEVER |
| (CLAMPING LEVER) | ||
| 183 | N 000961012209 | SCREW |
| CLAMPING LEVER ON SUPPORT | ||
| 186 | A 3022060819 | TIGHTENER PULLEY |
| FAN DRIVE | ||
| 189 | A 3022050152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 189 | A 3022050252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 189 | A 3022050352 | SPACER WASHER |
| Repalced by: A 3022050252 | ||
| 192 | N 000625006303 | GROOVED BALL BEARING |
| TIGHTENER PULLEY BEARING | ||
| 195 | A 3022060053 | SPACER TUBE |
| TIGHTENER PULLEY BEARING | ||
| 198 | N 000472047001 | LOCK RING |
| TIGHTENER PULLEY BEARING | ||
| 201 | N 003760022300 | RADIAL SEAL RING |
| TIGHTENER PULLEY BEARING | ||
| 204 | N 000471017000 | LOCK RING |
| TIGHTENER PULLEY TO HUB | ||
| 207 | A 3022060057 | EXPANSION PLUG |
| TIGHTENER PULLEY | ||
| 210 | A 3022060079 | GASKET |
| REAR COVER | ||
| 214 | N 000933006223 | SCREW |
| COVER TO TIGHTENER PULLEY | ||
| 217 | N 000125006420 | WASHER |
| COVER TO TIGHTENER PULLEY | ||
| 220 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 220 | N 007604010108 | SCREW PLUG |
| REAR COVER | ||
| 223 | N 007603010110 | SEAL RING |
| REAR COVER | ||
| 225 | A 3212000039 | SUPPORT |
| CLAMPING LEVER | ||
| 228 | A 3219900005 | STUD |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 231 | N 000931010264 | SCREW |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 234 | N 000125010517 | WASHER |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 237 | N 000127010202 | LOCK WASHER |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 240 | N 000934010000 | NUT |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 243 | N 000934012004 | NUT |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 246 | A 0039978692 | V-BELT |
| Repalced by: A 0079976492 | ||
| 246 | A 0079976492 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 249 | A 0019972692 | V-BELT |
| Repalced by: A 0039975092 | ||
| 249 | A 0039975092 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||

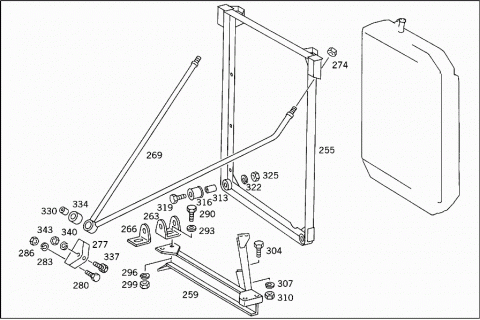

| 255 | A 0455000027 | SUPPORT |
| RADIATOR MOUNTING | ||
| 255 | A 3455007527 | SUPPORT |
| RADIATOR MOUNTING | ||
| 259 | A 3525001127 | SUPPORT |
| Repalced by: A 3455008227 | ||
| 259 | A 3455008227 | SUPPORT |
| RADIATOR MOUNTING | ||
| 263 | A 3525040640 | BRACKET |
| RADIATOR MOUNTING | ||
| 266 | A 3525040740 | BRACKET |
| RADIATOR MOUNTING | ||
| 269 | A 3525000245 | RADIATOR STRUT |
| RADIATOR MOUNTING | ||
| 274 | N 000934012010 | NUT |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 277 | A 3525040840 | BRACKET |
| RADIATOR BRACING | ||
| 280 | N 000961012154 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X30 | ||
| 280 | N 000961012163 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 283 | N 000127012201 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 286 | N 000934012023 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 290 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X22 | ||
| 290 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X30 | ||
| 293 | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 296 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 299 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 304 | N 000933010174 | SCREW |
| SUPPORT TO FRAME | ||
| M 10X25 | ||
| 304 | N 000933010129 | SCREW |
| SUPPORT TO FRAME | ||
| M 10X30 | ||
| 307 | N 000127010202 | LOCK WASHER |
| SUPPORT TO FRAME | ||
| 310 | N 000934010000 | NUT |
| SUPPORT TO FRAME | ||
| 313 | A 3028880026 | SLEEVE |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 316 | A 3028880224 | MOUNTING |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 319 | N 000961012212 | SCREW |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 322 | N 000127012201 | LOCK WASHER |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 325 | N 000934012004 | NUT |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 330 | H 103216420026 | SPACER |
| Repalced by: A 3216420026 | ||
| 330 | A 3216420026 | SPACER TUBE |
| RADIATOR STRUT TO BRACKET | ||
| 334 | H 103216420074 | JOINT RUBBER |
| Repalced by: A 3216420074 | ||
| 334 | A 3216420074 | JOINT RUBBER |
| RADIATOR STRUT TO BRACKET | ||
| 337 | N 000961012209 | SCREW |
| RADIATOR STRUT TO BRACKET | ||
| M12X1,5X50 | ||
| 340 | N 000127012201 | LOCK WASHER |
| RADIATOR STRUT TO BRACKET | ||
| 343 | N 000934012023 | NUT |
| RADIATOR STRUT TO BRACKET | ||
| 346 | A 3525010124 | COOLING WATER PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 349 | A 0009951410 | CLAMP |
| COOLING WATER LINE TO BASE FRAME | ||
| 352 | A 3025060240 | BRACKET |
| COOLING WATER LINE TO BASE FRAME | ||
| 355 | N 000933008288 | SCREW |
| COOLING WATER LINE TO BASE FRAME | ||
| M 8X25 | ||
| 355 | N 000933008279 | SCREW |
| COOLING WATER LINE TO BASE FRAME | ||
| M 8X40 | ||
| 358 | N 000125008417 | WASHER |
| COOLING WATER LINE TO BASE FRAME | ||
| 361 | N 000127008104 | LOCK WASHER |
| COOLING WATER LINE TO BASE FRAME | ||
| 364 | N 000934008000 | NUT |
| COOLING WATER LINE TO BASE FRAME | ||
| 367 | A 3025010020 | RUBBER PAD |
| COOLING WATER LINE TO BASE FRAME | ||
| 370 | A 3179910840 | SPACER TUBE |
| COOLING WATER LINE TO BASE FRAME | ||
| 373 | N 900271045016 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 377 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 377 | A 0019972590 | LOOM TIE |
| COOLING WATER LINE | ||
| 377 | A 3461400040 | CLAMP |
| COOLING WATER LINE | ||
| 377 | A 3459977090 | LOOM TIE |
| COOLING WATER LINE | ||
| 380 | A 3025011582 | HOSE |
| COOLING WATER LINE TO COOLING WATER LINE | ||
| 388 | A 3025000372 | LINE |
| DE-AERATION | ||
| 391 | N 915003010201 | SEAL CONE |
| 394 | N 915017010003 | UNION NUT |
| 398 | A 0009952001 | CLAMP |
| Repalced by: N 916016012201 | ||
| 398 | N 916016012201 | CLAMP |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| 398 | A 3459958501 | CLAMP |
| DE-AERATION AT UPPER COOLING WATER PIPE | ||
| 401 | N 900271012020 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 408 | A 3525060057 | BREATHER PIPE |
| 411 | A 3025011482 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 415 | A 3449977490 | LOOM TIE |
| Repalced by: N 916017016000 | ||
| 415 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 415 | N 000000000666 | CLAMP |
| DE-AERATION LINE | ||
| 415 | A 3459978890 | LOOM TIE |
| DE-AERATION LINE | ||
| 420 | A 3025011682 | HOSE |
| Repalced by: N 900271020033 | ||
| 420 | N 900271022010 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 425 | A 3509978890 | LOOM TIE |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 425 | A 3459979090 | LOOM TIE |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 425 | A 3449977590 | LOOM TIE |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 425 | A 3509970390 | LOOM TIE |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 428 | A 3025010224 | COOLING WATER PIPE |
| FROM RESERVOIR TO BUBBLE SEPARATOR | ||
| 431 | N 900271038039 | HOSE |
| FROM RESERVOIR TO BUBBLE SEPARATOR | ||
| 38 X 50 X 430 | ||
| A 3459977090 | LOOM TIE | |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| A 3461400040 | CLAMP | |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| A 0019972590 | LOOM TIE | |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 437 | A 3025000469 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 438 | A 3525041740 | BRACKET |
| BUBBLE SEPARATOR TO RADIATOR MOUNTING SUPPORT | ||
| 440 | A 3459957201 | CLAMP |
| BUBBLE SEPARATOR TO RADIATOR MOUNTING SUPPORT | ||
| 443 | N 000933008317 | SCREW |
| BRACKET TO SUPPORT | ||
| 446 | N 000127008104 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 449 | N 000934008000 | NUT |
| BRACKET TO SUPPORT | ||
| 452 | N 900271045016 | HOSE |
| BUBBLE SEPARATOR TO RADIATOR | ||
| 460 | A 3525010224 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO WATER PUMP | ||
| 462 | A 3455017182 | HOSE |
| 463 | N 900271045016 | HOSE |
| COOLING WATER LINE TO BUBBLE SEPARATOR & TO WATER PUMP | ||
| 466 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 466 | A 0019972590 | LOOM TIE |
| COOLING WATER LINE | ||
| 466 | A 3459977090 | LOOM TIE |
| COOLING WATER LINE | ||
| 466 | A 3461400040 | CLAMP |
| COOLING WATER LINE | ||
| 470 | N 007603014100 | SEAL RING |
| BREATHER LINE CONNECTION | ||
| 475 | A 0449970071 | FITTING |
| Repalced by: A 3449970772 | ||
| 475 | A 3649977072 | FITTING |
| Repalced by: A 3449970772 | ||
| 475 | A 3449970772 | FITTING |
| BREATHER LINE CONNECTION | ||
| 485 | A 3645017001 | RADIATOR |
| 485 | A 3645017301 | RADIATOR |
| 490 | A 3455007327 | SUPPORT |
| RADIATOR | ||
| 493 | N 000933008282 | SCREW |
| RADIATOR TO SUPPORT | ||
| 496 | N 912004008100 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 500 | A 3449870014 | RUBBER STRIP |
| TOP | ||
| 503 | A 3449870114 | RUBBER STRIP |
| BOTTOM | ||
| 506 | A 3083100077 | BUFFER |
| RADIATOR MOUNTING | ||
| 510 | N 000912012002 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 513 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 517 | N 000934012010 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 521 | A 3455007040 | PART NAME MISSING |
| Repalced by: A 3645007827 | ||
| 521 | A 3645007827 | SUPPORT |
| LEFT | ||
| 523 | A 3455007140 | PART NAME MISSING |
| Repalced by: A 3645007927 | ||
| 523 | A 3645007927 | SUPPORT |
| RIGHT | ||

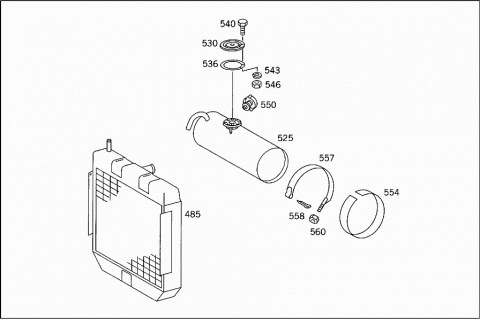

| 525 | A 0455000049 | TANK |
| Repalced by: A 3455007049 | ||
| 525 | A 3455007049 | TANK |
| EXPANSION TANK | ||
| 525 | A 3455007349 | TANK |
| EXPANSION TANK | ||
| 530 | A 3505017139 | VALVE |
| EXPANSION TANK | ||
| A 0005000640 | VALVE | |
| A 3205010144 | COVER | |
| 536 | A 3205010180 | GASKET |
| Repalced by: A 3505017080 | ||
| 536 | A 3505017080 | GASKET |
| EXPANSION TANK | ||
| 540 | N 000933005095 | SCREW |
| VALVE TO EXPANSION TANK | ||
| 543 | N 000127005001 | LOCK WASHER |
| VALVE TO EXPANSION TANK | ||
| 546 | N 000934005008 | NUT |
| VALVE TO EXPANSION TANK | ||
| 550 | A 3455017015 | RADIATOR CAP |
| EXPANSION TANK | ||
| 554 | A 3449870214 | RUBBER STRIP |
| EXPANSION TANK | ||
| 557 | A 3445007345 | STRAP |
| 558 | N 000094006317 | COTTER PIN |
| 560 | N 000934008000 | NUT |
| EXPANSION TANK TO SUPPORT | ||

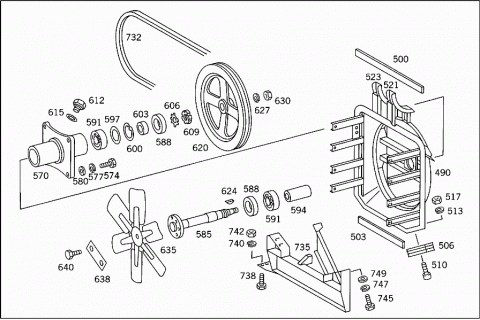

| 570 | A 3212050405 | BEARING BODY |
| FAN DRIVE | ||
| 574 | N 000933008275 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 577 | N 912004008100 | LOCK WASHER |
| BEARING BODY TO SUPPORT | ||
| 580 | N 000125008417 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 585 | A 3262050002 | FAN SHAFT |
| 588 | N 003760032300 | RADIAL SEAL RING |
| FAN SHAFT | ||
| 591 | N 000628003205 | ANG. CONTACT BALL BEARING |
| FAN SHAFT | ||
| 594 | A 3262060153 | SPACER TUBE |
| FAN SHAFT | ||
| 597 | A 3262050952 | SPACER WASHER |
| FAN SHAFT | ||
| 600 | N 000472052000 | LOCK RING |
| BEARING TO SHAFT | ||
| 603 | A 3262060053 | SPACER TUBE |
| FAN SHAFT | ||
| 606 | N 070952024101 | LOCK PLATE |
| BEARING TO SHAFT | ||
| 609 | N 070852024000 | NUT |
| BEARING TO SHAFT | ||
| 612 | N 007604010100 | SCREW PLUG |
| BEARING BODY | ||
| 615 | N 007603010110 | SEAL RING |
| BEARING BODY | ||
| 620 | A 3262050410 | PULLEY |
| Repalced by: A 3552050210 | ||
| 620 | A 3552050210 | PULLEY |
| FAN DRIVE | ||
| 624 | N 006888004002 | WOODRUFF KEY |
| PULLEY TO FAN SHAFT | ||
| 627 | N 000127014201 | LOCK WASHER |
| PULLEY TO FAN SHAFT | ||
| 630 | N 000936014010 | NUT |
| PULLEY TO FAN SHAFT | ||
| 635 | A 0442000224 | FAN |
| Repalced by: A 3442000124 | ||
| 635 | A 3442000124 | FAN |
| 638 | A 3129940330 | LOCK |
| FAN TO HUB | ||
| 640 | N 000933008282 | SCREW |
| FAN TO HUB | ||

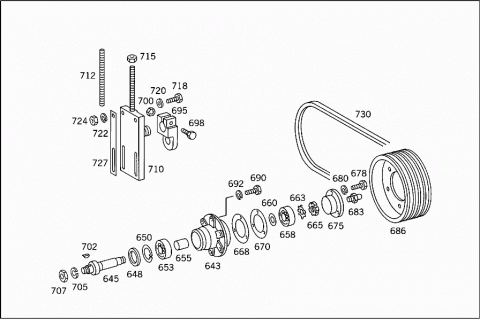

| 643 | A 3262060013 | HUB |
| TIGHTENER PULLEY | ||
| 645 | A 3262050303 | FAN SPINDLE |
| 648 | N 003760040300 | RADIAL SEAL RING |
| TIGHTENER PULLEY BEARING | ||
| 650 | N 000472052000 | LOCK RING |
| BEARING TO SHAFT | ||
| 653 | N 000720030205 | TAPERED ROLLER BEARING |
| TIGHTENER PULLEY BEARING | ||
| 655 | A 3262050253 | SPACER TUBE |
| TIGHTENER PULLEY BEARING | ||
| 658 | N 000720030204 | TAPERED ROLLER BEARING |
| TIGHTENER PULLEY BEARING | ||
| 660 | A 8200750052 | SPACER WASHER |
| TIGHTENER PULLEY BEARING | ||
| 663 | N 070952020101 | LOCK PLATE |
| BEARING TO SHAFT | ||
| 663 | A 3229940112 | LOCK |
| BEARING TO SHAFT | ||
| 665 | A 3219900160 | NUT |
| BEARING TO SHAFT | ||
| 668 | A 3262050380 | GASKET |
| TIGHTENER PULLEY HUB,REAR | ||
| 670 | A 3262050752 | SPACER WASHER |
| TIGHTENER PULLEY HUB,REAR | ||
| 0.05 MM | ||
| 670 | A 3262050552 | SPACER WASHER |
| TIGHTENER PULLEY HUB,REAR | ||
| 0.10 MM | ||
| 670 | A 3262050452 | SPACER WASHER |
| TIGHTENER PULLEY HUB,REAR | ||
| 0.20 MM | ||
| 670 | A 3262050652 | SPACER WASHER |
| TIGHTENER PULLEY HUB,REAR | ||
| 0.50 MM | ||
| 675 | A 3262050213 | EXPANSION PLUG |
| TIGHTENER PULLEY HUB,REAR | ||
| 678 | N 000933006220 | SCREW |
| COVER TO HUB | ||
| 680 | N 912004006100 | LOCK WASHER |
| COVER TO HUB | ||
| 683 | N 071412010100 | GREASE NIPPLE |
| TIGHTENER PULLEY BEARING | ||
| 686 | A 3442060019 | TIGHTENER PULLEY |
| 690 | N 000933008288 | SCREW |
| HUB TO TIGHTENER PULLEY | ||
| 692 | N 912004008100 | LOCK WASHER |
| HUB TO TIGHTENER PULLEY | ||
| 695 | A 3442060033 | LEVER |
| (CLAMPING LEVER) | ||
| 698 | N 000961012212 | SCREW |
| CLAMPING LEVER ON SUPPORT | ||
| 700 | N 000934012009 | NUT |
| CLAMPING LEVER ON SUPPORT | ||
| 702 | N 006888003005 | WOODRUFF KEY |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 705 | N 912004024101 | LOCK WASHER |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 707 | N 000439024202 | NUT |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 710 | A 3445001227 | SUPPORT |
| CLAMPING LEVER | ||
| 712 | A 3445040174 | PIN |
| 715 | N 000934012004 | NUT |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 718 | N 000931010401 | SCREW |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 720 | N 007349010006 | WASHER |
| SUPPORT TO RADIATOR BASE FRAME | ||
| A10,5 | ||
| 722 | N 000127010202 | LOCK WASHER |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 724 | N 000934010005 | NUT |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 727 | A 3455040084 | SHIM |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 730 | A 0049973192 | V-BELT |
| Repalced by: A 0079976592 | ||
| 730 | A 0079976592 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 732 | A 0039970992 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| 735 | A 3455007027 | SUPPORT |
| RADIATOR MOUNTING | ||
| 738 | N 000933010174 | SCREW |
| SUPPORT TO FRAME | ||
| 740 | N 000127010202 | LOCK WASHER |
| SUPPORT TO FRAME | ||
| 742 | N 000934010007 | NUT |
| SUPPORT TO FRAME | ||
| 745 | N 000933010294 | SCREW |
| RADIATOR TO SUPPORT | ||
| 747 | N 000127010202 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 749 | N 009021010102 | WASHER |
| RADIATOR TO SUPPORT | ||

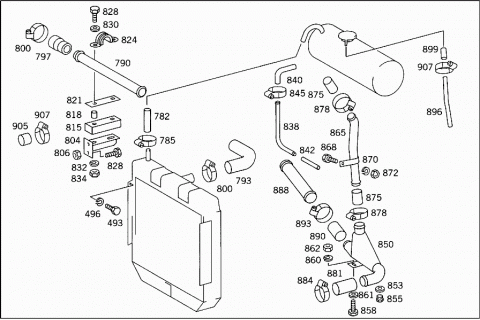

| 782 | N 900271022010 | HOSE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 785 | A 3509978890 | LOOM TIE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 785 | A 3459979090 | LOOM TIE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 785 | A 3449977590 | LOOM TIE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 785 | A 3509970390 | LOOM TIE |
| FROM EXPANSION TANK TO RADIATOR | ||
| 790 | A 3455007289 | LINE |
| Repalced by: A 3455017224 | ||
| 790 | A 3455017224 | COOLING WATER PIPE |
| FROM RADIATOR TO THERMOSTAT | ||
| 793 | N 900271045016 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 793 | A 3645017082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 797 | A 3025012282 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 800 | A 3449977890 | LOOM TIE |
| HOSE TO THERMOSTAT AND TO COOLING WATER PIPE | ||
| 800 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 800 | N 000000000672 | CLAMP |
| HOSE TO THERMOSTAT AND TO COOLING WATER PIPE | ||
| 800 | A 3459979390 | LOOM TIE |
| HOSE TO THERMOSTAT AND TO COOLING WATER PIPE | ||
| 800 | A 3459977090 | LOOM TIE |
| HOSE TO THERMOSTAT AND TO COOLING WATER PIPE | ||
| 800 | A 3461400040 | CLAMP |
| HOSE TO THERMOSTAT AND TO COOLING WATER PIPE | ||
| 800 | A 0019972590 | LOOM TIE |
| HOSE TO THERMOSTAT AND TO COOLING WATER PIPE | ||
| 804 | A 3455047540 | BRACKET |
| COOLING WATER PIPE TO RADIATOR,TOP | ||
| 804 | A 3455047640 | BRACKET |
| COOLING WATER PIPE TO RADIATOR,TOP | ||
| 806 | N 000934006006 | NUT |
| COOLING WATER PIPE TO RADIATOR,TOP | ||
| 806 | N 000934006006 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 815 | A 3025010020 | RUBBER PAD |
| COOLING WATER LINE TO BRACKET | ||
| 818 | A 3179910840 | SPACER TUBE |
| COOLING WATER LINE TO BRACKET | ||
| 821 | A 3025060240 | BRACKET |
| COOLING WATER LINE TO BRACKET | ||
| 824 | A 0009951410 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 828 | N 000933008288 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 828 | N 000933008279 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 828 | N 000933006220 | SCREW |
| COOLING WATER PIPE TO RADIATOR,TOP | ||
| 828 | N 000933006220 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 830 | N 000125008417 | WASHER |
| COOLING WATER LINE TO BRACKET | ||
| 830 | N 000125006420 | WASHER |
| COOLING WATER PIPE TO RADIATOR,TOP | ||
| 830 | N 000125006420 | WASHER |
| COOLING WATER LINE TO BRACKET | ||
| 832 | N 912004008100 | LOCK WASHER |
| COOLING WATER LINE TO BRACKET | ||
| 832 | N 000127006203 | LOCK WASHER |
| COOLING WATER PIPE TO RADIATOR,TOP | ||
| 832 | N 000127006203 | LOCK WASHER |
| COOLING WATER LINE TO BRACKET | ||
| 834 | N 000934008013 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 834 | N 000934006006 | NUT |
| COOLING WATER PIPE TO RADIATOR,TOP | ||
| 834 | N 000934006006 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 838 | A 3455017025 | BREATHER PIPE |
| 840 | A 3025012182 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 842 | A 0059975882 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 845 | A 3449977490 | LOOM TIE |
| Repalced by: N 916017016000 | ||
| 845 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 845 | N 000000000666 | CLAMP |
| THERMOSTAT TO EXPANSION TANK | ||
| 845 | A 3459978890 | LOOM TIE |
| THERMOSTAT TO EXPANSION TANK | ||
| 845 | A 3509978790 | LOOM TIE |
| THERMOSTAT TO EXPANSION TANK | ||
| 850 | A 3445000069 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 853 | N 007603018101 | SEAL RING |
| DRAIN | ||
| 855 | N 007604018101 | SCREW PLUG |
| DRAIN | ||
| 858 | N 000933008282 | SCREW |
| BUBBLE SEPARATOR TO RADIATOR MOUNTING SUPPORT | ||
| 860 | N 912004008100 | LOCK WASHER |
| BUBBLE SEPARATOR TO RADIATOR MOUNTING SUPPORT | ||
| 861 | N 000125008417 | WASHER |
| BUBBLE SEPARATOR TO RADIATOR MOUNTING SUPPORT | ||
| 862 | N 000934008013 | NUT |
| BUBBLE SEPARATOR TO RADIATOR MOUNTING SUPPORT | ||
| 865 | A 0445000689 | LINE |
| Repalced by: A 3645007172 | ||
| 865 | A 3645007172 | LINE |
| Repalced by: A 3445000789 | ||
| 865 | A 3445000789 | LINE |
| FROM RESERVOIR TO BUBBLE SEPARATOR | ||
| 868 | N 000933008282 | SCREW |
| BRACKET TO SUPPORT | ||
| 870 | N 912004008100 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 872 | N 000934008000 | NUT |
| BRACKET TO SUPPORT | ||
| 875 | N 900271038039 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 38 X 50 X 430 | ||
| 878 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 878 | A 0019972590 | LOOM TIE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 878 | A 3459977090 | LOOM TIE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 878 | A 3461400040 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 881 | N 900271050020 | HOSE |
| FROM BUBBLE SEPARATOR TO RADIATOR | ||
| 884 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 884 | N 000000000672 | CLAMP |
| FROM BUBBLE SEPARATOR TO RADIATOR | ||
| 884 | A 3459979390 | LOOM TIE |
| FROM BUBBLE SEPARATOR TO RADIATOR | ||
| 884 | A 3449977890 | LOOM TIE |
| FROM BUBBLE SEPARATOR TO RADIATOR | ||
| 888 | A 3455007189 | LINE |
| FROM BUBBLE SEPRATOR TO OIL COOLER | ||
| 890 | N 900271050020 | HOSE |
| FROM BUBBLE SEPRATOR TO OIL COOLER | ||
| 893 | A 3509979290 | LOOM TIE |
| BUBBLE SEPARATOR AND RADIATOR | ||
| 893 | A 3449977890 | CLAMP |
| BUBBLE SEPARATOR AND RADIATOR | ||
| 893 | A 3459979390 | LOOM TIE |
| BUBBLE SEPARATOR AND RADIATOR | ||
| 893 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 893 | N 000000000672 | CLAMP |
| BUBBLE SEPARATOR AND RADIATOR | ||
| 896 | A 3645017025 | BREATHER PIPE |
| OVERFLOW | ||
| 899 | A 3449970482 | HOSE |
| OVERFLOW, EXPANSION TANK | ||
| A 3509978790 | LOOM TIE | |
| OVERFLOW, EXPANSION TANK | ||
| A 3449977490 | LOOM TIE | |
| Repalced by: N 916017016000 | ||
| N 916017016000 | CLAMP | |
| Repalced by: N 000000000666 | ||
| N 000000000666 | CLAMP | |
| OVERFLOW, EXPANSION TANK | ||
| 905 | A 3445067033 | LOCKING CAP |
| HEATING CONNECTION,FRONT | ||
| 907 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 907 | A 0019972590 | LOOM TIE |
| HOSE TO RADIATOR AN TO BUBBLE SEPARATOR | ||

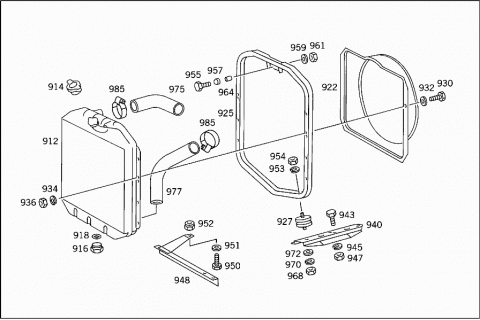

| 912 | A 3445007003 | RADIATOR |
| Repalced by: A 3445017001 | ||
| 912 | A 3455017201 | RADIATOR |
| Repalced by: A 3445017001 | ||
| 912 | A 3445017001 | RADIATOR |
| 914 | A 3445010315 | RADIATOR CAP |
| 916 | A 1369970830 | SCREW PLUG |
| DRAIN | ||
| 918 | N 007603018401 | SEAL RING |
| DRAIN | ||
| 922 | A 3525050155 | FAN SHROUD |
| 925 | A 3525000527 | SUPPORT |
| Repalced by: A 3455000527 | ||
| 925 | A 3455000527 | SUPPORT |
| RADIATOR MOUNTING | ||
| 927 | A 3605040012 | RUBBER MOUNTING |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 930 | N 000933008317 | SCREW |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 932 | N 000433008403 | WASHER |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 934 | N 912004008100 | LOCK WASHER |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 936 | N 000934008000 | NUT |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 940 | A 3525040101 | SUPPORT |
| RADIATOR MOUNTING | ||
| 943 | N 000933010294 | SCREW |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 945 | N 000127010202 | LOCK WASHER |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 947 | N 000934010000 | NUT |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 948 | A 3455007431 | BRACKET |
| RADIATOR BASE FRAME | ||
| A 3455007531 | BRACKET | |
| RADIATOR BASE FRAME | ||
| 950 | N 000933010285 | SCREW |
| BRACKET TO WINDOW SILL SUPPORT | ||
| M 10X55 | ||
| 950 | N 000933010273 | SCREW |
| BRACKET TO WINDOW SILL SUPPORT | ||
| M 10X50 | ||
| 951 | N 000125010517 | WASHER |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 952 | N 913004010003 | NUT |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 953 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 954 | N 000934001000 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 955 | N 000933010268 | SCREW |
| BASE FRAME TO BRACKET | ||
| 957 | A 3275045082 | RUBBER RING |
| BASE FRAME TO BRACKET | ||
| 959 | N 009021010102 | WASHER |
| BASE FRAME TO BRACKET | ||
| 961 | N 000934010000 | NUT |
| BASE FRAME TO BRACKET | ||
| 964 | A 3449910040 | SPACER TUBE |
| Repalced by: A 3199910540 | ||
| 964 | A 3199910540 | SPACER TUBE |
| BASE FRAME TO BRACKET | ||
| 968 | N 000934010000 | NUT |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 970 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 972 | N 000125010517 | WASHER |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 975 | A 3525010682 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 977 | A 3525010382 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 985 | A 0019972590 | LOOM TIE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 985 | A 0019972590 | LOOM TIE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 985 | A 3459977090 | LOOM TIE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 985 | A 3459977090 | LOOM TIE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 985 | A 3461400040 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 985 | A 3461400040 | CLAMP |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
