Transporto priemonė: OF 1313/1314; VIN numerio dalis: 345050
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3453207102 | FRONT SPRING |
| Repalced by: A 3523201902 | ||
| 005 | A 3523201902 | FRONT SPRING |
| Repalced by: A 3453207802 | ||
| 005 | A 3453207802 | FRONT SPRING |
| 005 | A 3453207802 | FRONT SPRING |
| A 3453207902 | FRONT SPRING | |
| 8-LEAF | ||
| 010 | A 3523202494 | SPRING LEAF |
| Repalced by: A 6843200094 | ||
| 010 | A 6843200094 | SPRING LEAF |
| NO.1 | ||
| 010 | A 6843200094 | SPRING LEAF |
| NO.1 | ||
| A 3823200094 | SPRING LEAF | |
| NO.1 | ||
| 015 | A 3523220050 | BUSHING |
| 015 | A 3853220050 | BUSHING |
| 020 | A 3523211412 | SPRING LEAF |
| NO.2;TO 352 320 19 02 | ||
| 020 | A 3523211412 | SPRING LEAF |
| NO.2;TO 352 320 19 02 | ||
| 020 | A 3453217312 | SPRING LEAF |
| NO.2;TO 345 320 78 02 | ||
| 020 | A 3453217312 | SPRING LEAF |
| NO.2;TO 345 320 78 02 | ||
| A 3453217412 | SPRING LEAF | |
| NO.2 | ||
| 025 | A 3523202594 | SPRING LEAF |
| Repalced by: A 3453208094 | ||
| 025 | A 3453208094 | SPRING LEAF |
| NO.3;TO 352 320 19 02 | ||
| 025 | A 3453208094 | SPRING LEAF |
| NO.3;TO 352 320 19 02 | ||
| 025 | A 6843200194 | SPRING LEAF |
| NO.3;TO 345 320 78 02 | ||
| 025 | A 6843200194 | SPRING LEAF |
| NO.3;TO 345 320 78 02 | ||
| A 3823200194 | SPRING LEAF | |
| NO.3 | ||
| A 0013211733 | SPRING CLAMP | |
| 029 | A 3523211414 | SPRING LEAF |
| NO.4;TO 352 320 19 02 | ||
| 029 | A 3523211414 | SPRING LEAF |
| NO.4;TO 352 320 19 02 | ||
| 029 | A 3453217314 | SPRING LEAF |
| NO.4;TO 345 320 78 02 | ||
| 029 | A 3453217314 | SPRING LEAF |
| NO.4;TO 345 320 78 02 | ||
| A 3453217414 | SPRING LEAF | |
| NO.4 | ||
| 035 | A 0523200094 | SPRING LEAF |
| Repalced by: A 3523207094 | ||
| 035 | A 3523207094 | SPRING LEAF |
| Repalced by: A 3453207594 | ||
| 035 | A 3453207594 | SPRING LEAF |
| NO.6,TO 352 320 19 02 | ||
| 035 | A 3453207594 | SPRING LEAF |
| NO.6,TO 352 320 19 02 | ||
| 035 | A 6843200294 | SPRING LEAF |
| NO.6;TO 345 320 78 02 | ||
| 035 | A 6843200294 | SPRING LEAF |
| NO.6;TO 345 320 78 02 | ||
| A 3823200294 | SPRING LEAF | |
| NO.6 | ||
| 040 | A 0033213533 | SPRING CLAMP |
| 045 | A 3523220184 | SHIM |
| 045 | A 3523220184 | SHIM |
| 050 | N 004626012111 | SPRING BOLT |
| TO 352 320 19 02, AM 12X155 | ||
| 050 | N 004626012112 | SPRING BOLT |
| TO 345 320 78 02, AM 12X160 | ||
| 050 | N 004626012112 | SPRING BOLT |
| TO 345 320 78 02, AM 12X160 | ||
| 050 | N 004626012103 | SPRING BOLT |
| AM 12X150 | ||
| 055 | N 913004012012 | NUT |
| 060 | N 000931008131 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| NO.3,NO.6 | ||
| 064 | A 0003212353 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF | ||
| NO.3,NO.6 | ||
| 068 | N 000934008000 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| NO.3,NO.6;TO 352 320 19 02 | ||
| 068 | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| NO.3,NO.6;TO 345 320 78 02 | ||
| 071 | N 910006008025 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| NO.3,NO.6 | ||
| 073 | A 3459878220 | PLASTIC SECTION |
| TO 345 320 78 02 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT SPRING SUSPENSION | ||
| 075 | A 3553200062 | SHACKLE |
| 077 | A 3523200063 | SHACKLE |
| 077 | A 3523200063 | SHACKLE |
| 080 | A 3523250150 | BUSHING |
| 080 | A 3853250050 | BUSHING |
| 080 | A 3523220050 | BUSHING |
| 080 | A 3523220050 | BUSHING |
| 080 | A 3853220050 | BUSHING |
| 080 | A 3853220050 | BUSHING |
| 088 | A 3853220030 | SHACKLE PIN |
| Repalced by: A 3453227030 | ||
| 088 | A 3453227030 | SHACKLE PIN |
| 092 | A 3423220030 | SHACKLE PIN |
| Repalced by: A 3443227230 | ||
| 092 | A 3443227230 | SHACKLE PIN |
| 096 | N 071412010100 | GREASE NIPPLE |
| 096 | N 071412010300 | GREASE NIPPLE |
| 100 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 100 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 100 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 100 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 100 | A 3453230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 100 | A 3453230676 | WASHER |
| 4.20 MM | ||
| 100 | A 3523231076 | WASHER |
| 4.20 MM | ||
| 100 | A 3453230776 | WASHER |
| 4.00 MM | ||
| 100 | A 3523230976 | WASHER |
| 4.00 MM | ||
| 105 | A 0029973040 | SEAL RING |
| 110 | A 0029973140 | SEAL RING |
| 110 | A 0029973140 | SEAL RING |
| 115 | A 3529900337 | BOLT |
| 119 | N 000125010517 | WASHER |
| 123 | N 913004010004 | NUT |
| 127 | A 3453230676 | WASHER |
| 127 | A 3453230276 | WASHER |
| 127 | A 3453230276 | WASHER |
| 127 | A 3453230776 | WASHER |
| 130 | A 3553220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 131 | A 3523220231 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 131 | A 3523220231 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 132 | A 3523220684 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 133 | A 3449917160 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3163240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3163240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3453247008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 135 | A 3453247008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| A 3833240008 | HELPER SPRING | |
| Repalced by: A 3843247108 | ||
| A 3843247108 | HELPER SPRING | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 142 | A 3553510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 142 | A 3403310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 240 MM | ||
| 142 | A 3523510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 143 | A 3523510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 210 MM | ||
| 143 | A 3523510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 210 MM | ||
| 143 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 143 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 144 | A 3453317025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 144 | A 3403510325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 144 | A 3383315125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 144 | A 3383315225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 270 MM | ||
| 146 | N 913004018000 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR SPRINGS | ||
| 160 | A 3453207006 | REAR SPRING |
| 160 | A 3453207306 | REAR SPRING |
| 160 | A 3453207406 | REAR SPRING |
| Repalced by: A 3453207606 | ||
| 160 | A 3453207606 | REAR SPRING |
| 12-LEAF | ||
| 160 | A 3523200406 | REAR SPRING |
| Repalced by: A 3453207506 | ||
| 160 | A 3453207506 | REAR SPRING |
| 11-LEAF | ||
| 165 | A 3453207393 | SPRING LEAF |
| NO.1 | ||
| 165 | A 3453200593 | SPRING LEAF |
| NO.1 | ||
| 165 | A 6843200293 | SPRING LEAF |
| NO.1;TO 345 320 74 06 | ||
| 165 | A 6843200393 | SPRING LEAF |
| NO.1;TO 345 320 76 06 | ||
| 165 | A 3523201193 | SPRING LEAF |
| NO.1;TO 352 320 04 06 | ||
| 165 | A 6843200093 | SPRING LEAF |
| NO.1;TO 345 320 75 06 | ||
| 169 | A 3523250150 | BUSHING |
| 169 | A 3853250050 | BUSHING |
| 175 | A 3453247012 | SPRING LEAF |
| NO.2 | ||
| 175 | A 3453248112 | SPRING LEAF |
| NO.2 | ||
| 175 | A 3453248012 | SPRING LEAF |
| NO.2;TO 345 320 74 06 | ||
| 175 | A 3453248312 | SPRING LEAF |
| NO.2;TO 345 320 76 06 | ||
| 175 | A 3523241112 | SPRING LEAF |
| NO.2;TO 352 320 04 06 | ||
| 175 | A 3453248212 | SPRING LEAF |
| NO.2;TO 345 320 75 06 | ||
| 185 | A 3453247013 | SPRING LEAF |
| NO.3 | ||
| 185 | A 3453248113 | SPRING LEAF |
| NO.3 | ||
| 185 | A 3453248013 | SPRING LEAF |
| NO.3;TO 345 320 74 06 | ||
| 185 | A 3453248313 | SPRING LEAF |
| NO.3;TO 345 320 76 06 | ||
| 185 | A 3523201293 | SPRING LEAF |
| Repalced by: A 3453207394 | ||
| 185 | A 3453207394 | SPRING LEAF |
| NO.3;TO 352 320 04 06 | ||
| 185 | A 6843200193 | SPRING LEAF |
| NO.3;TO 345 320 75 06 | ||
| 190 | A 0013214333 | SPRING CLAMP |
| 195 | A 3453247014 | SPRING LEAF |
| NO.4 | ||
| 195 | A 3453248114 | SPRING LEAF |
| NO.4 | ||
| 195 | A 3453248014 | SPRING LEAF |
| NO.4;TO 345 320 74 06 | ||
| 195 | A 3453248314 | SPRING LEAF |
| NO.4;TO 345 320 76 06 | ||
| 195 | A 3523241014 | SPRING LEAF |
| NO.4;TO 352 320 04 06 | ||
| 195 | A 3453248214 | SPRING LEAF |
| NO.4;TO 345 320 75 06 | ||
| 200 | A 3453247015 | SPRING LEAF |
| NO.5 | ||
| 200 | A 3453248115 | SPRING LEAF |
| NO.5 | ||
| 200 | A 3453248015 | SPRING LEAF |
| NO.5;TO 345 320 74 06 | ||
| 200 | A 3453248315 | SPRING LEAF |
| NO.5;TO 345 320 76 06 | ||
| 200 | A 3523241015 | SPRING LEAF |
| NO.5;TO 352 320 04 06 | ||
| 200 | A 3453248215 | SPRING LEAF |
| NO.5;TO 345 320 75 06 | ||
| 205 | A 3453247016 | SPRING LEAF |
| NO.6 | ||
| 205 | A 3453248116 | SPRING LEAF |
| NO.6 | ||
| 205 | A 3453248016 | SPRING LEAF |
| NO.6;TO 345 320 74 06 | ||
| 205 | A 3453248316 | SPRING LEAF |
| NO.6;TO 345 320 76 06 | ||
| 205 | A 3523241016 | SPRING LEAF |
| NO.6;TO 352 320 04 06 | ||
| 205 | A 3453248216 | SPRING LEAF |
| NO.6;TO 345 320 75 06 | ||
| 210 | A 3453247017 | SPRING LEAF |
| NO.7 | ||
| 210 | A 3453248117 | SPRING LEAF |
| NO.7 | ||
| 210 | A 3453248017 | SPRING LEAF |
| NO.7;TO 345 320 74 06 | ||
| 210 | A 3453248317 | SPRING LEAF |
| NO.7;TO 345 320 76 06 | ||
| 210 | A 3523240917 | SPRING LEAF |
| NO.7;TO 352 320 04 06 | ||
| 210 | A 3453248217 | SPRING LEAF |
| NO.7;TO 345 320 75 06 | ||
| 215 | A 3453247018 | SPRING LEAF |
| NO.8 | ||
| 215 | A 3453248018 | SPRING LEAF |
| NO.8 | ||
| 215 | A 3453247918 | SPRING LEAF |
| NO.8;TO 345 320 74 06 | ||
| 215 | A 3453248218 | SPRING LEAF |
| NO.8;TO 345 320 76 06 | ||
| 215 | A 3523240918 | SPRING LEAF |
| NO.8;TO 352 320 04 06 | ||
| 215 | A 3453248118 | SPRING LEAF |
| NO.8;TO 345 320 75 06 | ||
| 220 | A 3453247019 | SPRING LEAF |
| NO.9 | ||
| 220 | A 3453247619 | SPRING LEAF |
| NO.9 | ||
| 220 | A 3453247519 | SPRING LEAF |
| NO.9;TO 345 320 74 06 | ||
| 220 | A 3453247819 | SPRING LEAF |
| NO.9;TO 345 320 76 06 | ||
| 220 | A 3523240619 | SPRING LEAF |
| NO.9;TO 352 320 04 06 | ||
| 220 | A 3453247719 | SPRING LEAF |
| NO.9;TO 345 320 75 06 | ||
| 230 | A 3453247020 | SPRING LEAF |
| NO.10 | ||
| 230 | A 3453247620 | SPRING LEAF |
| NO.10 | ||
| 230 | A 3453247520 | SPRING LEAF |
| NO.10;TO 345 320 74 06 | ||
| 230 | A 3453247820 | SPRING LEAF |
| NO.10;TO 345 320 76 06 | ||
| 230 | A 3523240520 | SPRING LEAF |
| NO.10;TO 352 320 04 06 | ||
| 230 | A 3453247720 | SPRING LEAF |
| NO.10;TO 345 320 75 06 | ||
| 235 | A 3453247521 | SPRING LEAF |
| NO.11 | ||
| 235 | A 3453247421 | SPRING LEAF |
| NO.11;TO 345 320 74 06 | ||
| 235 | A 3453247721 | SPRING LEAF |
| NO.11;TO 345 320 76 06 | ||

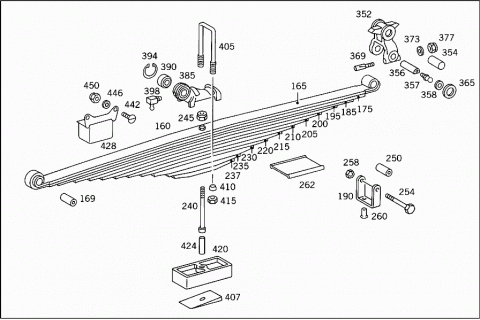

| 235 | A 3523240221 | SPRING LEAF |
| NO.11;TO 352 320 04 06 | ||
| 235 | A 3453247621 | SPRING LEAF |
| NO.11;TO 345 320 75 06 | ||
| 237 | A 3453247322 | SPRING LEAF |
| NO.12 | ||
| 237 | A 3453247222 | SPRING LEAF |
| NO.12;TO 345 320 74 06 | ||
| 237 | A 3453247422 | SPRING LEAF |
| NO.12;TO 345 320 76 06 | ||
| 240 | N 004626012117 | SPRING BOLT |
| 240 | A 3843227171 | SCREW |
| TO 345 320 76 06 | ||
| 240 | N 004626012145 | SPRING BOLT |
| TO 352 320 04 06 | ||
| 240 | N 004626012137 | SPRING BOLT |
| TO 345 320 75 06 | ||
| 245 | N 000934012010 | NUT |
| 245 | N 000934012010 | NUT |
| TO 352 320 04 06 | ||
| 245 | N 913004012012 | NUT |
| TO 345 320 75 06 | ||
| 245 | N 913004012012 | NUT |
| TO 345 320 76 06 | ||
| 250 | A 0003213053 | SPACER TUBE |
| Repalced by: A 3140720253 | ||
| 250 | A 3140720253 | SPACER TUBE |
| 254 | N 000931010154 | SCREW |
| 258 | N 000934010000 | NUT |
| TO 352 320 04 06 | ||
| 258 | N 913004010002 | NUT |
| TO 345 320 75 06 | ||
| 260 | N 910006008025 | RIVET |
| 262 | A 3459877020 | PLASTIC SECTION |
| TO 345 320 75 06 | ||

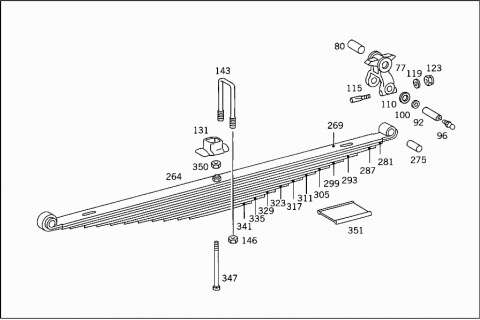

| 264 | A 3453200406 | REAR SPRING |
| Repalced by: A 3453207706 | ||
| 264 | A 3453207706 | REAR SPRING |
| 12-LEAF | ||
| A 3453207806 | REAR SPRING | |
| 12-LEAF | ||
| 269 | A 3453200093 | SPRING LEAF |
| NO.1;TO 345 320 04 06 | ||
| 269 | A 3453200893 | SPRING LEAF |
| NO.1;TO 345 320 77 06 | ||
| A 3453200993 | SPRING LEAF | |
| NO.1 | ||
| 275 | A 3523250150 | BUSHING |
| 275 | A 3853250050 | BUSHING |
| 281 | A 3453240512 | SPRING LEAF |
| NO.2;TO 345 320 04 06 | ||
| 281 | A 3453248412 | SPRING LEAF |
| NO.2;TO 345 320 77 06 | ||
| A 3453248612 | SPRING LEAF | |
| NO.2 | ||
| 287 | A 3453240513 | SPRING LEAF |
| NO.3;TO 345 320 04 06 | ||
| 287 | A 3453248413 | SPRING LEAF |
| NO.3;TO 345 320 77 06 | ||
| A 3453248613 | SPRING LEAF | |
| NO.3 | ||
| 293 | A 3453240514 | SPRING LEAF |
| NO.4;TO 345 320 04 06 | ||
| 293 | A 3453248414 | SPRING LEAF |
| NO.4;TO 345 320 77 06 | ||
| A 3453248614 | SPRING LEAF | |
| NO.4 | ||
| 299 | A 3453240515 | SPRING LEAF |
| NO.5;TO 345 320 04 06 | ||
| 299 | A 3453248415 | SPRING LEAF |
| NO.5;TO 345 320 77 06 | ||
| A 3453248615 | SPRING LEAF | |
| NO.5 | ||
| 305 | A 3453240516 | SPRING LEAF |
| NO.6;TO 345 320 04 06 | ||
| 305 | A 3453248416 | SPRING LEAF |
| NO.6;TO 345 320 77 06 | ||
| A 3453248616 | SPRING LEAF | |
| NO.6 | ||
| 311 | A 3453240517 | SPRING LEAF |
| NO.7;TO 345 320 04 06 | ||
| 311 | A 3453248417 | SPRING LEAF |
| NO.7;TO 345 320 77 06 | ||
| A 3453248617 | SPRING LEAF | |
| NO.7 | ||
| 317 | A 3453240518 | SPRING LEAF |
| NO.8;TO 345 320 04 06 | ||
| 317 | A 3453248318 | SPRING LEAF |
| NO.8;TO 345 320 77 06 | ||
| A 3453248618 | SPRING LEAF | |
| NO.8 | ||
| 323 | A 3453240519 | SPRING LEAF |
| NO.9;TO 345 320 04 06 | ||
| 323 | A 3453247919 | SPRING LEAF |
| NO.9;TO 345 320 77 06 | ||
| A 3453248119 | SPRING LEAF | |
| NO.9 | ||
| 329 | A 3453240520 | SPRING LEAF |
| NO.10;TO 345 320 04 06 | ||
| 329 | A 3453247920 | SPRING LEAF |
| NO.10;TO 345 320 77 06 | ||
| A 3453248120 | SPRING LEAF | |
| NO.10 | ||
| 335 | A 3453240321 | SPRING LEAF |
| NO.11;TO 345 320 04 06 | ||
| 335 | A 3453247821 | SPRING LEAF |
| NO.11;TO 345 320 77 06 | ||
| 341 | A 3453240222 | SPRING LEAF |
| NO.12;TO 345 320 04 06 | ||
| 341 | A 3453247522 | SPRING LEAF |
| NO.12;TO 345 320 77 06 | ||
| 347 | N 004626012137 | SPRING BOLT |
| TO 345 320 04 06 | ||
| 347 | N 004626012148 | SPRING BOLT |
| TO 345 320 77 06,78 06 | ||
| 350 | N 000934012010 | NUT |
| TO 345 320 04 06 | ||
| 350 | N 913004012012 | NUT |
| TO 345 320 77 06,78 06 | ||
| 351 | A 3459877020 | PLASTIC SECTION |
| TO 345 320 77 06,78 06 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR SPRING SUSPENSION | ||
| 352 | A 3523200163 | SHACKLE |
| 354 | A 3523250150 | BUSHING |
| 354 | A 3853250050 | BUSHING |
| 356 | A 3523250530 | SHACKLE PIN |
| Repalced by: A 3853250030 | ||
| 356 | A 3853250030 | SHACKLE PIN |
| Repalced by: A 3453257030 | ||
| 356 | A 3453257030 | SHACKLE PIN |
| 357 | N 071412010100 | GREASE NIPPLE |
| 358 | A 3453230676 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 358 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 358 | A 3453230776 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 358 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 365 | A 0029973040 | SEAL RING |
| 369 | A 3529900337 | BOLT |
| 373 | N 000125010517 | WASHER |
| 377 | N 913004010004 | NUT |
| 385 | A 3523200035 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 390 | A 0009810831 | JOINT BEARING |
| REAR SPRING TO REAR AXLE | ||
| 390 | A 0009811231 | JOINT BEARING |
| REAR SPRING TO REAR AXLE | ||
| 394 | N 000472055000 | LOCK RING |
| REAR SPRING TO REAR AXLE | ||
| 398 | N 071412008300 | GREASE NIPPLE |
| REAR SPRING TO REAR AXLE | ||
| 398 | A 3459977288 | GREASE NIPPLE |
| REAR SPRING TO REAR AXLE | ||
| 405 | A 3423510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 340 MM | ||
| 405 | A 3273510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 360 MM | ||
| 405 | A 3273510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| TO 345 320 04 06 | ||
| 405 | A 3213512225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 380 MM;TO 345 320 04 06,352 320 04 06 | ||
| 405 | A 3213512225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| TO 345 320 75 06 | ||
| 405 | A 3273510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 400 MM | ||
| 405 | A 3213510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 240 MM | ||
| 405 | A 3213512325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 405 | A 3213512325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| TO 345 320 77 06 | ||
| 405 | A 3523510325 | U-BOLT |
| 240 MM | ||
| 405 | A 3523510625 | U-BOLT |
| 390 MM | ||
| 405 | A 3523510625 | U-BOLT |
| TO 345 320 77 06 | ||
| 407 | A 3453510028 | PAD |
| 410 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 415 | N 913004018000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 420 | A 3213510028 | PAD |
| 424 | A 3129910460 | DOWEL PIN |
| 428 | A 3523500075 | RUBBER MOUNTING |
| 434 | A 3453207129 | STOP |
| 434 | A 3453207429 | STOP |
| 438 | A 3453207229 | STOP |
| 438 | A 3453207229 | STOP |
| 438 | A 6843207029 | STOP |
| 442 | N 000963010034 | SCREW |
| RUBBER BUFFER TO FRAME | ||
| 442 | N 000963010034 | SCREW |
| RUBBER BUFFER TO FRAME | ||
| 442 | N 000963010025 | SCREW |
| RUBBER BUFFER TO FRAME | ||
| 446 | N 000125010517 | WASHER |
| RUBBER BUFFER TO FRAME | ||
| 446 | N 000125010517 | WASHER |
| RUBBER BUFFER TO FRAME | ||
| 450 | N 913004010004 | NUT |
| RUBBER BUFFER TO FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

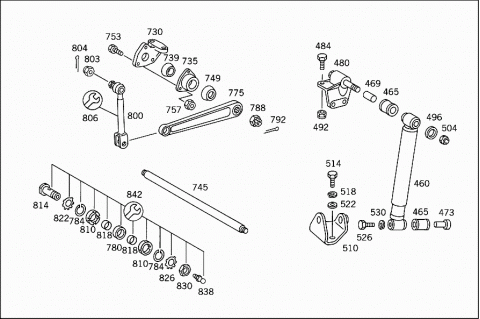

| SHOCK ABSORBERS AND MOUNTING | ||
| 460 | A 3453230400 | SHOCK ABSORBER |
| FRONT | ||
| 460 | A 3453237800 | SHOCK ABSORBER |
| FRONT | ||
| 460 | A 0013236500 | SHOCK ABSORBER |
| Repalced by: A 3453237200 | ||
| 460 | A 3453237200 | SHOCK ABSORBER |
| Repalced by: A 3843237200 | ||
| 460 | A 3843237200 | SHOCK ABSORBER |
| FRONT | ||
| 460 | A 3453237300 | SHOCK ABSORBER |
| Repalced by: A 3843237200 | ||
| 460 | A 3843237200 | SHOCK ABSORBER |
| FRONT | ||
| 460 | A 3453237400 | SHOCK ABSORBER |
| Repalced by: A 3843237200 | ||
| 460 | A 3843237200 | SHOCK ABSORBER |
| FRONT | ||
| 465 | A 0083230285 | RUBBER MOUNTING |
| Repalced by: A 0003230585 | ||
| 465 | A 0003230585 | RUBBER MOUNTING |
| 469 | A 0083230053 | SPACER TUBE |
| 473 | A 0083230385 | RUBBER MOUNTING |
| A 3523200078 | CONSOLE | |
| TOP | ||
| 480 | A 3453200078 | CONSOLE |
| TOP | ||
| 480 | A 3453207478 | CONSOLE |
| TOP | ||
| A 3453237071 | SCREW | |
| TOP | ||
| 484 | N 000961012106 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 492 | N 913004012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 496 | A 3529901340 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 496 | A 3453237076 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 504 | N 913004016004 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 510 | A 3523200278 | CONSOLE |
| FRONT SHOCK ABSORBERS | ||
| 514 | N 000961012009 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 518 | N 000127012201 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 522 | N 000125013012 | WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 526 | A 3523230071 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 530 | N 000127016201 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

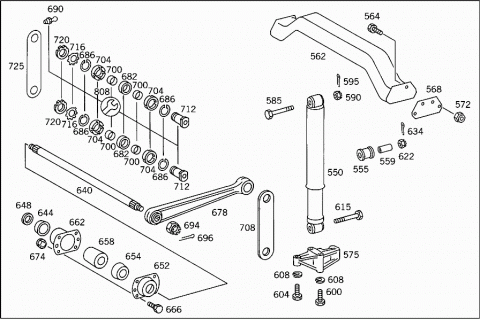

| 550 | A 3453260000 | SHOCK ABSORBER |
| 550 | A 3453267300 | SHOCK ABSORBER |
| 550 | A 0013264600 | SHOCK ABSORBER |
| 550 | A 0023261000 | SHOCK ABSORBER |
| 550 | A 3453267100 | SHOCK ABSORBER |
| 550 | A 3453267500 | SHOCK ABSORBER |
| 550 | H 980013260000 | SHOCK ABSORBER |
| Repalced by: A 3453260100 | ||
| 550 | A 3453260100 | SHOCK ABSORBER |
| FICHTEL & SACHS | ||
| 550 | A 3453267000 | SHOCK ABSORBER |
| 550 | A 3453267600 | SHOCK ABSORBER |
| 555 | A 0003230785 | RUBBER MOUNTING |
| 559 | A 0003230553 | SPACER TUBE |
| 562 | A 3453107240 | CROSS MEMBER |
| 564 | N 000933010129 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 568 | A 3123121557 | MOUNTING PLATE |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 572 | N 913004010004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 575 | A 3453260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 575 | A 3453260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 575 | A 3523261240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 575 | A 3523261240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 575 | A 3443267340 | BRACKET |
| LEFT,FOR SHOCK ABSORBERS | ||
| 575 | A 3453260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 575 | A 3453260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 575 | A 3523261340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 575 | A 3523261340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 575 | A 3443267440 | BRACKET |
| RIGHT,FOR SHOCK ABSORBERS | ||
| 585 | A 3529901301 | SCREW |
| Repalced by: A 3459908601 | ||
| 585 | A 3459908601 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 590 | N 000979020000 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 590 | N 913004020004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 595 | N 000094004065 | COTTER PIN |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 600 | N 000960014180 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X1.5X110 | ||
| 604 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X1.5X65 | ||
| 608 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 615 | A 3529901201 | SCREW |
| Repalced by: A 3459908501 | ||
| 615 | A 3459908501 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 622 | N 000979020000 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 622 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 634 | N 000094004065 | COTTER PIN |
| SHOCK ABSORBER TO BRACKET | ||
| 640 | A 3223260065 | TORSION BAR |
| Repalced by: A 3443260065 | ||
| 640 | A 3443260065 | TORSION BAR |
| 644 | A 3523230751 | SPACER RING |
| TORSION BAR TO REAR AXLE | ||
| 648 | A 3523230251 | SPACER RING |
| TORSION BAR TO REAR AXLE | ||
| 652 | A 3403260082 | HOUSING |
| OUTSIDE RUBBER MOUNTING | ||
| 654 | A 3523260181 | RUBBER MOUNTING |
| 658 | A 3523260081 | RUBBER MOUNTING |
| 662 | A 3403260182 | HOUSING |
| INSIDE RUBBER MOUNTING | ||
| 666 | N 000933010129 | SCREW |
| M 10X28 | ||
| 674 | N 913004010004 | NUT |
| 678 | A 3523260369 | LEVER |
| Repalced by: A 3453260269 | ||
| 678 | A 3453260269 | LEVER |
| STABILIZER | ||
| 682 | A 0009810831 | JOINT BEARING |
| STABILIZER | ||
| 682 | A 0009811231 | JOINT BEARING |
| STABILIZER | ||
| 686 | N 000472055000 | LOCK RING |
| STABILIZER | ||
| 690 | N 071412008100 | GREASE NIPPLE |
| 694 | N 000937028000 | NUT |
| STABILIZER | ||
| 696 | N 000094005016 | COTTER PIN |
| STABILIZER | ||
| 700 | A 3523260153 | SPACER TUBE |
| LEVER TO GUIDE PLATE | ||
| 704 | A 3603230560 | SEAL RING |
| LEVER TO GUIDE PLATE | ||
| 704 | A 3453237160 | SEAL RING |
| LEVER TO GUIDE PLATE | ||
| 708 | A 3523260116 | LINK |
| LEVER TO GUIDE PLATE | ||
| 712 | A 3523260274 | PIN |
| LEVER TO GUIDE PLATE | ||
| 716 | N 070952035101 | LOCK PLATE |
| LEVER TO GUIDE PLATE | ||
| 720 | N 070852035000 | NUT |
| LEVER TO GUIDE PLATE | ||
| 725 | A 3453237116 | LINK |
| LEVER TO GUIDE PLATE | ||
| 730 | A 3523231463 | BEARING BRACKET |
| HOLE SPACING: | ||
| 88 MM | ||
| 735 | A 3523230283 | HOUSING |
| 739 | A 3603230085 | RUBBER MOUNTING |
| Repalced by: A 3453237085 | ||
| 739 | A 3453237085 | RUBBER MOUNTING |
| 745 | A 3603230065 | TORSION BAR |
| AT FRONT AXLE | ||
| 749 | A 3603230151 | SPACER RING |
| 753 | N 000933010258 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 757 | N 913004010004 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 775 | A 3603230869 | LEVER |
| 780 | A 0009810731 | JOINT BEARING |
| 780 | A 0009810931 | JOINT BEARING |
| 780 | A 0009816631 | JOINT BEARING |
| 784 | N 009045035001 | SNAP RING |
| 788 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 792 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 800 | A 3453207189 | ROD |
| 803 | N 000935014002 | NUT |
| 804 | N 000094003024 | COTTER PIN |
| 806 | A 3455867432 | REPAIR KIT |
| 808 | A 3603200341 | REPAIR KIT |
| REAR STABILIZER | ||
| 810 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 810 | A 3453237260 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 814 | A 3603230274 | PIN |
| ARTICULATED ROD TO LEVER | ||
| 818 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 822 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 826 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 830 | N 000439020203 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 838 | N 071412010100 | GREASE NIPPLE |
| ARTICULATED ROD TO LEVER | ||
| 842 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
