Transporto priemonė: OF 1313/1314; VIN numerio dalis: 345050

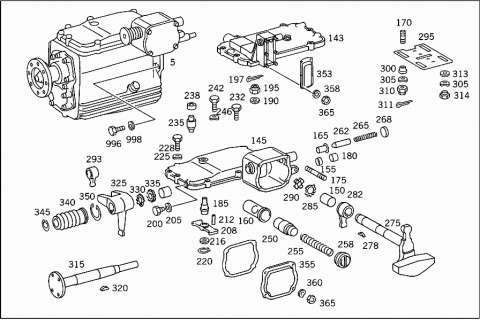

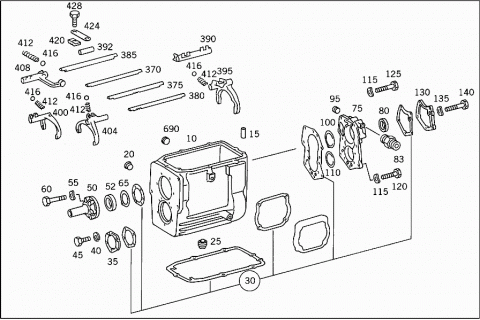

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3452600100 | TRANSMISSION |
| G 32/7.5 | ||
| 005 | A 3452600400 | TRANSMISSION |
| G 40/7.5 | ||
| 005 | A 3442602100 | TRANSMISSION |
| LESS TRANSMISSION CASE TOP COVER | ||
| G 32/7.5 | ||
| 005 | A 3452603400 | TRANSMISSION |
| LESS TRANSMISSION CASE TOP COVER | ||
| "G 40/7.5" | ||
| 010 | A 3442600111 | TRANSMISSION CASE |
| 010 | A 3442600211 | TRANSMISSION CASE |
| Repalced by: A 3442600411 | ||
| 010 | A 3442600411 | TRANSMISSION CASE |
| 015 | N 000007010221 | CYLINDRICAL PIN |
| 020 | A 1869970032 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 025 | A 0009971332 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 025 | A 0009972632 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 025 | A 0009973432 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 030 | H 983455860026 | REPAIR KIT |
| Repalced by: A 3452600468 | ||
| 030 | A 3452600468 | GASKET KIT |
| 030 | H 983455860126 | REPAIR KIT |
| Repalced by: A 3452600368 | ||
| 030 | A 3452600368 | GASKET KIT |
| 035 | A 3212610133 | COVER |
| 040 | N 912004008100 | LOCK WASHER |
| 045 | N 000933008282 | SCREW |
| 050 | A 3212610318 | TRANSMISSION CASE COVER |
| FRONT | ||
| 052 | A 0029971346 | SEAL RING |
| Repalced by: A 0089970146 | ||
| 052 | A 0089970146 | SEAL RING |
| 055 | N 000137008101 | SPRING WASHER |
| 060 | N 000931008082 | SCREW |
| 065 | A 3122625362 | THRUST WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 065 | A 3122625462 | THRUST WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 065 | A 3122625562 | THRUST WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 065 | A 3122623462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 065 | A 3122624362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 065 | A 3122624462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 065 | A 3122623562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.15 MM | ||
| 065 | A 3122623662 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 065 | A 3122623762 | THRUST WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 075 | A 0442610020 | TRANSMISSION CASE COVER |
| Repalced by: A 3372610220 | ||
| 075 | A 3372610220 | TRANSMISSION CASE COVER |
| REAR | ||
| 075 | A 3442617020 | TRANSMISSION CASE COVER |
| REAR | ||
| 080 | A 0089971146 | SEAL RING |
| 083 | A 3212600086 | THREADED BUSHING |
| A 3212610031 | THREADED BUSHING | |
| A 1202610080 | GASKET | |
| 095 | N 915015024000 | PLUG |
| 100 | A 3212620862 | THRUST WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 100 | A 3212620962 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 100 | A 3212621062 | THRUST WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 100 | A 3212621162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 100 | A 3212621262 | THRUST WASHER |
| AS REQUIRED | ||
| 3.30 MM | ||
| 100 | A 3212621362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.40 MM | ||
| 100 | A 3212621462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.50 MM | ||
| 100 | A 3212621562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.60 MM | ||
| 110 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 110 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 110 | A 3122832452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 110 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 110 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 110 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 115 | N 912004008100 | LOCK WASHER |
| 120 | N 000933008273 | SCREW |
| 125 | N 000933008296 | SCREW |
| 125 | N 000931008387 | SCREW |
| 130 | A 3212610833 | COVER |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 321 261 03 33 | ||
| 135 | N 000137008101 | SPRING WASHER |
| COVER TO CASE REAR COVER | ||
| 140 | N 000933008279 | SCREW |
| COVER TO CASE REAR COVER | ||
| 143 | A 3522601514 | TRANSMISSION CASE COVER |
| Repalced by: A 3442607714 | ||
| 143 | A 3442607714 | TRANSMISSION CASE COVER |
| TOP | ||
| 145 | A 3222600214 | TRANSMISSION CASE COVER |
| Repalced by: H 983452600014 | ||
| 145 | H 983452600014 | TRANSMISSION CASE COVER |
| Repalced by: A 3452600314 | ||
| 145 | A 3452600314 | TRANSMISSION CASE COVER |
| TOP | ||
| 150 | A 3212610050 | BUSHING |
| 155 | A 3222610050 | BUSHING |
| 160 | A 3212650250 | BUSHING |
| 165 | A 3212650150 | BUSHING |
| 170 | N 000835008007 | STUD |
| Repalced by: A 3442657044 | ||
| 170 | A 3142650044 | GUIDE PIN |
| Repalced by: A 3442657044 | ||
| 170 | A 3442657044 | GUIDE PIN |
| 175 | N 000835008008 | STUD |
| 175 | N 000835006008 | STUD |
| 175 | N 000835008005 | STUD |
| 180 | N 000443020000 | EXPANSION PLUG |
| 20 MM | ||
| 180 | N 000443018000 | EXPANSION PLUG |
| 185 | A 3212650474 | PIN |
| 190 | N 000125013012 | WASHER |
| 195 | N 000979012002 | NUT |
| 197 | N 000094003217 | COTTER PIN |
| 200 | A 1369970830 | SCREW PLUG |
| 205 | N 007603018100 | SEAL RING |
| 208 | A 3372650007 | LEVER |
| 212 | N 005402302104 | CYLINDRICAL ROLLER |
| 216 | N 000433017000 | WASHER |
| 220 | N 900055017300 | LOCK RING |
| 225 | N 000137008101 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 228 | N 000933008279 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 232 | N 000931008085 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 232 | N 000931008238 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 235 | A 1112600058 | BREATHER |
| 238 | A 1112610082 | CAP |
| 242 | N 000933006086 | SCREW |
| 246 | N 000137006203 | SPRING WASHER |
| 250 | A 3212650416 | THRUST PIECE |
| 250 | H 983452650016 | THRUST PIECE |
| Repalced by: A 3212650516 | ||
| 250 | A 3212650516 | THRUST PIECE |
| 255 | A 3219931701 | SPRING |
| 258 | A 3219970103 | PLUG |
| 262 | A 3212650248 | INTERLOCK PIN |
| 262 | A 3212650148 | INTERLOCK PIN |
| 265 | A 3219930601 | SPRING |
| 268 | N 915015024000 | PLUG |
| 275 | A 3522680429 | SHIFTING ROD |
| Repalced by: A 3842680429 | ||
| 275 | A 3842680429 | SHIFTING ROD |
| 275 | A 3222680129 | SHIFTING ROD |
| A 3859931001 | SPRING | |
| TO 384 268 04 29 | ||
| 278 | N 006888005006 | WOODRUFF KEY |
| 282 | A 3212680533 | SHIFTING FINGER |
| Repalced by: A 3942687233 | ||
| 282 | A 3942687233 | SHIFTING FINGER |
| 282 | A 3172680333 | SHIFTING FINGER |
| Repalced by: A 3942687333 | ||
| 282 | A 3942687333 | SHIFTING FINGER |
| 285 | A 3229940112 | LOCK |
| 285 | N 070952020101 | LOCK PLATE |
| 290 | A 3219900160 | NUT |
| 293 | A 3522650030 | SELECTOR LEVER |
| 295 | A 3212600846 | PLATE |
| Repalced by: A 3852600046 | ||
| 295 | A 3852600046 | PLATE |
| Repalced by: A 3452600046 | ||
| 295 | A 3452600046 | PLATE |
| 300 | A 3212650350 | BUSHING |
| DETENT PLATE TO COVER | ||
| 305 | N 000137008101 | SPRING WASHER |
| DETENT PLATE TO COVER | ||
| 310 | N 000937008000 | NUT |
| DETENT PLATE TO COVER | ||
| 311 | N 000094002073 | COTTER PIN |
| DETENT PLATE TO COVER | ||
| 313 | A 1369908240 | WASHER |
| DETENT PLATE TO COVER | ||
| 314 | A 1362650272 | NUT |
| DETENT PLATE TO COVER | ||
| 315 | A 3212681029 | SHIFTING ROD |
| 315 | A 3222680229 | SHIFTING ROD |
| 320 | N 006888005006 | WOODRUFF KEY |
| 325 | A 3222680033 | SHIFTING FINGER |
| 330 | A 0459940012 | LOCK |
| Repalced by: A 3459940012 | ||
| 330 | A 3459940012 | LOCK |
| 335 | A 3229900060 | NUT |
| 340 | A 0002680497 | BOOT |
| 345 | N 009045028001 | SNAP RING |
| 350 | N 009045038001 | SNAP RING |
| 353 | A 3522610033 | COVER |
| 355 | A 3222610305 | TRANSMISSION CASE COVER |
| 358 | N 912004008100 | LOCK WASHER |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 360 | N 000137006203 | SPRING WASHER |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 365 | N 000934008000 | NUT |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 365 | N 000934006006 | NUT |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 370 | A 3212650805 | SHIFTING ROD |
| 1ST SPEED | ||
| 375 | A 3212651805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 380 | A 3212651905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 385 | A 3222650305 | SHIFTING ROD |
| REVERSE SPEED | ||
| 390 | A 3222650123 | SHIFTING DOG |
| 1ST SPEED | ||
| 392 | A 3029910340 | SPACER TUBE |
| 395 | A 3442600330 | SHIFTING FORK |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 322 260 09 30 | ||
| 400 | A 3442600130 | SHIFTING FORK |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 321 260 26 30 | ||
| 404 | A 3212602730 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 408 | A 3212650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 408 | A 3452600030 | SHIFTING FORK |
| REVERSE SPEED | ||
| 412 | A 3129931001 | SPRING |
| 416 | N 005401311000 | BALL |
| 420 | A 3122651236 | BRACKET |
| 420 | A 3122651036 | BRACKET |
| 420 | A 3442657036 | BRACKET |
| 424 | A 3129940332 | LOCK |
| BRACKET TO TRANSMISSION CASE | ||
| 428 | N 000933008288 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||

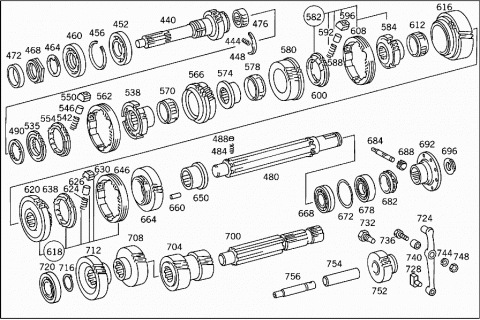

| 440 | A 3402620402 | DRIVE SHAFT |
| 444 | A 3219931201 | SPRING |
| 448 | A 3212620073 | LOCK |
| 452 | A 0019813101 | CYLINDR. ROLLER BEARING |
| 452 | A 3449817101 | CYLINDR. ROLLER BEARING |
| 456 | N 005417085001 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 456 | A 0009943435 | SNAP RING |
| AS REQUIRED | ||
| 1.80 MM | ||
| 456 | A 0009942835 | SNAP RING |
| AS REQUIRED | ||
| 1.90 MM | ||
| 460 | A 0009812827 | ANGULAR CONTACT BEARING |
| 460 | A 0009814327 | ANGULAR CONTACT BEARING |
| Repalced by: A 3459817027 | ||
| 460 | A 3459817027 | ANGULAR CONTACT BEARING |
| 460 | A 3459817327 | ANGULAR CONTACT BEARING |
| 464 | A 3122623162 | THRUST WASHER |
| 468 | A 3122621172 | NUT |
| 472 | A 0029971346 | SEAL RING |
| Repalced by: A 0089970146 | ||
| 472 | A 0089970146 | SEAL RING |
| 476 | A 0009819512 | ROLLER ASSEMBLY |
| 476 | A 0009819612 | ROLLER ASSEMBLY |
| 476 | A 3459810012 | ROLLER ASSEMBLY |
| 480 | A 3222620505 | MAIN SHAFT |
| 484 | A 3129931701 | SPRING |
| 488 | A 3212620374 | PIN |
| Repalced by: A 3852621074 | ||
| 488 | A 3852621074 | PIN |
| 490 | A 3212622162 | THRUST WASHER |
| Repalced by: A 3212623862 | ||
| 490 | A 3212623862 | THRUST WASHER |
| AS REQUIRED | ||
| 6.90 MM | ||
| 490 | A 3212622062 | THRUST WASHER |
| Repalced by: A 3212623762 | ||
| 490 | A 3212623762 | THRUST WASHER |
| AS REQUIRED | ||
| 7.00 MM | ||
| 490 | A 3212621962 | THRUST WASHER |
| Repalced by: A 3212623662 | ||
| 490 | A 3212623662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.1 MM | ||
| 490 | A 3212621862 | THRUST WASHER |
| Repalced by: A 3212623562 | ||
| 490 | A 3212623562 | THRUST WASHER |
| AS REQUIRED | ||
| 7.2 MM | ||
| 490 | A 3212621762 | THRUST WASHER |
| Repalced by: A 3212623462 | ||
| 490 | A 3212623462 | THRUST WASHER |
| AS REQUIRED | ||
| 7.3 MM | ||
| 490 | A 3212620462 | THRUST WASHER |
| Repalced by: A 3212623962 | ||
| 490 | A 3212623962 | THRUST WASHER |
| AS REQUIRED | ||
| 7.4 MM | ||
| 490 | A 3212622862 | THRUST WASHER |
| Repalced by: A 3212624662 | ||
| 490 | A 3212624662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.45 MM | ||
| 490 | A 3212620562 | THRUST WASHER |
| Repalced by: A 3212624062 | ||
| 490 | A 3212624062 | THRUST WASHER |
| AS REQUIRED | ||
| 7.5 MM | ||
| 490 | A 3212622962 | THRUST WASHER |
| Repalced by: A 3212624762 | ||
| 490 | A 3212624762 | THRUST WASHER |
| AS REQUIRED | ||
| 7.55 MM | ||
| 490 | A 3212620662 | THRUST WASHER |
| Repalced by: A 3212624162 | ||
| 490 | A 3212624162 | THRUST WASHER |
| AS REQUIRED | ||
| 7.6 MM | ||
| 490 | A 3212623062 | THRUST WASHER |
| Repalced by: A 3212624862 | ||
| 490 | A 3212624862 | THRUST WASHER |
| AS REQUIRED | ||
| 7.65 MM | ||
| 490 | A 3212620762 | THRUST WASHER |
| Repalced by: A 3212624262 | ||
| 490 | A 3212624262 | THRUST WASHER |
| AS REQUIRED | ||
| 7.7 MM | ||
| 490 | A 3212622562 | THRUST WASHER |
| Repalced by: A 3212624362 | ||
| 490 | A 3212624362 | THRUST WASHER |
| AS REQUIRED | ||
| 7.8 MM | ||
| 490 | A 3212622662 | THRUST WASHER |
| Repalced by: A 3212624462 | ||
| 490 | A 3212624462 | THRUST WASHER |
| AS REQUIRED | ||
| 7.9 MM | ||
| 490 | A 3212622762 | THRUST WASHER |
| Repalced by: A 3212624562 | ||
| 490 | A 3212624562 | THRUST WASHER |
| AS REQUIRED | ||
| 8.0 MM | ||
| 535 | A 3402620034 | SYNCHRONIZER RING |
| 5TH SPEED | ||
| 538 | A 3222600645 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 538 | A 3212621835 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 542 | A 3219930701 | SPRING |
| 546 | A 3212620774 | PIN |
| 550 | A 3212621040 | FOLLOWER |
| 554 | A 3222620137 | SYNCHRONIZER CONE |
| 562 | A 3212620823 | SLIDING COLLAR |
| 566 | A 3222600244 | GEAR |
| Repalced by: A 3222601744 | ||
| 566 | A 3222601744 | GEAR |
| 4TH SPEED | ||
| 570 | A 3229810612 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 570 | A 3229810812 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 570 | A 3529810012 | ROLLER ASSEMBLY |
| 570 | A 0009819112 | ROLLER ASSEMBLY |
| Repalced by: A 3459817312 | ||
| 570 | A 3459817312 | ROLLER ASSEMBLY |
| 574 | A 3222624050 | BUSHING |
| AS REQUIRED | ||
| 44.5 MM | ||
| 574 | A 3222624150 | BUSHING |
| AS REQUIRED | ||
| 44.6 MM | ||
| 578 | A 3229810512 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 578 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 578 | A 3529810112 | ROLLER ASSEMBLY |
| 578 | A 0009819012 | ROLLER ASSEMBLY |
| Repalced by: A 3459817212 | ||
| 578 | A 3459817212 | ROLLER ASSEMBLY |
| 580 | A 3222600644 | GEAR |
| 3RD SPEED | ||
| 580 | A 3222600644 | GEAR |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 322 260 24 44 | ||
| 582 | A 3222600545 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 584 | A 3222620435 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 588 | A 3219930701 | SPRING |
| 592 | A 3212620774 | PIN |
| 596 | A 3212621040 | FOLLOWER |
| 600 | A 3222620137 | SYNCHRONIZER CONE |
| 608 | A 3212620823 | SLIDING COLLAR |
| 612 | A 3229810512 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 612 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 612 | A 3529810112 | ROLLER ASSEMBLY |
| 612 | A 0009819012 | ROLLER ASSEMBLY |
| Repalced by: A 3459817212 | ||
| 612 | A 3459817212 | ROLLER ASSEMBLY |
| 616 | A 3222620112 | GEAR |
| 2ND SPEED | ||
| 618 | A 3222600625 | GEAR |
| MAIN SHAFT | ||
| 620 | A 3222630333 | REVERSE IDLER GEAR |
| 624 | A 3219930701 | SPRING |
| 626 | A 3212620674 | PIN |
| 1ST SPEED | ||
| 630 | A 3212620940 | FOLLOWER |
| 1ST SPEED | ||
| 638 | A 3222620137 | SYNCHRONIZER CONE |
| 646 | A 3212620723 | SLIDING COLLAR |
| 1ST SPEED | ||
| 650 | A 3222621150 | BUSHING |
| AS REQUIRED | ||
| 44.2 MM | ||
| 650 | A 3222621250 | BUSHING |
| AS REQUIRED | ||
| 44.3 MM | ||
| 650 | A 3222621350 | BUSHING |
| AS REQUIRED | ||
| 44.4 MM | ||
| 650 | A 3222621450 | BUSHING |
| AS REQUIRED | ||
| 44.5 MM | ||
| 650 | A 3222621550 | BUSHING |
| AS REQUIRED | ||
| 44.6 MM | ||
| 650 | A 3222621650 | BUSHING |
| AS REQUIRED | ||
| 44.7 MM | ||
| 650 | A 3222621750 | BUSHING |
| AS REQUIRED | ||
| 44.8 MM | ||
| 650 | A 3222621850 | BUSHING |
| AS REQUIRED | ||
| 44.9 MM | ||
| 660 | N 005402004203 | CYLINDRICAL ROLLER |
| 660 | A 3449817086 | ROLLER |
| 664 | A 3222620211 | GEAR |
| Repalced by: A 3222620511 | ||
| 664 | A 3222620511 | GEAR |
| 1ST SPEED | ||
| 668 | A 0009811201 | CYLINDR. ROLLER BEARING |
| 668 | H 980009810401 | CYLINDR. ROLLER BEARING |
| Repalced by: A 3459817001 | ||
| 668 | A 3459817001 | CYLINDR. ROLLER BEARING |
| 668 | A 3449817001 | CYLINDR. ROLLER BEARING |
| 672 | A 3219940040 | SNAP RING |
| AS REQUIRED | ||
| 2.68 MM | ||
| 672 | A 3219940140 | SNAP RING |
| AS REQUIRED | ||
| 2.73 MM | ||
| 672 | A 3219940240 | SNAP RING |
| AS REQUIRED | ||
| 2.78 MM | ||
| 672 | A 3219940340 | SNAP RING |
| AS REQUIRED | ||
| 2.83 MM | ||
| 672 | A 3219940440 | SNAP RING |
| AS REQUIRED | ||
| 2.88 MM | ||
| 672 | A 3219940540 | SNAP RING |
| AS REQUIRED | ||
| 2.93 MM | ||
| 678 | A 0009812927 | ANGULAR CONTACT BEARING |
| 678 | A 0009814227 | ANGULAR CONTACT BEARING |
| Repalced by: A 3459817127 | ||
| 678 | A 3459817127 | ANGULAR CONTACT BEARING |
| 678 | A 3459817227 | ANGULAR CONTACT BEARING |
| 682 | A 3522640130 | DRIVE GEAR |
| SPEEDOMETER | ||
| 682 | A 3522640030 | DRIVE GEAR |
| SPEEDOMETER | ||
| 684 | A 0009814227 | ANGULAR CONTACT BEARING |
| Repalced by: A 3142640032 | ||
| 684 | A 3142640032 | SHAFT |
| 688 | A 3212640631 | DRIVE GEAR |
| SPEEDOMETER | ||
| 688 | A 3212640531 | DRIVE GEAR |
| SPEEDOMETER | ||
| 690 | N 915015024000 | PLUG |
| 692 | A 3522620045 | FLANGE |
| 696 | A 3222620072 | NUT |
| FLANGE TO SHAFT | ||
| 700 | A 3222630202 | COUNTERSHAFT |
| 704 | A 3222630313 | GEAR |
| 2ND AND 3RD SPEED | ||
| 708 | A 3222630314 | GEAR |
| Repalced by: A 3222630514 | ||
| 708 | A 3222630514 | GEAR |
| 4TH SPEED | ||
| 712 | A 3402630010 | GEAR |
| CONSTANT | ||
| 716 | N 900055052300 | LOCK RING |
| COUNTERSHAFT | ||
| 720 | A 0019813105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 720 | A 0019815005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 720 | A 3459817005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 724 | A 3212650208 | LEVER |
| REVERSE SPEED | ||
| 728 | A 3142650349 | SLIDE |
| 732 | A 3022650074 | PIN |
| 736 | A 3212650074 | PIN |
| 740 | A 3212650050 | BUSHING |
| 744 | N 000127010202 | LOCK WASHER |
| 748 | N 000934010000 | NUT |
| 752 | A 3222600725 | GEAR |
| 754 | A 3212630450 | BUSHING |
| 756 | A 3212630430 | REVERSE IDLER SHAFT |
| Repalced by: A 3412637030 | ||
| 756 | A 3412637030 | REVERSE IDLER SHAFT |
| X XXXXXXXXXXXX | PART NAME MISSING | |

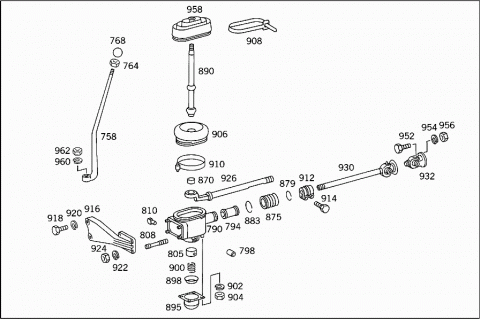

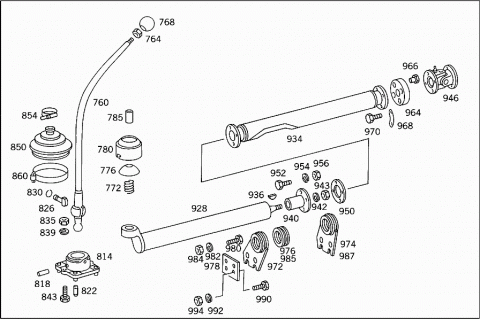

| REMOTE GEARSHIFT MECHANISM | ||
| 758 | A 3522670401 | SHIFT LEVER |
| 760 | A 3022600139 | SHIFT LEVER |
| Repalced by: A 3822607039 | ||
| 760 | A 3822607039 | SHIFT LEVER |
| 760 | A 3822607039 | SHIFT LEVER |
| 760 | A 3822607039 | SHIFT LEVER |
| 764 | N 000936010007 | NUT |
| 768 | A 0442600140 | HANDLE |
| Repalced by: A 3442600040 | ||
| 768 | A 3442600040 | HANDLE |
| 768 | A 3222600040 | HANDLE |
| 768 | A 3452607140 | HANDLE |
| 772 | A 3179930501 | SPRING |
| 776 | A 3022670008 | SPHERICAL PIECE |
| 780 | A 3142680005 | COVER |
| Repalced by: A 3082680005 | ||
| 780 | A 3082680005 | COVER |
| 785 | A 3129970982 | HOSE |
| 790 | H 983452600072 | SHIFT CASE |
| Repalced by: A 3452600172 | ||
| 790 | A 3452600172 | SHIFT CASE |
| 794 | A 3522680050 | BUSHING |
| 798 | A 3522680250 | BUSHING |
| 805 | A 3522680335 | BEARING |
| 808 | N 000835008005 | STUD |
| 808 | N 000835008008 | STUD |
| 810 | A 3142680249 | SLIDE |
| 814 | A 3222603214 | TRANSMISSION CASE COVER |
| 818 | N 001473005012 | GROOVED PIN |
| 822 | N 000007008205 | CYLINDRICAL PIN |
| 826 | A 3212670025 | SLIDING BLOCK |
| 826 | A 3442677025 | SLIDING BLOCK |
| 830 | N 009045008002 | SNAP RING |
| 835 | N 000934008010 | NUT |
| CASE COVER TO BEARING BRACKET | ||
| 835 | N 913004008001 | NUT |
| CASE COVER TO BEARING BRACKET | ||
| 839 | N 000127008104 | LOCK WASHER |
| CASE COVER TO BEARING BRACKET | ||
| 843 | N 000933008282 | SCREW |
| CASE COVER TO BEARING BRACKET | ||
| 843 | N 000933008288 | SCREW |
| CASE COVER TO BEARING BRACKET | ||
| 850 | A 1362670296 | BOOT |
| 854 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 854 | A 3459977390 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 860 | N 900264005528 | LOOM TIE |
| Repalced by: A 3829977390 | ||
| 860 | A 3829977390 | LOOM TIE |
| 860 | N 900264005035 | LOOM TIE |
| 870 | A 3522680450 | BUSHING |
| 875 | A 3522680097 | BOOT |
| 879 | N 009045028001 | SNAP RING |
| 883 | N 009045055000 | SNAP RING |
| 890 | A 3522670102 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 895 | A 3522680005 | COVER |
| 898 | A 3022670008 | SPHERICAL PIECE |
| 900 | A 3179930501 | SPRING |
| 902 | N 000127008104 | LOCK WASHER |
| BOOT TO SHIFT CASE | ||
| 904 | N 000934008000 | NUT |
| 906 | A 3522680497 | BOOT |
| SHIFT CASE | ||
| 908 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 908 | A 3459977390 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 910 | N 900264005524 | LOOM TIE |
| BOOT TO SHIFT CASE | ||
| 912 | A 3142680388 | CLAMPING PIECE |
| SHIFTING TUBE | ||
| 914 | N 000933010269 | SCREW |
| 916 | A 3522680236 | BRACKET |
| 918 | N 000931010111 | SCREW |
| 920 | N 000127010202 | LOCK WASHER |
| 922 | N 000127008104 | LOCK WASHER |
| SHIFT CASE TO BRACKET | ||
| 924 | N 000934008000 | NUT |
| SHIFT CASE TO BRACKET | ||
| 926 | A 3522602033 | SHIFTING ROD |
| Repalced by: A 3452600533 | ||
| 926 | A 3452600533 | SHIFTING ROD |
| FRONT | ||
| 928 | A 3522602933 | SHIFTING ROD |
| Repalced by: A 3452607133 | ||
| 928 | A 3452607133 | SHIFTING ROD |
| FRONT | ||
| 6760 MM | ||
| 928 | A 3452607833 | SHIFTING ROD |
| FRONT | ||
| 7640 MM | ||
| 928 | A 3452600233 | SHIFTING ROD |
| FRONT | ||
| 928 | A 3452600333 | SHIFTING ROD |
| FRONT | ||
| 930 | A 3442608033 | SHIFTING ROD |
| REAR | ||
| 932 | A 3442687189 | JOINT |
| 932 | A 3452687089 | JOINT |
| 934 | A 3522604233 | SHIFTING ROD |
| Repalced by: A 3452607033 | ||
| 934 | A 3452607033 | SHIFTING ROD |
| REAR | ||
| 1079 MM | ||
| 934 | A 3452600133 | SHIFTING ROD |
| REAR | ||
| 936 | N 006888005006 | WOODRUFF KEY |
| FLANGE TO SHIFTING TUBE | ||
| 940 | A 3212680228 | CONNECTOR |
| 942 | N 000127012201 | LOCK WASHER |
| FLANGE TO SHIFTING TUBE | ||
| 943 | N 000934012041 | NUT |
| FLANGE TO SHIFTING TUBE | ||
| 946 | A 0002681889 | JOINT |
| Repalced by: A 3442687089 | ||
| 946 | A 3442687089 | JOINT |
| 946 | A 0002681389 | JOINT |
| Repalced by: A 3442687289 | ||
| 946 | A 0002681989 | JOINT |
| Repalced by: A 3442687289 | ||
| 946 | A 3442687289 | JOINT |
| 950 | A 3212680552 | SPACER WASHER |
| 2 MM | ||
| 950 | A 3212680452 | SPACER WASHER |
| 3 MM | ||
| 950 | A 3212680352 | SPACER WASHER |
| 5 MM | ||
| 952 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 954 | N 000127008104 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 956 | N 000934008000 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 958 | A 3522670296 | BOOT |
| 958 | A 3522670396 | BOOT |
| Repalced by: A 3442677096 | ||
| 958 | A 3442677096 | BOOT |
| 960 | N 000127012201 | LOCK WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 962 | N 000934012021 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 964 | A 0442600075 | CONNECTOR |
| Repalced by: A 3442600075 | ||
| 964 | A 3442600075 | CONNECTOR |
| 966 | A 3222680150 | BUSHING |
| 968 | A 3222680073 | LOCK |
| CONNECTOR | ||
| 970 | A 3219900601 | SCREW |
| 972 | A 3522600084 | GUIDE |
| SHIFTING TUBE | ||
| NO.I | ||
| 974 | A 3522600284 | GUIDE |
| SHIFTING TUBE | ||
| NO.II | ||
| 974 | A 3522600684 | GUIDE |
| SHIFTING TUBE | ||
| NO.III | ||
| 976 | A 3022680050 | BUSHING |
| 978 | A 3522681236 | BRACKET |
| SHIFTING TUBE | ||
| 980 | N 000933008273 | SCREW |
| SHIFTING TUBE | ||
| 982 | N 000127008104 | LOCK WASHER |
| SHIFTING TUBE | ||
| 984 | N 000934008010 | NUT |
| SHIFTING TUBE | ||
| 985 | A 3022680050 | BUSHING |
| SHIFTING TUBE | ||
| A 0452600062 | BRACKET | |
| Repalced by: A 3452607084 | ||
| 987 | A 3452607084 | GUIDE |
| SHIFTING TUBE | ||
| 990 | N 000933008282 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 992 | N 000127008104 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 994 | N 000934008010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 996 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 998 | N 000127014201 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
