Transporto priemonė: OF 1318; VIN numerio dalis: 685411

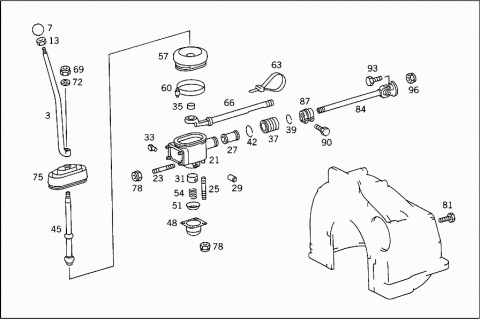

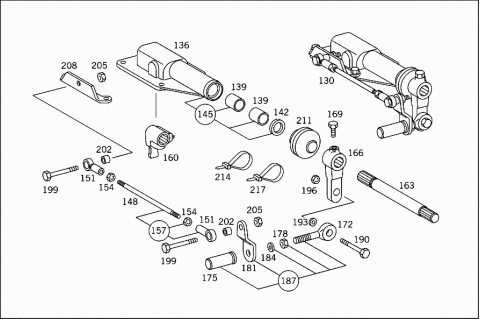

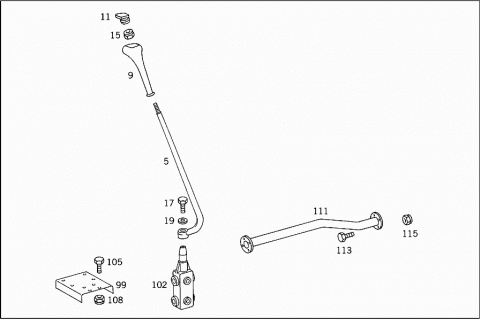

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3522670401 | SHIFT LEVER |
| UPPER PART | ||
| 005 | A 6882677801 | SHIFT LEVER |
| UPPER PART | ||
| 007 | A 3442600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 007 | A 3222600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 007 | A 3452607140 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 009 | A 3642687142 | KNOB |
| SHIFT LEVER UPPER PART | ||
| 011 | A 3842687757 | COVER |
| SHIFT LEVER UPPER PART | ||
| 013 | N 000936010007 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 015 | N 913004010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 017 | N 000933010174 | SCREW |
| M 10X25 | ||
| 019 | N 000125010517 | WASHER |
| 021 | A 3452600172 | SHIFT CASE |
| 023 | N 000835008008 | STUD |
| SHIFT CASE,SIDE | ||
| M 8X20 | ||
| 025 | N 000835008005 | STUD |
| SHIFT CASE,BOTTOM | ||
| M 8X18 | ||
| 027 | A 3522680050 | BUSHING |
| 029 | A 3522680250 | BUSHING |
| 031 | A 3522680335 | BEARING |
| 033 | A 3142680249 | SLIDE |
| SHIFT CASE | ||
| 035 | A 3522680450 | BUSHING |
| FRONT SHIFTING ROD | ||
| 037 | A 3522680097 | BOOT |
| FRONT SHIFTING ROD | ||
| 039 | N 009045028001 | SNAP RING |
| FRONT SHIFTING ROD | ||
| 042 | N 009045055000 | SNAP RING |
| FRONT SHIFTING ROD | ||
| 045 | A 3522670102 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 048 | A 3522680005 | COVER |
| SHIFT CASE,BOTTOM | ||
| 051 | A 3022670008 | SPHERICAL PIECE |
| SHIFT CASE,BOTTOM | ||
| 054 | A 3179930501 | SPRING |
| SHIFT CASE,BOTTOM | ||
| 057 | A 3522680497 | BOOT |
| SHIFT CASE | ||
| 060 | N 900264005524 | LOOM TIE |
| BOOT TO SHIFT CASE | ||
| 063 | A 3449977290 | LOOM TIE |
| BOOT TO SHIFT CASE | ||
| 066 | A 3842607933 | SHIFTING ROD |
| FRONT | ||
| 069 | N 913004012004 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 072 | N 000125013012 | WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 075 | A 3522670296 | BOOT |
| SHIFT LEVER BEARING COVERING | ||
| 075 | A 3442677096 | BOOT |
| SHIFT LEVER BEARING COVERING | ||
| 078 | N 913004008001 | NUT |
| SHIFT CASE TO BRACKET | ||
| 078 | N 913004008001 | NUT |
| COVER TO SHIFT CASE | ||
| 081 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| M 14X40 | ||
| 084 | A 3842608233 | SHIFTING ROD |
| Repalced by: A 3842608733 | ||
| 084 | A 3842608733 | SHIFTING ROD |
| REAR | ||
| 087 | A 3142680388 | CLAMPING PIECE |
| SHIFTING TUBE | ||
| 090 | N 000933010269 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| M 10X25 | ||
| 093 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 096 | N 913004008001 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 099 | A 3842687140 | BRACKET |
| REMOTE GEARSHIFT BRACKET | ||
| 102 | A 0002684601 | SHIFT LEVER |
| REMOTE GEARSHIFT BRACKET | ||
| 105 | N 000933008273 | SCREW |
| REMOTE GEARSHIFT BRACKET | ||
| M 8X30 | ||
| 108 | N 913004008001 | NUT |
| REMOTE GEARSHIFT BRACKET | ||
| 111 | A 3842608033 | SHIFTING ROD |
| 111 | A 3842607633 | SHIFTING ROD |
| 113 | N 000933008273 | SCREW |
| M 8X30 | ||
| 115 | N 913004008001 | NUT |
| H XM6852600033 | SHIFTING ROD | |
| H XM6852680088 | CLAMPING PIECE | |
| Q T23 09436 100 | PART NAME MISSING | |
| SCREW | ||
| Q T23 09901 106 | PART NAME MISSING | |
| NUT | ||
| H XM6852600005 | P.T.O. | |
| 130 | H XM6852600705 | SHIFT CASE |
| COMPLETE | ||
| 136 | Q TRCM40157AA | SHIFT CASE |
| 139 | Q TRMI40159AA | BUSHING |
| 142 | Q TRMI40160AA | SEAL RING |
| 145 | Q TRES40156AA | PARTS KIT |
| SHIFT CASE | ||
| 148 | Q TRMI40261AA | PULL ROD |
| 151 | Q TRMI40291AA | JOINT |
| 154 | Q TRT040434AA | NUT |
| 3/8-24 | ||
| 157 | Q TREE40254AA | PARTS KIT |
| LINKAGE | ||
| 160 | Q TRPC40439AA | SHIFTING FINGER |
| 163 | Q TRBRA0444AA | SHIFTING ROD |
| 166 | Q TRPCA0450AA | LEVER |
| 169 | Q TRT040451AA | SCREW |
| 172 | Q TRMI40468AA | JOINT |
| 175 | Q TRBR40513AA | PIN |
| 178 | Q TRT040514AA | NUT |
| 181 | Q TRMI40515AA | BRACKET |
| 184 | Q TR2671070 | WASHER |
| 187 | Q TREE40454AA | PARTS KIT |
| OPERATING LEVER | ||
| 190 | Q TRT040516AA | SCREW |
| 1/2-13 | ||
| 193 | Q TRSE40517AA | BUSHING |
| 196 | Q TRT040518AA | NUT |
| 1/2-13 | ||
| 199 | Q TRT040519AA | SCREW |
| 202 | Q TRSE40520AA | BUSHING |
| 205 | Q TRT040521AA | NUT |
| 208 | Q TRMI40522AA | BRACKET |
| 211 | Q TRGP40523AA | BOOT |
| 214 | Q TRMI40524AA | LOOM TIE |
| 6" | ||
| 217 | Q TRMI40525AA | LOOM TIE |
| 4" | ||
