Transporto priemonė: OF 1318; VIN numerio dalis: 685416

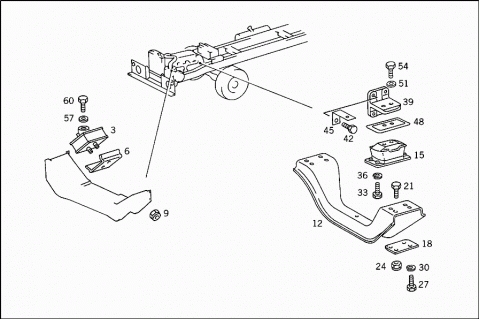

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3522400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 003 | A 3452400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 006 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 009 | N 913004012003 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 012 | A 3453127107 | ENGINE CROSS MEMBER |
| ENGINE REAR SUSPENSION | ||
| 015 | A 6842407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 015 | A 3862407218 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 018 | A 3763127460 | REINFORCEMENT |
| ENGINE LEFT REAR MOUNTING | ||
| 018 | A 3763127560 | REINFORCEMENT |
| ENGINE RIGHT REAR MOUNTING | ||
| 021 | N 000961012163 | SCREW |
| ENGINE REAR CROSS MEMBER TO CONSOLE | ||
| M 12X1,5X35 | ||
| 024 | N 913004012006 | NUT |
| ENGINE REAR CROSS MEMBER TO CONSOLE | ||
| 027 | N 000961012171 | SCREW |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| M 12X1,5X40 | ||
| 030 | N 912004012100 | LOCK WASHER |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| 033 | N 000961012160 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 12X1.5X25 | ||
| 036 | N 912004012100 | LOCK WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
| 039 | A 6842427105 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 042 | N 000933016079 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X35 | ||
| 045 | A 6824298140 | BRACKET |
| SUPPORTING ARM TO BELL HOUSING | ||
| 045 | A 3874291340 | BRACKET |
| SUPPORTING ARM TO BELL HOUSING | ||
| 048 | A 3812420034 | SCREENING PLATE |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 051 | A 3459907340 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 054 | N 000961014116 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| M 14X1.5X50 | ||
| 057 | A 3529902440 | WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 060 | N 000960016249 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M 16X1.5X55 |
