Transporto priemonė: OF 1318; VIN numerio dalis: 685416

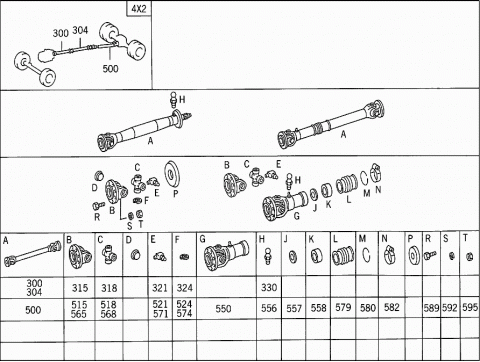

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
300	A 3864100304	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
		1518 MM
300	H XM6854101217	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
300	H XM6854101317	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
304	A 3454101201	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
		1550 MM
304	H XM6854101105	INTERMEDIATE SHAFT
		FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
304	H XM6854101405	INTERMEDIATE SHAFT
		FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
315	A 3364110011	DRIVE FLANGE
		PROPELLER SHAFT
318	A 3314100031	UNIVERSAL JOINT CROSS
		PROPELLER SHAFT
321	N 071412008300	GREASE NIPPLE
		UNIVERSAL JOINT CROSS
321	A 3459977288	GREASE NIPPLE
		UNIVERSAL JOINT CROSS
324	A 3354111173	LOCK
		AS REQUIRED
		1.700 MM
324	A 3354111273	LOCK
		AS REQUIRED
		1.725 MM
324	A 3354111373	LOCK
		AS REQUIRED
		1.750 MM
324	A 3354111473	LOCK
		AS REQUIRED
		1.775 MM
324	A 3354111573	LOCK
		AS REQUIRED
		1.800 MM
324	A 3454110073	LOCK
		AS REQUIRED
		1.825 MM
330	N 071412010100	GREASE NIPPLE
		PROPELLER SHAFT

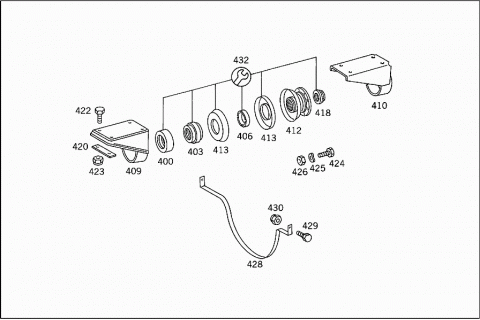

400	A 3384130012	RUBBER MOUNTING
		INTERMEDIATE BEARING
403	A 3544100051	BALL BEARING
		INTERMEDIATE BEARING
403	A 3844100051	BALL BEARING
		INTERMEDIATE BEARING
406	A 3374130131	BEARING RING
		INTERMEDIATE BEARING
409	A 3444107040	BRACKET
		INTERMEDIATE BEARING
		"I"
409	H XM6854136642	BRACKET
		INTERMEDIATE BEARING
		"I"
410	A 3764100140	BRACKET
		INTERMEDIATE BEARING
		"II"
410	H XM6854136542	BRACKET
		INTERMEDIATE BEARING
410	H XM6854136742	BRACKET
412	A 3364100030	CENTERING FLANGE
		INTERMEDIATE BEARING
413	A 3354130061	PROTECTIVE CAP
		PROPELLER SHAFT
418	A 3853510172	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
420	A 3524130011	REINFORCEMENT
		BRACKET TO CROSS MEMBER
422	N 000961010039	SCREW
		BRACKET TO CROSS MEMBER
423	N 913002010002	NUT
		BRACKET TO CROSS MEMBER
424	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2 - 13
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT BEARING TO BRACKET
425	Q 23-09114-002	PART NAME MISSING
		SPRING WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT BEARING TO BRACKET
426	Q 23-09901-108	PART NAME MISSING
		NUT
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT BEARING TO BRACKET
428	A 3764100041	REBOUND STRAP
		PROPELLER SHAFT
428	A 3844117182	REBOUND STRAP
		PROPELLER SHAFT
429	N 000933010254	SCREW
		REBOUND STRAP TO FRAME
		M 10X25
430	N 913004010004	NUT
		REBOUND STRAP TO FRAME
432	A 3084100010	INTERMEDIATE BEARING
		REPAIR KIT
500	A 3454108402	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING II TO REAR AXLE
		1590 MM
500	H XM6854109302	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING II TO REAR AXLE
500	H XM6854109902	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING II TO REAR AXLE
515	A 3364110011	DRIVE FLANGE
		REAR PROPELLER SHAFT
518	A 3314100031	UNIVERSAL JOINT CROSS
		REAR PROPELLER SHAFT
521	N 071412008300	GREASE NIPPLE
		UNIVERSAL JOINT CROSS
521	A 3459977288	GREASE NIPPLE
		UNIVERSAL JOINT CROSS
524	A 3354111173	LOCK
		AS REQUIRED
		1.700 MM
524	A 3354111273	LOCK
		AS REQUIRED
		1.725 MM
524	A 3354111373	LOCK
		AS REQUIRED
		1.750 MM
524	A 3354111473	LOCK
		AS REQUIRED
		1.775 MM
524	A 3354111573	LOCK
		AS REQUIRED
		1.800 MM
524	A 3454110073	LOCK
		AS REQUIRED
		1.825 MM
550	A 3354100728	UNIVERSAL JOINT
		REAR PROPELLER SHAFT
556	N 071412008100	GREASE NIPPLE
		REAR PROPELLER SHAFT
557	A 3354110180	GASKET
		REAR PROPELLER SHAFT
558	A 3354110058	SEAL HOLDER
		REAR PROPELLER SHAFT
565	A 3364110011	DRIVE FLANGE
		REAR PROPELLER SHAFT
568	A 3314100031	UNIVERSAL JOINT CROSS
		REAR PROPELLER SHAFT
571	N 071412008300	GREASE NIPPLE
		UNIVERSAL JOINT CROSS
571	A 3459977288	GREASE NIPPLE
		UNIVERSAL JOINT CROSS
574	A 3354111173	LOCK
		AS REQUIRED
		1.700 MM
574	A 3354111273	LOCK
		AS REQUIRED
		1.725 MM
574	A 3354111373	LOCK
		AS REQUIRED
		1.750 MM
574	A 3354111473	LOCK
		AS REQUIRED
		1.775 MM
574	A 3354111573	LOCK
		AS REQUIRED
		1.800 MM
574	A 3454110073	LOCK
		AS REQUIRED
		1.825 MM
579	A 3454107180	BOOT
		REAR PROPELLER SHAFT
580	A 3454117092	CLAMPING RING
		BOOT TO PROPELLER SHAFT
582	A 3449979790	CLAMP
		BOOT TO PROPELLER SHAFT
582	N 916018070000	CLAMP
		BOOT TO PROPELLER SHAFT
582	A 3449979890	CLAMP
		BOOT TO PROPELLER SHAFT
582	N 916017090000	CLAMP
		BOOT TO PROPELLER SHAFT
589	A 3609903001	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
589	Q 23-09437-150	PART NAME MISSING
		SCREW
		3/8 - 24
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT TO TRANSMISSION
592	Q 23-09320-011	PART NAME MISSING
		SPRING WASHER
		3/8
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT TO TRANSMISSION
595	N 000934012042	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
595	Q 23-09247-206	PART NAME MISSING
		NUT
		3/8 - 24
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT TO TRANSMISSION
