Transporto priemonė: OF 1318/51 GUATEMALA; VIN numerio dalis: 685416

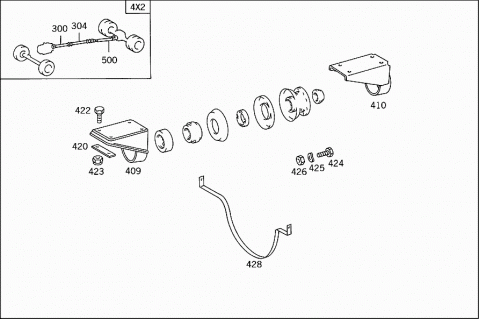

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
300	H XM6854101217	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
304	H XM6854101105	INTERMEDIATE SHAFT
		FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
409	H XM6854136642	BRACKET
		INTERMEDIATE BEARING
		"I"
410	H XM6854136542	BRACKET
		INTERMEDIATE BEARING
420	A 3524130011	REINFORCEMENT
		BRACKET TO CROSS MEMBER
422	N 000961010039	SCREW
		BRACKET TO CROSS MEMBER
423	N 913002010002	NUT
		BRACKET TO CROSS MEMBER
424	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2 - 13
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT BEARING TO BRACKET
425	Q 23-09114-002	PART NAME MISSING
		SPRING WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT BEARING TO BRACKET
426	Q 23-09901-108	PART NAME MISSING
		NUT
	Y YYYYYYYYYYYY	PART NAME MISSING
		PROPELLER SHAFT BEARING TO BRACKET
428	A 3764100041	REBOUND STRAP
		PROPELLER SHAFT
500	H XM6854109302	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING II TO REAR AXLE
