Transporto priemonė: OF 1721; VIN numerio dalis: 384072

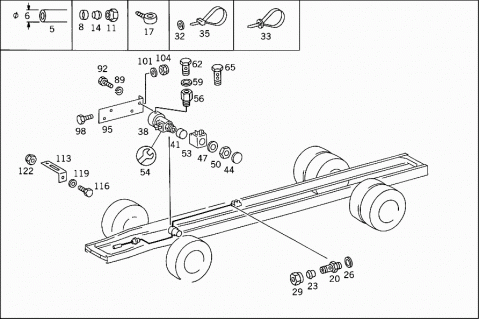

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		EXHAUST BRAKE VALVE LINE CONNECTION
005	A 0089976082	HOSE
		4X6 MM
005	A 0089976082	HOSE
		FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO 3/2-WAY VALVE
005	A 0089976082	HOSE
		SOLENOID VALVE TO CYLINDER
008	A 0009920205	BUSHING
	Repalced by: N 915062004000
008	N 915062004000	SLEEVE
011	N 915017006100	UNION NUT
014	N 003861006007	GLAND
017	N 915052004015	BANJO UNION
		4/12
017	N 915052004019	BANJO UNION
		4/16
020	N 915039012205	HOLLOW SCREW FITTING
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
020	N 915039012205	FITTING
020	N 915040012206	HOLLOW SCREW FITTING
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
020	N 915040012206	FITTING
023	N 915005004003	LOCKING CONE
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
023	N 915005004003	SEALING CONE
026	N 007603016103	SEAL RING
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
026	N 007603016103	SEALING RING
029	N 915020012004	NUT
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
029	N 915020012004	NUT
032	A 3609902440	WASHER
		COMPRESSED AIR LINE TO SIDE MEMBER
033	A 3849977090	LOOM TIE
		COMPRESSED AIR LINE TO SIDE MEMBER
035	A 0019978590	LOOM TIE
		COMPRESSED AIR LINE TO SIDE MEMBER
035	A 3459977690	LOOM TIE
		COMPRESSED AIR LINE TO SIDE MEMBER
035	A 3449977290	LOOM TIE
	Repalced by: A 3459977390
035	A 3459977390	LOOM TIE
		195 MM
	X XXXXXXXXXXXX	PART NAME MISSING
		ENGINE SHUT-OFF AND EXHAUST BRAKE
	A 3454347001	VALVE
		(3/2-WAY SOLENOID VALVE)
	A 3454347401	VALVE
		(3/2-WAY SOLENOID VALVE)
038	A 3649977236	VALVE
	Repalced by: A 3889978136
038	A 3889978136	VALVE
		(3/2-WAY SOLENOID VALVE)
		"PARKER"
038	A 3889978136	VALVE
		(3/2-WAY SOLENOID VALVE)
		"PARKER"
038	A 3889978836	VALVE
		(3/2-WAY SOLENOID VALVE)
		"WABCO"
038	A 3889978836	VALVE
		(3/2-WAY SOLENOID VALVE)
		"WABCO"
041	A 0004311868	VALVE PART
041	A 0004311868	VALVE PART
044	A 0014311687	PROTECTIVE CAP
044	A 0014311687	PROTECTIVE CAP
047	A 0139971648	SEAL RING
047	A 0139971648	SEAL RING
050	A 0004310472	NUT
050	A 0004310472	NUT
053	A 0007630956	MAGNET
053	A 0007630956	MAGNET
054	A 0004206855	BLEEDER VALVE
		REPAIR KIT
		TO 388 997 88 36
056	A 3509977472	FITTING
		SOLENOID VALVE
056	A 3509977472	FITTING
059	N 007603012110	SEAL RING
		SOLENOID VALVE
059	N 007603012110	SEALING RING
062	N 915036008200	HOLLOW SCREW
		SOLENOID VALVE
062	N 915036008200	BANJO BOLT
065	N 915047008200	HOLLOW SCREW
		SOLENOID VALVE
065	N 915047008200	BANJO BOLT
	A 3444290032	T-FITTING
		SOLENOID VALVE,CONNECTION:
		"1"
	A 3454298136	CONNECTOR
		SOLENOID VALVE,CONNECTION:
		"2"
	N 080705012000	NUT
		SOLENOID VALVE,CONNECTION:
		"1"
	A 0004290827	THRUST RING
		SOLENOID VALVE,CONNECTIONS:
		"1;2"
	A 0019875046	SEAL RING
		SOLENOID VALVE,CONNECTIONS:
		"1;2"
	N 915020012004	NUT
		SOLENOID VALVE,CONNECTION:
		"1"
	N 915005004003	LOCKING CONE
		SOLENOID VALVE,CONNECTION:
		"1"
089	N 912004005100	LOCK WASHER
		SOLENOID VALVE TO BRACKET
089	N 912004005100	SPRING LOCK WASHER
092	N 000933005095	SCREW
		SOLENOID VALVE TO BRACKET
092	N 000933005095	SCREW
095	A 3844347040	BRACKET
		SOLENOID VALVE
095	A 6884347040	BRACKET
		SOLENOID VALVE
095	A 6884347040	BRACKET
098	N 000933008270	SCREW
		BRACKET TO SIDE MEMBER
		M 8X25
098	N 000933008270	SCREW
101	N 000125008417	WASHER
		BRACKET TO SIDE MEMBER
101	N 000125008417	WASHER
104	N 913004008001	NUT
		BRACKET TO SIDE MEMBER
104	N 913004008001	NUT
113	A 3864297040	BRACKET
		COMPRESSED AIR PIPING
116	N 000933008288	SCREW
		BRACKET TO LEFT SIDE MEMBER
119	N 000125008417	WASHER
		BRACKET TO LEFT SIDE MEMBER
122	N 913004008005	NUT
		BRACKET TO LEFT SIDE MEMBER
	N 003952006102	FITTING
		EXHAUST BRAKE CYLINDER
