Transporto priemonė: OF 1721; VIN numerio dalis: 384072

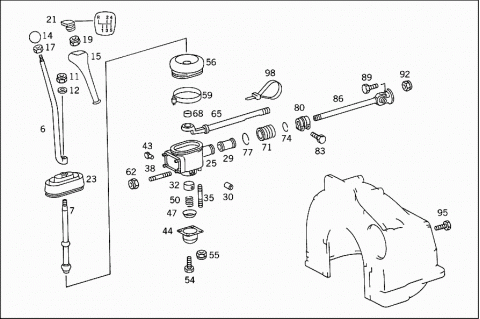

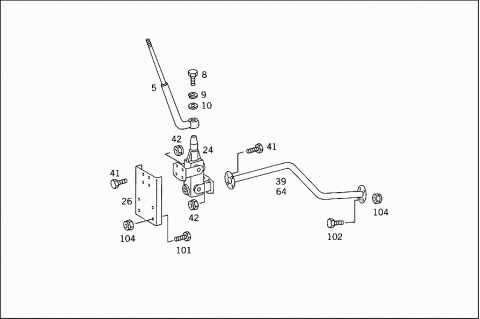

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3842678201 | SHIFT LEVER |
| UPPER PART | ||
| 006 | A 3522670401 | SHIFT LEVER |
| UPPER PART | ||
| 006 | A 3522670401 | SHIFT LEVER |
| 006 | A 3522670401 | SHIFT LEVER |
| 006 | A 6882677801 | SHIFT LEVER |
| UPPER PART | ||
| 006 | A 6882677801 | SHIFT LEVER |
| 006 | A 6882677801 | SHIFT LEVER |
| 007 | A 3522670102 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 007 | A 3522670102 | SHIFT LEVER LOWER PART |
| 007 | A 3522670102 | SHIFT LEVER LOWER PART |
| 007 | A 3522670102 | SHIFT LEVER LOWER PART |
| 008 | N 000933010174 | SCREW |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 008 | N 000933010174 | SCREW |
| 009 | N 000127010202 | LOCK WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 009 | N 000127010202 | SPRING LOCK WASHER |
| 010 | N 009021010102 | WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 010 | N 009021010102 | WASHER |
| 011 | N 913004012012 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 011 | N 913004012012 | NUT |
| 011 | N 913004012012 | NUT |
| 012 | N 000125013012 | WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 012 | N 000125013012 | WASHER |
| 012 | N 000125013012 | WASHER |
| 012 | N 000125013012 | WASHER |
| 014 | A 3442600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 014 | A 3442600040 | HANDLE |
| 014 | A 3442600040 | HANDLE |
| 014 | A 3222600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 014 | A 3222600040 | HANDLE |
| 014 | A 3222600040 | HANDLE |
| 014 | A 3452607140 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 014 | A 3452607140 | HANDLE |
| 014 | A 3452607140 | HANDLE |
| 015 | A 6882687142 | KNOB |
| SHIFT LEVER UPPER PART | ||
| 015 | A 3642687142 | KNOB |
| SHIFT LEVER UPPER PART | ||
| 015 | A 3642687142 | KNOB |
| 015 | A 3642687142 | KNOB |
| 015 | A 3642687142 | KNOB |
| 017 | N 000936010007 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 017 | N 000936010007 | NUT |
| 017 | N 000936010007 | NUT |
| 019 | N 913004010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 019 | N 913004010010 | NUT |
| 019 | N 913004010010 | NUT |
| 021 | A 6882687157 | COVER |
| 021 | A 3842687757 | COVER |
| 1ST THRU 5TH SPEED,REVERSE SPEED | ||
| 021 | A 3842687757 | COVER |
| 021 | A 3842687757 | COVER |
| 021 | A 3842687757 | COVER |
| 023 | A 3522670296 | BOOT |
| SHIFT LEVER BEARING COVERING | ||
| 023 | A 3522670296 | BOOT |
| 023 | A 3522670296 | BOOT |
| 023 | A 3522670296 | BOOT |
| 023 | A 3442677096 | BOOT |
| SHIFT LEVER BEARING COVERING | ||
| 023 | A 3442677096 | BOOT |
| 023 | A 3442677096 | BOOT |
| 023 | A 3442677096 | BOOT |
| 024 | A 3842607872 | SHIFT CASE |
| Repalced by: A 0002684601 | ||
| 024 | A 3842607372 | SHIFT CASE |
| Repalced by: A 0002684601 | ||
| 024 | A 3842607672 | SHIFT CASE |
| Repalced by: A 0002684601 | ||
| 024 | A 0002684601 | HOUSING |
| 024 | A 0002684601 | HOUSING |
| 024 | A 0002684601 | HOUSING |
| 024 | A 0002684601 | HOUSING |
| 024 | A 0002684601 | HOUSING |
| 024 | A 0002684601 | HOUSING |
| 025 | A 3452600172 | SHIFT CASE |
| 025 | A 3452600172 | SHIFT CASE |
| 025 | A 3452600172 | SHIFT CASE |
| 025 | A 3452600172 | SHIFT CASE |
| 026 | A 3842687340 | BRACKET |
| REMOTE GEARSHIFT BRACKET | ||
| 026 | A 3842687140 | BRACKET |
| REMOTE GEARSHIFT BRACKET | ||
| 026 | A 3842687140 | BRACKET |
| 029 | A 3522680050 | BUSHING |
| 029 | A 3522680050 | BUSHING |
| 029 | A 3522680050 | BUSHING |
| 029 | A 3522680050 | BUSHING |
| 030 | A 3522680250 | BUSHING |
| 030 | A 3522680250 | BUSHING |
| 030 | A 3522680250 | BUSHING |
| 030 | A 3522680250 | BUSHING |
| 032 | A 3522680335 | BEARING |
| 032 | A 3522680335 | BEARING |
| 032 | A 3522680335 | BEARING |
| 032 | A 3522680335 | BEARING |
| 035 | N 000835008005 | STUD |
| SHIFT CASE,BOTTOM | ||
| M 8X18 | ||
| 035 | N 000835008005 | SCREW |
| 035 | N 000835008005 | SCREW |
| 035 | N 000835008005 | SCREW |
| 038 | N 000835008008 | STUD |
| SHIFT CASE,SIDE | ||
| M 8X20 | ||
| 038 | N 000835008008 | SCREW |
| 038 | N 000835008008 | SCREW |
| 038 | N 000835008008 | SCREW |
| 039 | A 3842608533 | SHIFTING ROD |
| FRONT | ||
| 041 | N 000933008270 | SCREW |
| SHIFT CASE TO BRACKET | ||
| M 8X25 | ||
| 041 | N 000933008270 | SCREW |
| SHIFT TUBE ON SHIFT HOUSING | ||
| 042 | N 913004008001 | NUT |
| SHIFT CASE TO BRACKET | ||
| 042 | N 913004008001 | NUT |
| SHIFT TUBE ON SHIFT HOUSING | ||
| 043 | A 3142680249 | SLIDE |
| SHIFT CASE | ||
| 043 | A 3142680249 | SLIDE |
| 043 | A 3142680249 | SLIDE |
| 043 | A 3142680249 | SLIDE |
| 044 | A 3522680005 | COVER |
| SHIFT CASE,BOTTOM | ||
| 044 | A 3522680005 | COVER |
| 044 | A 3522680005 | COVER |
| 044 | A 3522680005 | COVER |
| 047 | A 3022670008 | SPHERICAL PIECE |
| SHIFT CASE,BOTTOM | ||
| 047 | A 3022670008 | SPHERICAL PIECE |
| 047 | A 3022670008 | SPHERICAL PIECE |
| 047 | A 3022670008 | SPHERICAL PIECE |
| 050 | A 3179930501 | SPRING |
| SHIFT CASE,BOTTOM | ||
| 050 | A 3179930501 | SPRING |
| 050 | A 3179930501 | SPRING |
| 050 | A 3179930501 | SPRING |
| 054 | N 000933008282 | SCREW |
| COVER TO SHIFT CASE | ||
| M 8X20 | ||
| 054 | N 000933008282 | SCREW |
| 055 | N 913004008001 | NUT |
| COVER TO SHIFT CASE | ||
| 056 | A 3522680497 | BOOT |
| SHIFT CASE | ||
| 056 | A 3522680497 | BOOT |
| 056 | A 3522680497 | BOOT |
| 056 | A 3522680497 | BOOT |
| 059 | N 900264005524 | LOOM TIE |
| BOOT TO SHIFT CASE | ||
| 059 | N 900264005524 | HOSE CLAMP |
| 059 | N 900264005524 | HOSE CLAMP |
| 059 | N 900264005524 | HOSE CLAMP |
| 059 | N 900262005100 | LOOM TIE |
| BOOT TO SHIFT CASE | ||
| 059 | N 900262005100 | LOOM TIE |
| 059 | N 900262005100 | LOOM TIE |
| 059 | N 900262005100 | LOOM TIE |
| 062 | N 913004008001 | NUT |
| SHIFT CASE TO BRACKET | ||
| 064 | A 3842607533 | SHIFTING ROD |
| FRONT | ||
| 064 | A 3842607533 | SHIFTING ROD |
| 064 | A 3842607733 | SHIFTING ROD |
| FRONT | ||
| 064 | A 3842607733 | SHIFTING ROD |
| 065 | A 3452600533 | SHIFTING ROD |
| FRONT | ||
| 065 | A 3452600533 | SHIFTING ROD |
| 065 | A 3452600533 | SHIFTING ROD |
| 065 | A 3842607033 | SHIFTING ROD |
| FRONT | ||
| 065 | A 3842607033 | SHIFTING ROD |
| Repalced by: A 3842607933 | ||
| 065 | A 3842607933 | SHIFTING ROD |
| FRONT | ||
| 065 | A 3842607933 | SHIFTING ROD |
| 068 | A 3522680450 | BUSHING |
| FRONT SHIFTING ROD | ||
| 068 | A 3522680450 | BUSHING |
| 068 | A 3522680450 | BUSHING |
| 068 | A 3522680450 | BUSHING |
| 071 | A 3522680097 | BOOT |
| FRONT SHIFTING ROD | ||
| 071 | A 3522680097 | BOOT |
| 071 | A 3522680097 | BOOT |
| 071 | A 3522680097 | BOOT |
| 074 | N 009045028001 | SNAP RING |
| FRONT SHIFTING ROD | ||
| 074 | N 009045028001 | SNAP RING |
| 074 | N 009045028001 | SNAP RING |
| 074 | N 009045028001 | SNAP RING |
| 077 | N 009045055000 | SNAP RING |
| FRONT SHIFTING ROD | ||
| 077 | N 009045055000 | SNAP RING |
| 077 | N 009045055000 | SNAP RING |
| 077 | N 009045055000 | SNAP RING |
| 080 | A 3142680388 | CLAMPING PIECE |
| SHIFTING TUBE | ||
| 080 | A 3142680388 | CLAMPING PIECE |
| 080 | A 3142680388 | CLAMPING PIECE |
| 083 | N 000933010269 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| M 10X25 | ||
| 083 | N 000933010269 | SCREW |
| 083 | N 000933010269 | SCREW |
| 083 | N 000933010269 | SCREW |
| 086 | A 3442608033 | SHIFTING ROD |
| REAR | ||
| 086 | A 3442608033 | SHIFTING ROD |
| 086 | A 3442608033 | SHIFTING ROD |
| 086 | A 3452607933 | SHIFTING ROD |
| REAR | ||
| 086 | A 3452607933 | SHIFTING ROD |
| 086 | A 3842607233 | SHIFTING ROD |
| REAR | ||
| 086 | A 3842607233 | SHIFTING ROD |
| Repalced by: A 3842608233 | ||
| 086 | A 3842608233 | SHIFTING ROD |
| Repalced by: A 3842608733 | ||
| 086 | A 3842608733 | SHIFTING ROD |
| REAR | ||
| A 3842608733 | SHIFTING ROD | |
| A 3842608733 | PART NAME MISSING | |
| 089 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 089 | A 3179900301 | SCREW |
| 089 | A 3179900301 | SCREW |
| 089 | A 3179900301 | SCREW |
| 089 | N 000933008282 | SCREW |
| M 8X20 | ||
| 089 | N 000933008282 | SCREW |
| 089 | N 000933008273 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 092 | N 913004008001 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 095 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 098 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 098 | A 3459977390 | LOOM TIE |
| 098 | A 3459977390 | LOOM TIE |
| 098 | A 3459977390 | LOOM TIE |
| 098 | A 3459977390 | LOOM TIE |
| 101 | N 000933008270 | SCREW |
| SHIFT HOUSING ON ENGINE | ||
| M 8X25 | ||
| 102 | N 000933008273 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| M 8X30 | ||
| 104 | N 913004008001 | NUT |
| SHIFT HOUSING ON ENGINE | ||
| 104 | N 913004008001 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
