Transporto priemonė: OHL 1621; VIN numerio dalis: 390046

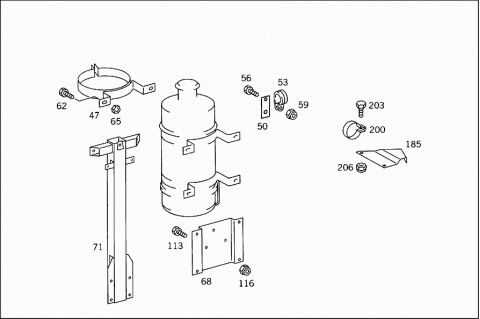

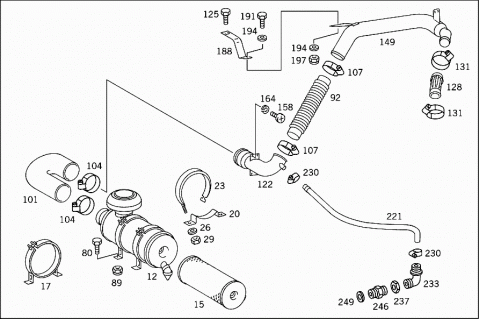

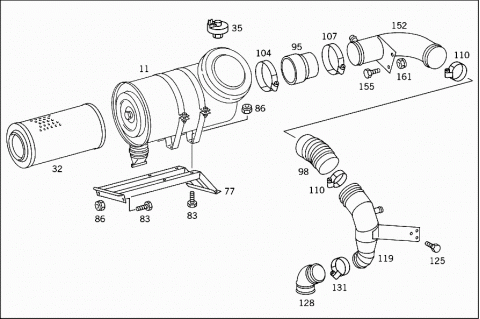

Grupė: 52 AIR CLEANER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3900947002 | AIR CLEANER |
| LESS BRACKET | ||
| 011 | A 3760903001 | AIR CLEANER |
| 012 | A 3900907001 | AIR CLEANER |
| 014 | A 3410947004 | FILTER ELEMENT |
| 015 | A 3510947004 | FILTER ELEMENT |
| 017 | A 3510947042 | CLAMP |
| AIR CLEANER TO CROSS MEMBER | ||
| 020 | A 0000942027 | BRACKET |
| TO 390 090 70 01 | ||
| 023 | A 0000940121 | STRAP |
| TO 390 090 70 01 | ||
| 026 | A 0000940084 | SHIM |
| TO 390 090 70 01 | ||
| 029 | A 0000941672 | NUT |
| TO 390 090 70 01 | ||
| 032 | A 3500947004 | FILTER ELEMENT |
| 035 | A 3645407045 | SWITCH |
| 041 | A 3410947106 | COVER |
| 041 | A 0000949006 | COVER |
| 044 | A 3645407045 | SWITCH |
| 044 | A 0000940368 | VACUUM BOX |
| 047 | A 3410947041 | BRACKET |
| AIR CLEANER TO BRACKET | ||
| 050 | A 3514297140 | BRACKET |
| BRACKET TO BRACKET | ||
| 053 | N 916016025201 | CLAMP |
| BRACKET TO BRACKET | ||
| 056 | N 000933008048 | SCREW |
| BRACKET TO BRACKET | ||
| 059 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 062 | N 000933010016 | SCREW |
| AIR CLEANER TO BRACKET | ||
| M 10X20 | ||
| 065 | N 000934010040 | NUT |
| AIR CLEANER TO BRACKET | ||
| 068 | A 3905207741 | BRACKET |
| AIR CLEANER BOWL | ||
| 068 | A 3905208541 | BRACKET |
| AIR CLEANER BOWL | ||
| 068 | A 3905208541 | BRACKET |
| 071 | A 3905207941 | BRACKET |
| AIR CLEANER BOWL | ||
| 071 | A 3905208841 | BRACKET |
| Repalced by: A 3905208941 | ||
| 071 | A 3905208941 | BRACKET |
| AIR CLEANER BOWL | ||
| 071 | A 3905208941 | BRACKET |
| 071 | A 3905208741 | BRACKET |
| Repalced by: A 3905209041 | ||
| 071 | A 3905209041 | BRACKET |
| AIR CLEANER BOWL | ||
| 071 | A 3905208041 | BRACKET |
| 077 | A 3825207233 | SUPPORT |
| AIR CLEANER | ||
| 080 | N 000933010089 | SCREW |
| AIR CLEANER TO BRACKET | ||
| M 10X20 | ||
| 083 | N 000933008291 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 083 | N 000933008291 | SCREW |
| BRACKET MOUNTING | ||
| 086 | N 913004008001 | NUT |
| AIR CLEANER TO BRACKET | ||
| 086 | N 913004008001 | NUT |
| BRACKET MOUNTING | ||
| 089 | N 913004010004 | NUT |
| AIR CLEANER TO BRACKET | ||
| A 3260940191 | BOOT | |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 092 | A 3455287082 | HOSE |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 095 | A 3760987183 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 098 | A 3505288282 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 101 | A 3905287482 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 104 | N 916017140000 | CLAMP |
| HOSE ATTACHMENT | ||
| 107 | N 916017110000 | CLAMP |
| HOSE ATTACHMENT | ||
| 110 | A 3849977590 | LOOM TIE |
| HOSE ATTACHMENT | ||
| 113 | N 000933012122 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 12X30 | ||
| 116 | N 913004012004 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 119 | A 3760908529 | AIR INTAKE PIPE |
| 122 | A 3905207501 | AIR INTAKE PIPE |
| 125 | N 000933010200 | SCREW |
| BRACKET TO CYLINDER HEAD | ||
| M 10X30 | ||
| 128 | A 3660980183 | HOSE |
| (MOLDED HOSE),AIR INTAKE | ||
| 131 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 131 | N 000000000673 | CLAMP |
| HOSE ATTACHMENT | ||
| 134 | A 3909977282 | HOSE |
| FROM AIR CLEANER TO ENGINE INTAKE PIPE | ||
| 137 | A 0000947682 | HOSE |
| FROM AIR CLEANER TO ENGINE INTAKE PIPE | ||
| 140 | A 3905287382 | HOSE |
| FROM AIR CLEANER TO MIXTURE CONTROLLER | ||
| A 3905207086 | HOSE | |
| FROM AIR CLEANER TO MIXTURE CONTROLLER | ||
| 140 | A 0010940182 | HOSE |
| FROM AIR CLEANER TO MIXTURE CONTROLLER | ||
| 143 | A 3909977282 | HOSE |
| FROM AIR CLEANER TO MIXTURE CONTROLLER | ||
| 146 | A 3905287608 | AIR INTAKE PIPE |
| AIR INTAKE PIPE TO INTAKE MANIFOLD | ||
| A 0000949682 | HOSE | |
| AIR INTAKE PIPE TO INTAKE MANIFOLD | ||
| 146 | A 3905207201 | AIR INTAKE PIPE |
| AIR INTAKE PIPE TO INTAKE MANIFOLD | ||
| 149 | A 3900907129 | AIR INTAKE PIPE |
| ENGINE | ||
| 152 | A 3760908429 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO ENGINE | ||
| 155 | N 000933008268 | SCREW |
| AIR INTAKE PIPE TO FRAME | ||
| 158 | N 007516006103 | TAPPING SCREW |
| AIR INTAKE PIPE TO FRAME | ||
| M 6X20 | ||
| 161 | N 913004008001 | NUT |
| AIR INTAKE PIPE TO FRAME | ||
| 164 | N 912004006100 | LOCK WASHER |
| AIR INTAKE PIPE TO FRAME | ||
| 167 | N 900271025023 | HOSE |
| FROM AIR INTAKE PIPE TO BREATHER VALVE | ||
| 25X34X1600 MM | ||
| 170 | A 3905287108 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 173 | A 3909977582 | HOSE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 176 | A 3905287208 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 179 | A 3510947191 | BOOT |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 182 | A 3769970083 | SLEEVE |
| Repalced by: A 3829977782 | ||
| 182 | A 3829977782 | HOSE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 182 | A 3909977982 | HOSE |
| FROM AIR CLEANER TO TURBOCHARGER | ||
| 182 | A 3909977982 | HOSE |
| 185 | A 3905287240 | BRACKET |
| AIR INTAKE PIPE | ||
| 188 | A 3900987139 | BRACKET |
| AIR INTAKE PIPE | ||
| 191 | N 000933010035 | SCREW |
| AIR INTAKE PIPE TO ELBOW | ||
| M 10X25 | ||
| 194 | N 000125010517 | WASHER |
| AIR INTAKE PIPE TO ELBOW | ||
| 197 | N 913004010004 | NUT |
| AIR INTAKE PIPE TO ELBOW | ||
| 200 | A 3415287043 | CLAMP |
| AIR INTAKE PIPE | ||
| 203 | N 000933008057 | SCREW |
| CLAMP TO BRACKET | ||
| M 8X25 | ||
| 206 | N 913004008004 | NUT |
| CLAMP TO BRACKET | ||
| 209 | N 916017100000 | CLAMP |
| INTAKE AIR LINE | ||
| 100-120 | ||
| 209 | N 916017100000 | CLAMP |
| FROM AIR CLEANER TO MIXTURE CONTROLLER | ||
| 209 | A 3419978190 | LOOM TIE |
| Repalced by: N 916017100000 | ||
| 209 | A 3449979990 | CLAMP |
| Repalced by: N 916017100000 | ||
| 209 | A 3509978290 | CLAMP |
| Repalced by: N 916017100000 | ||
| 212 | N 916018025000 | CLAMP |
| DE-AERATION LINE | ||
| 215 | A 0019978490 | LOOM TIE |
| DE-AERATION LINE | ||
| 218 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 218 | N 000000000675 | CLAMP |
| 80-100 | ||
| 218 | A 3419978090 | LOOM TIE |
| Repalced by: N 916017080000 | ||
| 218 | A 3419978690 | LOOM TIE |
| Repalced by: N 916017080000 | ||
| 221 | N 900271025023 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 25X34X1600 MM | ||
| 221 | A 6829977052 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 221 | N 900271025021 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 25X34X750 MM | ||
| 221 | A 3849977152 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 1000 MM | ||
| A 3905247082 | HOSE | |
| VENT VALVE TO PIPE ELBOW | ||
| 221 | A 3520182182 | HOSE |
| VENT VALVE TO PIPE ELBOW | ||
| 221 | A 3905247182 | HOSE |
| PIPE ELBOW TO PROPELLANT REGULATOR | ||
| 230 | A 3449979490 | CLAMP |
| Repalced by: N 916017025000 | ||
| 230 | A 3449979690 | LOOM TIE |
| Repalced by: N 916017025000 | ||
| 230 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 230 | N 000000000668 | CLAMP |
| AIR COMPRESSOR CONNECTION | ||
| 230 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 230 | N 000000000668 | CLAMP |
| AIR COMPRESSOR CONNECTION | ||
| 230 | N 916016035201 | CLAMP |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 230 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 230 | N 000000000667 | CLAMP |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 230 | A 3449978490 | CLAMP |
| Repalced by: N 916017025000 | ||
| 230 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 230 | N 000000000668 | CLAMP |
| HOSE ATTACHMENT | ||
| 230 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 230 | N 000000000667 | CLAMP |
| HOSE ATTACHMENT | ||
| 233 | A 4961340022 | PIPE BEND |
| AIR COMPRESSOR CONNECTION | ||
| 237 | N 080705026000 | NUT |
| AIR COMPRESSOR CONNECTION | ||
| 246 | A 4221340056 | FITTING |
| AIR COMPRESSOR CONNECTION | ||
| 249 | N 007603026101 | SEAL RING |
