Transporto priemonė: OH 1113/1518 INDONESIA; VIN numerio dalis: 684201

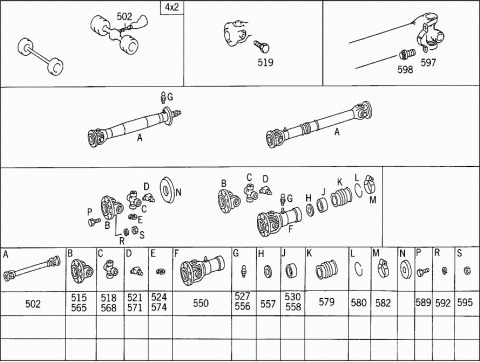

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 502 | A 6744101902 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 974 MM | ||
| 502 | A 3844101102 | PROPELLER SHAFT |
| Repalced by: A 3844103906 | ||
| 502 | A 3844103906 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1025 MM | ||
| 502 | A 3854106307 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 890 MM | ||
| 502 | A 3824109802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 890 MM | ||
| 515 | A 3814110811 | DRIVE FLANGE |
| FRONT AND REAR | ||
| 515 | A 3364110011 | DRIVE FLANGE |
| FRONT AND REAR | ||
| 515 | A 3854111711 | DRIVE FLANGE |
| FRONT AND REAR | ||
| 515 | A 3644110011 | DRIVE FLANGE |
| FRONT AND REAR | ||
| TO 382 410 98 02 | ||
| 518 | A 6174100031 | UNIVERSAL JOINT CROSS |
| FRONT AND REAR | ||
| 518 | A 3314110031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 0004101731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 0004101731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 3814100231 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 0004102731 | UNIVERSAL JOINT CROSS |
| TO 382 410 98 02 | ||
| 519 | A 0069903601 | SCREW |
| 521 | N 071412008300 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 521 | A 3459977288 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 521 | A 0009974788 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 521 | A 0009974888 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| TO 382 410 98 02 | ||
| 524 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.650 MM | ||
| 524 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.650 MM | ||
| 524 | A 3354111173 | LOCK |
| AS REQUIRED | ||
| 1.7 MM | ||
| 524 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.700 MM | ||
| 524 | A 3354111273 | LOCK |
| AS REQUIRED | ||
| 1.725 MM | ||
| 524 | A 0039944541 | LOCK |
| Repalced by: A 0059949441 | ||
| 524 | A 0059949441 | LOCK |
| Repalced by: N 000472042001 | ||
| 524 | N 000472042000 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 524 | A 3354111373 | LOCK |
| AS REQUIRED | ||
| 1.75 MM | ||
| 524 | A 0069941041 | LOCK |
| AS REQUIRED | ||
| 1.750 MM | ||
| 524 | A 0069941041 | LOCK |
| AS REQUIRED | ||
| 1.750 MM | ||
| 524 | A 3354111473 | LOCK |
| AS REQUIRED | ||
| 1.775 MM | ||
| 524 | A 3354111573 | LOCK |
| AS REQUIRED | ||
| 1.8 MM | ||
| 524 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.800 MM | ||
| 524 | A 0039944641 | LOCK |
| Repalced by: A 0059949741 | ||
| 524 | A 0059949741 | LOCK |
| AS REQUIRED | ||
| 1.825 MM | ||
| 524 | A 3454110073 | LOCK |
| AS REQUIRED | ||
| 1.825 MM | ||
| 524 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.850 MM | ||
| 524 | A 0039944841 | LOCK |
| Repalced by: A 0059949941 | ||
| 524 | A 0039945041 | LOCK |
| Repalced by: A 0059949941 | ||
| 524 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 524 | A 0069941641 | LOCK |
| AS REQUIRED | ||
| 1.900 MM | ||
| 524 | A 0059940841 | LOCK |
| Repalced by: A 0069940141 | ||
| 524 | A 0069940141 | LOCK |
| AS REQUIRED | ||
| 1.925 MM | ||
| 524 | A 0059941041 | LOCK |
| Repalced by: A 0069940441 | ||
| 524 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 524 | A 0039942135 | SNAP RING |
| TO 382 410 98 02 | ||
| 527 | A 0009974788 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 527 | N 071412008100 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 530 | A 0004130380 | SEAL RING |
| 550 | A 3354100308 | UNIVERSAL JOINT YOKE |
| 550 | A 0004100033 | SLIDE |
| TO 382 410 98 02 | ||
| 556 | N 071412008100 | GREASE NIPPLE |
| 556 | A 0009974888 | GREASE NIPPLE |
| TO 382 410 98 02 | ||
| 557 | A 3354110180 | GASKET |
| 557 | A 0004130380 | SEAL RING |
| TO 382 410 98 02 | ||
| 558 | A 3354110058 | SEAL HOLDER |
| 565 | A 3364110011 | DRIVE FLANGE |
| FRONT AND REAR | ||
| 568 | A 3314100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 571 | N 071412008300 | GREASE NIPPLE |
| 571 | A 3459977288 | GREASE NIPPLE |
| 574 | A 3354111173 | LOCK |
| AS REQUIRED | ||
| 1.7 MM | ||
| 574 | A 3354111273 | LOCK |
| AS REQUIRED | ||
| 1.725 MM | ||
| 574 | A 3354111373 | LOCK |
| AS REQUIRED | ||
| 1.75 MM | ||
| 574 | A 3354111373 | LOCK |
| AS REQUIRED | ||
| 1.75 MM | ||
| 574 | A 3354111573 | LOCK |
| AS REQUIRED | ||
| 1.8 MM | ||
| 574 | A 3454110073 | LOCK |
| AS REQUIRED | ||
| 1.825 MM | ||
| 579 | A 3454107180 | BOOT |
| 580 | A 3454117092 | CLAMPING RING |
| 582 | A 3449979790 | LOOM TIE |
| 582 | N 000000000674 | CLAMP |
| 582 | A 3449979890 | CLAMP |
| 582 | N 916017090000 | CLAMP |
| 589 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M10 X 1 X 30 | ||
| 589 | A 0079901101 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M12 X 1,25 X 36 | ||
| 592 | N 000127010202 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 592 | N 912004012201 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 595 | N 000934010042 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 595 | A 3829900151 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 597 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 597 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 598 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 598 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||

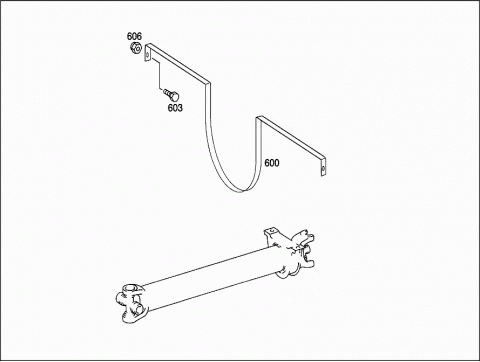

| 600 | A 3844117282 | REBOUND STRAP |
| 603 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| 606 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
