Transporto priemonė: OH 1115L/46; VIN numerio dalis: 390053
Grupė: 27 AUTOMATIC TRANSMISSION - 750 TRANSMISSION ATTACHMENT PARTS

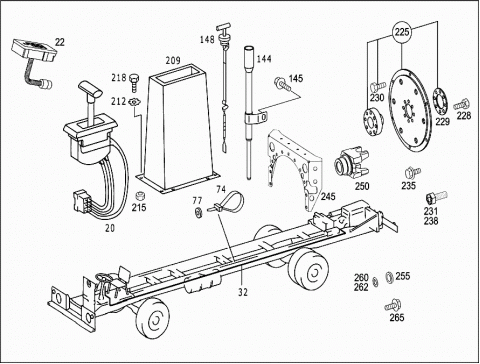

25675

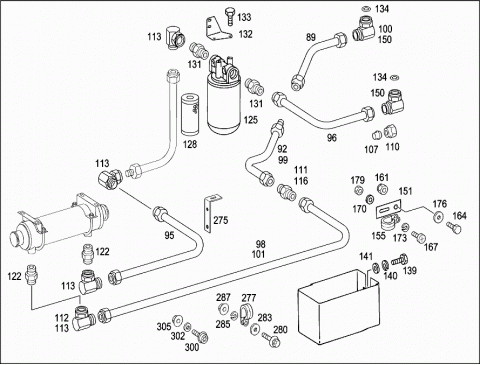

25676
# Kodas Pavadinimas
020 A 3902700052 GEAR INDICATOR
022 A 3822700070 REGULATOR VALVE
022 A 3902700070 REGULATOR VALVE
032 A 3902700273 CABLE
GEAR INDICATOR
074 A 0059971590 CABLE TIE
LINE MOUNTING
7.9 X 375 MM
074 A 0019978390 CABLE TIE
LINE MOUNTING
4.6 X 279 MM
074 A 0019978390 CABLE TIE
4.6 X 279 MM
077 A 3609902340 SPACER WASHER
LINE MOUNTING
077 A 3609902340 SPACER WASHER
A 3902701996 LINE
(OIL LINE), FROM HOSE TO OIL COOLER ANGLE PIECE
A 3902701696 LINE
(OIL LINE),FROM HOSE TO TRANSMISSION
089 A 3902700096 LINE
(OIL LINE),FROM HOSE TO TRANSMISSION
089 A 3902702096 LINE
(OIL LINE),FROM HOSE TO TRANSMISSION
089 A 3902700496 LINE
(OIL LINE),FROM HOSE TO TRANSMISSION
089 A 3902701196 LINE
(OIL LINE),FROM HOSE TO TRANSMISSION
092 A 3559970782 HOSE
FROM CONNECTING HOSE TO OIL COOLER
092 A 3559970782 HOSE
FROM CONNECTING HOSE TO OIL COOLER
095 A 3902700296 LINE
FROM CONNECTING HOSE TO OIL COOLER
095 A 3902700696 LINE
FROM CONNECTING HOSE TO OIL COOLER
095 A 3902701596 LINE
FROM CONNECTING HOSE TO OIL COOLER
096 A 3902700396 LINE
AT TRANSMISSION
Repalced by: A 3902700996
096 A 3902700996 LINE
AT TRANSMISSION
096 A 3902702396 LINE
AT TRANSMISSION
096 A 3902700796 LINE
AT TRANSMISSION
096 A 3902701396 LINE
AT TRANSMISSION
098 A 3902700196 LINE
RETURN; FROM OIL COOLER TO HOSE
098 A 3902702196 LINE
RETURN; FROM OIL COOLER TO HOSE
098 A 3902700596 LINE
RETURN; FROM OIL COOLER TO HOSE
098 A 3902701296 LINE
RETURN; FROM OIL COOLER TO HOSE
099 A 3559970782 HOSE
AT TRANSMISSION
099 A 3559970782 HOSE
100 A 3909907470 TANK RECESS
AT TRANSMISSION
100 A 3909907470 TANK RECESS
AT TRANSMISSION
100 A 0029904871 FITTING
AT TRANSMISSION
100 A 0029904871 FITTING
AT TRANSMISSION
101 A 3902700896 LINE
AT TRANSMISSION
101 A 3902701496 LINE
AT TRANSMISSION
107 A 0019901167 SEAL CONE
107 A 0019901167 SEAL CONE
107 A 0019901167 SEAL CONE
107 A 0019901167 SEAL CONE
107 A 0019901167 SEAL CONE
110 N 915017018100 UNION NUT
110 N 915017018100 UNION NUT
110 N 915017018100 UNION NUT
110 N 915017018100 UNION NUT
110 N 915017018100 UNION NUT
111 A 3909977172 FITTING
TO OIL LINE
111 A 0029970371 FITTING
TO OIL LINE
112 A 3909907470 TANK RECESS
TO OIL LINE
112 A 3909907470 TANK RECESS
TO OIL LINE
113 A 3909907470 TANK RECESS
113 A 0029904871 FITTING
113 A 0029904871 FITTING
113 A 3909907470 TANK RECESS
OIL COOLER
113 A 0029904871 FITTING
OIL COOLER
113 N 003902018002 CONNECTION FITTING
OIL COOLER
N 007603022102 SEAL RING
SCREW-IN FITTING
DIN 7603-A 22 X 27-CU
116 N 003902018002 CONNECTION FITTING
116 N 003902018002 CONNECTION FITTING
116 N 003902018002 CONNECTION FITTING
116 N 003902018002 CONNECTION FITTING
A 3909977172 FITTING
122 A 0049972072 FITTING
122 A 3909977172 FITTING
125 A 3902707098 FILTER
(OIL FILTER)
128 A 3902707198 FILTER
131 A 0049972072 FITTING
131 A 3909977172 FITTING
132 A 3902700140 BRACKET
BRACKET TO OIL FILTER
133 N 000933012122 BOLT
BRACKET TO TRANSMISSION
M12X30
134 A 3909977048 SEAL RING
AT TRANSMISSION
Repalced by: A 3909970345
134 A 3909970345 O-RING
AT TRANSMISSION
134 A 3909970245 O-RING
AT TRANSMISSION
139 N 000933008214 BOLT
OIL FILTER TO BRACKET
M8X16
140 N 912004008102 LOCK WASHER
OIL FILTER TO BRACKET
141 N 000125008445 WASHER
OIL FILTER TO BRACKET
144 A 3902700084 OIL FILLER PIPE
AT TRANSMISSION
Repalced by: A 3902700184
144 A 3902700184 OIL FILLER PIPE
AT TRANSMISSION
145 A 6909907201 BOLT
AT TRANSMISSION
148 A 3902700083 OIL DIPSTICK
AT TRANSMISSION
Repalced by: A 3902700183
148 A 3902700183 OIL DIPSTICK
AT TRANSMISSION
150 A 3902767041 ANGLE
AT TRANSMISSION
150 A 3902767041 ANGLE
AT TRANSMISSION
150 A 3902767041 ANGLE
AT TRANSMISSION
151 A 3444297040 BRACKET
BRACKET TO SIDE MEMBER
151 A 3444297040 BRACKET
BRACKET TO SIDE MEMBER
155 N 916016018202 CLAMP
LINE MOUNTING
18/20
155 N 916016018202 CLAMP
LINE MOUNTING
18/20
155 N 916016018202 CLAMP
LINE MOUNTING
18/20
161 N 910113010001 NUT
BRACKET MOUNTING
M10-10
161 N 910113010001 NUT
BRACKET MOUNTING
M10-10
164 A 0009903204 BOLT
BRACKET MOUNTING
167 N 000000001149 BOLT
CLAMP MOUNTING
M6X25
167 N 000000002439 BOLT
CLAMP MOUNTING
M6X25
167 N 007516006103 TAPPING SCREW
CLAMP MOUNTING
DIN 7516-A M 6X20-ST-H DBL8451.21
167 N 000000001149 BOLT
CLAMP MOUNTING
M6X25
Repalced by: N 000000002439
167 N 000000001149 BOLT
CLAMP MOUNTING
M6X25
Repalced by: N 000000002439
167 N 000000002439 BOLT
CLAMP MOUNTING
M6X25
167 N 304017006012 BOLT
CLAMP MOUNTING
M6X30-8.8
170 N 009021006208 WASHER
LINE MOUNTING
6 MM
170 N 009021006208 WASHER
LINE MOUNTING
6 MM
173 N 912004006102 LOCK WASHER
CLAMP MOUNTING
173 N 912004006102 LOCK WASHER
CLAMP MOUNTING
173 N 912004006102 LOCK WASHER
LINE MOUNTING
173 N 912004006102 LOCK WASHER
LINE MOUNTING
176 N 000125010532 WASHER
BRACKET MOUNTING
176 N 000125010532 WASHER
BRACKET MOUNTING
176 N 000000003386 WASHER
BRACKET MOUNTING
179 N 304032006004 NUT
CLAMP MOUNTING
M6-8.8
179 N 304032006004 NUT
CLAMP MOUNTING
M6-8.8
179 N 304032006004 NUT
BRACKET MOUNTING
M6-8.8
179 N 304032006004 NUT
BRACKET MOUNTING
M6-8.8
179 N 304032006004 NUT
LINE MOUNTING
M6-8.8
209 A 3452667102 SUPPORT
GEAR INDICATOR
212 N 006797006145 TOOTHED WASHER
SUPPORT TO BODY
215 N 304032006004 NUT
SUPPORT TO BODY
M6-8.8
218 N 000000001146 BOLT
SUPPORT TO BODY
M6X16
225 A 6882700036 DRIVER
MOTOR TO GEARING
225 A 3902700036 DRIVER
MOTOR TO GEARING
225 A 3902700036 DRIVER
MOTOR TO GEARING
228 N 308676012012 BOLT
RING GEAR CARIER AND FOLLOWER DISC TO CRANKSHAFT
228 N 308676012012 BOLT
FOLLOWER
229 A 3902710151 SPACER RING
FOLLOWER
229 A 3902710151 SPACER RING
FOLLOWER
229 A 3902710051 SPACER RING
FOLLOWER
229 A 3902710051 SPACER RING
230 A 9709901001 BOLT
DRIVEN DISC TO CONVERTER
231 A 3909900100 BOLT
FOLLOWER
231 A 3909900100 BOLT
FOLLOWER
235 N 000000000428 BOLT
TRANSMISSION TO TIMING CASE
M10X35
235 N 000000000428 BOLT
TRANSMISSION TO TIMING CASE
M10X35
235 N 910105010002 BOLT
TRANSMISSION TO TIMING CASE
M10X50
235 N 910105010002 BOLT
TRANSMISSION TO TIMING CASE
M10X50
238 A 3909900200 BOLT
FOLLOWER TO TRANSMISSION
238 A 3909900200 BOLT
FOLLOWER TO TRANSMISSION
245 A 3822400040 BRACKET
AT TRANSMISSION
245 A 3822400040 BRACKET
AT TRANSMISSION
245 A 9702400240 BRACKET
AT TRANSMISSION
245 A 9702400240 BRACKET
AT TRANSMISSION
250 A 3902720045 FLANGE
AT TRANSMISSION
250 A 3902720045 FLANGE
AT TRANSMISSION
255 A 3902770062 PRESSURE PLATE
AT TRANSMISSION
TO A 390 270 04 01
255 A 3902770062 PRESSURE PLATE
AT TRANSMISSION
TO A 390 270 04 01
260 A 3909970045 FULL FACE GASKET
AT TRANSMISSION
TO A 390 270 04 01
260 A 3909970045 FULL FACE GASKET
AT TRANSMISSION
TO A 390 270 04 01
262 A 3909970145 FULL FACE GASKET
AT TRANSMISSION
TO A 390 270 04 01
262 A 3909970145 FULL FACE GASKET
AT TRANSMISSION
TO A 390 270 04 01
265 A 3909900000 BOLT
AT TRANSMISSION
TO A 390 270 04 01
265 A 3909900000 BOLT
AT TRANSMISSION
TO A 390 270 04 01
A 3904297740 BRACKET
BRACKET TO SIDE MEMBER
Repalced by: A 3904660140
A 3904660140 BRACKET
BRACKET TO SIDE MEMBER
275 A 3904297740 BRACKET
OIL LINE TO BRACKET
275 A 3904297740 BRACKET
OIL LINE TO BRACKET
277 N 916016018202 CLAMP
OIL LINE TO BRACKET
18/20
277 N 916016018202 CLAMP
OIL LINE TO BRACKET
18/20
280 N 304017006012 BOLT
OIL LINE TO BRACKET
M6X30-8.8
280 N 304017006012 BOLT
OIL LINE TO BRACKET
M6X30-8.8
283 N 009021006208 WASHER
OIL LINE TO BRACKET
6 MM
283 N 009021006208 WASHER
OIL LINE TO BRACKET
6 MM
285 N 912004006102 LOCK WASHER
OIL LINE TO BRACKET
285 N 912004006102 LOCK WASHER
OIL LINE TO BRACKET
287 N 304032006004 NUT
OIL LINE TO BRACKET
M6-8.8
287 N 304032006004 NUT
OIL LINE TO BRACKET
M6-8.8
300 A 0009903204 BOLT
BRACKET TO SIDE MEMBER
300 A 0009903204 BOLT
BRACKET TO SIDE MEMBER
302 N 000125010532 WASHER
BRACKET TO SIDE MEMBER
Repalced by: N 000000003386
302 N 000125010532 WASHER
BRACKET TO SIDE MEMBER
Repalced by: N 000000003386
302 N 000000003386 WASHER
BRACKET TO SIDE MEMBER
305 N 910113010001 NUT
BRACKET TO SIDE MEMBER
M10-10
305 N 910113010001 NUT
BRACKET TO SIDE MEMBER
M10-10
