Transporto priemonė: OH 1115L/46; VIN numerio dalis: 390053

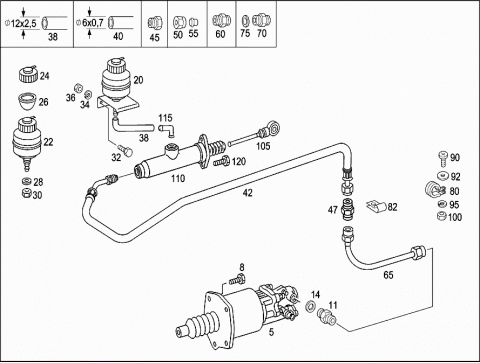

Grupė: 25 CLUTCH - 360 HYDRAULIC CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0002540147 | CLUTCH BOOSTER |
| CLUTCH ACTUATION | ||
| "WABCO" | ||
| 008 | N 304017008021 | BOLT |
| SLAVE CYLINDER AND CLUTCH BOOSTER TO BELL HOUSING | ||
| M8X20 | ||
| 011 | A 3519907083 | FITTING |
| CLUTCH BOOSTER CONNECTION | ||
| 014 | N 007603016401 | SEAL RING |
| CLUTCH BOOSTER CONNECTION | ||
| 020 | A 3504317002 | DASHPOT |
| (RESERVOIR) | ||
| 022 | A 0084310502 | DASHPOT |
| 024 | A 3644317033 | EXPANSION PLUG |
| 026 | A 3084317034 | STRAINER |
| 028 | H 983084310176 | WASHER |
| 030 | N 000934018012 | NUT |
| 032 | N 000966006092 | BOLT |
| REFILL RESERVOIR TO BASE | ||
| M6X45 | ||
| 034 | N 912004006102 | LOCK WASHER |
| REFILL RESERVOIR TO BASE | ||
| 036 | N 304032006004 | NUT |
| REFILL RESERVOIR TO BASE | ||
| M6-8.8 | ||
| 038 | A 3929977682 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 040 | A 3444297412 | LINE |
| CLUTCH LINE | ||
| 042 | A 3822950935 | HOSE |
| CLUTCH LINE | ||
| 045 | A 3509907068 | SCREW CONNECTION |
| CLUTCH LINE | ||
| 047 | A 0009972072 | FITTING |
| CLUTCH LINE | ||
| 050 | N 915017006100 | UNION NUT |
| CLUTCH LINE | ||
| 055 | A 0019901667 | GLAND |
| CLUTCH LINE | ||
| 060 | A 0039979172 | FITTING |
| CLUTCH LINE | ||
| NR.1,2,3,4,5 | ||
| 065 | A 6882957235 | HOSE |
| CLUTCH LINE | ||
| 070 | A 3889977072 | FITTING |
| TO CLUTCH BOOSTER | ||
| 075 | N 007603014106 | SEAL RING |
| TO CLUTCH BOOSTER | ||
| 080 | A 6889957101 | CLAMP |
| LINE MOUNTING | ||
| 080 | N 916016015202 | CLAMP |
| LINE MOUNTING | ||
| 15/15 MM | ||
| 082 | A 6739950001 | CLAMP |
| LINE MOUNTING | ||
| 090 | N 007985006509 | BOLT |
| LINE MOUNTING | ||
| M6X25 | ||
| Repalced by: N 000000001149 | ||
| 090 | N 000000001149 | BOLT |
| LINE MOUNTING | ||
| M6X25 | ||
| Repalced by: N 000000002439 | ||
| 090 | N 000000002439 | BOLT |
| LINE MOUNTING | ||
| M6X25 | ||
| 090 | N 304017006020 | BOLT |
| LINE MOUNTING | ||
| M6X20 | ||
| 092 | N 009021006208 | WASHER |
| LINE MOUNTING | ||
| 6 MM | ||
| 095 | N 912004006100 | LOCK WASHER |
| LINE MOUNTING | ||
| Repalced by: N 912004006102 | ||
| 095 | N 912004006102 | LOCK WASHER |
| LINE MOUNTING | ||
| 100 | N 304032006004 | NUT |
| LINE MOUNTING | ||
| M6-8.8 | ||
| 105 | A 6932910633 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 105 | A 6932910733 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 110 | A 3882957206 | MASTER CYLINDER |
| 115 | A 0002950136 | INTERMEDIATE PIECE |
| CLUTCH MASTER CYLINDER | ||
| 120 | A 0019901404 | BOLT |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| M6X20 | ||
