Transporto priemonė: OH 1115L/46; VIN numerio dalis: 390053

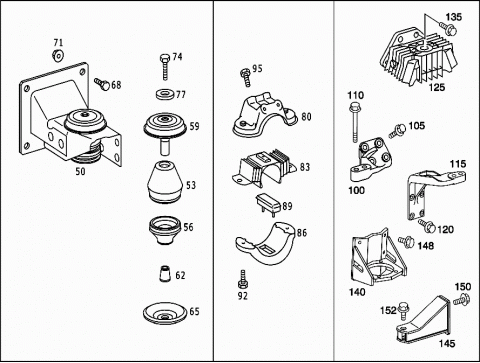

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 050 | A 3902400017 | RUBBER MOUNT |
| FRONT LEFT | ||
| 050 | A 3902400117 | RUBBER MOUNT |
| FRONT RIGHT | ||
| 053 | A 0002413713 | RUBBER MOUNT |
| 056 | A 0002414213 | RUBBER MOUNT |
| 059 | A 6742400114 | BEARING SHELL |
| TOP | ||
| 062 | A 6732410326 | INTERMEDIATE PIECE |
| 065 | A 6742410236 | BEARING SHELL |
| BOTTOM | ||
| 068 | N 000961014063 | BOLT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5X40 | ||
| 071 | N 910113014000 | NUT |
| ENGINE MOUNTING TO SUBSTRUCTURE | ||
| M14X1.5 | ||
| 074 | N 000961014126 | BOLT |
| ENGINE TO RUBBER MOUNTING | ||
| M14X1.5X60 | ||
| 077 | A 3609901840 | WASHER |
| ENGINE TO RUBBER MOUNTING | ||
| 080 | A 6682400019 | BEARING HOUSING |
| ENGINE REAR SUSPENSION | ||
| 083 | A 6682420013 | RUBBER MOUNT |
| ENGINE REAR SUSPENSION | ||
| 086 | A 6682420015 | COVER |
| BOTTOM | ||
| 089 | A 6682420143 | STOP |
| COVER | ||
| 092 | A 0009903204 | BOLT |
| COVER TO BEARING HOUSING | ||
| 095 | A 0009903204 | BOLT |
| ENGINE REAR MOUNTING, AT FRAME | ||
| 100 | A 3822410301 | ENGINE SUPPORT |
| REAR | ||
| 105 | N 304017016010 | HEX. HEAD SCREW |
| ENGINE REAR SUPPORT TO TRANSMISSION | ||
| M16X50 | ||
| 110 | N 910105018024 | BOLT |
| ENGINE REAR SUPPORT TO TRANSMISSION | ||
| M18X1.5X60 | ||
| 115 | A 3822670240 | BRACKET |
| CONTROL CABLE | ||
| 115 | A 3822670340 | BRACKET |
| SELECTION CABLE | ||
| 120 | N 910105010009 | BOLT |
| CONTROL CABLE | ||
| M10X25 | ||
| 120 | N 910105010009 | BOLT |
| SELECTION CABLE | ||
| M10X25 | ||
| 125 | A 9702400418 | RUBBER MOUNT |
| ENGINE REAR SUSPENSION | ||
| 125 | A 9732400418 | ENGINE MOUNT |
| ENGINE REAR SUSPENSION | ||
| 125 | A 9732400418 | ENGINE MOUNT |
| ENGINE REAR SUSPENSION | ||
| 125 | A 6932400218 | ENGINE MOUNT |
| ENGINE REAR SUSPENSION | ||
| 125 | A 6932400218 | ENGINE MOUNT |
| ENGINE REAR SUSPENSION | ||
| 125 | A 6932400518 | ENGINE MOUNT |
| ENGINE REAR SUSPENSION | ||
| A 3902410084 | SHIM | |
| ENGINE REAR SUSPENSION | ||
| 135 | N 910105016013 | BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M16X1.5X30 | ||
| 135 | N 910105016013 | BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M16X1.5X30 | ||
| 140 | A 3902400006 | CONSOLE |
| 145 | A 3902400005 | SUPPORTING ARM |
| LEFT | ||
| 145 | A 3902400005 | SUPPORTING ARM |
| LEFT | ||
| 145 | A 3902400105 | SUPPORTING ARM |
| RIGHT | ||
| 145 | A 3902400105 | SUPPORTING ARM |
| RIGHT | ||
| 148 | A 3859900301 | BOLT |
| CONSOLE TO TRANSMISSION | ||
| 150 | N 910105016013 | BOLT |
| SUPPORTING ARM TO TRANSMISSION CASE | ||
| M16X1.5X30 | ||
| 152 | N 910105018024 | BOLT |
| SUPPORTING ARM TO ENGINE REAR MOUNTING | ||
| M18X1.5X60 |
