Transporto priemonė: OH 1115L/46; VIN numerio dalis: 390053

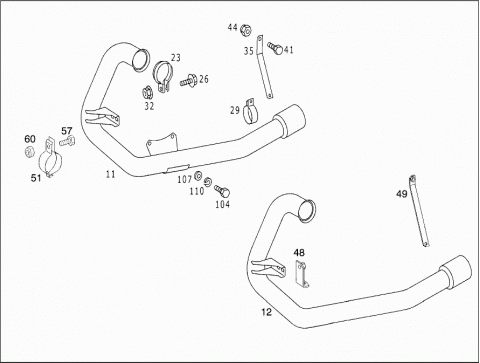

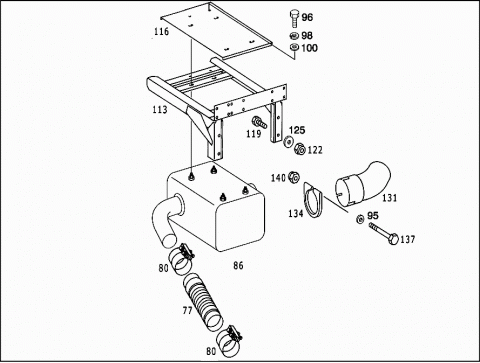

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 011 | A 3904900019 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 3904900219 | EXHAUST PIPE |
| FRONT | ||
| 012 | A 3904900319 | EXHAUST PIPE |
| FRONT | ||
| 023 | A 6209970490 | CLAMP |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | N 910143008005 | BOLT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M8X40 | ||
| 029 | N 071555075503 | CLAMP |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | N 913023008003 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 035 | A 3904920020 | STRUT |
| EXHAUST PIPE TO TRANSMISSION | ||
| 041 | N 000933010269 | BOLT |
| EXHAUST PIPE TO TRANSMISSION | ||
| M10X35 | ||
| 044 | N 910113010001 | NUT |
| EXHAUST PIPE TO TRANSMISSION | ||
| M10-10 | ||
| 048 | A 3904920341 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 048 | A 3904900340 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 049 | A 3904900095 | REINFORCEMENT |
| EXHAUST PIPE TO TRANSMISSION | ||
| 051 | A 6684921440 | CLAMP |
| UPPER PART | ||
| 051 | A 6684921540 | CLAMP |
| LOWER PART | ||
| 051 | A 6684921440 | CLAMP |
| UPPER PART | ||
| 051 | A 6684921540 | CLAMP |
| LOWER PART | ||
| 057 | N 304017010047 | BOLT |
| CLAMP TO BRACKET | ||
| 057 | N 304017010047 | BOLT |
| CLAMP TO BRACKET | ||
| 060 | N 910113010001 | NUT |
| CLAMP TO BRACKET | ||
| M10-10 | ||
| 060 | N 910113010001 | NUT |
| CLAMP TO BRACKET | ||
| M10-10 | ||
| 077 | A 3824907065 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO MUFFLER | ||
| 077 | A 3824900165 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO MUFFLER | ||
| 080 | A 3844927340 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 086 | A 3824907401 | EXHAUST MUFFLER |
| 086 | A 3824907501 | EXHAUST MUFFLER |
| 095 | N 000125010532 | WASHER |
| EXHAUST MUFFLER | ||
| Repalced by: N 000000003386 | ||
| 095 | N 000000003386 | WASHER |
| EXHAUST MUFFLER | ||
| 096 | N 304017008016 | BOLT |
| SHIM TO SUBSTRUCTURE MOUNTED CONSOLE | ||
| M8X16 | ||
| 098 | N 912004008102 | LOCK WASHER |
| SHIM TO SUBSTRUCTURE MOUNTED CONSOLE | ||
| 100 | N 000125008445 | WASHER |
| SHIM TO SUBSTRUCTURE MOUNTED CONSOLE | ||
| 104 | N 304017008021 | BOLT |
| FRONT EXHAUST PIPE | ||
| M8X20 | ||
| 107 | N 000125008445 | WASHER |
| FRONT EXHAUST PIPE | ||
| 110 | N 912004008102 | LOCK WASHER |
| FRONT EXHAUST PIPE | ||
| 113 | A 3824907434 | SUPPORT |
| EXHAUST MUFFLER | ||
| 116 | A 3904910069 | SHIM |
| FRONT EXHAUST PIPE | ||
| 119 | N 000961014063 | BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M14X1.5X40 | ||
| 122 | N 910113014000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| M14X1.5 | ||
| 125 | A 3209901840 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 131 | A 3904900119 | EXHAUST PIPE |
| REAR | ||
| 134 | N 071555104500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 137 | N 304017010038 | BOLT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M10X30 | ||
| 140 | N 913004010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
