Transporto priemonė: OH 1315; VIN numerio dalis: 382000

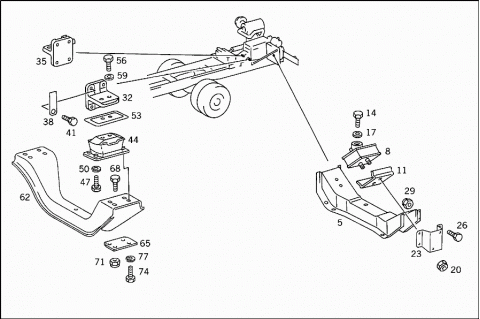

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3453120205 | ENGINE CROSS MEMBER |
| N.02 | ||
| 008 | A 3522400417 | RUBBER MOUNTING |
| Repalced by: A 6952407017 | ||
| 008 | A 3452400317 | RUBBER MOUNTING |
| Repalced by: A 6952407017 | ||
| 008 | A 3842407117 | RUBBER MOUNTING |
| Repalced by: A 6952407017 | ||
| 008 | A 6952407017 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 011 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 014 | N 000960016249 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M16X55 | ||
| 014 | N 000912016075 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M16X60 | ||
| 017 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 020 | N 913004012003 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 023 | A 3523120740 | BRACKET |
| ENGINE LEFT STAY | ||
| 023 | A 3523120840 | BRACKET |
| ENGINE RIGHT STAY | ||
| 026 | N 000933010254 | SCREW |
| ENGINE STAY TO ENGINE SUPPORT | ||
| M10X25 MM | ||
| 026 | N 910105010011 | HEXAGON HEAD BOLT |
| ENGINE STAY TO ENGINE SUPPORT | ||
| M10X40 | ||
| 029 | N 913023010002 | NUT |
| ENGINE STAY TO ENGINE SUPPORT | ||
| 032 | A 6842427005 | SUPPORTING ARM |
| ENGINE LEFT REAR MOUNTING | ||
| 032 | A 6842427005 | SUPPORTING ARM |
| ENGINE LEFT REAR MOUNTING | ||
| 035 | A 6842427105 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 035 | A 6842427105 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 035 | A 6842427105 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 038 | A 3874291340 | BRACKET |
| SUPPORTING ARM TO BELL HOUSING | ||
| 041 | N 000933016079 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 044 | A 6152400218 | RUBBER MOUNTING |
| Repalced by: A 6842407018 | ||
| 044 | A 6842407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 044 | A 6152400318 | RUBBER MOUNTING |
| Repalced by: A 3922407018 | ||
| 044 | A 3922407018 | RUBBER MOUNTING |
| 044 | A 6152400418 | RUBBER MOUNTING |
| Repalced by: A 3862407218 | ||
| 044 | A 3862407218 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 047 | N 000961012160 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 050 | N 912004012100 | LOCK WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 053 | A 3812420034 | SCREENING PLATE |
| ENGINE REAR SUSPENSION | ||
| 056 | N 000961014101 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 059 | A 3459907340 | WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 062 | A 3453127107 | ENGINE CROSS MEMBER |
| ENGINE REAR SUSPENSION | ||
| 065 | A 3763127460 | REINFORCEMENT |
| LEFT | ||
| 065 | A 3763127560 | REINFORCEMENT |
| RIGHT | ||
| 068 | N 000961012163 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 071 | N 913004012006 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 074 | N 000961012171 | SCREW |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| 077 | N 912004012100 | LOCK WASHER |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
