Transporto priemonė: OH 1318; VIN numerio dalis: 351221
Grupė: 25 CLUTCH

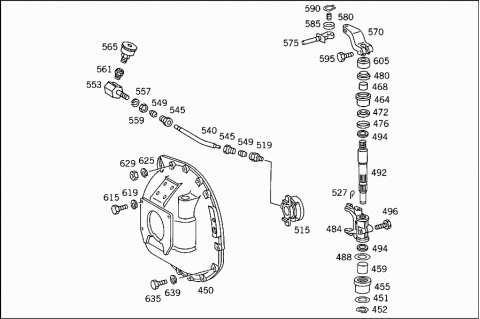

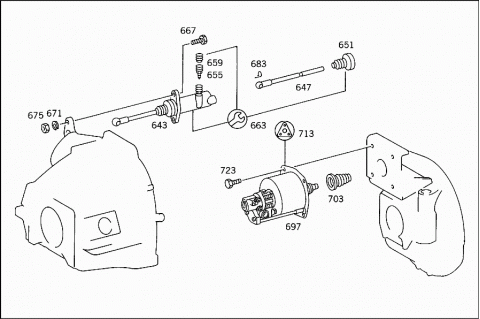

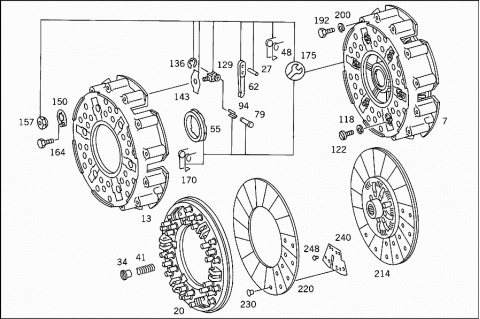

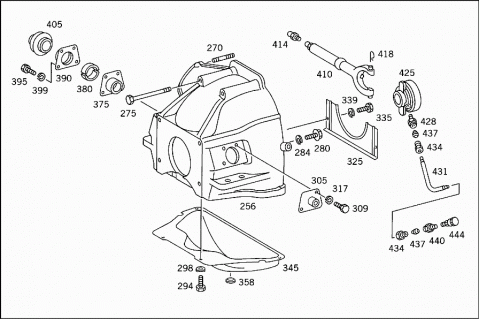

| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 0022509604 | CLUTCH PRESSURE PLATE |
| 007 | A 3512507104 | CLUTCH PRESSURE PLATE |
| 007 | A 0022509704 | CLUTCH PRESSURE PLATE |
| 007 | A 3512507204 | CLUTCH PRESSURE PLATE |
| 007 | A 0032507104 | CLUTCH PRESSURE PLATE |
| 013 | A 0002524432 | HOUSING |
| TO 002 250 96 04;97 04 | ||
| 013 | A 0002520932 | HOUSING |
| Repalced by: A 0002525432 | ||
| 013 | A 0002525432 | HOUSING |
| 020 | A 0002524312 | PRESSURE PLATE |
| Repalced by: A 0002527112 | ||
| 020 | A 0002527112 | PRESSURE PLATE |
| TO 002 250 96 04;97 04 | ||
| 020 | A 0002528112 | PRESSURE PLATE |
| TO 351 250 71 04,72 04 | ||
| 020 | A 0002520412 | PRESSURE PLATE |
| TO 003 250 20 04 | ||
| 027 | A 0002522916 | SPINDLE |
| 027 | A 0002524016 | SPINDLE |
| TO 002 250 96 04,97 04 | ||
| 027 | A 0002524316 | SPINDLE |
| TO 351 250 71 04,72 04 | ||
| 034 | A 0002520253 | SPACER TUBE |
| TO 002 250 96 04;97 04 | ||
| 034 | A 0002520350 | BUSHING |
| TO 351 250 71 04,72 04 | ||
| 034 | A 0002520535 | SLEEVE |
| 041 | A 0002525020 | PRESSURE SPRING |
| TO 002 250 96 04 | ||
| 041 | A 0002529120 | PRESSURE SPRING |
| TO 351 250 71 04 | ||
| 041 | A 0002526420 | PRESSURE SPRING |
| TO 002 250 97 04 | ||
| 041 | A 0002529220 | PRESSURE SPRING |
| TO 351 250 72 04 | ||
| 041 | A 0002524420 | PRESSURE SPRING |
| 041 | A 0002527820 | PRESSURE SPRING |
| 048 | A 0002524427 | SPRING |
| TO 002 250 96 04,97 04 | ||
| 048 | A 0002524627 | SPRING |
| TO 351 250 71 04,72 04 | ||
| 048 | A 0002523227 | SPRING |
| 055 | A 0002522145 | FLANGE |
| 062 | A 0002527113 | RELEASE LEVER |
| TO 002 250 96 04,97 04 | ||
| 062 | A 0002527313 | RELEASE LEVER |
| TO 351 250 71 04,72 04 | ||
| 062 | A 0002524613 | RELEASE LEVER |
| 079 | A 0002524116 | SPINDLE |
| TO 002 250 96 04,97 04 | ||
| 079 | A 0002524416 | SPINDLE |
| TO 351 250 71 04,72 04 | ||
| 079 | A 0002522116 | SPINDLE |
| 094 | A 0002520318 | ROLLER |
| TO 002 250 96 04,97 04 | ||
| 094 | A 0002520818 | ROLLER |
| TO 351 250 71 04,72 04 | ||
| 094 | A 0002520118 | ROLLER |
| 118 | A 0009906047 | LOCK WASHER |
| TO 351 250 71 04,72 04 | ||
| 118 | N 912004005100 | LOCK WASHER |
| TO 002 250 96 04;97 04 | ||
| 122 | A 0002520015 | SCREW |
| TO 351 250 71 04,72 04 | ||
| 122 | A 0002522971 | SCREW |
| TO 002 250 96 04;97 04 | ||
| 122 | A 0002522971 | SCREW |
| TO 003 250 71 04 | ||
| 129 | A 0002523214 | BRACKET |
| TO 002 250 96 04,97 04 | ||
| 129 | A 0002523614 | BRACKET |
| TO 002 250 71 04,72 04 | ||
| 129 | A 0002520614 | BRACKET |
| 136 | N 006799007007 | LOCK PLATE |
| TO 002 250 96 04,97 04 | ||
| 136 | A 0079940241 | LOCK |
| TO 351 250 71 04,72 04 | ||
| 136 | N 006799007005 | LOCK PLATE |
| 143 | A 0002524319 | LEAF SPRING |
| TO 002 250 96 04,97 04 | ||
| 143 | A 0002525619 | LEAF SPRING |
| TO 351 250 71 04,72 04 | ||
| 143 | A 0002520519 | LEAF SPRING |
| 150 | A 0002521173 | LOCK |
| TO 002 250 96 04,97 04 | ||
| 150 | A 0002521673 | LOCK |
| TO 351 250 71 04,72 04 | ||
| 150 | A 0002521073 | LOCK |
| 157 | A 0002523372 | NUT |
| TO 002 250 96 04,97 04 | ||
| 157 | A 0002524072 | NUT |
| TO 351 250 71 04,72 04 | ||
| 157 | A 0002523072 | NUT |
| 164 | A 0002522971 | SCREW |
| 170 | A 0002520727 | SPRING |
| 175 | A 0052500704 | REPAIR KIT |
| 192 | N 000931008377 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 192 | N 000931010409 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 10X70 | ||
| 200 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 200 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 214 | A 0032508303 | CLUTCH DISC |
| F & S | ||
| 214 | A 0072502503 | CLUTCH DISC |
| F & S | ||
| 214 | A 0072507103 | CLUTCH DISC |
| F & S | ||
| 214 | A 3512507003 | CLUTCH DISC |
| WOBRON | ||
| 214 | A 0082500103 | CLUTCH DISC |
| 214 | A 0082500203 | CLUTCH DISC |
| 214 | A 0022509803 | CLUTCH DISC |
| 214 | A 0132505903 | CLUTCH DISC |
| 214 | A 0082500303 | CLUTCH DISC |
| 220 | A 0002529010 | CLUTCH LINING |
| 220 | A 0012522910 | CLUTCH LINING |
| TO 002 250 98 03, 008 250 01 03, 02 03 | ||
| 230 | A 0002521475 | RIVET |
| 230 | A 0002522175 | RIVET |
| 230 | A 0002522575 | RIVET |
| 230 | A 0002523875 | RIVET |
| TO 002 250 98 03,008 250 01 03,02 03 | ||
| 230 | A 0002524375 | RIVET |
| TO 002 250 98 03,008 250 01 03,02 03 | ||
| 240 | A 0002523819 | LEAF SPRING |
| TO 002 250 98 03,008 250 01 03,02 03 | ||
| 248 | A 0002523975 | RIVET |
| TO 002 250 98 03,008 250 01 03,02 03 | ||
| 256 | A 3452511201 | BELL HOUSING |
| Repalced by: A 3412510501 | ||
| 256 | A 3412510501 | BELL HOUSING |
| 256 | A 3512517101 | BELL HOUSING |
| Repalced by: A 3512517501 | ||
| 256 | A 3512517501 | BELL HOUSING |
| 270 | A 0009902605 | STUD |
| Repalced by: A 6709900005 | ||
| 270 | A 6709900005 | STUD |
| STARTING MOTOR TO BELL HOUSING | ||
| 275 | N 000931012277 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 280 | N 900170012005 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 284 | N 000127012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 294 | N 000933006223 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 298 | N 000137006101 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 305 | A 3102500155 | COVER |
| 309 | N 000933008145 | SCREW |
| COVER TO BELL HOUSING | ||
| 317 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 325 | A 3522510106 | PROTECTIVE PLATE |
| 335 | N 000933006233 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 339 | N 000137006101 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 345 | A 3812510102 | BELL HOUSING |
| LOWER PART | ||
| 345 | A 3522510102 | BELL HOUSING |
| LOWER PART | ||
| 358 | A 3129971681 | GROMMET |
| 375 | A 3522540040 | BRACKET |
| INSIDE | ||
| 380 | A 3522540135 | BEARING |
| 390 | A 3452500043 | BRACKET |
| OUTSIDE | ||
| 390 | A 3522500243 | BRACKET |
| Repalced by: A 3412500043 | ||
| 390 | A 3412500043 | BRACKET |
| OUTSIDE | ||
| 395 | N 000933008145 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 399 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| A 3522540097 | BOOT | |
| 405 | A 6152540097 | BOOT |
| 410 | A 3812500113 | RELEASE LEVER |
| 414 | A 3029910015 | BALL PIVOT |
| 418 | A 3402540013 | SPRING LOCK |
| 425 | A 0002503115 | RELEASE BEARING |
| 425 | A 0002504015 | RELEASE BEARING |
| 425 | A 3082507015 | RELEASE BEARING |
| 428 | N 071428004102 | SCREW-IN FITTING |
| 431 | A 3059971982 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 431 | A 3089977182 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 431 | A 3949977182 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 434 | N 003871004102 | UNION SCREW |
| RELEASE COLLAR LUBRICATION | ||
| 437 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE COLLAR LUBRICATION | ||
| 440 | N 071428004102 | SCREW-IN FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 444 | N 003411002001 | GREASE CUP |
| RELEASE COLLAR LUBRICATION | ||
| 450 | A 3642501805 | HOUSING |
| 451 | A 3432930052 | SPACER WASHER |
| RELEASE YOKE TO SHAFT | ||
| 452 | N 000471024001 | LOCK RING |
| RELEASE YOKE TO SHAFT | ||
| 455 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 459 | A 3439920103 | BUSHING |
| 464 | A 6202510050 | BUSHING |
| TOP | ||
| 468 | A 3389920103 | BUSHING |
| 472 | A 3859970040 | SEAL RING |
| 476 | A 3852930027 | COVER PLATE |
| 480 | A 0099971547 | SEAL RING |
| 484 | A 3452930111 | RELEASE YOKE |
| 488 | A 3172930377 | WASHER |
| 492 | A 3512540007 | SHAFT |
| 494 | N 005419025101 | FELT RING |
| 496 | N 000931012283 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 515 | A 3642500115 | RELEASE BEARING |
| 519 | N 071428004102 | SCREW-IN FITTING |
| 527 | A 3179930225 | SPRING |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 540 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 540 | A 3089977182 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 540 | A 3949977182 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 545 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 549 | N 003862004003 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 553 | A 3072510208 | INTERMEDIATE PIECE |
| RELEASE BEARING LUBRICATION | ||
| 557 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 559 | N 000439014218 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 561 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 565 | N 003411002001 | GREASE CUP |
| RELEASE BEARING LUBRICATION | ||
| 570 | A 3642950128 | LEVER |
| CLUTCH OPERATION | ||
| 575 | A 0009969040 | ROD END |
| CLUTCH OPERATION | ||
| 580 | A 3072560074 | PIN |
| CLUTCH OPERATION | ||
| 585 | A 0019972141 | SEAL RING |
| CLUTCH OPERATION | ||
| 590 | N 000471012001 | LOCK RING |
| CLUTCH OPERATION | ||
| 595 | N 000931010395 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| M 10X50 | ||
| 605 | A 3642500055 | COVER |
| 615 | N 000961018024 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| M 18X1,5X55 | ||
| 619 | N 000127018203 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 625 | N 912004016101 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 629 | N 000934016024 | NUT |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 16X1,5 | ||
| 635 | N 000931012247 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X45 | ||
| 639 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 643 | A 0002957207 | SLAVE CYLINDER |
| 647 | A 0002950233 | ROD |
| 651 | A 0002952983 | BOOT |
| 655 | A 3454317165 | VALVE |
| 659 | A 3454317287 | PROTECTIVE CAP |
| 663 | A 0005864329 | REPAIR KIT |
| Repalced by: A 0002900811 | ||
| 663 | A 0002900811 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 667 | N 000933010094 | SCREW |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 671 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 675 | N 000934010040 | NUT |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 683 | N 071805016402 | CIRCLIP |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 697 | A 0012955607 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| A 0002951530 | PISTON | |
| A 0002951233 | ROD | |
| 703 | A 0002955683 | BOOT |
| 713 | A 0002950660 | REPAIR KIT |
| MAJOR | ||
| A 0002900147 | REPAIR KIT | |
| MINOR | ||
| 723 | N 000933008268 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| M 8X16 | ||
