Transporto priemonė: OH 1318; VIN numerio dalis: 351221

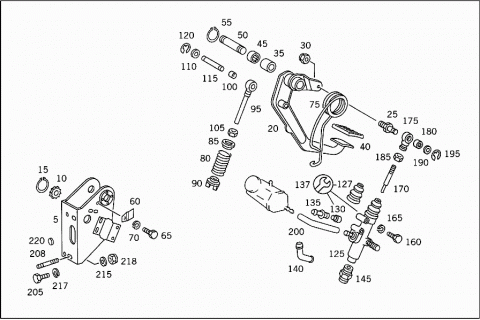

Grupė: 29 PEDALS - 001 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3812901319 | BEARING BRACKET |
| Repalced by: A 3512907519 | ||
| 005 | A 3512907519 | BEARING BRACKET |
| CLUTCH | ||
| 010 | A 3812910186 | STOP |
| PEDAL BEARING BRACKET | ||
| 015 | N 000471016001 | LOCK RING |
| PEDAL BEARING BRACKET | ||
| 16X1 | ||
| 020 | A 6202900416 | PEDAL |
| 025 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 030 | N 913002008001 | NUT |
| CLUTCH PEDAL | ||
| 035 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 040 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 045 | A 0009815610 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 045 | A 0089811110 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 050 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 055 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 20X1.2 | ||
| 060 | A 3812910073 | LOCK |
| 065 | N 000933006220 | SCREW |
| LOCK TO BEARING BRACKET | ||
| M 6X16 | ||
| 070 | N 000127006203 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 075 | A 3819930710 | SPRING |
| 080 | A 1109930501 | SPRING |
| 085 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 090 | A 3092910091 | SPRING RETAINER |
| 095 | A 3812910233 | ROD |
| 095 | A 3812910333 | ROD |
| 100 | A 0089811210 | NEEDLE BEARING |
| PUSH ROD | ||
| 100 | A 0059814410 | NEEDLE BEARING |
| PUSH ROD | ||
| 100 | A 0059813810 | NEEDLE BEARING |
| 105 | N 000439010221 | NUT |
| SPRING TO PUSH ROD | ||
| 110 | N 000433008403 | WASHER |
| PUSH ROD TO PEDAL | ||
| 115 | A 3812910574 | PIN |
| PUSH ROD TO PEDAL | ||
| 120 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 125 | A 0012956006 | MASTER CYLINDER |
| CLUTCH MASTER CYLINDER | ||
| 125 | A 3502957006 | MASTER CYLINDER |
| CLUTCH MASTER CYLINDER | ||
| 127 | A 0002953283 | BOOT |
| CLUTCH MASTER CYLINDER | ||
| TO 001 295 60 06 | ||
| 127 | A 0002955483 | BOOT |
| TO 350 295 70 06 | ||
| 130 | A 0009971186 | PLUG |
| 135 | A 0002950836 | INTERMEDIATE PIECE |
| TO 001 295 60 06 | ||
| A 3085867029 | REPAIR KIT | |
| 137 | A 0002904667 | REPAIR KIT |
| LESS PISTON | ||
| TO 001 295 60 06 | ||
| 137 | A 0002902712 | REPAIR KIT |
| CLUTCH MASTER CYLINDER | ||
| TO 350 295 70 06 | ||
| 140 | A 3092950036 | INTERMEDIATE PIECE |
| CLUTCH MASTER CYLINDER | ||
| 145 | A 3649977672 | FITTING |
| CLUTCH MASTER CYLINDER | ||
| 160 | N 000931006191 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| M 6X55 | ||
| 165 | N 000127006203 | LOCK WASHER |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 170 | A 3812950033 | ROD |
| 175 | A 0009961045 | ARTICULATION PIECE |
| PISTON ROD | ||
| 175 | A 0009961145 | ARTICULATION PIECE |
| PISTON ROD | ||
| 180 | A 0089811210 | NEEDLE BEARING |
| PISTON ROD | ||
| 180 | A 0059813810 | NEEDLE BEARING |
| PISTON ROD | ||
| 180 | A 0059814410 | NEEDLE BEARING |
| PISTON ROD | ||
| 185 | N 000439008104 | NUT |
| YOKE TO ROD | ||
| 185 | N 000439008220 | NUT |
| YOKE TO ROD | ||
| 190 | N 000433008403 | WASHER |
| PISTON ROD TO LEVER | ||
| 195 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO LEVER | ||
| 200 | A 0119976782 | HOSE |
| Repalced by: A 0009978952 | ||
| 200 | A 0009978952 | HOSE |
| N 916002014100 | CLAMP | |
| HOSE TO MASTER CYLINDER | ||
| 205 | N 000931008046 | SCREW |
| CLUTCH PEDAL TO CAB | ||
| M 8X35 | ||
| 208 | N 000933008152 | SCREW |
| CLUTCH PEDAL TO CAB | ||
| M 8X30 | ||
| 215 | N 000125008417 | WASHER |
| 217 | N 912004008102 | LOCK WASHER |
| 218 | N 913004008004 | NUT |
| 220 | A 3413017041 | STOP |
| CLUTCH PEDAL STOP | ||

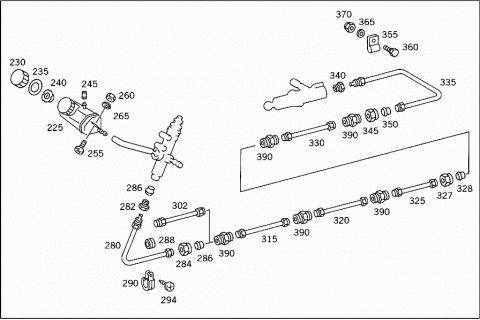

| 225 | A 0002951715 | RESERVOIR |
| . | ||
| 230 | A 0002950116 | LOCKING CAP |
| 235 | A 0009972940 | SEAL RING |
| 240 | A 0004314334 | STRAINER |
| 245 | A 0009885435 | CAP |
| 255 | N 007985006109 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X15 | ||
| 260 | N 000934006000 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 265 | N 000127062006 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 280 | A 3512908713 | LINE |
| FROM LINE AT CLUCTH MASTER CYLINDER TO LINE AT CONNECTOR | ||
| 280 | A 3512909113 | LINE |
| FROM LINE AT CLUCTH MASTER CYLINDER TO LINE AT CONNECTOR | ||
| 282 | A 0004281072 | UNION SCREW |
| 284 | N 915017008100 | UNION NUT |
| 286 | N 003861008005 | GLAND |
| 286 | N 003861008005 | GLAND |
| 288 | A 3029970381 | GROMMET |
| 290 | N 916016008200 | CLAMP |
| 290 | N 916016022203 | CLAMP |
| HYDRAULIC HOSE TO STEERING GEAR | ||
| 290 | N 916016022203 | CLAMP |
| LINE | ||
| 294 | N 007981004258 | SHEET METAL SCREW |
| 302 | A 3512909013 | LINE |
| FROM DOUBLE FITTING TO CONNECTION FITTING | ||
| 315 | A 3512907513 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 315 | A 3512908413 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 320 | A 3514208430 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 320 | A 3514208530 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 320 | A 3514208630 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 320 | A 3512907813 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 325 | A 3512907213 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 325 | A 3512907913 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 327 | N 915017008100 | UNION NUT |
| 328 | N 003861008005 | GLAND |
| 330 | A 3512907113 | LINE |
| FROM CONNECTOR IV TO CONNECTOR V | ||
| 335 | A 3512907013 | LINE |
| FROM CONNECTOR TO CLUTCH SLAVE CYLINDER | ||
| 340 | A 0004281072 | UNION SCREW |
| 345 | N 915017008100 | UNION NUT |
| 350 | N 003861008005 | GLAND |
| 355 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 355 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 355 | N 916016008200 | CLAMP |
| 355 | N 916016008200 | CLAMP |
| LINE | ||
| 360 | N 000084006197 | SCREW |
| HYDRAULIC HOSE TO STEERING GEAR | ||
| M 6X16 | ||
| 360 | N 000084006197 | SCREW |
| LINE | ||
| M 6X16 | ||
| 365 | N 000125006420 | WASHER |
| HYDRAULIC HOSE TO STEERING GEAR | ||
| 365 | N 000125006420 | WASHER |
| LINE | ||
| 370 | N 913004006002 | NUT |
| HYDRAULIC HOSE TO STEERING GEAR | ||
| 370 | N 913004006002 | NUT |
| LINE | ||

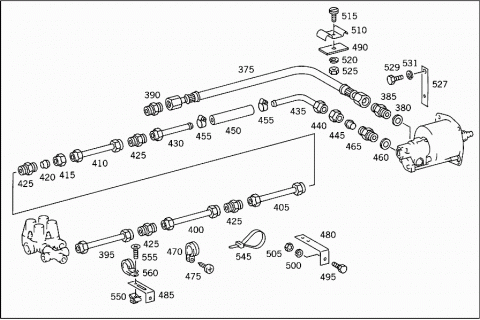

| 375 | A 3512957035 | HOSE |
| CLUTCH BOOSTER | ||
| 375 | A 3512957135 | HOSE |
| CLUTCH BOOSTER | ||
| 380 | N 007603014102 | SEAL RING |
| CLUTCH BOOSTER,CONNECTION: | ||
| 14 | ||
| 385 | A 3519907383 | FITTING |
| CLUTCH BOOSTER,CONNECTION: | ||
| 14 | ||
| N 915036010100 | HOLLOW SCREW | |
| CLUTCH BOOSTER,CONNECTION: | ||
| "14" | ||
| A 0019900488 | BANJO UNION | |
| CLUTCH BOOSTER,CONNECTION: | ||
| "14" | ||
| N 007603014106 | SEAL RING | |
| CLUTCH BOOSTER,CONNECTION: | ||
| "14" | ||
| 390 | A 0019972672 | FITTING |
| 390 | N 003902008001 | CONNECTION FITTING |
| 395 | A 3512908013 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO CLUTCH SLAVE CYLINDER | ||
| 400 | A 3514207630 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO CLUTCH SLAVE CYLINDER | ||
| 405 | A 3512908113 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO CLUTCH SLAVE CYLINDER | ||
| 410 | A 3512908813 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO CLUTCH SLAVE CYLINDER | ||
| 415 | N 915017012100 | UNION NUT |
| 420 | N 003861012007 | GLAND |
| 425 | N 003902012001 | CONNECTION FITTING |
| Repalced by: A 0049971772 | ||
| 425 | A 0049971772 | FITTING |
| 430 | A 3414308466 | LINE |
| FROM FITTING TO HOSE | ||
| 435 | A 3414308566 | LINE |
| FROM HOSE TO FITTING | ||
| 440 | N 915017012100 | UNION NUT |
| 445 | N 003861012007 | GLAND |
| 450 | N 916027011003 | HOSE |
| 11X480 MM | ||
| 455 | N 916018016000 | CLAMP |
| HOSE TO PIPE LINE | ||
| 460 | N 007603016105 | SEAL RING |
| CLUTCH BOOSTER,CONNECTION: | ||
| "11" | ||
| 465 | N 003901012005 | SCREW-IN FITTING |
| CLUTCH BOOSTER,CONNECTION: | ||
| "11" | ||
| 470 | N 916016008200 | CLAMP |
| LINE TO STRUT | ||
| 475 | N 007981004233 | SHEET METAL SCREW |
| LINE TO STRUT | ||
| 480 | A 3414760036 | BRACKET |
| 485 | A 3524281740 | BRACKET |
| 490 | A 3124761036 | BRACKET |
| 495 | N 000933008274 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X22 | ||
| 500 | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 505 | N 000934008045 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 510 | A 3519957132 | CLAMP |
| LINE TO BRACKET | ||
| 515 | N 000084006429 | SCREW |
| 520 | N 000127006203 | LOCK WASHER |
| 525 | N 000934006029 | NUT |
| 527 | A 3512957140 | BRACKET |
| 529 | N 000933012123 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 12X20 | ||
| 531 | N 912004012100 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 545 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 545 | A 0019978490 | LOOM TIE |
| 550 | A 0009906391 | SOCKET NUT |
| LINE TO STRUT | ||
| 555 | N 000966006033 | SCREW |
| LINE TO STRUT | ||
| M 6X20 | ||
| 560 | N 916016008200 | CLAMP |
| LINE TO STRUT | ||
