Transporto priemonė: OH 1318; VIN numerio dalis: 351221
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

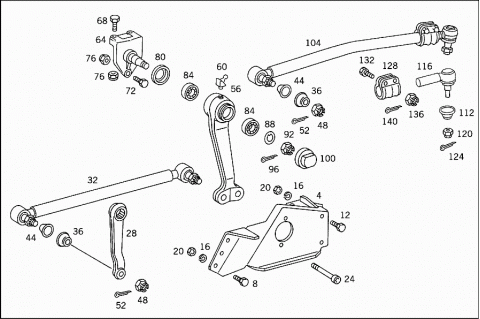

| 004 | A 3454600029 | STEERING BRACKET |
| 008 | N 000961012020 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X1,5X30 | ||
| 012 | N 000961012027 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X1,5X35 | ||
| 016 | N 912004012100 | LOCK WASHER |
| 020 | N 000934012004 | NUT |
| STEERING BRACKET TO FRAME | ||
| M 12X1,5 | ||
| 024 | A 3529900012 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 028 | A 3454630501 | PITMAN ARM |
| BALL-NUT-TYPE HYDRAULIC POWER STEERING | ||
| 032 | A 3454600605 | DRAG LINK |
| FRONT | ||
| 032 | A 3454600705 | DRAG LINK |
| FRONT | ||
| 032 | A 3454609305 | DRAG LINK |
| FRONT | ||
| 036 | A 0003300385 | BOOT |
| TO 345 460 06 05,345 460 07 05 | ||
| 036 | A 3643307085 | BOOT |
| TO 345 460 93 05 | ||
| 044 | A 3643387082 | RUBBER RING |
| Repalced by: A 0003381463 | ||
| 044 | A 0003381463 | CLAMPING RING |
| TO 345 460 93 05, 06 05 | ||
| 048 | N 000937020011 | NUT |
| M 20X1,5 | ||
| 052 | N 000094004066 | COTTER PIN |
| TO 345 460 06 05; 36 MM | ||
| 052 | N 000094004078 | COTTER PIN |
| TO 345 460 07 05,345 460 93 05; 40 MM | ||
| 056 | A 3554630110 | STEERING INTERMEDIATE ARM |
| STEERING | ||
| 060 | N 071412010200 | GREASE NIPPLE |
| STEERING INTERMEDIATE ARM | ||
| 064 | A 3524630011 | TRUNNION BEARING |
| STEERING INTERMEDIATE ARM | ||
| 068 | N 000960012043 | SCREW |
| INTERMEDIATE LEVER TO FRAME | ||
| M 12X1,5X45 | ||
| 072 | N 000961012058 | SCREW |
| INTERMEDIATE LEVER TO FRAME | ||
| M 12X1,5X40 | ||
| 076 | N 913004012009 | NUT |
| INTERMEDIATE LEVER TO FRAME | ||
| M 12X1,5 | ||
| 080 | N 006504042100 | RADIAL SEAL RING |
| STEERING INTERMEDIATE ARM | ||
| 084 | N 000720030206 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM | ||
| 084 | A 6849817005 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM | ||
| 084 | A 6849817105 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM | ||
| 084 | N 000720030205 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM | ||
| 084 | A 6849817205 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM | ||
| 084 | A 6849817305 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM | ||
| 088 | A 3174630062 | THRUST WASHER |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 092 | N 000937020001 | NUT |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 096 | N 000094004066 | COTTER PIN |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 4X36 | ||
| 100 | A 3214630033 | CAP |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 104 | A 3454607905 | DRAG LINK |
| REAR; DIA., | ||
| 42 MM | ||
| 104 | A 3454608005 | DRAG LINK |
| REAR; DIA., | ||
| 42 MM,"NAKATA" | ||
| 112 | A 0003300385 | BOOT |
| A 0003381463 | CLAMPING RING | |
| 116 | A 0003303235 | JOINT |
| Repalced by: A 0013300135 | ||
| 116 | A 0013300135 | JOINT |
| "LEMFOERDER" | ||
| 120 | N 000937020011 | NUT |
| M 20X1,5 | ||
| 124 | N 000094004066 | COTTER PIN |
| 4X36 | ||
| 128 | A 0003382045 | CLAMP |
| 132 | N 000960012081 | SCREW |
| M 12X1,5X65 | ||
| 136 | N 000935012002 | NUT |
| M 12X1,5 | ||
| 140 | N 000094003225 | COTTER PIN |

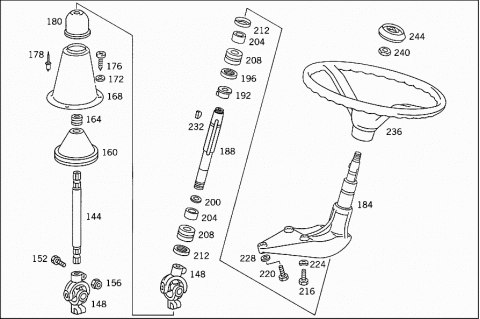

| 144 | A 3454620001 | STEERING SHAFT |
| BOTTOM | ||
| 144 | A 3514627101 | STEERING SHAFT |
| BOTTOM | ||
| 148 | A 3444607057 | UNIVERSAL JOINT |
| 148 | A 3444607157 | UNIVERSAL JOINT |
| 148 | A 3444607257 | UNIVERSAL JOINT |
| 152 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 156 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 160 | A 3524620196 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 164 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 168 | A 3444620196 | BOOT |
| 168 | A 3514627196 | BOOT |
| 172 | N 000125006421 | WASHER |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 176 | N 007981004233 | SHEET METAL SCREW |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 178 | A 3519907397 | RIVET |
| 180 | A 3604620596 | BOOT |
| UNIVERSAL JOINT,TOP | ||
| 184 | A 3514607037 | BEARING |
| STEERING SHAFT | ||
| 184 | A 3514607137 | BEARING |
| STEERING SHAFT | ||
| 188 | A 3454627201 | STEERING SHAFT |
| TOP | ||
| 188 | A 3514627201 | STEERING SHAFT |
| TOP | ||
| 188 | A 3514627301 | STEERING SHAFT |
| TOP | ||
| 192 | A 3524620251 | RING |
| STEERING COLUMN MOUNTED SWITCH RESET | ||
| 196 | A 3454627028 | BEARING RING |
| STEERING COLUMN BEARING | ||
| 200 | A 3764620075 | WASHER |
| STEERING COLUMN BEARING | ||
| 204 | A 3454627050 | BUSHING |
| STEERING COLUMN BEARING | ||
| 208 | A 3454627065 | RING |
| STEERING COLUMN BEARING | ||
| 212 | A 3454627023 | COVER |
| STEERING COLUMN BEARING | ||
| 216 | N 000933010056 | SCREW |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| M 10X35 | ||
| 220 | N 000931010282 | SCREW |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| M 10X40 | ||
| 224 | N 000137010202 | SPRING WASHER |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 228 | N 000125010518 | WASHER |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 232 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 236 | A 3514607003 | STEERING WHEEL |
| 236 | A 3644607003 | STEERING WHEEL |
| 240 | N 000439022200 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 244 | A 3644647032 | BADGE |
| STEERING WHEEL | ||

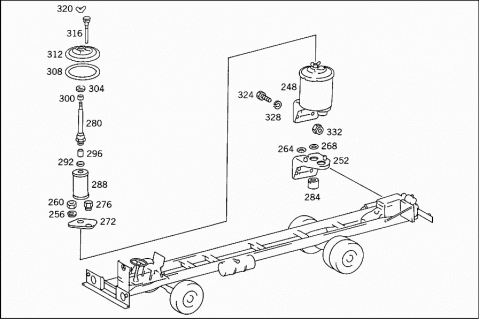

| 248 | A 3644667002 | TANK |
| 252 | A 0004660640 | BRACKET |
| 256 | N 000127008205 | LOCK WASHER |
| 260 | N 000934008035 | NUT |
| 264 | A 0099970145 | SEAL RING |
| 268 | A 0059970848 | SEAL RING |
| 272 | A 0004660095 | STRUT |
| 276 | A 0004660571 | FITTING |
| 280 | A 0004610065 | FILTER SUPPORT |
| 284 | A 0004660458 | CONNECTOR |
| 288 | A 0004660204 | FILTER |
| 292 | A 0004660675 | CENTERING RING |
| 296 | A 0009870643 | RUBBER SLEEVE |
| 300 | A 0004660153 | SPACER TUBE |
| 304 | A 0004660275 | WASHER |
| 308 | A 0004660260 | SEAL RING |
| 312 | A 0004664405 | COVER |
| 316 | A 0004660067 | OIL DIPSTICK |
| 320 | A 0009901562 | NUT |
| Repalced by: A 0009901662 | ||
| 320 | A 0009901662 | NUT |
| 324 | N 000933010016 | SCREW |
| OIL TANK TO BRACKET | ||
| M 10X20 | ||
| 328 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 332 | N 000934010000 | NUT |
| OIL TANK TO BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

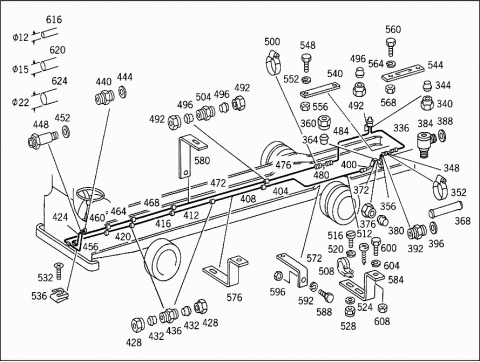

| OIL LINES | ||
| 336 | A 3514608524 | LINE |
| FROM OIL TANK TO HOSE | ||
| 336 | A 3514608624 | LINE |
| FROM OIL TANK TO HOSE | ||
| 340 | N 915017022100 | UNION NUT |
| 344 | N 003861022004 | GLAND |
| 348 | A 3609970982 | HOSE |
| 348 | A 3459977982 | HOSE |
| 352 | A 3449978490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 352 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 352 | N 000000000666 | CLAMP |
| 356 | A 3514608724 | LINE |
| FROM HOSE TO PUMP | ||
| 356 | A 3514608824 | LINE |
| FROM HOSE TO PUMP | ||
| 360 | N 915017022100 | UNION NUT |
| 364 | N 003861022004 | GLAND |
| 368 | A 3514669465 | LINE |
| LOW PRESSURE LINES | ||
| 372 | A 3454602724 | LINE |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 15X1.5 MM | ||
| 372 | A 3514609324 | LINE |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 15X1.5 MM | ||
| 376 | N 915017015100 | UNION NUT |
| 380 | N 003861015004 | GLAND |
| 384 | N 915041022100 | SCREW CONNECTION |
| FROM OIL TANK TO PUMP | ||
| 388 | N 007603026104 | SEAL RING |
| FROM OIL TANK TO PUMP | ||
| 392 | A 3529970671 | FITTING |
| FROM PUMP TO STEERING | ||
| 396 | N 007603016105 | SEAL RING |
| FROM PUMP TO STEERING | ||
| 400 | A 3649978282 | HOSE |
| FROM PUMP TO DELIVERY LINE | ||
| 400 | A 3059971082 | HOSE |
| FROM PUMP TO DELIVERY LINE | ||
| 400 | A 0139971182 | HOSE |
| FROM PUMP TO DELIVERY LINE | ||
| 400 | A 3519977182 | HOSE |
| FROM PUMP TO DELIVERY LINE | ||
| 404 | A 3454602624 | LINE |
| FROM HOSE TO DOUBLE FITTING I | ||
| 15X1.5 MM | ||
| 404 | A 3514609124 | LINE |
| FROM HOSE TO DOUBLE FITTING I | ||
| 15X1.5 MM | ||
| 408 | A 3514607788 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 15X1.5 MM | ||
| 408 | A 3514609424 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 15X1.5 MM | ||
| 412 | A 3514208049 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 412 | A 3514209129 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 412 | A 3514209229 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 412 | A 3514609524 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 416 | A 3514609624 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 420 | A 3514607088 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 420 | A 3514607088 | LINE |
| FROM CONNECTOR IV TO CONNECTOR V | ||
| 424 | A 3514607188 | LINE |
| FROM CONNECTION FITTING TO STEERING | ||
| 428 | N 915017015100 | UNION NUT |
| 432 | N 003861015004 | GLAND |
| 436 | N 003902015001 | CONNECTION FITTING |
| 440 | A 3529970671 | FITTING |
| STEERING | ||
| 444 | N 007603016103 | SEAL RING |
| STEERING | ||
| 448 | A 3459970172 | FITTING |
| STEERING | ||
| 452 | N 007603018101 | SEAL RING |
| STEERING | ||
| 456 | A 3454602524 | LINE |
| FROM STEERING TO DOUBLE FITTING I | ||
| 22X1.5 MM | ||
| 460 | A 3454601824 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 22X1.5 MM | ||
| 464 | A 3514607388 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 464 | A 3454607488 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 464 | A 3514607588 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 464 | A 3514609724 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 468 | A 3514607688 | LINE |
| FROM DOUBLE FITTING III TO DOUBLE FITTING IV | ||
| 22X1.5 MM | ||
| 468 | A 3514609224 | LINE |
| FROM DOUBLE FITTING III TO DOUBLE FITTING IV | ||
| 472 | A 3514607288 | LINE |
| FROM CONNECTOR IV TO CONNECTOR V | ||
| 22X1.5 MM | ||
| 472 | A 3514609824 | LINE |
| FROM CONNECTOR IV TO CONNECTOR V | ||
| 476 | A 3514609924 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 480 | A 3609970982 | HOSE |
| 480 | A 3459977982 | HOSE |
| 484 | A 3514608924 | LINE |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 484 | A 3514608624 | LINE |
| FROM DOUBLE FITTING IV TO OIL TANK | ||
| 22X1.5 MM | ||
| 492 | N 915017022100 | UNION NUT |
| 496 | N 003861022004 | GLAND |
| 500 | A 3449978490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 500 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 500 | N 000000000666 | CLAMP |
| HOSE TO OIL LINE | ||
| 504 | N 003902022000 | CONNECTION FITTING |
| 508 | N 916016015202 | CLAMP |
| LINES TO BRACKET | ||
| 508 | N 916016022203 | CLAMP |
| LINES TO BRACKET | ||
| 512 | N 007981004258 | SHEET METAL SCREW |
| LINE MOUNTING | ||
| 516 | N 000084006423 | SCREW |
| LINE MOUNTING | ||
| M 6X20 | ||
| 516 | N 000084006425 | SCREW |
| LINE MOUNTING | ||
| M 6X25 | ||
| 520 | N 912004006102 | LOCK WASHER |
| LINE MOUNTING | ||
| 524 | N 000125006421 | WASHER |
| LINE MOUNTING | ||
| 524 | N 009021006103 | WASHER |
| LINE MOUNTING | ||
| 528 | N 000934006007 | NUT |
| LINE MOUNTING | ||
| 532 | N 000966006033 | SCREW |
| LINE MOUNTING | ||
| M 6X20 | ||
| 536 | A 0009906391 | SOCKET NUT |
| LINE MOUNTING | ||
| 540 | A 3454660140 | BRACKET |
| 544 | A 3524281640 | BRACKET |
| 548 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X20 | ||
| 552 | N 912004010102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 556 | N 000934010040 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 560 | N 000933008271 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X20 | ||
| 564 | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 568 | N 000934008045 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 572 | A 3454660240 | BRACKET |
| 576 | A 3514667140 | BRACKET |
| 580 | A 3514667040 | BRACKET |
| 584 | A 3454667240 | BRACKET |
| 588 | N 000933010254 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 592 | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 596 | N 000934010040 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 600 | N 000961012151 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X1,5X30 | ||
| 604 | N 912004012100 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 608 | N 000934012039 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M 12X1,5 | ||
| 616 | A 0004294901 | LINE |
| 12X1.5 MM | ||
| 620 | A 0004295101 | LINE |
| 15X1.5 MM | ||
| 620 | A 0004295201 | LINE |
| 15X1.5 MM | ||
| 624 | A 0004294801 | LINE |
| 22X1.5 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
