Transporto priemonė: OH 1318; VIN numerio dalis: 382004

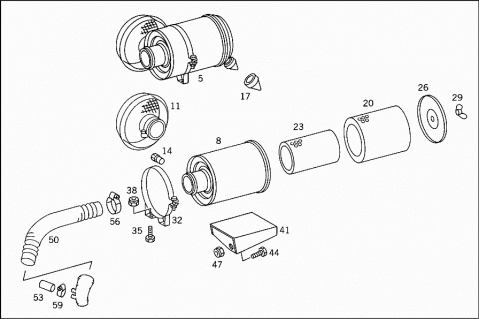

Grupė: 52 CHASSIS SHEET METAL - 150 AIR CLEANER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3760908001 | AIR CLEANER |
| DONALDSON | ||
| 008 | A 0010940403 | FILTER BOWL |
| TO 376 090 80 01 | ||
| 011 | A 3860907043 | COVER |
| TO 376 090 80 01 | ||
| 014 | A 6840947168 | VACUUM BOX |
| TO 376 090 80 01 | ||
| A 3645407045 | SWITCH | |
| (MAINTENANCE SWITCH) | ||
| TO 376 090 84 01 | ||
| 017 | A 0000943305 | SEPARATOR |
| Repalced by: A 3760947065 | ||
| 017 | A 3760947065 | VALVE |
| TO 376 090 80 01 | ||
| 020 | A 0010945404 | FILTER ELEMENT |
| Repalced by: A 3860947004 | ||
| 020 | A 3860947004 | FILTER ELEMENT |
| TO 376 090 80 01 | ||
| 023 | A 0020948604 | FILTER ELEMENT |
| Repalced by: A 3860947104 | ||
| 023 | A 3860947104 | FILTER ELEMENT |
| TO 376 090 80 01 | ||
| 026 | A 0000941020 | SCREENING |
| TO 376 090 80 01 | ||
| 029 | A 0000940575 | NUT |
| Repalced by: A 3760947072 | ||
| 029 | A 3760947072 | NUT |
| TO 376 090 80 01 | ||
| 032 | A 3860907081 | STRAP |
| TO 376 090 80 01 | ||
| 035 | N 000933010294 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 038 | N 913004010004 | NUT |
| AIR CLEANER TO BRACKET | ||
| 041 | A 3825287040 | BRACKET |
| 044 | N 000961012106 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 047 | N 913004012003 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 050 | A 3820947082 | HOSE |
| Repalced by: A 3455287082 | ||
| 050 | A 3455287082 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 053 | A 4409970682 | HOSE |
| Repalced by: N 900271025025 | ||
| 053 | N 900271025025 | HOSE |
| FROM AIR CLEANER TO AIR COMPRESSOR | ||
| 056 | A 3449978090 | CLAMP |
| 059 | A 3449977690 | CLAMP |
| 059 | A 3509979090 | CLAMP |
