Transporto priemonė: OH 1318; VIN numerio dalis: 382004

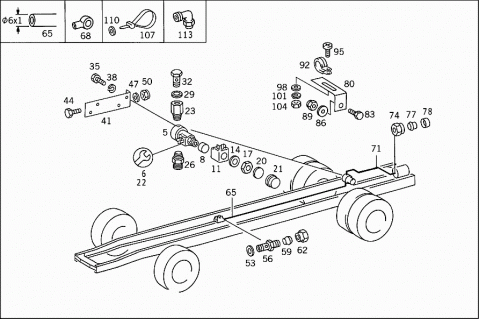

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
005	A 3649977236	VALVE
	Repalced by: A 3889978136
005	A 3889978136	VALVE
		(SOLENOID VALVE)
		"PARKER"
005	A 3889978136	VALVE
		(SOLENOID VALVE)
		"PARKER"
005	A 3889978836	VALVE
		(SOLENOID VALVE)
		"WABCO"
005	A 3889978836	VALVE
		(SOLENOID VALVE)
		"WABCO"
006	A 0059972336	REPAIR KIT
		TO 388 997 81 36
008	A 0004311868	VALVE PART
011	A 0007630956	MAGNET
011	A 0005460488	SOLENOID
		TO 388 997 88 36
014	A 0139971648	SEAL RING
017	A 0004310472	NUT
020	A 0014311687	PROTECTIVE CAP
021	A 0004630956	DUST CAP
022	A 0004206855	REPAIR KIT
		TO 388 997 88 36
023	A 3454297736	CONNECTOR
026	A 3509977472	FITTING
029	N 007603012405	SEAL RING
		SOLENOID VALVE
029	N 007603012405	SEAL RING
		EXHAUST BRAKE SOLENOID VALVE
032	N 915036008202	HOLLOW SCREW
		SOLENOID VALVE
032	N 915036008202	HOLLOW SCREW
		EXHAUST BRAKE SOLENOID VALVE
032	N 915047008202	HOLLOW SCREW
		SOLENOID VALVE
035	N 000933005095	SCREW
		SOLENOID VALVE TO BRACKET
038	N 000127005001	LOCK WASHER
		SOLENOID VALVE TO BRACKET
041	A 3844347040	BRACKET
041	A 6884347040	BRACKET
044	N 000933008288	SCREW
		BRACKET TO FRAME SIDE MEMBER
047	N 000125008417	WASHER
		BRACKET TO FRAME SIDE MEMBER
050	N 913004008001	NUT
		BRACKET TO FRAME SIDE MEMBER
053	N 007603016103	SEAL RING
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
056	N 915039012205	HOLLOW SCREW FITTING
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
056	N 915040012206	HOLLOW SCREW FITTING
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
059	N 915005004003	LOCKING CONE
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
062	N 915020012004	NUT
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
065	A 0089976082	HOSE
		FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO 3/2-WAY VALVE
		4X6 MM
065	A 0089976082	HOSE
		FROM SOLENOID VALVE TO COMPRESSED AIR CYLINDER
		4X6 MM
068	N 915052004015	BANJO UNION
068	N 915052004019	BANJO UNION
071	A 3824307164	LINE
		FROM SOLENOID VALVE TO COMPRESSED AIR CYLINDER
074	N 915017006100	UNION NUT
077	N 003861006007	GLAND
078	N 915062004000	SLEEVE
080	A 3464295840	BRACKET
		COMPRESSED AIR LINE
083	N 000933010174	SCREW
		BRACKET TO SIDE MEMBER
086	N 009021010102	WASHER
		BRACKET TO SIDE MEMBER
089	N 913004010004	NUT
		BRACKET TO SIDE MEMBER
092	N 916016006201	CLAMP
		COMPRESSED AIR LINE TO BRACKET
095	N 007985006515	SCREW
		COMPRESSED AIR LINE TO BRACKET
098	N 000125006420	WASHER
		COMPRESSED AIR LINE TO BRACKET
101	N 000127006203	LOCK WASHER
		COMPRESSED AIR LINE TO BRACKET
104	N 000934006006	NUT
		COMPRESSED AIR LINE TO BRACKET
107	A 3459977490	LOOM TIE
		PLASTIC LINES TO FRAME
		381 MM
107	A 0019978590	LOOM TIE
		PLASTIC LINES TO FRAME
		203 MM
107	A 3849977090	LOOM TIE
		PLASTIC LINES TO FRAME
		300 MM
110	A 3609902340	WASHER
		PLASTIC LINES TO FRAME
110	N 000125008417	WASHER
		PLASTIC LINES TO FRAME
113	N 003952006102	FITTING
		AT CROSS MEMBER
