Transporto priemonė: OH 1318; VIN numerio dalis: 382004

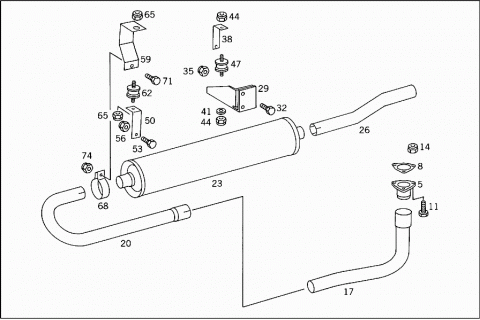

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3824907619 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| A 3824908519 | EXHAUST PIPE | |
| FRONT,FRONT PART | ||
| 008 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 008 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| 011 | N 000931012252 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | A 3824927801 | FRONT EXHAUST PIPE |
| 020 | A 3824907419 | EXHAUST PIPE |
| CENTRAL EXHAUST PIPE | ||
| 020 | A 3824907519 | EXHAUST PIPE |
| CENTRAL EXHAUST PIPE | ||
| 023 | A 3824907001 | EXHAUST MUFFLER |
| 023 | A 3824907201 | EXHAUST MUFFLER |
| A 3444900101 | EXHAUST MUFFLER | |
| A 3454907401 | EXHAUST MUFFLER | |
| 026 | A 3824927104 | REAR EXHAUST PIPE |
| Repalced by: A 3824927404 | ||
| 026 | A 3824927404 | REAR EXHAUST PIPE |
| REAR | ||
| 029 | A 3844927016 | SUPPORT |
| 032 | N 000933008273 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 035 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 038 | A 3824927441 | BRACKET |
| 041 | N 000125010517 | WASHER |
| BRACKET TO SUPPORT | ||
| 044 | N 913004010004 | NUT |
| BRACKET TO SUPPORT | ||
| 047 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 050 | A 3824927241 | BRACKET |
| 053 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 056 | N 913004010004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 059 | A 3824927641 | BRACKET |
| 059 | A 3824927741 | BRACKET |
| 062 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO BRACKET | ||
| 065 | N 913004010004 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 068 | N 071555094500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 068 | N 071555104500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 068 | N 071555090500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 068 | A 3824927040 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 071 | N 000933010129 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 071 | N 000933010129 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 074 | N 913004010004 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 074 | N 913004010004 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| N 071555085500 | CLAMP | |
| EXHAUST PIPE TO MUFFLER | ||
| N 000931010161 | SCREW | |
| EXHAUST PIPE TO MUFFLER | ||
| N 000125010513 | WASHER | |
| EXHAUST PIPE TO MUFFLER | ||
| N 000934010000 | NUT | |
| EXHAUST PIPE TO MUFFLER | ||
