Transporto priemonė: OH 1318; VIN numerio dalis: 382004

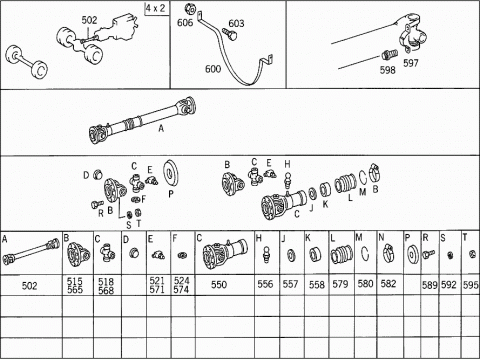

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 502 | A 3454107807 | PROPELLER SHAFT |
| 991 MM | ||
| 502 | A 3824108402 | PROPELLER SHAFT |
| 812 MM | ||
| 502 | A 3844101102 | PROPELLER SHAFT |
| Repalced by: A 3844103906 | ||
| 502 | A 3844103906 | PROPELLER SHAFT |
| 945 MM | ||
| 515 | A 3364110011 | DRIVE FLANGE |
| FRONT PROPELLER SHAFT | ||
| 518 | A 3314100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| A 0004101731 | UNIVERSAL JOINT CROSS | |
| WITH BUSHINGS | ||
| 521 | N 071412008300 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 521 | A 3459977288 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| A 0009974788 | GREASE NIPPLE | |
| 524 | A 3354111173 | LOCK |
| 1.724 MM | ||
| 524 | A 3354111273 | LOCK |
| 1.749 MM | ||
| 524 | A 3354111373 | LOCK |
| 1.774 MM | ||
| 524 | A 3354111473 | LOCK |
| 1.799 MM | ||
| 524 | A 3354111573 | LOCK |
| 1.824 MM | ||
| 524 | A 3454110073 | LOCK |
| 1.849 MM | ||
| A 0009974888 | GREASE NIPPLE | |
| A 0004130380 | SEAL RING | |
| NOTE THREAD DIAMETER | ||
| 2 1/2" | ||
| A 0004130780 | SEAL RING | |
| NOTE THREAD DIAMETER | ||
| 2 1/4" | ||
| 550 | A 3354100628 | UNIVERSAL JOINT |
| Repalced by: A 3354100728 | ||
| 550 | A 3354100728 | UNIVERSAL JOINT |
| REAR PROPELLER SHAFT | ||
| 556 | N 071412008100 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 557 | A 3354110180 | GASKET |
| PROPELLER SHAFT | ||
| 558 | A 3354110058 | SEAL HOLDER |
| PROPELLER SHAFT | ||
| 565 | A 3364110011 | DRIVE FLANGE |
| REAR PROPELLER SHAFT | ||
| 568 | A 3314100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 571 | N 071412008300 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 571 | A 3459977288 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 574 | A 3354111173 | LOCK |
| 1.724 MM | ||
| 574 | A 3354111273 | LOCK |
| 1.749 MM | ||
| 574 | A 3354111373 | LOCK |
| 1.774 MM | ||
| 574 | A 3354111473 | LOCK |
| 1.799 MM | ||
| 574 | A 3354111573 | LOCK |
| 1.824 MM | ||
| 574 | A 3454110073 | LOCK |
| 1.849 MM | ||
| 579 | A 3454107180 | BOOT |
| REAR PROPELLER SHAFT | ||
| 580 | A 3454117092 | CLAMPING RING |
| BOOT TO PROPELLER SHAFT | ||
| 582 | A 3449979790 | CLAMP |
| 100 MM | ||
| 582 | A 3449979890 | CLAMP |
| 110 MM | ||
| 589 | A 0029908301 | SCREW |
| Repalced by: A 3609901901 | ||
| 589 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 589 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| M 12 X 1,25 MM | ||
| 592 | N 000127012201 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 595 | N 000934012004 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 597 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 597 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO REAR AXLE | ||
| 598 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 598 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 600 | A 3454137244 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| 603 | N 910105010001 | HEXAGON HEAD BOLT |
| AT FRAME | ||
| M10X30 | ||
| 606 | N 913023010002 | NUT |
| AT FRAME | ||
