Transporto priemonė: OH 1318; VIN numerio dalis: 382004

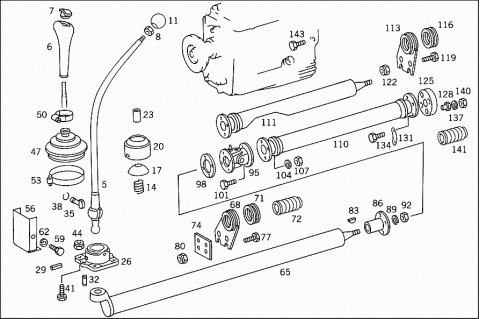

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3022600139 | SHIFT LEVER |
| Repalced by: A 3822607039 | ||
| 005 | A 3822607039 | SHIFT LEVER |
| 005 | A 3822607139 | SHIFT LEVER |
| 006 | A 3642687142 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 007 | A 3842687757 | COVER |
| 1ST THRU 5TH SPEED,REVERSE SPEED | ||
| 008 | N 000936010022 | NUT |
| SHIFT LEVER UPPER PART | ||
| 011 | A 3442600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 011 | A 3222600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 011 | A 3452607140 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 014 | A 3179930501 | SPRING |
| SHIFT LEVER LOWER PART | ||
| 017 | A 3022670008 | SPHERICAL PIECE |
| SHIFT LEVER LOWER PART | ||
| 020 | A 3082680005 | COVER |
| SHIFT LEVER LOWER PART | ||
| 023 | A 3129970982 | HOSE |
| SHIFT LEVER LOWER PART | ||
| 026 | A 3222603214 | TRANSMISSION CASE COVER |
| SHIFT LEVER BEARING | ||
| 029 | N 001473005012 | GROOVED PIN |
| 032 | N 000007008205 | CYLINDRICAL PIN |
| 035 | A 3212670025 | SLIDING BLOCK |
| 035 | A 3442677025 | SLIDING BLOCK |
| 038 | N 009045008002 | SNAP RING |
| 041 | N 000933008273 | SCREW |
| CASE COVER TO BEARING BRACKET | ||
| M8X30 | ||
| 044 | N 913004008001 | NUT |
| CASE COVER TO BEARING BRACKET | ||
| 047 | A 1362670296 | BOOT |
| SHIFT LEVER BEARING COVERING | ||
| 050 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 050 | A 3459977390 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 053 | N 900264005528 | LOOM TIE |
| Repalced by: A 3829977390 | ||
| 053 | A 3829977390 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 056 | A 3822687034 | BEARING COVER |
| 059 | N 000933006220 | SCREW |
| BEARING COVER TO BEARING BRACKET | ||
| 062 | N 000127006203 | LOCK WASHER |
| BEARING COVER TO BEARING BRACKET | ||
| 065 | A 3452607833 | SHIFTING ROD |
| FRONT | ||
| 7640 MM | ||
| 065 | A 3452607133 | SHIFTING ROD |
| FRONT | ||
| 6760 MM | ||
| 068 | A 3452607184 | GUIDE |
| SHIFTING TUBE | ||
| NO.I,III | ||
| 068 | A 3452607184 | GUIDE |
| SHIFTING TUBE | ||
| NO.I,III,IV | ||
| 068 | A 3822607084 | GUIDE |
| SHIFTING TUBE | ||
| NO. II | ||
| 071 | A 3022680050 | BUSHING |
| Repalced by: A 3052680050 | ||
| 071 | A 3052680050 | BUSHING |
| 072 | A 0002680296 | BOOT |
| SHIFTING TUBE | ||
| 074 | A 3522681236 | BRACKET |
| SHIFTING TUBE | ||
| 074 | A 3522681236 | BRACKET |
| SHIFTING TUBE | ||
| 077 | N 000933008273 | SCREW |
| SHIFTING TUBE | ||
| 080 | N 913004008001 | NUT |
| SHIFTING TUBE | ||
| 083 | N 006888005006 | WOODRUFF KEY |
| FLANGE TO SHIFTING TUBE | ||
| 083 | N 006888005006 | WOODRUFF KEY |
| FLANGE TO SHIFTING TUBE | ||
| 086 | A 3212680228 | CONNECTOR |
| 086 | A 3212680228 | CONNECTOR |
| 089 | N 000127012201 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD | ||
| 089 | N 000127012201 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD | ||
| 092 | N 000934012013 | NUT |
| CONNECTOR TO SHIFTING ROD | ||
| M12 X 1,5 MM | ||
| 092 | N 000934012013 | NUT |
| CONNECTOR TO SHIFTING ROD | ||
| M12 X 1,5 MM | ||
| 095 | A 3442687089 | JOINT |
| REAR SHIFTING ROD | ||
| 095 | A 3442687289 | JOINT |
| REAR SHIFTING ROD | ||
| 098 | A 3212680552 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 2 MM | ||
| 098 | A 3212680452 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 3 MM | ||
| 098 | A 3212680352 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 5 MM | ||
| 101 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 101 | A 3219900601 | SCREW |
| M8X25 | ||
| 101 | N 000933008288 | SCREW |
| M8X25 | ||
| 104 | N 912004008100 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 104 | N 912004008100 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 107 | N 000934008000 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 107 | N 000934008000 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 110 | A 3452607033 | SHIFTING ROD |
| REAR | ||
| 1079 MM | ||
| 110 | A 3822607733 | SHIFTING ROD |
| REAR | ||
| 111 | A 3822608033 | SHIFTING ROD |
| REAR | ||
| 588 MM | ||
| 113 | A 3452607084 | GUIDE |
| REAR SHIFTING ROD | ||
| 116 | A 3022680050 | BUSHING |
| Repalced by: A 3052680050 | ||
| 116 | A 3052680050 | BUSHING |
| REAR SHIFTING ROD | ||
| 119 | N 000933008282 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 122 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 125 | A 3442600075 | CONNECTOR |
| SHIFTING ROD TO JOINT | ||
| 128 | A 3222680150 | BUSHING |
| 131 | A 3222680073 | LOCK |
| SHIFTING ROD TO JOINT | ||
| 134 | A 3179900301 | SCREW |
| SHIFTING ROD TO JOINT | ||
| 134 | A 3219900601 | SCREW |
| SHIFTING ROD TO JOINT | ||
| 137 | N 912004008100 | LOCK WASHER |
| SHIFTING ROD TO JOINT | ||
| 140 | N 000934008000 | NUT |
| SHIFTING ROD TO JOINT | ||
| 141 | A 0002680296 | BOOT |
| JOINT TO SHIFTING TUBE | ||
| 143 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
