Transporto priemonė: OH 1318; VIN numerio dalis: 398420

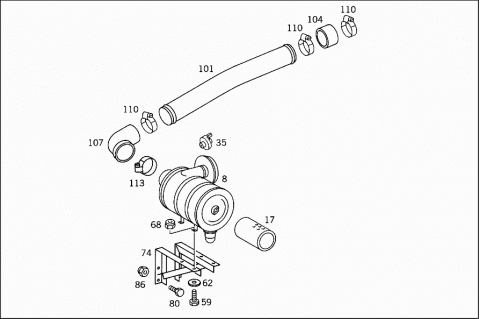

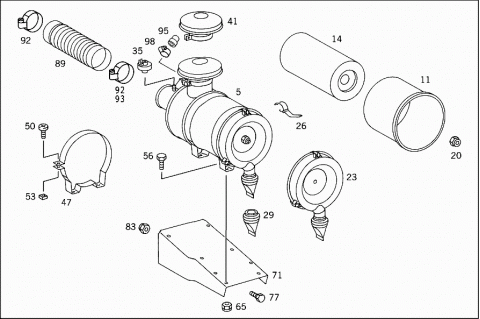

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE

#	Kodas	Pavadinimas
005	A 3760908101	AIR CLEANER
		"MANN DO BRASIL"
005	A 3760905201	AIR CLEANER
		"MANN DO BRASIL"
008	A 4750908201	AIR CLEANER
011	A 3440947003	FILTER BOWL
		CYCLONE
		TO 376 090 81 01
014	A 0010945204	FILTER ELEMENT
		TO 376 090 81 01
014	A 3500947004	FILTER ELEMENT
		TO 376 090 52 01
017	A 3880947004	FILTER ELEMENT
		TO 475 090 82 01
020	A 3089907051	NUT
		FILTER ELEMENT
		TO 376 090 81 01
023	A 0000948603	FILTER BOTTOM
		TO 376 090 81 01
026	A 0010940055	FASTENER
		TO 376 090 81 01
029	A 3760947165	VALVE
		TO 376 090 81 01
035	A 6885407645	SWITCH
		(MAINTENANCE SWITCH)
		TO 376 090 81 01, 475 090 82 01
035	A 3645407045	SWITCH
		(MAINTENANCE SWITCH)
		TO 376 090 52 01
041	A 3440947011	SCOOP
		TO 376 090 81 01
047	A 0000941527	BRACKET
		TO 376 090 81 01
050	N 000084008172	SCREW
		M 8X25
053	A 1109900052	NUT
056	N 000933010294	SCREW
		AIR CLEANER TO BRACKET
		M 10X20
059	N 000933008291	SCREW
		AIR CLEANER TO BRACKET
		M 8X20
062	N 009021008102	WASHER
		AIR CLEANER TO BRACKET
065	N 913004010004	NUT
		AIR CLEANER TO BRACKET
068	N 913004008001	NUT
		AIR CLEANER TO BRACKET
071	A 3825287040	BRACKET
		AIR CLEANER
074	A 3825207441	BRACKET
		AIR CLEANER
077	N 000961012156	SCREW
		BRACKET TO FRAME SIDE MEMBER
		M 12X1.5X35
080	N 000961014105	SCREW
		BRACKET TO FRAME
		M 14X1.5X30
080	N 000961014106	SCREW
		BRACKET TO FRAME
		M 14X1.5X35
080	N 000961014101	SCREW
		BRACKET TO FRAME
		M 14X1.5X45
083	N 913004012003	NUT
		BRACKET TO FRAME SIDE MEMBER
086	N 913004014005	NUT
		BRACKET TO FRAME
089	A 3455287082	HOSE
		FROM AIR CLEANER TO ENGINE
089	A 3825287382	HOSE
		FROM AIR CLEANER TO ENGINE
092	N 916017100000	CLAMP
		100-120
093	N 916017130000	CLAMP
		130 - 150
095	A 3649870045	LOCKING CAP
		AIR CLEANER
098	N 916017032000	CLAMP
	Repalced by: N 000000000670
098	N 000000000670	CLAMP
		AIR CLEANER
		32-50
101	A 3825207701	AIR INTAKE PIPE
104	A 6825287982	HOSE
		FROM AIR CLEANER TO ENGINE
107	A 6845280182	HOSE
		FROM AIR CLEANER TO ENGINE
110	N 916017130000	CLAMP
		FROM AIR CLEANER TO ENGINE
		130-150
113	N 916017150000	CLAMP
		FROM AIR CLEANER TO ENGINE
		150-170
