Transporto priemonė: OH 1318; VIN numerio dalis: 398420

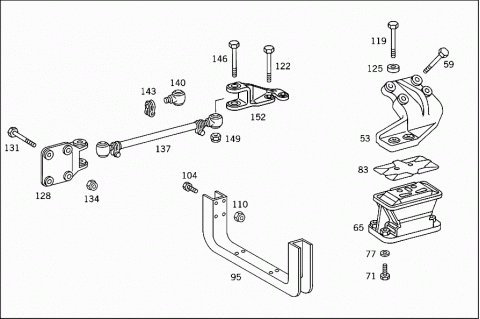

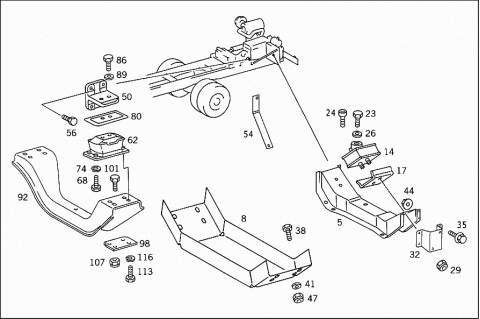

Grupė: 24 ENGINE SUSPENSION

#	Kodas	Pavadinimas
005	A 3453120205	ENGINE CROSS MEMBER
		FRONT
008	A 3822417001	ENGINE SUPPORT
		FRONT
014	A 6952407017	RUBBER MOUNTING
		ENGINE FRONT SUSPENSION
014	A 3452407017	RUBBER MOUNTING
		ENGINE FRONT SUSPENSION
014	A 3642407417	RUBBER MOUNTING
		ENGINE FRONT SUSPENSION
017	A 3522420509	ENGINE STAY
		RUBBER MOUNTING TO FRONT CROSS MEMBER
023	N 000960016249	SCREW
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
		M 16X1.5X55
023	N 000960016241	SCREW
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
		M 16X1.5X75
024	N 000912016075	SCREW
		RUBBER MOUNTING TO FRONT CROSS MEMBER
		M16X1,5X60
026	A 3529902440	WASHER
		SUPPORTING ARM TO FRONT RUBBER MOUNTING
029	N 913004012006	NUT
		RUBBER MOUNTING TO ENGINE SUPPORT
032	A 3523120740	BRACKET
		ENGINE LEFT STAY
032	A 3523120840	BRACKET
		ENGINE RIGHT STAY
035	N 910105010001	HEXAGON HEAD BOLT
		ENGINE STAY TO ENGINE SUPPORT
		M10X30
038	N 000961012154	SCREW
		ENGINE STAY TO ENGINE SUPPORT
		M 12X1.5X30
041	N 000125013012	WASHER
		ENGINE STAY TO ENGINE SUPPORT
044	N 913023010002	NUT
		ENGINE STAY TO ENGINE SUPPORT
047	N 913004012006	NUT
		ENGINE STAY TO ENGINE SUPPORT
050	A 6842427105	SUPPORTING ARM
		ENGINE RIGHT REAR MOUNTING
053	A 3822427005	SUPPORTING ARM
		ENGINE LEFT REAR MOUNTING
053	A 3822427105	SUPPORTING ARM
		ENGINE RIGHT REAR MOUNTING
054	A 6934297040	BRACKET
		SUPPORTING ARM TO BELL HOUSING
056	N 000933016073	SCREW
		SUPPORTING ARM TO BELL HOUSING
		M 16X40
059	N 000961022031	SCREW
		SUPPORTING ARM TO BELL HOUSING
		M 22X1.5X50
062	A 6842407018	RUBBER MOUNTING
		ENGINE REAR SUSPENSION
062	A 3862407218	RUBBER MOUNTING
		ENGINE REAR SUSPENSION
062	A 3842407018	RUBBER MOUNTING
		ENGINE REAR SUSPENSION
065	A 3862407018	RUBBER MOUNTING
		ENGINE REAR SUSPENSION
065	A 6162400618	RUBBER MOUNTING
		ENGINE REAR SUSPENSION
065	A 6162400718	RUBBER MOUNTING
		ENGINE REAR SUSPENSION
065	A 6162400818	RUBBER MOUNTING
		ENGINE REAR SUSPENSION
068	N 000961012160	SCREW
		REAR RUBBER MOUNTING TO CONSOLE
		M 12X1.5X25
071	N 000961012154	SCREW
		REAR RUBBER MOUNTING TO CONSOLE
		M 12X1.5X30
074	N 912004012100	LOCK WASHER
		REAR RUBBER MOUNTING TO CONSOLE
077	A 3859901040	WASHER
		REAR RUBBER MOUNTING TO CONSOLE
080	A 3812420034	SCREENING PLATE
		ENGINE REAR SUSPENSION
083	A 3832420034	SCREENING PLATE
		ENGINE REAR SUSPENSION
086	N 000961014101	SCREW
		SUPPORTING ARM TO REAR RUBBER MOUNTING
		M 14X1.5X45
089	A 3459907340	WASHER
		SUPPORTING ARM TO REAR RUBBER MOUNTING
092	A 3453127107	ENGINE CROSS MEMBER
		ENGINE REAR SUSPENSION
095	A 3823127007	ENGINE CROSS MEMBER
		ENGINE REAR SUSPENSION
098	A 3763127460	REINFORCEMENT
		LEFT
098	A 3763127560	REINFORCEMENT
		RIGHT
101	N 000961012163	SCREW
		CROSS MEMBER TO CONSOLE
		M 12X1.5X35
104	N 000961014105	SCREW
		ENGINE CROSS MEMBER TO SIDE MEMBERS
		M 14X1.5X30
107	N 913004012006	NUT
		CROSS MEMBER TO CONSOLE
110	N 913004014005	NUT
		ENGINE CROSS MEMBER TO SIDE MEMBERS
113	N 000961012171	SCREW
		ENGINE REAR SUPPORT TO RUBBER MOUNTING
		M 12X1.5X40
116	N 912004012100	LOCK WASHER
		ENGINE REAR SUPPORT TO RUBBER MOUNTING
119	N 000961016096	SCREW
		SUPPORTING ARM TO REAR RUBBER MOUNTING
		M 16X1.5X50
122	N 000960016237	SCREW
		ENGINE MOUNTING AND BRACKET TO SUPPORTING ARM
		M 16X1.5X60
125	A 3529902440	WASHER
		ENGINE MOUNTING TO SUPPORTING ARM
128	A 3642420040	BRACKET
		ENGINE ALONGSIDE FIXING
131	N 000961014106	SCREW
		BRACKET TO BRACKET
		M 14X1.5X35
134	N 913004014005	NUT
		BRACKET TO BRACKET
137	A 6642407125	ROD
		(PULL ROD)
140	A 3452407021	ROD END
		LEFT
140	A 3452407121	ROD END
		RIGHT
143	A 3443387245	CLAMP
146	A 3642420070	STUD
		PULL ROD TO BRACKET
149	N 913004022002	NUT
		PULL ROD TO BRACKET
152	A 6642427340	BRACKET
		CLUTCH END
