Transporto priemonė: OH 1318; VIN numerio dalis: 398420

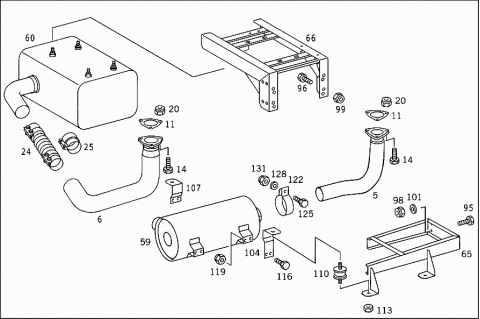

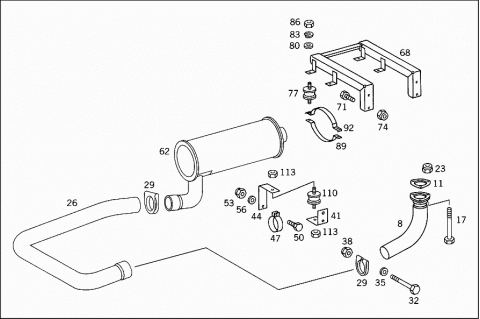

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3824908519 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 006 | A 3824909619 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 008 | A 3824909319 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 011 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| 014 | N 000931012252 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X60 | ||
| 017 | N 000931012283 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 020 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 023 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | A 3824907065 | FLEXIBLE METAL TUBE |
| Repalced by: A 3824900165 | ||
| 024 | A 3824900165 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 025 | A 3844927340 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 026 | A 3824927102 | FRONT EXHAUST PIPE |
| 029 | A 6644927040 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 032 | N 000931010431 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 10X160 | ||
| 035 | N 000125010517 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 038 | N 913004010011 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 041 | A 3824927241 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 044 | A 3824929441 | BRACKET |
| EXHAUST PIPE | ||
| 047 | N 071555114501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 050 | N 000933010258 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X40 | ||
| 053 | N 913004010011 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 056 | N 000125010517 | WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 059 | A 3444900101 | EXHAUST MUFFLER |
| 059 | A 3454907401 | EXHAUST MUFFLER |
| 060 | A 3824907401 | EXHAUST MUFFLER |
| 062 | A 3824907115 | EXHAUST MUFFLER WITH PIPE |
| 065 | A 3824907034 | SUPPORT |
| EXHAUST MUFFLER | ||
| 066 | A 3824907434 | SUPPORT |
| EXHAUST MUFFLER | ||
| 068 | A 3824907340 | BRACKET |
| EXHAUST MUFFLER | ||
| 071 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 071 | N 000933010269 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X35 | ||
| 074 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 074 | N 913004010011 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 077 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 080 | N 000125010517 | WASHER |
| BRACKET TO SUPPORT | ||
| 083 | N 000127010202 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 086 | N 000934010005 | NUT |
| BRACKET TO SUPPORT | ||
| 089 | A 3824917140 | CLAMP |
| 092 | A 3824917040 | CLAMP |
| 095 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 096 | N 000961014106 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M14X1.5X35 | ||
| 098 | N 913004010011 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 099 | N 913004014005 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 101 | N 000125010517 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 104 | A 3824917641 | BRACKET |
| BRACKET TO RUBBER MOUNTING | ||
| 107 | A 3824917141 | BRACKET |
| BRACKET TO RUBBER MOUNTING | ||
| 110 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO BRACKET | ||
| 113 | N 000934010005 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 116 | N 000933008282 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 119 | N 913004008005 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 122 | A 3824927040 | CLAMP |
| EXHAUST MUFFLER TO EXHAUST PIPE | ||
| 125 | N 000931010244 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 10X120 | ||
| 128 | N 000125010513 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 131 | N 913004010011 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
