Transporto priemonė: OH 1418; VIN numerio dalis: 685456

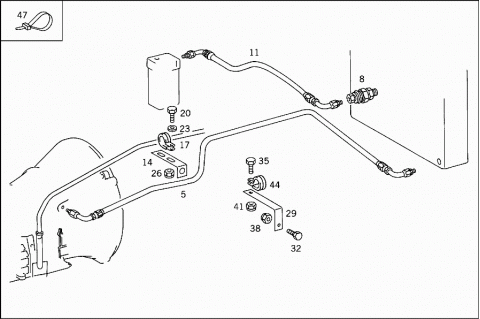

Grupė: 27 AUTOMATIC TRANSMISSION - 750 TRANSMISSION ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3829977482 | HOSE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 008 | A 3822767028 | CONNECTOR |
| 011 | A 3829977582 | HOSE |
| FROM OIL FILTER TO OIL COOLER | ||
| 014 | A 3464295640 | BRACKET |
| OIL FILLER NECK | ||
| 017 | N 916016018202 | CLAMP |
| BRACKET MOUNTING | ||
| 18/20 | ||
| 020 | N 000933006220 | SCREW |
| CLAMP MOUNTING | ||
| 023 | N 000125006421 | WASHER |
| CLAMP MOUNTING | ||
| 026 | N 913004006001 | NUT |
| CLAMP MOUNTING | ||
| 029 | A 3454928841 | BRACKET |
| OIL LINE | ||
| 032 | N 000933010174 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 035 | N 000933008273 | SCREW |
| BRACKET TO FRAME | ||
| M 8X30 | ||
| 038 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 041 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 044 | N 916016028200 | CLAMP |
| HOSE TO BRACKET | ||
| 28/20 | ||
| 047 | A 3459977390 | LOOM TIE |
| HOSE TO BRACKET |
