Transporto priemonė: OH 1418; VIN numerio dalis: 685456

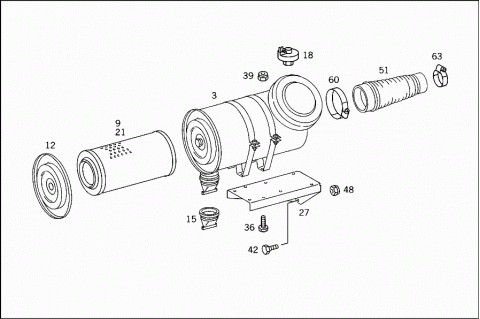

Grupė: 52 CHASSIS SHEET METAL - 150 AIR CLEANER
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3860909401 | AIR CLEANER |
| "MANN DO BRASIL" | ||
| 003 | A 3760903001 | AIR CLEANER |
| 006 | A 4750907401 | AIR CLEANER |
| 009 | A 3500947004 | FILTER ELEMENT |
| 012 | A 0010947406 | COVER |
| A 0010947606 | COVER | |
| 015 | A 3760947165 | VALVE |
| 018 | A 3645407045 | SWITCH |
| Repalced by: A 6885407645 | ||
| 018 | A 6885407645 | SWITCH |
| 018 | A 3645407045 | SWITCH |
| 021 | A 3500947004 | FILTER ELEMENT |
| 024 | A 3880947004 | FILTER ELEMENT |
| A 3880947104 | FILTER ELEMENT | |
| A 0000941727 | BRACKET | |
| N 913001010006 | NUT | |
| A 0000907072 | NUT | |
| A 0000942964 | REGULATOR | |
| 027 | A 3825287040 | BRACKET |
| AIR CLEANER | ||
| 027 | A 3825207241 | BRACKET |
| AIR CLEANER | ||
| 030 | A 3825287509 | PIPE |
| Repalced by: A 3825207501 | ||
| 030 | A 3825207501 | AIR INTAKE PIPE |
| AIR CLEANER | ||
| 033 | A 3825207041 | BRACKET |
| AIR CLEANER | ||
| 036 | N 000933010253 | SCREW |
| AIR CLEANER TO BRACKET | ||
| M 10X20 | ||
| 036 | N 000933008291 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 039 | N 913004010004 | NUT |
| AIR CLEANER TO BRACKET | ||
| 039 | N 913004008001 | NUT |
| AIR CLEANER TO BRACKET | ||
| 042 | N 000961012156 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 042 | N 000961014096 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 14X1.5X25 | ||
| 045 | N 000933014049 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 14X30 | ||
| 045 | N 000933014050 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 14X40 | ||
| 048 | N 913004012003 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 048 | N 913004014007 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 051 | A 3825287382 | HOSE |
| FROM FILTER TO ENGINE | ||
| 054 | A 6825287982 | HOSE |
| FROM FILTER TO ENGINE | ||
| 057 | A 6845280182 | HOSE |
| FROM FILTER TO ENGINE | ||
| 060 | A 3649970090 | LOOM TIE |
| HOSE ATTACHMENT | ||
| 060 | N 916017140000 | CLAMP |
| HOSE ATTACHMENT | ||
| 140/160 | ||
| 063 | A 3509979590 | CLAMP |
| HOSE ATTACHMENT | ||
| 063 | A 3509978290 | CLAMP |
| HOSE ATTACHMENT | ||
| 063 | A 3449979990 | CLAMP |
| HOSE ATTACHMENT | ||
| 063 | N 916017110000 | CLAMP |
| HOSE ATTACHMENT | ||
| 110/130 | ||
| 066 | A 6849977290 | LOOM TIE |
| HOSE ATTACHMENT | ||
| 066 | A 3649970090 | LOOM TIE |
| HOSE ATTACHMENT | ||
| 069 | A 6849977190 | LOOM TIE |
| HOSE ATTACHMENT | ||
