Transporto priemonė: OH 1418; VIN numerio dalis: 685456

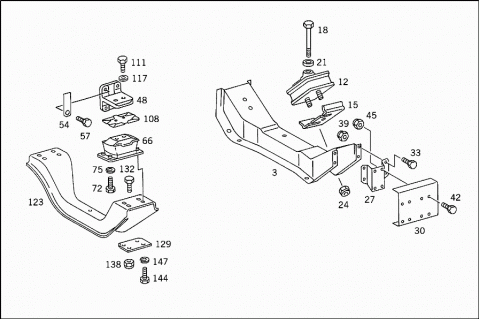

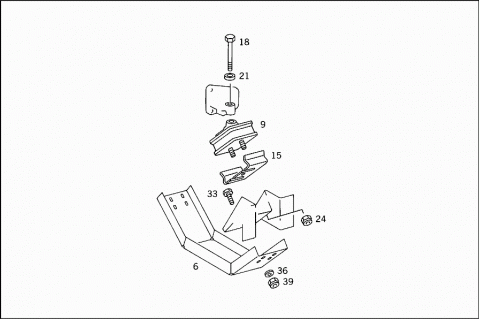

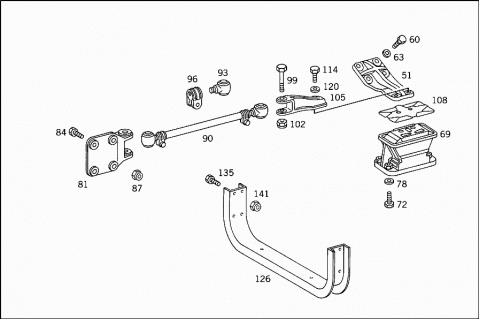

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3453120205 | ENGINE CROSS MEMBER |
| 006 | A 3822417001 | ENGINE SUPPORT |
| 009 | A 3452407017 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 012 | A 3522400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 012 | A 3452400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 015 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 018 | N 000960016249 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X55 | ||
| 018 | N 000912016075 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X60 | ||
| 018 | N 000960016241 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X75 | ||
| 021 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 024 | N 913004012003 | NUT |
| RUBBER MOUNTING TO ENGINE SUPPORT | ||
| 027 | A 3523120740 | BRACKET |
| ENGINE LEFT STAY | ||
| 027 | A 3823127540 | BRACKET |
| ENGINE LEFT STAY | ||
| 027 | A 3523120840 | BRACKET |
| ENGINE RIGHT STAY | ||
| 027 | A 3823127640 | BRACKET |
| ENGINE RIGHT STAY | ||
| 030 | A 3823117251 | TRUSS |
| ENGINE LEFT STAY | ||
| 030 | A 3823117351 | TRUSS |
| ENGINE RIGHT STAY | ||
| 033 | N 000933010254 | SCREW |
| ENGINE STAY TO ENGINE SUPPORT | ||
| M 10X25 | ||
| 033 | N 000961010040 | SCREW |
| ENGINE CORSS MEMBER TO BRACKET | ||
| M 10X20 | ||
| 033 | N 000961012154 | SCREW |
| ENGINE STAY TO ENGINE SUPPORT | ||
| 036 | N 000125013012 | WASHER |
| ENGINE STAY TO ENGINE SUPPORT | ||
| 039 | N 913004010004 | NUT |
| ENGINE STAY TO ENGINE SUPPORT | ||
| 039 | N 913004010014 | NUT |
| ENGINE CORSS MEMBER TO BRACKET | ||
| 039 | N 913004012006 | NUT |
| ENGINE STAY TO ENGINE SUPPORT | ||
| 042 | N 000961014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 045 | N 913004014005 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 048 | H XM6852420005 | SUPPORTING ARM |
| ENGINE REAR SUPPORT | ||
| 048 | A 6842427105 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 051 | A 3852420905 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 054 | H XM6853120084 | SHIM |
| SUPPORTING ARM TO BELL HOUSING | ||
| 057 | N 000933016079 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 060 | N 000961018043 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 063 | A 6179900340 | WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 066 | A 6842407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 066 | A 3862407218 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 069 | A 6162400618 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 069 | A 6162400718 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 069 | A 6162400818 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 069 | A 3862407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 072 | N 000961012160 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X1.5X25 | ||
| 072 | N 000961012154 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X1.5X30 | ||
| 075 | N 912004012100 | LOCK WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 078 | A 3859901040 | WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 081 | A 3642420040 | BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 084 | N 000961014106 | SCREW |
| CONSOLE TO ENGINE CROSS MEMBER | ||
| 087 | N 913004014005 | NUT |
| CONSOLE TO ENGINE CROSS MEMBER | ||
| 090 | A 6642407125 | ROD |
| (PULL ROD) | ||
| 093 | A 3452407021 | ROD END |
| LEFT | ||
| 093 | A 3452407121 | ROD END |
| RIGHT | ||
| 096 | A 3443387245 | CLAMP |
| 099 | A 3642420070 | STUD |
| PULL ROD TO BRACKET | ||
| 102 | N 913004022002 | NUT |
| PULL ROD TO BRACKET | ||
| 105 | A 6642427340 | BRACKET |
| CLUTCH END | ||
| 108 | A 3812420034 | SCREENING PLATE |
| ENGINE REAR SUSPENSION | ||
| 111 | N 000961014101 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M 14X1.5X45 | ||
| 114 | N 000961016096 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| M 16X1.5X50 | ||
| 114 | N 000960016237 | SCREW |
| ENGINE MOUNTING AND BRACKET TO SUPPORTING ARM | ||
| M 16X1.5X60 | ||
| 117 | A 3459907340 | WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 120 | A 3529902440 | WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 123 | A 3453127107 | ENGINE CROSS MEMBER |
| ENGINE REAR SUSPENSION | ||
| 126 | A 3823127007 | ENGINE CROSS MEMBER |
| ENGINE REAR SUSPENSION | ||
| 129 | A 3763127460 | REINFORCEMENT |
| LEFT | ||
| 129 | A 3763127560 | REINFORCEMENT |
| RIGHT | ||
| 129 | A 3862427326 | SHIM |
| 132 | N 000961012209 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| M 12X1.5X50 | ||
| 132 | N 000961012192 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| M 12X1.5X55 | ||
| 135 | N 000961014106 | SCREW |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 138 | N 913004012006 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 141 | N 913004014005 | NUT |
| ENGINE CROSS MEMBER TO SIDE MEMBERS | ||
| 144 | N 000961012080 | SCREW |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| M 12X1.5X55 | ||
| 147 | N 912004012100 | LOCK WASHER |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING |
