Transporto priemonė: OH 1418; VIN numerio dalis: 685456

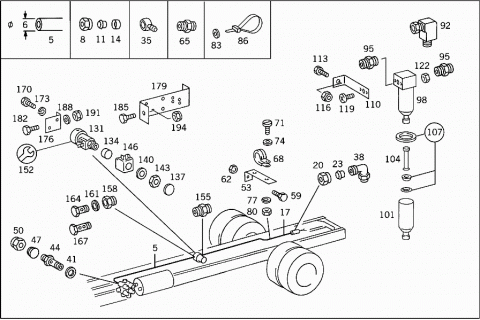

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		EXHAUST BRAKE VALVE LINE CONNECTION
005	A 0089976082	HOSE
		4X6 MM
008	N 915017006100	UNION NUT
011	N 003861006007	GLAND
014	A 0009920205	BUSHING
014	N 915062004000	SLEEVE
017	A 3824307164	LINE
		FROM SOLENOID VALVE TO COMPRESSED AIR CYLINDER
020	N 915017006100	UNION NUT
023	N 003861006007	GLAND
	Q 48-00100-010	PART NAME MISSING
		PLASTIC TUBE
	Q 210500 000027	PART NAME MISSING
		WASHER
	Q 210500 000016	PART NAME MISSING
		FITTING
035	N 915052004019	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/12 MM
035	N 915052004015	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/16 MM
038	N 003952006102	FITTING
041	N 007603016401	SEAL RING
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
044	N 915039012206	HOLLOW SCREW FITTING
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
047	N 915005004003	LOCKING CONE
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
050	N 915020012004	NUT
		FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
053	A 3464295940	BRACKET
		COMPRESSED AIR LINE TO SIDE MEMBER
	H XM6854290940	BRACKET
		COMPRESSED AIR LINES
059	N 000933010174	SCREW
		BRACKET TO SIDE MEMBER
		M 10X25
062	N 000934010007	NUT
		BRACKET TO SIDE MEMBER
065	N 003902006001	CONNECTION FITTING
068	N 916016006201	CLAMP
		COMPRESSED AIR LINE TO BRACKET
		6/15 MM
071	N 000084006422	SCREW
		COMPRESSED AIR LINE TO BRACKET
		AM 6X16
074	N 000125006420	WASHER
		COMPRESSED AIR LINE TO BRACKET
077	N 912004006100	LOCK WASHER
		COMPRESSED AIR LINE TO BRACKET
080	N 000934006006	NUT
		COMPRESSED AIR LINE TO BRACKET
083	A 3609902340	WASHER
		COMPRESSED AIR LINE TO SIDE MEMBER
086	A 3849977090	LOOM TIE
		COMPRESSED AIR LINE TO SIDE MEMBER
		300 MM
092	A 3829907071	ELBOW FITTING
		AT VALVE
095	A 3454297736	CONNECTOR
098	A 3824297095	AIR CLEANER
101	A 3760947003	FILTER BOWL
104	A 3760947804	FILTER ELEMENT
107	A 3760947060	SEAL RING
110	A 3824327040	BRACKET
		AIR CLEANER TO SIDE MEMBER
113	N 000933010200	SCREW
		BRACKET TO SIDE MEMBER
116	N 913004010011	NUT
		BRACKET TO SIDE MEMBER
119	N 007985004500	SCREW
		FILTER TO BRACKET
122	N 000934004004	NUT
		FILTER TO BRACKET
	X XXXXXXXXXXXX	PART NAME MISSING
		ENGINE SHUT-OFF AND EXHAUST BRAKE
131	A 3649977236	VALVE
	Repalced by: A 3889978136
131	A 3889978136	VALVE
		(SOLENOID VALVE)
		"PARKER"
131	A 3889978836	VALVE
		(SOLENOID VALVE)
		"WABCO"
	A 0059972336	REPAIR KIT
		TO 388 997 81 36
134	A 0004311868	VALVE PART
		TO 364 997 72 36
137	A 0014311687	PROTECTIVE CAP
		TO 364 997 72 36
140	A 0139971648	SEAL RING
		TO 364 997 72 36
143	A 0004310472	NUT
		TO 364 997 72 36
146	A 0007630956	MAGNET
		TO 364 997 72 36
146	A 0005460488	SOLENOID
		TO 388 997 88 36
152	A 0004206855	REPAIR KIT
		TO 388 997 88 36
155	A 3454297736	CONNECTOR
		AT SOLENOID VALVE
158	A 3509977472	FITTING
		AT SOLENOID VALVE
161	N 007603012405	SEAL RING
		AT SOLENOID VALVE
164	N 915036008202	HOLLOW SCREW
		AT SOLENOID VALVE
167	N 915047008200	HOLLOW SCREW
		AT SOLENOID VALVE
170	N 000933005095	SCREW
		SOLENOID VALVE TO BRACKET
		M 5X10
173	N 912004005100	LOCK WASHER
		SOLENOID VALVE TO BRACKET
176	H XM6854290340	BRACKET
		VALVE TO SIDE MEMBER
176	A 3844347040	BRACKET
		VALVE TO SIDE MEMBER
176	A 3844347040	BRACKET
		VALVE TO SIDE MEMBER
179	A 6884347040	BRACKET
		SOLENOID VALVE
182	N 000933008270	SCREW
		BRACKET TO FRAME SIDE MEMBER
		M 8X25
185	N 000933010200	SCREW
		BRACKET TO FRAME SIDE MEMBER
188	N 000125008417	WASHER
		BRACKET TO FRAME SIDE MEMBER
191	N 913004008001	NUT
		BRACKET TO FRAME SIDE MEMBER
194	N 913004010011	NUT
		BRACKET TO FRAME SIDE MEMBER
