Transporto priemonė: OH 1418; VIN numerio dalis: 685456

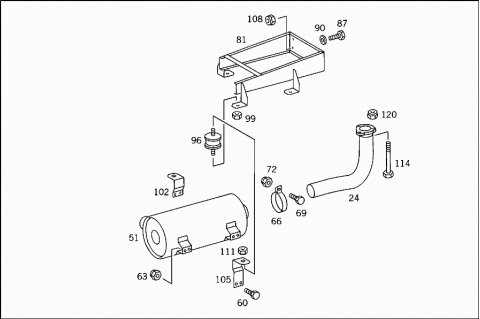

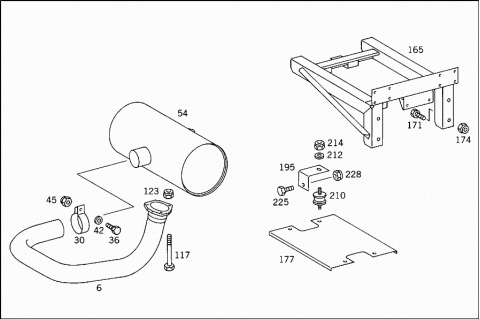

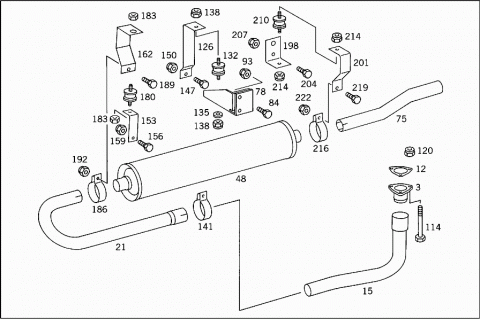

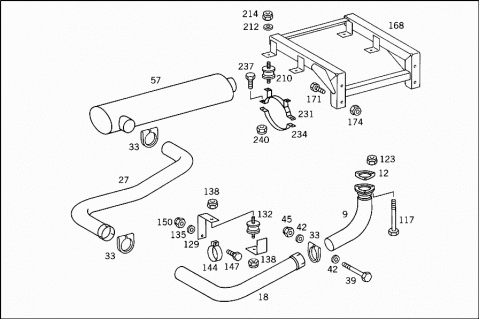

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | H XM6854902919 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 006 | A 3824909119 | EXHAUST PIPE |
| 009 | A 3824908719 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 012 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 015 | A 3824927801 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 018 | A 3824929701 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 021 | A 3824907419 | EXHAUST PIPE |
| CENTRAL | ||
| 021 | A 3824907519 | EXHAUST PIPE |
| CENTRAL | ||
| 024 | A 3824908519 | EXHAUST PIPE |
| CENTRAL | ||
| 027 | A 3824929301 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 030 | A 3824927040 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 030 | N 071555085500 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 033 | A 3864927040 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 036 | N 000933010174 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 10X25 | ||
| 039 | N 000931010234 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| M 10X148 | ||
| 042 | N 000125010517 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 045 | N 913004010011 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 048 | A 3824907001 | EXHAUST MUFFLER |
| 048 | A 3824907201 | EXHAUST MUFFLER |
| 051 | A 3444900101 | EXHAUST MUFFLER |
| 051 | A 3454907401 | EXHAUST MUFFLER |
| 054 | A 3824907215 | EXHAUST MUFFLER WITH PIPE |
| 057 | A 3824907015 | EXHAUST MUFFLER WITH PIPE |
| 057 | A 3824907115 | EXHAUST MUFFLER WITH PIPE |
| 060 | N 000933008282 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 063 | N 913004008005 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 066 | N 071555085500 | CLAMP |
| EXHAUST MUFFLER TO EXHAUST PIPE | ||
| 069 | N 000933010200 | SCREW |
| EXHAUST MUFFLER TO EXHAUST PIPE | ||
| 072 | N 913004010011 | NUT |
| EXHAUST MUFFLER TO EXHAUST PIPE | ||
| 075 | A 3824927404 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 078 | A 3844927016 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 081 | A 3824907034 | SUPPORT |
| FRONT EXHAUST PIPE | ||
| 084 | N 000933008273 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X30 | ||
| 087 | N 000933010174 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 090 | N 000125010517 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 093 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 096 | A 3475040012 | RUBBER MOUNTING |
| RUBBER MOUNTING TO SUPPORT | ||
| 099 | N 000934010005 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 102 | A 3824917141 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 105 | A 3824917641 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 108 | N 913004010011 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 111 | N 000934010005 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 114 | N 000931012252 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 117 | N 000931012283 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 120 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 123 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 126 | A 3824928041 | BRACKET |
| 129 | A 3454928841 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 132 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 135 | N 000125010517 | WASHER |
| BRACKET TO SUPPORT | ||
| 138 | N 000934010005 | NUT |
| BRACKET TO SUPPORT | ||
| 141 | N 071555090500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 144 | N 071555100502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 147 | N 000933010200 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| 150 | N 913004010011 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 153 | A 3824927241 | BRACKET |
| 156 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 159 | N 913004010011 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 162 | A 3824927641 | BRACKET |
| 165 | A 3824907234 | SUPPORT |
| EXHAUST MUFFLER | ||
| 168 | A 3824907134 | SUPPORT |
| EXHAUST MUFFLER | ||
| 171 | N 000961014105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| A 14X1.5X30 | ||
| 171 | N 000961014107 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| A 14X1.5X40 | ||
| 174 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 177 | A 3824917069 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 180 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO BRACKET | ||
| 183 | N 000934010005 | NUT |
| BRACKET TO BRACKET | ||
| 186 | N 071555094500 | CLAMP |
| EXHAUST MUFFLER TO BRACKET | ||
| 189 | N 000933010200 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 192 | N 913004010011 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 195 | A 3824928741 | BRACKET |
| EXHAUST MUFFLER | ||
| 198 | A 3824927241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 201 | A 3824927741 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 204 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 207 | N 913004010011 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 210 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO BRACKET | ||
| 210 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 212 | N 000125010517 | WASHER |
| BRACKET TO SUPPORT | ||
| 214 | N 913004010004 | NUT |
| BRACKET TO BRACKET | ||
| 214 | N 913004010004 | NUT |
| BRACKET TO SUPPORT | ||
| 216 | N 071555104500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 104.5 MM | ||
| 219 | N 000933010200 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 222 | N 913004010011 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 225 | N 000933008216 | SCREW |
| BRACKET TO CLAMP | ||
| 228 | N 913004008001 | NUT |
| BRACKET TO CLAMP | ||
| 231 | A 3824907140 | BRACKET |
| EXHAUST MUFFLER | ||
| 234 | A 3824917020 | MOUNTING STRAP |
| EXHAUST MUFFLER TO BRACKET | ||
| 237 | N 000933008288 | SCREW |
| BRACKET TO STRAP | ||
| 240 | N 913004008001 | NUT |
| BRACKET TO STRAP |
