Transporto priemonė: OH 1418; VIN numerio dalis: 685456

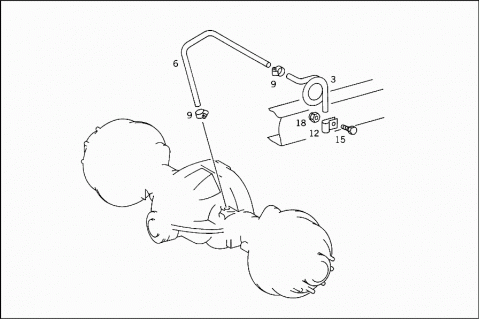

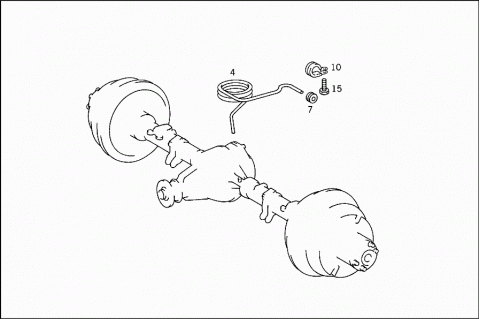

Grupė: 35 REAR AXLE - 030 AXLE BREATHING
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3443517066 | PIPE |
| BREATHER LINE TO REAR AXLE | ||
| 004 | A 6703510066 | PIPE |
| BREATHER LINE TO REAR AXLE | ||
| 006 | A 3459978882 | HOSE |
| Repalced by: A 3769978182 | ||
| 006 | A 3769978182 | HOSE |
| BREATHER LINE TO REAR AXLE | ||
| 10X6MM | ||
| 007 | A 8339970581 | GROMMET |
| BREATHER PIPE TO CROSS MEMBER | ||
| 009 | N 916002010100 | CLAMP |
| BREATHER LINE TO REAR AXLE | ||
| 10/9 | ||
| 010 | N 916016008203 | CLAMP |
| BREATHER PIPE TO CROSS MEMBER | ||
| 8M2 | ||
| 012 | A 3129951401 | CLAMP |
| BREATHER PIPE TO CROSS MEMBER | ||
| 015 | N 000933006220 | SCREW |
| BREATHER PIPE TO CROSS MEMBER | ||
| 018 | N 913004006001 | NUT |
| BREATHER PIPE TO CROSS MEMBER | ||
