Transporto priemonė: OH 1418; VIN numerio dalis: 685456

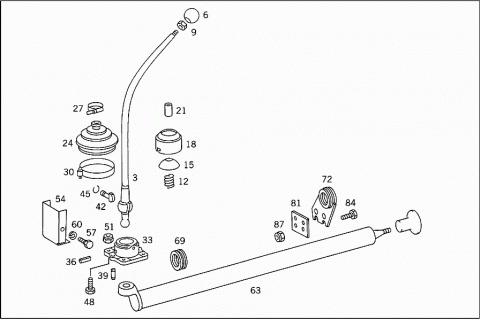

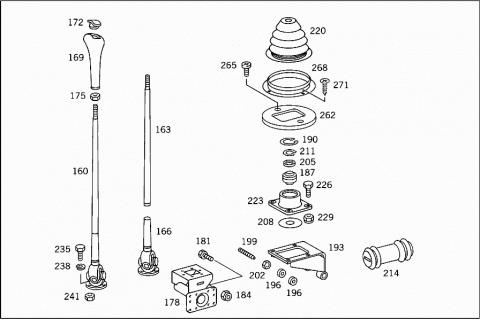

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3822607039 | SHIFT LEVER |
| 006 | A 3442600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 006 | A 3222600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 006 | A 3452607140 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 009 | N 000936010007 | NUT |
| SHIFT LEVER UPPER PART | ||
| 012 | A 3179930501 | SPRING |
| SHIFT LEVER LOWER PART | ||
| 015 | A 3022670008 | SPHERICAL PIECE |
| SHIFT LEVER LOWER PART | ||
| 018 | A 3082680005 | COVER |
| SHIFT LEVER LOWER PART | ||
| 021 | A 3129970982 | HOSE |
| SHIFT LEVER LOWER PART | ||
| 024 | A 1362670296 | BOOT |
| SHIFT LEVER BEARING COVERING | ||
| 027 | A 3449977290 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 030 | A 3829977390 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 033 | A 3222603214 | TRANSMISSION CASE COVER |
| SHIFT LEVER BEARING | ||
| 036 | N 001473005012 | GROOVED PIN |
| 039 | N 000007008221 | CYLINDRICAL PIN |
| 042 | A 3212670025 | SLIDING BLOCK |
| 042 | A 3442677025 | SLIDING BLOCK |
| 045 | N 009045008002 | SNAP RING |
| 048 | N 000933008288 | SCREW |
| CASE COVER TO BEARING BRACKET | ||
| M 8X25 | ||
| 051 | N 913004008005 | NUT |
| CASE COVER TO BEARING BRACKET | ||
| 054 | A 3822687034 | BEARING COVER |
| 057 | N 000933006220 | SCREW |
| BEARING COVER TO BEARING BRACKET | ||
| 060 | N 000127006203 | LOCK WASHER |
| BEARING COVER TO BEARING BRACKET | ||
| 063 | A 3822607133 | SHIFTING ROD |
| FRONT | ||
| 2440 MM | ||
| 066 | A 3822609382 | SHIFTING TUBE |
| CENTRAL | ||
| 069 | A 3022680050 | BUSHING |
| FRONT SHIFTING ROD | ||
| 072 | A 3452607184 | GUIDE |
| SHIFTING TUBE | ||
| 075 | A 3822607584 | GUIDE |
| FRONT SHIFTING ROD | ||
| 078 | A 3022680050 | BUSHING |
| 081 | A 3522681236 | BRACKET |
| SHIFTING TUBE | ||
| 084 | N 000933008291 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 084 | N 000933008273 | SCREW |
| SHIFTING TUBE | ||
| M 8X30 | ||
| 087 | N 913004008001 | NUT |
| SHIFTING TUBE | ||
| 090 | A 3212680228 | CONNECTOR |
| 093 | N 006888005006 | WOODRUFF KEY |
| FLANGE TO SHIFTING TUBE | ||
| 096 | N 000127012201 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD | ||
| 099 | N 000934012009 | NUT |
| CONNECTOR TO SHIFTING ROD | ||
| 102 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 102 | A 3219900601 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 105 | N 912004008100 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 108 | N 000934008008 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 111 | A 3822607033 | SHIFTING ROD |
| REAR | ||
| 760 MM | ||
| 114 | A 3442687089 | JOINT |
| REAR SHIFTING ROD | ||
| 114 | A 3442687289 | JOINT |
| REAR SHIFTING ROD | ||
| 117 | A 3212680552 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 2 MM | ||
| 117 | A 3212680452 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 3 MM | ||
| 117 | A 3212680352 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 5 MM | ||
| 120 | A 3179900301 | SCREW |
| SHIFTING ROD TO JOINT | ||
| 120 | A 3219900601 | SCREW |
| SHIFTING ROD TO JOINT | ||
| 123 | N 912004008100 | LOCK WASHER |
| SHIFTING ROD TO JOINT | ||
| 126 | N 000934008008 | NUT |
| SHIFTING ROD TO JOINT | ||
| 129 | A 3442600075 | CONNECTOR |
| SHIFTING ROD TO JOINT | ||
| 132 | A 3222680150 | BUSHING |
| 135 | A 3222680073 | LOCK |
| SHIFTING ROD TO JOINT | ||
| 138 | A 3179900301 | SCREW |
| CONNECTOR | ||
| 141 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| M 14X40 | ||
| H XM6852600033 | SHIFTING ROD | |
| H XM6852680088 | CLAMPING PIECE | |
| Q 23-09436-100 | PART NAME MISSING | |
| SCREW | ||
| Q 23-09901-106 | PART NAME MISSING | |
| NUT | ||
| H XM6852600105 | P.T.O. | |
| 160 | A 3822607239 | SHIFT LEVER |
| 163 | A 3642680124 | SHIFT LEVER |
| 166 | A 3642680089 | JOINT |
| 169 | A 3642687142 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 172 | A 3842687757 | COVER |
| SHIFT LEVER KNOB | ||
| 172 | A 6202680457 | COVER |
| SHIFT LEVER KNOB | ||
| 175 | N 000936010022 | NUT |
| SHIFT LEVER UPPER PART | ||
| 178 | A 3823107363 | CONSOLE |
| (SHIFTING DOME) | ||
| 181 | N 000961014107 | SCREW |
| WITH SPHERICAL WASHER | ||
| M 14X1.5X40 | ||
| 181 | N 000961014106 | SCREW |
| WITH SPHERICAL WASHER | ||
| M 14X1.5X35 | ||
| 184 | N 913004014004 | NUT |
| WITH SPHERICAL WASHER | ||
| M 14X1.5 | ||
| 187 | A 0019811931 | JOINT BEARING |
| SHIFT LEVER | ||
| 190 | N 000472047001 | LOCK RING |
| JOINT TO BRACKET | ||
| 193 | A 3822607062 | BRACKET |
| TRANSMISSION GEARSHIFT | ||
| 196 | A 6642687049 | SLIDE |
| BRACKET TO FRAME | ||
| 199 | A 6649907022 | SCREW |
| SLIDE ADJUSTMENT | ||
| 202 | N 000439010202 | NUT |
| SLIDE ADJUSTMENT | ||
| 205 | A 3002680051 | SPACER RING |
| SHIFT LEVER | ||
| 208 | A 3002680080 | GASKET |
| SHIFT LEVER | ||
| 211 | N 000471025001 | LOCK RING |
| BEARING TO SHIFT LEVER | ||
| 214 | A 3962680096 | BOOT |
| SLIDE ADJUSTMENT | ||
| 217 | A 0002680396 | BOOT |
| SHIFTING TUBE | ||
| 220 | A 3642687097 | BOOT |
| 223 | A 3002680040 | BRACKET |
| COVER TO BEARING BRACKET | ||
| 226 | N 000933008288 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| M 8X25 | ||
| 229 | N 913004008005 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 232 | A 3822603282 | SHIFTING TUBE |
| FRONT | ||
| 232 | A 3822609582 | SHIFTING TUBE |
| FRONT | ||
| 235 | A 3219900601 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 238 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 241 | N 000934008008 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 244 | A 6842607084 | GUIDE |
| SHIFTING TUBE | ||
| 247 | A 3822607684 | GUIDE |
| SHIFTING TUBE | ||
| 250 | A 3822607184 | GUIDE |
| SHIFTING TUBE | ||
| 253 | A 3822607284 | GUIDE |
| SHIFTING TUBE | ||
| 256 | A 3822607384 | GUIDE |
| SHIFTING TUBE | ||
| 259 | A 3052680150 | BUSHING |
| SHIFTING TUBE | ||
| 262 | A 3822687084 | SHIM |
| SHIFTING TUBE | ||
| 265 | N 007985006513 | SCREW |
| SHIFTING TUBE | ||
| 268 | A 3642677187 | CLAMPING PIECE |
| SHIFTING TUBE | ||
| 271 | N 007983003250 | SHEET METAL SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 274 | N 000933008273 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 277 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 280 | N 006888005006 | WOODRUFF KEY |
| FLANGE TO SHIFTING TUBE | ||
| 283 | A 3822603382 | SHIFTING TUBE |
| CENTRAL | ||
| 283 | A 3822607482 | SHIFTING TUBE |
| CENTRAL | ||
| 286 | A 3822609682 | SHIFTING TUBE |
| CENTRAL | ||
| 289 | A 3822607782 | SHIFTING TUBE |
| CENTRAL | ||
| 292 | A 3212680228 | CONNECTOR |
| 295 | N 000127012201 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD | ||
| 298 | N 000934012009 | NUT |
| CONNECTOR TO SHIFTING ROD | ||
| 301 | A 3442687089 | JOINT |
| REAR SHIFTING ROD | ||
| 301 | A 3442687289 | JOINT |
| REAR SHIFTING ROD | ||
| 304 | A 3212680552 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 2 MM | ||
| 304 | A 3212680452 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 3 MM | ||
| 304 | A 3212680352 | SPACER WASHER |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 5 MM | ||
| 307 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 310 | A 3219900601 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 313 | N 912004008100 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 316 | N 000934008008 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 319 | A 3822607882 | SHIFTING TUBE |
| REAR | ||
| 319 | A 3822608382 | SHIFTING TUBE |
| REAR | ||
| 322 | A 3442600075 | CONNECTOR |
| SHIFTING ROD TO JOINT | ||
| 325 | A 3222680150 | BUSHING |
| 328 | A 3222680073 | LOCK |
| SHIFTING ROD TO JOINT | ||
| 331 | N 000933008275 | SCREW |
| SHIFTING ROD TO JOINT | ||
| 334 | N 000960018142 | SCREW |
| TRANSMISSION TO BELL HOUSING |
