Transporto priemonė: OH 1518, 1519; VIN numerio dalis: 368002

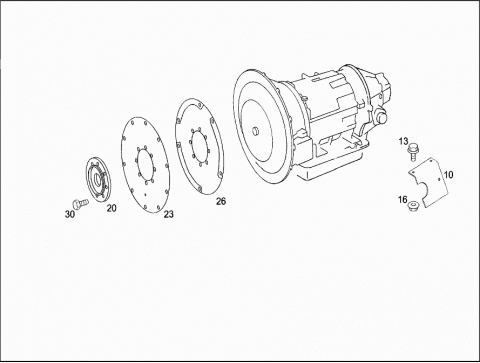

Grupė: 27 AUTOMATIC TRANSMISSION - 750 TRANSMISSION ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3825413240 | BRACKET |
| 013 | N 000000002036 | SCREW |
| M5X45 | ||
| 016 | N 913023005002 | NUT |
| 020 | A 3822710252 | SPACER WASHER |
| 023 | A 3822700036 | FOLLOWER |
| 026 | A 3822700136 | FOLLOWER |
| 030 | N 000961012160 | SCREW |
| FLYWHEEL HOUSING | ||
| 050 | A 3689970054 | LU HOSE LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 690 MM | ||
| 050 | A 3689970054 | LU HOSE LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 690 MM | ||
| 050 | A 3689970054 | LU HOSE LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 690 MM | ||
| 050 | A 3689970054 | LU HOSE LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 690 MM | ||
| 050 | A 3689970054 | LU HOSE LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 690 MM | ||
| 050 | A 3689970054 | LU HOSE LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 690 MM | ||
| 060 | A 3689970154 | LU HOSE LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 1360 MM | ||
| 060 | A 3689970154 | LU HOSE LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 1360 MM | ||
| 060 | A 3689970154 | LU HOSE LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 1360 MM | ||
| 060 | A 3689970354 | FLANGE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 1050 MM | ||
| 060 | A 3689970454 | HOSE ASSEMBLY |
| FROM OIL COOLER TO TRANSMISSION | ||
| 840 MM | ||
| 070 | A 3689970254 | LU HOSE LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 1130 MM | ||
| 070 | A 3689970254 | LU HOSE LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 1130 MM | ||
| 070 | A 3689970254 | LU HOSE LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 1130 MM | ||
| 100 | A 3689970071 | FITTING |
| FROM OIL COOLER TO TRANSMISSION | ||
| 100 | A 3689970071 | FITTING |
| FROM OIL COOLER TO TRANSMISSION | ||
| 100 | A 3689970071 | FITTING |
| FROM OIL COOLER TO TRANSMISSION | ||
| 100 | A 3689970071 | FITTING |
| FROM TRANSMISSION TO OIL COOLER | ||
| 100 | A 3689970071 | FITTING |
| FROM TRANSMISSION TO OIL COOLER | ||
| 100 | A 3689970071 | FITTING |
| FROM TRANSMISSION TO OIL COOLER | ||
| 140 | A 3682700196 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 1630 MM | ||
| 145 | A 3682700296 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 1450 MM | ||
| 150 | A 3682700396 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 2130 MM | ||
| 150 | A 3682700396 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 2130 MM | ||
| 160 | A 3682700496 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 1950 MM | ||
| 170 | A 3682700596 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 2768 MM | ||
| 180 | A 3682700696 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 2650MM | ||
| 200 | A 3682700796 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 200 | A 3682700796 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 200 | A 3682700796 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 210 | A 3682700896 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 210 | A 3682700896 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 210 | A 3682700896 | LINE |
| FROM OIL COOLER TO TRANSMISSION | ||
| 220 | A 3682700996 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 220 | A 3682700996 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 220 | A 3682700996 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 230 | A 3682701096 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 220 | A 3682701096 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 230 | A 3682701096 | LINE |
| FROM TRANSMISSION TO OIL COOLER | ||
| 250 | A 3682780040 | BRACKET |
| PIPE LINE FIXTURE | ||
| 250 | A 3682780040 | BRACKET |
| PIPE LINE FIXTURE | ||
| 250 | A 3682780040 | BRACKET |
| PIPE LINE FIXTURE | ||
| 250 | A 3682710140 | BRACKET |
| PIPE LINE FIXTURE | ||
| 260 | A 3682700341 | BRACKET |
| WITH PRESSURE REGULATOR | ||
| 260 | A 3682700341 | BRACKET |
| WITH PRESSURE REGULATOR | ||
| 270 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35 MM | ||
| 270 | N 910105012020 | HEXAGON HEAD BOLT |
| M12X1,5X35 MM | ||
| 280 | A 3682770035 | PRESSURE CONTROL VALVE |
| WITH PRESSURE REGULATOR | ||
| 280 | A 3682770035 | PRESSURE CONTROL VALVE |
| WITH PRESSURE REGULATOR | ||
| 285 | A 3689970271 | SCREW-IN FITTING |
| 285 | A 3689970271 | SCREW-IN FITTING |
| 290 | A 3689900001 | BOLT AND WASHER ASSY. |
| 290 | A 3689900001 | BOLT AND WASHER ASSY. |
| 295 | A 3689900082 | SHIM |
| 295 | A 3689900082 | SHIM |
| 300 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M10X30 | ||
| 300 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M10X30 | ||
| 300 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M10X30 | ||
| 300 | N 910105012007 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M12X1,5X30 | ||
| 310 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 310 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 310 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 310 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 330 | N 916016022202 | CLAMP |
| HOSE TO BRACKET | ||
| 330 | N 916016022202 | CLAMP |
| HOSE TO BRACKET | ||
| 330 | N 916016022202 | CLAMP |
| HOSE TO BRACKET | ||
| 330 | N 916016038201 | CLAMP |
| HOSE TO BRACKET | ||
| 340 | N 000000001149 | SCREW |
| HOSE TO BRACKET | ||
| M6X25 MM | ||
| 340 | N 000000001149 | SCREW |
| HOSE TO BRACKET | ||
| M6X25 MM | ||
| 340 | N 000000001149 | HEXALOBULAR BOLT |
| HOSE TO BRACKET | ||
| M6X25 MM | ||
| 340 | N 000000001428 | HEXALOBULAR BOLT |
| HOSE TO BRACKET | ||
| M8X25 | ||
| 350 | N 913023006002 | NUT |
| HOSE TO BRACKET | ||
| 350 | N 913023006002 | NUT |
| HOSE TO BRACKET | ||
| 350 | N 913023006002 | NUT |
| HOSE TO BRACKET | ||
| 350 | N 913023008003 | NUT |
| HOSE TO BRACKET | ||
| 360 | A 0009874927 | PLASTIC PIPE |
| GEARSHIFT,AUTOMATIC TRANSMISSION | ||
| 360 | A 0009874927 | PLASTIC PIPE |
| GEARSHIFT,AUTOMATIC TRANSMISSION | ||
| 370 | A 0019907971 | ELBOW FITTING |
| GEARSHIFT,AUTOMATIC TRANSMISSION | ||
| 370 | A 0019907971 | ELBOW FITTING |
| GEARSHIFT,AUTOMATIC TRANSMISSION | ||
| 380 | A 0009906678 | CONNECTOR |
| GEARSHIFT,AUTOMATIC TRANSMISSION | ||
| 390 | N 040621008216 | INSULATING HOSE |
| GREEN | ||
| 390 | N 040621008216 | INSULATING HOSE |
| GREEN | ||
| 420 | A 0002510283 | PLUG |
| BELL HOUSING | ||
| 430 | A 3685400308 | CABLE HARNESS |
| VOITH RETARDER | ||
| 500 | A 0065458226 | PLUG HOUSING |
| BIPOLAR | ||
| TO A 368 540 03 08 | ||
| 503 | A 3825455626 | PLUG SOCKET |
| 4-POLE | ||
| TO A 368 540 03 08 | ||
| 506 | A 0345457028 | PLUG HOUSING |
| 5-POLE | ||
| 1.5MM - TO A 368 540 03 08 | ||
| 509 | A 0005457280 | WIRE SEAL |
| 1.0-1.5MM - TO A 368 540 03 08 | ||
| 512 | A 0065455226 | ROUND PIN BUSHING |
| 0.5-1.0MM - TO A 368 540 03 08 | ||
| 515 | A 0005469535 | BOOT |
| 90 DEGREES | ||
| TO A 368 540 03 08 | ||
| 518 | A 6935453480 | GASKET |
| 0.5-1.0MM - TO A 368 540 03 08 | ||
| 521 | A 0005463163 | THRUST RING |
| (1.5MM) 0.5-1.0MM - TO A 368 540 03 08 | ||
| 524 | A 0015460135 | BOOT |
| 180 DEGREES | ||
| TO A 368 540 03 08 | ||
| 527 | A 0005456280 | BLIND PLUG |
| TO A 368 540 03 08 |
