Transporto priemonė: OH 1519/47; VIN numerio dalis: 368052

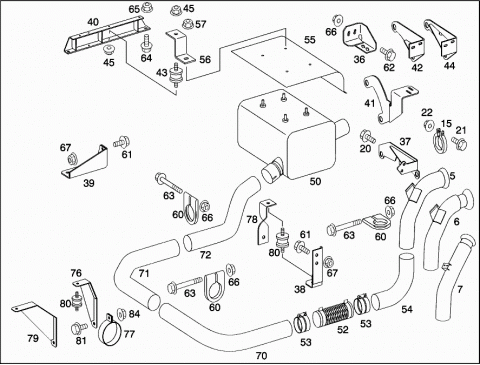

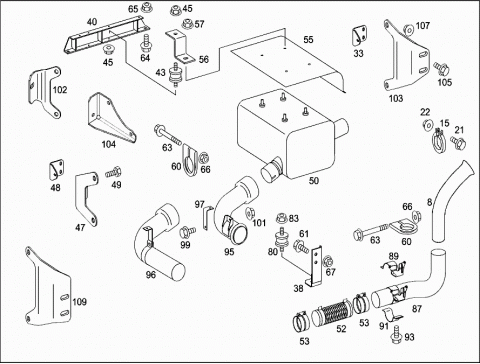

Grupė: 49 EXHAUST SYSTEM - 030 EXHAUST PIPE TO SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3824900919 | EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 006 | A 3684900110 | EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 007 | A 3684900210 | EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 008 | A 3684921301 | FRONT EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 008 | A 3684921401 | FRONT EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 008 | A 3684921201 | FRONT EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 008 | A 3684921201 | FRONT EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| A 3684900810 | EXHAUST PIPE | |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970590 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970490 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970490 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970490 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970490 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970490 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970590 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970490 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 015 | A 6209970590 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 020 | N 910105008026 | SCREW |
| EXHAUST PIPE SUSPENSION | ||
| M8 X 20 | ||
| 020 | N 910105008026 | SCREW |
| FASTENING FOR EXHAUST | ||
| M8X20 | ||
| 020 | N 910105008026 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M8X20 | ||
| 020 | N 910105008026 | SCREW |
| FRONT EXHAUST SYSTEM | ||
| M8X20 | ||
| 021 | N 910105008020 | SCREW |
| FRONT EXHAUST PIPE | ||
| M8 X 55 | ||
| 021 | N 910105008020 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE | ||
| M8 X 55 | ||
| 021 | N 910105008060 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE | ||
| M8X35 MM | ||
| 021 | N 910105008060 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE | ||
| M8X35 MM | ||
| 021 | N 910105008060 | SCREW |
| FRONT EXHAUST PIPE | ||
| M8X35 MM | ||
| 021 | N 910105008060 | SCREW |
| FRONT EXHAUST PIPE | ||
| M8 X 35 | ||
| 021 | N 910105008060 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE | ||
| M8 X 35 | ||
| 021 | N 910105008060 | SCREW |
| FRONT EXHAUST PIPE | ||
| M8 X 35 | ||
| 021 | N 910105008020 | SCREW |
| FRONT EXHAUST PIPE | ||
| M8 X 55 | ||
| 021 | N 910105008065 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE | ||
| M8 X 1 | ||
| 022 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE | ||
| M8 | ||
| 022 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE | ||
| M8 | ||
| 022 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE | ||
| M8 | ||
| 022 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE | ||
| M8 | ||
| 022 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE | ||
| M8 | ||
| 022 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE | ||
| M8 | ||
| 022 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE | ||
| M8 | ||
| 022 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE | ||
| M8 | ||
| 033 | A 3684921841 | BRACKET |
| 033 | A 3684921841 | BRACKET |
| 033 | A 3684921841 | BRACKET |
| 036 | A 3684910341 | BRACKET |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 037 | A 3844900540 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 037 | A 3684900240 | BRACKET |
| BRACKET TO TRANSMISSION | ||
| 038 | A 3824921941 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 038 | A 3684920241 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 038 | A 3684920241 | BRACKET |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 039 | A 3684910241 | BRACKET |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 039 | A 3684910241 | BRACKET |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 039 | A 3684910141 | BRACKET |
| BRACKET TO LEFT SIDE MEMBER | ||
| 039 | A 3684910141 | BRACKET |
| BRACKET TO LEFT SIDE MEMBER | ||
| 039 | A 3684920841 | BRACKET |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 040 | A 6345500040 | BRACKET |
| AT EXHAUST PIPE | ||
| 041 | A 3684920641 | BRACKET |
| BRACKET TO TRANSMISSION CASE | ||
| 042 | A 3684900640 | BRACKET |
| BRACKET TO TRANSMISSION CASE | ||
| 043 | A 3475040012 | RUBBER MOUNTING |
| Repalced by: A 6349980041 | ||
| 043 | A 6349980041 | BUFFER |
| 044 | A 3684900740 | BRACKET |
| BRACKET TO TRANSMISSION CASE | ||
| 045 | N 910112010001 | NUT |
| M10 | ||
| 047 | A 3684921341 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 048 | A 3684920741 | BRACKET |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 049 | N 910105008026 | SCREW |
| FASTENING FOR EXHAUST | ||
| M8 X 20 | ||
| 050 | A 3824900301 | EXHAUST MUFFLER |
| Repalced by: A 3684900101 | ||
| 050 | A 3684900101 | EXHAUST MUFFLER |
| 050 | A 3824900301 | EXHAUST MUFFLER |
| Repalced by: A 3684900101 | ||
| 050 | A 3684900101 | EXHAUST MUFFLER |
| 052 | A 6954900065 | FLEXIBLE METAL TUBE |
| 052 | A 6954900065 | FLEXIBLE METAL TUBE |
| 052 | A 3684900165 | FLEXIBLE METAL TUBE |
| 052 | A 3684900165 | FLEXIBLE METAL TUBE |
| 052 | A 3684900165 | FLEXIBLE METAL TUBE |
| 052 | A 3684900165 | FLEXIBLE METAL TUBE |
| 052 | A 3684900165 | FLEXIBLE METAL TUBE |
| 052 | A 9794900065 | FLEXIBLE METAL TUBE |
| D 3,0" X 334MM | ||
| 053 | A 9794920540 | CLAMP |
| 053 | A 6954920040 | CLAMP |
| 053 | A 6954920040 | CLAMP |
| 053 | A 3689970090 | LOOM TIE |
| 053 | A 3689970090 | LOOM TIE |
| 053 | A 3689970090 | LOOM TIE |
| 053 | A 3689970090 | LOOM TIE |
| 053 | A 3689970090 | LOOM TIE |
| EXHAUST PIPE ON METAL HOSE AND MUFFLER | ||
| 053 | A 3689970090 | LOOM TIE |
| 053 | A 3689970090 | LOOM TIE |
| EXHAUST PIPE ON METAL HOSE AND MUFFLER | ||
| 054 | A 3824900231 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 054 | A 3824900431 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 055 | A 3824910130 | PROTECTIVE PLATE |
| SCREENING PLATE TO MUFFLER | ||
| 055 | A 3824910130 | PROTECTIVE PLATE |
| SCREENING PLATE TO MUFFLER | ||
| 056 | A 3824923041 | BRACKET |
| BRACKET TO EXHAUST MUFFLER | ||
| 056 | A 3824923041 | BRACKET |
| BRACKET TO EXHAUST MUFFLER | ||
| 057 | N 913023012002 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| M12X1,5 MM | ||
| 057 | N 913023012002 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| M12X1,5 MM | ||
| 060 | A 6744920040 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 94,5 MM | ||
| 060 | A 9584921140 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 77 MM | ||
| 060 | A 9584921140 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 77 MM | ||
| 060 | A 9584921140 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 77 MM | ||
| 060 | A 9584921140 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 77 MM | ||
| 060 | A 9584921140 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 77 MM | ||
| 060 | A 3684920440 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 83 MM | ||
| 060 | A 3684920440 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 83 MM | ||
| 060 | A 3684920440 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 83 MM | ||
| 060 | A 3684920440 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 83 MM | ||
| 060 | A 3684920440 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 83 MM | ||
| 060 | A 3684920440 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 83 MM | ||
| 060 | A 6764920040 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 90,5 MM | ||
| 060 | A 6764920040 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 90,5 MM | ||
| 060 | A 6744920040 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 94,5 MM | ||
| 060 | A 3844927440 | CLAMP |
| TAIL PIPE | ||
| 107,3 MM | ||
| 060 | A 3844927440 | CLAMP |
| TAIL PIPE | ||
| 107,3 MM | ||
| 060 | A 3844927440 | CLAMP |
| TAIL PIPE | ||
| 107,3 MM | ||
| 060 | A 3844927440 | CLAMP |
| TAIL PIPE | ||
| 107,3 MM | ||
| 060 | A 3844927440 | CLAMP |
| TAIL PIPE | ||
| 107,3 MM | ||
| 061 | N 910105014013 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M14 X 1.5 X 35 | ||
| 061 | N 910105014013 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M14 X 1.5 X 35 | ||
| 061 | N 910105014013 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M14 X 1.5 X 35 | ||
| 061 | N 910105014013 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M14X1,5X35 | ||
| 061 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M10X30 | ||
| 061 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO LEFT SIDE MEMBER | ||
| M10X30 | ||
| 061 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M10X30 | ||
| 061 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO LEFT SIDE MEMBER | ||
| M10X30 | ||
| 062 | N 910105008039 | SCREW |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| M8X25 | ||
| 062 | N 910105008039 | SCREW |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| M8X25 | ||
| 063 | N 910105008065 | SCREW |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | SCREW |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | SCREW |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | SCREW |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008065 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 120 | ||
| 063 | N 910105008061 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8X130 | ||
| 063 | N 910105008061 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8X130 | ||
| 063 | N 910105010025 | SCREW |
| TAIL PIPE | ||
| M10X140 | ||
| 063 | N 910105010025 | SCREW |
| TAIL PIPE | ||
| M10 X 140 | ||
| 063 | N 910105010025 | HEXAGON HEAD BOLT |
| TAIL PIPE | ||
| M10 X 140 | ||
| 063 | N 910105010025 | SCREW |
| TAIL PIPE | ||
| M10 X 140 | ||
| 063 | N 910105010025 | HEXAGON HEAD BOLT |
| TAIL PIPE | ||
| M10 X 140 | ||
| 063 | N 910105008015 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 130 | ||
| 063 | N 910105008015 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 X 130 | ||
| 064 | N 910105012020 | SCREW |
| M12 X 1.5 X 35 | ||
| 065 | N 913023012002 | NUT |
| M12 X 1.5 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| M8 | ||
| 066 | N 913023008003 | NUT |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| M8 | ||
| 066 | N 913023012002 | NUT |
| TAIL PIPE | ||
| M12 X 1.5 | ||
| 066 | N 913023012002 | NUT |
| TAIL PIPE | ||
| M12 X 1.5 | ||
| 066 | N 913023010002 | NUT |
| TAIL PIPE | ||
| M10 | ||
| 066 | N 913023012002 | NUT |
| TAIL PIPE | ||
| M12X1,5 | ||
| 066 | N 913023012002 | NUT |
| TAIL PIPE | ||
| M12X1,5 | ||
| 067 | N 913023014003 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M14X1,5 | ||
| 067 | N 913023014003 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M14X1,5 | ||
| 067 | N 913023010002 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M10 | ||
| 067 | N 913023010002 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| M10 | ||
| 067 | N 913023010002 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M10 | ||
| 067 | N 913023010002 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| M10 | ||
| 067 | N 913023014003 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| M14 X 1.5 | ||
| 067 | N 913023014003 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M14 X 1.5 | ||
| 070 | A 3684920007 | CONNECTOR |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 071 | A 3824920701 | FRONT EXHAUST PIPE |
| CENTRAL EXHAUST PIPE | ||
| 071 | A 3824920701 | FRONT EXHAUST PIPE |
| CENTRAL EXHAUST PIPE | ||
| 072 | A 3684920014 | END PIECE |
| EXHAUST PIPE TO MUFFLER | ||
| 072 | A 3684920114 | END PIECE |
| EXHAUST PIPE TO MUFFLER | ||
| 076 | A 3684900140 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 077 | A 9584920040 | CLAMP |
| EXHAUST PIPE SUSPENSION | ||
| 077 | A 9584920040 | CLAMP |
| EXHAUST PIPE SUSPENSION | ||
| 077 | A 6934927240 | CLAMP |
| TAIL PIPE | ||
| 077 | A 6934927240 | CLAMP |
| TAIL PIPE | ||
| 078 | A 3824922441 | BRACKET |
| EXHAUST PIPE TO MUFFLER | ||
| 078 | A 3824922441 | BRACKET |
| EXHAUST PIPE TO MUFFLER | ||
| 079 | A 3684900340 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 080 | A 0019873140 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 080 | A 0019873140 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 080 | A 0019873140 | RUBBER BUFFER |
| TAIL PIPE | ||
| 080 | A 0019873140 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 080 | A 0019873140 | RUBBER BUFFER |
| BRACKET TO SIDE MEMBER | ||
| 080 | A 0019873140 | RUBBER BUFFER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 080 | A 0019873140 | RUBBER BUFFER |
| TAIL PIPE | ||
| 081 | N 910105010011 | HEXAGON HEAD BOLT |
| EXHAUST PIPE SUSPENSION | ||
| M10X40 | ||
| 081 | N 910105010011 | HEXAGON HEAD BOLT |
| AT BRACKET & EXHAUST PIPE | ||
| M10 X 40 | ||
| 081 | N 910105010011 | HEXAGON HEAD BOLT |
| TAIL PIPE | ||
| M10X40 | ||
| 081 | N 910105010011 | HEXAGON HEAD BOLT |
| EXHAUST PIPE SUSPENSION | ||
| M10X40 | ||
| 081 | N 910105010011 | HEXAGON HEAD BOLT |
| TAIL PIPE | ||
| M10X40 | ||
| 083 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M10 | ||
| Repalced by: N 910112010001 | ||
| 083 | N 910112010001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M10 | ||
| 083 | N 913023010002 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M10 | ||
| Repalced by: N 910112010001 | ||
| 083 | N 910112010001 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M10 | ||
| 083 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M10 | ||
| 084 | N 913023010002 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| M10 | ||
| 084 | N 913023010002 | NUT |
| AT BRACKET & EXHAUST PIPE | ||
| M10 | ||
| 084 | N 913023010002 | NUT |
| TAIL PIPE | ||
| M10 | ||
| 084 | N 913023010002 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| M10 | ||
| 084 | N 913023010002 | NUT |
| TAIL PIPE | ||
| M10 | ||
| 087 | A 3684900531 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 087 | A 3684900531 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 087 | A 3684900731 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 087 | A 3684900731 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 087 | A 3684900431 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 087 | A 3684900631 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 087 | A 3684900831 | INTERMEDIATE PIECE |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 089 | A 3684900141 | CLAMP |
| TO A 368 490 0531 | ||
| 089 | A 3684900141 | CLAMP |
| TO A 368 490 0531 | ||
| 089 | A 3684900141 | CLAMP |
| TO A 368 490 0731 | ||
| 089 | A 3684900141 | CLAMP |
| TO A 368 490 0731 | ||
| 089 | A 3684900041 | CLAMP |
| TO A 3684900431 | ||
| 089 | A 3684900241 | CLAMP |
| TO A 3684900631 | ||
| 089 | A 3684900241 | CLAMP |
| TO A 368 490 0831 | ||
| 091 | A 3684920340 | CLAMP |
| TO A 3684900531 | ||
| 091 | A 3684920340 | CLAMP |
| TO A 3684900531 | ||
| 091 | A 3684920340 | CLAMP |
| TO A 3684900431 | ||
| 091 | A 3684920340 | CLAMP |
| TO A 3684900631 | ||
| 091 | A 3684920340 | CLAMP |
| TO A 3684900731 | ||
| 091 | A 3684920340 | CLAMP |
| 091 | A 3684920340 | CLAMP |
| 093 | N 910105008039 | HEXAGON HEAD BOLT |
| M8 X 35 | ||
| 093 | N 910105008039 | HEXAGON HEAD BOLT |
| M8 X 35 | ||
| 093 | N 910105008039 | SCREW |
| M8 X 35 | ||
| 093 | N 910105008039 | HEXAGON HEAD BOLT |
| M8 X 35 | ||
| 093 | N 910105008039 | HEXAGON HEAD BOLT |
| M8 X 35 | ||
| 093 | N 910105008039 | SCREW |
| M8 X 35 | ||
| 093 | N 910105008039 | SCREW |
| M8 X 35 | ||
| 095 | A 3684900427 | END PIECE |
| 095 | A 3684900727 | END PIECE |
| 096 | A 3684900227 | TAILPIPE |
| 097 | A 3684922041 | BRACKET |
| 097 | A 3684920941 | BRACKET |
| 097 | A 3684921541 | BRACKET |
| TAIL PIPE | ||
| 099 | N 910105010009 | HEXAGON HEAD BOLT |
| M10 X 25 | ||
| 099 | N 910105010009 | SCREW |
| M10 X 25 | ||
| 099 | N 910105010011 | HEXAGON HEAD BOLT |
| TAIL PIPE | ||
| M10X40 | ||
| 101 | N 913023010002 | NUT |
| M10 | ||
| 101 | N 913023010002 | NUT |
| M10 | ||
| 101 | N 913023010002 | NUT |
| TAIL PIPE | ||
| M10 | ||
| 102 | A 3684922841 | BRACKET |
| EXHAUST PIPE BRACKET TO BELL HOUSING | ||
| 103 | A 3684921941 | BRACKET |
| 103 | A 3684921941 | BRACKET |
| 103 | A 3684921741 | BRACKET |
| 104 | A 3684922941 | BRACKET |
| EXHAUST PIPE BRACKET TO BELL HOUSING | ||
| 105 | N 910105008039 | SCREW |
| BRACKET TO BRACKET | ||
| M8 X 25 | ||
| 105 | N 910105008039 | HEXAGON HEAD BOLT |
| BRACKET TO BRACKET | ||
| M8 X 25 | ||
| 105 | N 910105008039 | HEXAGON HEAD BOLT |
| BRACKET TO BRACKET | ||
| M8 X 25 | ||
| 105 | N 910105008039 | SCREW |
| BRACKET TO BRACKET | ||
| M8 X 25 | ||
| 107 | N 913023008003 | NUT |
| BRACKET TO BRACKET | ||
| M8 | ||
| 107 | N 913023008003 | NUT |
| BRACKET TO BRACKET | ||
| M8 | ||
| 107 | N 913023008003 | NUT |
| BRACKET TO BRACKET | ||
| M8 | ||
| 107 | N 913023008003 | NUT |
| BRACKET TO BRACKET | ||
| M8 | ||
| 109 | A 3684922241 | BRACKET |
| BRACKET TO TRANSMISSION CASE | ||
| 115 | A 3684921901 | EXHAUST PIPE FRT |
| FRONT EXHAUST PIPE | ||
| 117 | A 9584921140 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 77 MM | ||
| 117 | A 6209970490 | CLAMP |
| FRONT EXHAUST PIPE ON INTERMEDIATE PIPE | ||
| 121 | N 910105008065 | HEXAGON HEAD BOLT |
| M8 X 120 | ||
| 121 | N 910105008060 | HEXAGON HEAD BOLT |
| M8 X 35 | ||
| 127 | N 913023008003 | NUT |
| 133 | A 3684921841 | BRACKET |
| 141 | A 6959970090 | PIPE-HOSE CONNECTOR |
| 145 | A 3684900719 | EXHAUST PIPE |
| 149 | A 3684920640 | PIPE CLAMP F EXHAUST SYS. |
| 153 | A 3684900341 | PIPE CLAMP F EXHAUST SYS. |
| 157 | N 910105008039 | HEXAGON HEAD BOLT |
| M8 X 25 | ||
| 161 | A 3684900619 | EXHAUST PIPE |
| 161 | A 3684901031 | EXHAUST INTERMEDIATE PIPE |
| (INTERMEDIATE PIPE) | ||
| 163 | A 9794920140 | CLAMP |
| 167 | A 3684923341 | BRACKET |
| 171 | N 910105010007 | HEXAGON HEAD BOLT |
| M10 X 35 | ||
| 175 | N 913023010002 | NUT |
| 177 | A 0009959102 | CLAMP |
| 177 | A 9584920040 | CLAMP |
| 177 | A 9584920040 | CLAMP |
| INTERMEDIATE PIPE FIXTURE | ||
| 183 | A 3824900314 | PARTICULATE CONVERTER |
| PARTICULATE REDUCTION CATALYTIC CONVERTER SYSTEM | ||
| 183 | A 3824901014 | PARTICULATE CONVERTER |
| PARTICULATE REDUCTION CATALYTIC CONVERTER SYSTEM | ||
| Repalced by: A 3824900414 | ||
| 183 | A 3824900414 | PARTICULATE CONVERTER |
| PARTICULATE REDUCTION CATALYTIC CONVERTER SYSTEM | ||
| 189 | A 3684901340 | BRACKET |
| 189 | A 3684901240 | BRACKET |
| 193 | A 3684901140 | BRACKET |
| 193 | A 3824920117 | ATTACHMENT ANGLE BRACKET |
| CATALYST | ||
| 193 | A 3824920217 | BRACKET |
| 194 | A 3684923041 | BRACKET |
| EXHAUST PIPE BRACKET TO SIDE MEMBER | ||
| 195 | N 910105010001 | HEXAGON HEAD BOLT |
| M10X30 | ||
| 197 | A 6349980041 | BUFFER |
| 203 | N 910112010001 | NUT |
| 207 | A 0019873140 | RUBBER BUFFER |
| 211 | N 913023010002 | NUT |
| FROM MUFFLER TO REAR CENTRAL EXHAUST PIPE | ||
| 211 | N 913023010002 | NUT |
| 212 | N 910105010011 | HEXAGON HEAD BOLT |
| FROM MUFFLER TO REAR CENTRAL EXHAUST PIPE | ||
| M10 X 40 | ||
| 217 | A 3684923241 | BRACKET |
| 218 | A 3684900519 | EXHAUST GAS LINE |
| FRONT EXHAUST PIPE | ||
| 220 | A 0009956202 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 223 | A 0061537328 | CONTROL UNIT |
| NOX SENSOR | ||
| TO A 3824900414 | ||
| Repalced by: A 0091533628 | ||
| 223 | A 0091533628 | NOX SENSOR |
| NOX SENSOR | ||
| 223 | A 0091533628 | NOX SENSOR |
| NOX SENSOR | ||
| 226 | A 0001507133 | ELECTRIC CABLE |
| ADAPTER | ||
| "NOX" | ||
| 226 | A 0001507133 | ELECTRIC CABLE |
| ADAPTER | ||
| "NOX" | ||
| 230 | A 0061530528 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| 230 | A 0061530528 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| 233 | A 0005460522 | CLAMPING RING |
| 233 | A 0005460522 | CLAMPING RING |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
