Transporto priemonė: OH 1521 L; VIN numerio dalis: 390092

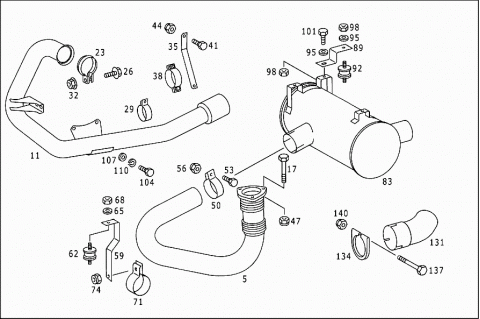

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3904908519 | EXHAUST PIPE |
| 008 | A 3904908619 | EXHAUST PIPE |
| 011 | A 3904900019 | EXHAUST PIPE |
| 014 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 000960012357 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000960012385 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X1.5X70 | ||
| 023 | A 6209970490 | CLAMP |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | N 910105008010 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 071555075503 | CLAMP |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | N 913023008003 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 035 | A 3904920020 | STRUT |
| EXHAUST PIPE TO TRANSMISSION | ||
| 038 | A 3904920040 | CLAMP |
| Repalced by: N 071555075503 | ||
| 038 | N 071555075503 | CLAMP |
| EXHAUST PIPE TO TRANSMISSION | ||
| 041 | N 000933010269 | SCREW |
| EXHAUST PIPE TO TRANSMISSION | ||
| 044 | N 913004010011 | NUT |
| EXHAUST PIPE TO TRANSMISSION | ||
| 047 | N 913004012018 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 050 | N 071555094500 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 053 | N 000933010174 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 056 | N 913004010011 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 059 | A 3904928441 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 062 | A 3475040012 | RUBBER MOUNTING |
| FRONT EXHAUST PIPE | ||
| 065 | N 000125010517 | WASHER |
| FRONT EXHAUST PIPE | ||
| 068 | N 000934010005 | NUT |
| FRONT EXHAUST PIPE | ||
| 071 | N 071555090500 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 074 | N 913004010008 | NUT |
| FRONT EXHAUST PIPE | ||
| 077 | A 3824907065 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO MUFFLER | ||
| 077 | A 3824907065 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO MUFFLER | ||
| 080 | A 3844927340 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 080 | A 3844927340 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 083 | A 3904907015 | EXHAUST MUFFLER WITH PIPE |
| 086 | A 3824907401 | EXHAUST MUFFLER |
| 086 | A 3824907401 | EXHAUST MUFFLER |
| 086 | A 3824907501 | EXHAUST MUFFLER |
| 086 | A 3824907501 | EXHAUST MUFFLER |
| 089 | A 3904928341 | BRACKET |
| 092 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 095 | N 000125010517 | WASHER |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 095 | N 000125010517 | WASHER |
| 098 | N 000934010005 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 101 | N 000933010174 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 101 | N 000933010174 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 104 | N 000933008214 | SCREW |
| FRONT EXHAUST PIPE | ||
| 107 | N 000125008417 | WASHER |
| FRONT EXHAUST PIPE | ||
| 110 | N 912004008100 | LOCK WASHER |
| FRONT EXHAUST PIPE | ||
| 113 | A 3824907334 | SUPPORT |
| 113 | A 3824907334 | SUPPORT |
| 116 | A 3824917169 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 116 | A 3824910069 | SHIM |
| FRONT EXHAUST PIPE | ||
| 119 | N 000961014063 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 119 | N 000961014101 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X45 | ||
| 122 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 122 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 125 | N 000933010035 | SCREW |
| SUPPORT TO RADIATOR | ||
| M 10X25 | ||
| 128 | N 913004010004 | NUT |
| SUPPORT TO RADIATOR | ||
| 131 | A 3904900119 | EXHAUST PIPE |
| REAR | ||
| 131 | A 3904900119 | EXHAUST PIPE |
| REAR | ||
| 134 | A 3864927040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 134 | A 3864927040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 137 | N 000931010317 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 137 | N 000931010317 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 140 | N 913004010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 140 | N 913004010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
