Transporto priemonė: OH 1521 L; VIN numerio dalis: 390092

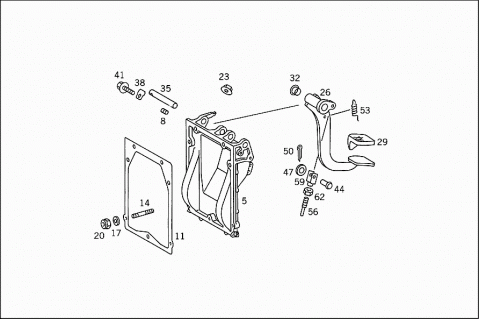

Grupė: 29 PEDALS - 060 BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6732903119 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 005 | A 6732903119 | BEARING BRACKET |
| (PEDAL BEARING BRACKET) | ||
| 008 | N 900421008002 | THREADED INSERT |
| 008 | N 900421008002 | THREADED INSERT |
| 011 | A 6732940180 | GASKET |
| BEARING BRACKET TO PEDESTAL | ||
| 011 | A 6732940180 | GASKET |
| BEARING BRACKET TO PEDESTAL | ||
| 014 | A 6732940270 | STUD |
| BEARING BRACKET TO PEDESTAL | ||
| 014 | A 6732940270 | STUD |
| BEARING BRACKET TO PEDESTAL | ||
| 017 | N 007349008002 | WASHER |
| BEARING BRACKET TO PEDESTAL | ||
| 017 | N 007349008002 | WASHER |
| BEARING BRACKET TO PEDESTAL | ||
| 020 | N 913004008001 | NUT |
| BEARING BRACKET TO PEDESTAL | ||
| 020 | N 913004008001 | NUT |
| BEARING BRACKET TO PEDESTAL | ||
| 023 | A 0009906350 | NUT |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 023 | A 0009906350 | NUT |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 026 | A 6732900118 | PEDAL |
| BRAKE | ||
| 026 | A 6732900118 | PEDAL |
| BRAKE | ||
| 029 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 029 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 032 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 032 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 035 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 035 | A 6732940174 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 038 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 038 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 041 | A 0019901204 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 041 | A 0019901204 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M 6X16 | ||
| 044 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 044 | A 3852920174 | PIN |
| ROD TO BRAKE PEDAL | ||
| 047 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 047 | N 000433008403 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 050 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 050 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 053 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 053 | A 6739930110 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 056 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 056 | A 6732920032 | ROD |
| BRAKE ACTUATION | ||
| 059 | N 071752008002 | YOKE |
| BRAKE ACTUATION | ||
| 059 | N 071752008002 | YOKE |
| BRAKE ACTUATION | ||
| 062 | N 000439008104 | NUT |
| BRAKE ACTUATION | ||
| 062 | N 000439008104 | NUT |
| BRAKE ACTUATION |
