Transporto priemonė: OH 1521 L; VIN numerio dalis: 390092

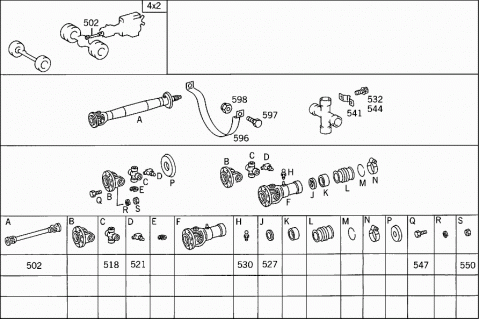

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 502 | A 3824107702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 502 | A 3904100002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 518 | A 0004101731 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 521 | A 0009974788 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 527 | A 0004130380 | SEAL RING |
| NOTE THREAD DIAMETER | ||
| 2 1/2" | ||
| 527 | A 0014130780 | SEAL RING |
| NOTE THREAD DIAMETER | ||
| 2 1/4" | ||
| 530 | A 0009974888 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 532 | A 0069903601 | SCREW |
| 541 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO FLANGE | ||
| 544 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO FLANGE | ||
| 547 | A 3529904701 | SCREW |
| PROPELLER SHAFT TO FLANGE | ||
| 550 | N 000934010042 | NUT |
| PROPELLER SHAFT TO FLANGE | ||
| 596 | A 3454137244 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| A 3904110040 | BRACKET | |
| PROPELLER SHAFT | ||
| 597 | N 000933010174 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 10X25 | ||
| 597 | N 000933008288 | SCREW |
| REBOUND STRAP TO FRAME | ||
| 598 | N 913004010011 | NUT |
| REBOUND STRAP TO FRAME | ||
| 598 | N 913004008005 | NUT |
| REBOUND STRAP TO FRAME |
