Transporto priemonė: OH 1526; VIN numerio dalis: 351233
Grupė: 42 BRAKES
43472
43473
43474
43475
43476
43477
43478
43479
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING

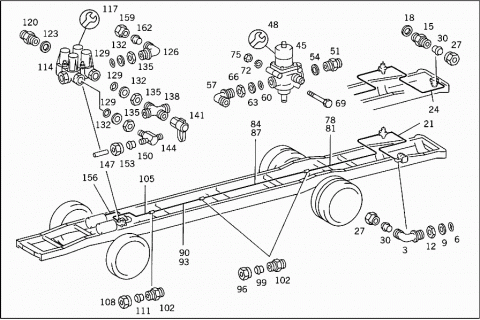

COMPRESSED AIR SYSTEM
003 A 3414297838 ELBOW FITTING
AT AIR COMPRESSOR
003 A 3414297938 ELBOW FITTING
AT AIR COMPRESSOR
006 A 0009870446 O-RING
AT AIR COMPRESSOR
009 A 0004290227 THRUST RING
Repalced by: A 0009940203
009 A 0009940203 THRUST RING
AT AIR COMPRESSOR
012 N 080705022001 NUT
AT AIR COMPRESSOR
M 22X1,5
015 A 3454298436 CONNECTOR
AT AIR COMPRESSOR
018 N 007603026101 SEAL RING
AT AIR COMPRESSOR
021 A 3514209726 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
15X1.5 MM
024 A 3514209826 LINE
FROM AIR COMPRESSOR TO DOUBLE FITTING
15X1.5 MM
027 N 915017015100 UNION NUT
030 N 003861015004 GLAND
045 A 0014310006 PRESSURE REGULATOR
"WABCO"
045 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024318306
045 A 0014319806 PRESSURE REGULATOR
Repalced by: A 0024318306
045 A 0024318306 PRESSURE REGULATOR
"KNORR"
048 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
048 A 0004201371 REPAIR KIT
TO 001 431 12 06
048 A 0015864343 REPAIR KIT
TO 001 431 00 06
048 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
048 A 0004201371 REPAIR KIT
TO 001 431 98 06
048 A 0004300407 REPAIR KIT
Repalced by: A 0004301807
048 A 0004301807 REPAIR KIT
TO 002 431 83 06
051 A 3414297036 CONNECTOR
AT PRESSURE REGULATOR
054 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
057 A 3414297838 ELBOW FITTING
AT PRESSURE REGULATOR
057 A 3414297938 ELBOW FITTING
AT PRESSURE REGULATOR
060 A 0009870446 O-RING
AT PRESSURE REGULATOR
063 A 0004290227 THRUST RING
Repalced by: A 0009940203
063 A 0009940203 THRUST RING
AT PRESSURE REGULATOR
066 N 080705022001 NUT
AT PRESSURE REGULATOR
M 22X1,5
069 N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X75
072 N 912004008102 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
075 N 000934008045 NUT
PRESSURE REGULATOR TO BRACKET
A 3414207486 BRACKET
PRESSURE REGULATOR
N 000933008278 SCREW
BRACKET TO SIDE MEMBER
M 8X28
N 912004008102 LOCK WASHER
BRACKET TO SIDE MEMBER
N 000125008418 WASHER
BRACKET TO SIDE MEMBER
078 A 3514209926 LINE
FROM PRESSURE REGULATOR TO DOUBLE FITTING I
15X1.5 MM
081 A 3514207949 LINE
FROM PRESSURE REGULATOR TO DOUBLE FITTING I
15X1.5 MM
084 A 3514209029 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
15X1.5 MM
087 A 3514208229 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
15X1.5 MM
090 A 3514208029 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
15X1.5 MM
090 A 3514209129 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
15X1.5 MM
090 A 3514209229 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
15X1.5 MM
093 A 3514209329 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
15X1.5 MM
096 N 915017015100 UNION NUT
099 N 003861015004 GLAND
102 N 003902015001 CONNECTION FITTING
105 A 3514208149 LINE
FROM FITTING TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION:
15X1.5 MM,"1"
108 N 915017015100 UNION NUT
111 N 003861015004 GLAND
114 A 0024310106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
"KNORR"
114 A 0024314006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
"WABCO"
114 A 0014318706 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
"KNORR"
117 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
117 A 0004201571 REPAIR KIT
TO 002 431 01 06
117 A 0035860943 REPAIR KIT
TO 002 431 40 06
117 A 0035861043 REPAIR KIT
TO 001 431 87 06
120 A 3414297036 CONNECTOR
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
123 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
126 A 3514297038 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
126 A 3089907171 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
126 N 074315012100 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
129 A 0009971548 SEAL RING
129 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
129 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
129 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
132 A 3084297027 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
132 A 3084297027 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
132 A 3084297027 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
135 N 080705016003 NUT
135 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
135 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
135 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
138 A 3519907087 CROSS FITTING
138 A 3519907087 CROSS FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
138 A 3519907087 CROSS FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
141 A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
141 A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
144 A 3419908070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
147 A 3414317274 PIN
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
150 N 003861006007 GLAND
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
153 N 915017006100 UNION NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
156 A 3514208249 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "21",TO AIR RESERVOIR I
12X1 MM
159 N 915017012100 UNION NUT
162 N 003861012007 GLAND

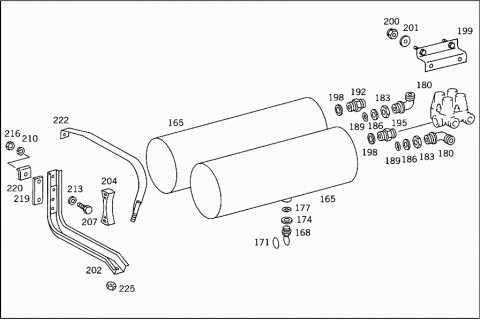

165 A 3414307205 RESERVOIR
AIR RESERVOIRS I AND II
165 A 3924307305 RESERVOIR
AIR RESERVOIRS I AND II
168 A 3454300181 VALVE
AT AIR RESERVOIRS I AND II
168 A 3454300281 VALVE
AT AIR RESERVOIRS I AND II
168 A 3454307281 VALVE
AT AIR RESERVOIRS I AND II
168 A 3514307581 VALVE
Repalced by: A 0004322507
168 A 0004322507 VALVE
AT AIR RESERVOIRS I AND II
168 A 3454300081 VALVE
Repalced by: A 0004322407
168 A 0004322407 VALVE
AT AIR RESERVOIRS I AND II
168 A 0004320607 VALVE
AT AIR RESERVOIRS I AND II
168 A 3514307781 VALVE
AT AIR RESERVOIRS I AND II
171 N 900397000201 RING
TO 351 430 75 81,345 430 02 81,
T YYYYYYYYYYYY PART NAME MISSING
345 430 00 81,000 432 06 07,
T YYYYYYYYYYYY PART NAME MISSING
351 430 77 81
171 A 3459880066 RING
TO 345 430 01 81,345 430 72 81
174 A 0004290227 THRUST RING
Repalced by: A 0009940203
174 A 0009940203 THRUST RING
AT AIR RESERVOIRS I AND II
177 A 0009870446 O-RING
AT AIR RESERVOIRS I AND II
180 N 074315012101 FITTING
AT AIR RESERVOIRS I AND II
180 A 0009907771 ELBOW FITTING
AT AIR RESERVOIRS I AND II
180 N 074315012100 FITTING
AT AIR RESERVOIRS I AND II
183 N 080705022001 NUT
AT AIR RESERVOIRS I AND II
183 N 080705016003 NUT
AT AIR RESERVOIRS I AND II
M 16X1,5
186 A 0004290227 THRUST RING
Repalced by: A 0009940203
186 A 0009940203 THRUST RING
AT AIR RESERVOIRS I AND II
186 A 3084297027 THRUST RING
AT AIR RESERVOIRS I AND II
189 A 0009870446 O-RING
AT AIR RESERVOIRS I AND II
189 A 0009971548 SEAL RING
AT AIR RESERVOIRS I AND II
192 N 074313012100 FITTING
AT AIR RESERVOIR I
192 N 003901012005 SCREW-IN FITTING
AT AIR RESERVOIR I
195 A 3459977072 FITTING
AT AIR RESERVOIR II
195 N 003910010000 BULKHEAD FITTING
AT AIR RESERVOIR II
198 N 007603022102 SEAL RING
AT AIR RESERVOIRS I AND II
198 N 007603016105 SEAL RING
AT AIR RESERVOIRS I AND II
199 A 3514207086 BRACKET
ANGLE TO FRAME
199 A 3514207186 BRACKET
ANGLE TO FRAME
200 N 913004012003 NUT
BRACKET TO SIDE MEMBER
M 12X1,5
200 N 913004014004 NUT
BRACKET TO SIDE MEMBER
M 14XU.5
201 A 3529902240 WASHER
BRACKET TO SIDE MEMBER
201 A 3519907240 WASHER
BRACKET TO SIDE MEMBER
202 A 3604301311 CONSOLE
AIR RESERVOIR
204 A 3354320218 BASE
Repalced by: A 3904327018
204 A 3904327018 BASE
207 N 000961014098 SCREW
CONSOLE TO SIDE MEMBER
M 14X1,5X40
210 N 000127014203 LOCK WASHER
CONSOLE TO SIDE MEMBER
213 N 000125015012 WASHER
CONSOLE TO SIDE MEMBER
216 N 000934014019 NUT
CONSOLE TO SIDE MEMBER
M 14X1,5
219 A 3214750084 SHIM
CONSOLE TO SIDE MEMBER
220 A 3354320126 PLATE
CONSOLE TO SIDE MEMBER
220 A 3454320026 PLATE
CONSOLE TO SIDE MEMBER
222 A 3604300040 STRAP
AIR RESERVOIR TO CONSOLE
225 N 000934010000 NUT
AIR RESERVOIR TO CONSOLE
228 A 3514208531 LINE
FROM AIR RESERVOIR I TO SERVICE BRAKE VALVE,CONNECTION:
"11"
228 A 3514208349 LINE
FROM AIR RESERVOIR I TO SERVICE BRAKE VALVE,CONNECTION:
"11"
231 A 3514208731 LINE
FROM AIR RESERVOIR II TO SERVICE BRAKE VALVE,CONNECTION:
"12"
231 A 3514208449 LINE
FROM AIR RESERVOIR II TO SERVICE BRAKE VALVE,CONNECTION:
"12"
235 N 915017012100 UNION NUT
236 N 003861012007 GLAND

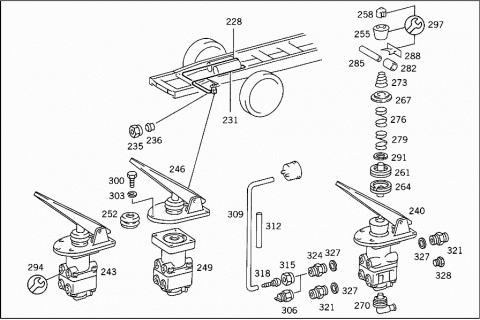

240 A 0024313905 BRAKE VALVE
"KNORR"
243 A 0024316205 BRAKE VALVE
"WESTINGHOUSE"
246 A 0004300018 BRAKE PEDAL
TO 002 431 62 05
249 A 0024317805 BRAKE VALVE
TO 002 431 62 05
252 A 0004314887 PROTECTIVE CAP
TO 002 431 62 05
255 A 0014311386 CUP
TO 002 431 39 05
258 A 0009910845 RING
TO 002 431 39 05
A 0004319483 PISTON
TO 002 431 39 05
261 A 0004318783 PISTON
TO 002 431 39 05
264 A 0004318883 PISTON
TO 002 431 39 05
267 A 0004311522 COVER
MAKE KNORR
TO 002 431 39 05
270 A 0004311622 COVER
MAKE KNORR
TO 002 431 39 05
273 A 0014317093 SPRING
MAKE KNORR
TO 002 431 39 05
276 A 0014317193 SPRING
MAKE KNORR
TO 002 431 39 05
279 A 0014317293 SPRING
MAKE KNORR
TO 002 431 39 05
282 A 0004310750 BUSHING
MAKE KNORR
TO 002 431 39 05
285 A 0004312374 PIN
MAKE KNORR
TO 002 431 39 05
288 A 0019974286 PLUG
MAKE KNORR
TO 002 431 39 05
291 A 0049949941 LOCK
TO 002 431 39 05
294 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
294 A 0004306260 REPAIR KIT
LARGE SCOPE
TO 002 431 62 05
297 A 0004307360 REPAIR KIT
Repalced by: A 0004304306
297 A 0004304306 REPAIR KIT
LARGE SCOPE
TO 002 431 39 05
297 A 0014301260 REPAIR KIT
SMALL SCOPE
TO 002 431 39 05
300 N 000933008271 SCREW
BRAKE VALVE
M 8X20
303 N 912004008102 LOCK WASHER
BRAKE VALVE
306 A 0005456009 SWITCH
BRAKE VALVE,CONNECTION "21"
BOSCH
306 A 0005456009 SWITCH
BRAKE VALVE,CONNECTION "22"
BOSCH
306 A 3645457409 SWITCH
BRAKE VALVE,CONNECTION "21"
PREMA
306 A 3645457409 SWITCH
BRAKE VALVE,CONNECTION "22"
PREMA
309 A 0089976082 HOSE
TO INSTRUMENT CLUSTER
1250 MM
A 3879970381 GROMMET
312 N 040621012200 INSULATING HOSE
BRAKE VALVE,INSTRUMENT CLUSTER
1100 MM
315 N 915017006200 UNION NUT
BRAKE VALVE,INSTRUMENT CLUSTER
318 A 0019975072 FITTING
BRAKE VALVE,INSTRUMENT CLUSTER
321 N 003901012005 SCREW-IN FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12,21,22"
324 A 3519907083 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12,21,22"
327 N 007603016105 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"11,12,21,22"
328 N 007604016102 SCREW PLUG
SERVICE BRAKE VALVE,CONNECTION:
"21,22"
330 N 003908012000 T-FITTING
SERVICE BRAKE VALVE
330 A 3414297432 T-FITTING
SERVICE BRAKE VALVE
333 A 3514208931 LINE
FROM BRAKE VALVE,CONNECTION "21",TO T-FITTING

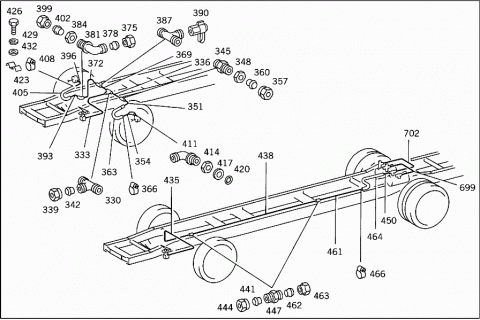

333 A 3514208549 LINE
FROM BRAKE VALVE,CONNECTION "22",TO T-FITTING
336 A 3514208649 LINE
FROM T-FITTING TO FITTING
339 N 915017012100 UNION NUT
342 N 003861012007 GLAND
345 N 003910012001 BULKHEAD FITTING
THROUGH SIDE MEMBER
348 N 080705018002 NUT
THROUGH SIDE MEMBER
M 18X1,5
351 A 3414308466 LINE
FROM FITTING TO HOSE
12 MM
354 A 3414207033 LINE
FROM HOSE TO DIAPHRAGM CYLINDER
12 MM
357 N 915017012100 UNION NUT
360 N 003861012007 GLAND
363 N 916027011018 HOSE
480 MM
N 916027011008 HOSE
630 MM
366 N 916018016000 CLAMP
369 A 3514208749 LINE
FROM T-FITTING TO T-FITTING
12 MM
372 A 3514208849 LINE
FROM T-FITTING TO ELBOW FITTING
12 MM
375 N 915017012100 UNION NUT
378 N 003861012007 GLAND
381 N 003911012100 FITTING
THROUGH SIDE MEMBER
381 A 3514287231 CONNECTOR
THROUGH SIDE MEMBER
384 N 080705018002 NUT
THROUGH SIDE MEMBER
M 18X1,5
387 A 0004311975 THREADED UNION
387 A 3419908170 T-FITTING
390 A 0004312031 TEST CONNECTION
AT T-FITTING
390 A 0004314531 TEST CONNECTION
AT T-FITTING
393 A 3414308466 LINE
FROM FITTING TO HOSE
12 MM
396 A 3414207133 LINE
FROM HOSE TO DIAPHRAGM CYLINDER
12 MM
399 N 915017012100 UNION NUT
402 N 003861012007 GLAND
405 N 916027011018 HOSE
430 MM
408 N 916018016000 CLAMP
411 N 074315012100 FITTING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
411 A 3089907171 ELBOW FITTING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
411 A 3514297038 ELBOW FITTING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
414 N 080705016003 NUT
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
417 A 3084297027 THRUST RING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
420 A 0009971548 SEAL RING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
A 3414318940 BRACKET
LEFT,DIAPHRAGM CYLINDER
A 3414319040 BRACKET
RIGHT,DIAPHRAGM CYLINDER
423 A 3419957420 CLAMP
COMPRESSED AIR LINE TO BRACKET
426 N 000933006183 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X16
429 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE TO BRACKET
432 N 000125006421 WASHER
COMPRESSED AIR LINE TO BRACKET
435 A 3514208831 LINE
FROM SERVICE BRAKE VALVE TO FITTING
435 A 3514208949 LINE
FROM SERVICE BRAKE VALVE TO FITTING
438 A 3514207330 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
438 A 3514209749 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
438 A 3514207530 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
438 A 3514207630 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
441 N 003861012007 GLAND
444 N 915017012100 UNION NUT
447 N 003902012001 CONNECTION FITTING
Repalced by: A 0049971772
447 A 0049971772 FITTING
450 A 3514209649 LINE
FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING
450 A 3514209829 LINE
FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING
A 3414308466 LINE
FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING
N 915017012100 UNION NUT
N 003861012007 GLAND

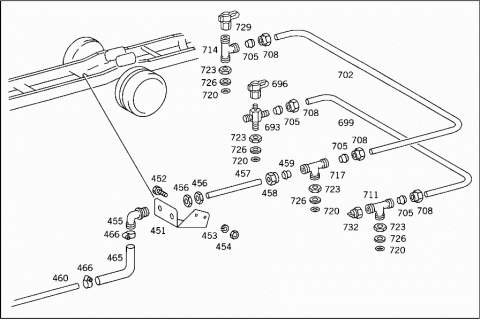

451 A 3414237523 BRACKET
452 N 000933008274 SCREW
BRACKET TO LEFT SIDE MEMBER
M 8X22
453 N 912004008102 LOCK WASHER
BRACKET TO LEFT SIDE MEMBER
454 N 000934008045 NUT
BRACKET TO LEFT SIDE MEMBER
455 N 003911012100 FITTING
AT BRACKET
A 3514287231 CONNECTOR
AT BRACKET
456 N 080705018002 NUT
AT BRACKET
457 A 3514208031 LINE
LINE TO BRACKET
458 N 915017012100 UNION NUT
459 N 003861012007 GLAND
460 A 3514207930 LINE
FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING
A 3514209829 LINE
FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING
461 A 3514209430 LINE
FROM DOUBLE FITTING TO AIR-RESERVOIR T-FITTING
462 N 003861012007 GLAND
463 N 915017012100 UNION NUT
464 N 916027011003 HOSE
480 MM
465 N 916027011006 HOSE
540 MM
N 916027011008 HOSE
630 MM
466 N 916018016000 CLAMP
466 N 916018016000 CLAMP
468 A 3514207629 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
471 A 3514207229 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO T-FITTING
474 N 003861008005 GLAND
477 N 915017008100 UNION NUT
480 A 3419907770 T-FITTING
483 A 0005455414 SWITCH
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "23",TO PARKG.BRAKE VALVE,CONNECTION:
483 A 3445457214 SWITCH
FROM 4-CIRCUIT PROTECT. VALVE,CONNECT. "23",TO PARKG.BRAKE VALVE,CONNECTION:
486 A 3414317274 PIN
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO T-FITTING
489 N 003861006007 GLAND
492 N 003870006105 UNION NUT
495 N 003902008001 CONNECTION FITTING

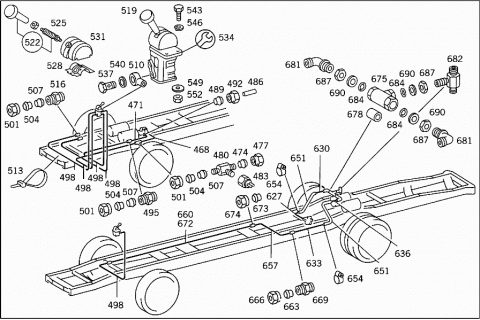

498 A 0089979082 HOSE
FROM T-FITTING TO PARKING BRAKE VALVE, CONNECTION:
"11",6X8 MM
498 A 0089979082 HOSE
FROM T-FITTING TO PARKING BRAKE VALVE, CONNECTION:
"12"
498 A 0089979082 HOSE
FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING
"11",6X8 MM
498 A 0089979082 HOSE
FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING
"11",6X8 MM
501 N 915017008100 UNION NUT
504 N 003861008005 GLAND
507 N 915062006000 SLEEVE
510 N 915052006001 BANJO UNION
513 A 0029972290 LOOM TIE
513 A 0019978590 LOOM TIE
Repalced by: A 0019978490
513 A 0019978490 LOOM TIE
516 N 003902008001 CONNECTION FITTING
519 A 0014300181 VALVE
PARKING BRAKE VALVE
WABCO
519 A 0014302881 VALVE
PARKING BRAKE VALVE
KNORR
522 A 0009972777 HANDLE
TO 001 430 01 81,WABCO
525 A 0004312139 LEVER
TO 001 430 01 81,WABCO
528 A 0014311887 PROTECTIVE CAP
TO 001 430 01 81,WABCO
531 A 0014310887 PROTECTIVE CAP
TO 001 430 01 81,WABCO
534 A 0025867243 REPAIR KIT
Repalced by: A 0034304781
534 A 0034304781 REPAIR KIT
TO 001 430 01 81,WABCO
534 A 0004307260 REPAIR KIT
TO 001 430 28 81,KNORR
537 N 915036010100 HOLLOW SCREW
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
540 N 007603014102 SEAL RING
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
543 N 000933008271 SCREW
PARKING BRAKE VALVE TO BRACKET
M 8X20
546 N 912004008102 LOCK WASHER
PARKING BRAKE VALVE TO BRACKET
549 N 009021008102 WASHER
PARKING BRAKE VALVE TO BRACKET
552 N 000934008045 NUT
PARKING BRAKE VALVE TO BRACKET

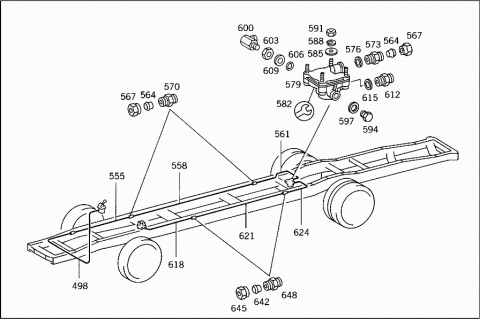

555 A 3514208330 LINE
FROM FITTING TO FITTING
558 A 3514208430 LINE
FROM FITTING TO FITTING
558 A 3514208530 LINE
FROM FITTING TO FITTING
558 A 3514208630 LINE
FROM FITTING TO FITTING
558 A 3514208730 LINE
FROM FITTING TO FITTING
561 A 3514207329 LINE
FROM DOUBLE FITTING TO RELAY VALVE
561 A 3514208231 LINE
FROM DOUBLE FITTING TO RELAY VALVE
564 N 003861008005 GLAND
567 N 915017008100 UNION NUT
570 N 003902008001 CONNECTION FITTING
573 A 3519907483 FITTING
576 N 007603016105 SEAL RING
579 A 0014296844 VALVE
RELAY VALVE
WABCO
579 A 0034295344 VALVE
RELAY VALVE
KNORR
579 A 0034293044 VALVE
RELAY VALVE
KNORR
582 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44,WABCO
582 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44,WABCO
582 A 0025863542 REPAIR KIT
TO 003 429 53 44,KNORR
582 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
582 A 0004201471 REPAIR KIT
TO 003 429 30 44,KNORR
585 N 009021008102 WASHER
RELAY VALVE TO BRACKET
588 N 912004008102 LOCK WASHER
RELAY VALVE TO BRACKET
591 N 000934008045 NUT
RELAY VALVE TO BRACKET
A 3414317540 BRACKET
RELAY VALVE TO SIDE MEMBER
N 000933008153 SCREW
RELAY VALVE BRACKET TO SIDE MEMBER
M 8X25
N 913004008004 NUT
RELAY VALVE BRACKET TO SIDE MEMBER
594 N 007604016102 SCREW PLUG
RELAY VALVE,CONNECTION "2"
597 N 007603016105 SEAL RING
RELAY VALVE,CONNECTION "2"
600 A 3514297038 ELBOW FITTING
RELAY VALVE,CONNECTION "2"
603 N 080705016003 NUT
RELAY VALVE,CONNECTION "2"
M 16X1,5
606 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2"
609 A 3084297027 THRUST RING
RELAY VALVE,CONNECTION "2"
612 A 3514297036 CONNECTOR
RELAY VALVE,CONNECTION "1"
615 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
618 A 3514208830 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
621 A 3514207330 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
621 A 3514209749 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
621 A 3514207530 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
621 A 3514207630 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
624 A 3514208029 LINE
FROM DOUBLE FITTING TO RELAY VALVE
624 A 3514209230 LINE
FROM DOUBLE FITTING TO RELAY VALVE
627 A 3514209430 LINE
FROM HOSE TO RELAY VALVE
627 A 3514209430 LINE
HOSE TO VALVE
627 A 3514209829 LINE
FROM HOSE TO RELAY VALVE
630 A 3514209829 LINE
HOSE TO VALVE
A 3414308466 LINE
FROM RELAY VALVE TO SHUT-OFF VALVE
633 A 3514207231 LINE
FROM DOUBLE FITTING TO BRAKE HOSE
633 A 3514209649 LINE
FROM DOUBLE FITTING TO BRAKE HOSE
636 A 3514209430 LINE
HOSE TO VALVE
636 A 3514209829 LINE
HOSE TO VALVE
636 A 3514209829 LINE
FROM CONNECTOR TO HOSE
A 3414308466 LINE
642 N 003861012007 GLAND
645 N 915017012100 UNION NUT
648 N 003902012001 CONNECTION FITTING
Repalced by: A 0049971772
648 A 0049971772 FITTING
651 N 916027011003 HOSE
480 MM
651 N 916027011006 HOSE
540 MM
N 916027011008 HOSE
630 MM
654 N 916018016000 CLAMP
657 A 3514207129 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
660 A 3514208430 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
660 A 3514208530 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
660 A 3514208630 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
660 A 3514208730 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
660 A 3514207031 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
663 N 003861008005 GLAND
666 N 915017008100 UNION NUT
669 N 003902008001 CONNECTION FITTING
669 A 3414297434 ADAPTER FITTING
672 A 3514208431 LINE
FROM DOUBLE FITTING TO CONNECTION FITTING
673 N 003861012007 GLAND
674 N 915017012100 UNION NUT
675 A 0024299544 VALVE
TWO-WAY VALVE
WABCO
675 A 0024299944 VALVE
TWO-WAY VALVE
WABCO
678 A 0004291182 VALVE BODY
TO 002 429 95 44,WABCO
681 N 074315012100 FITTING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
681 A 3514297038 ELBOW FITTING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
681 A 3089907171 ELBOW FITTING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
A 3419907670 T-FITTING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
682 A 3414297532 T-FITTING
TWO-WAY VALVE TO BRACKET
682 A 0009904770 T-FITTING
TWO-WAY VALVE TO BRACKET
684 A 0009971548 SEAL RING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
684 A 0009971548 SEAL RING
TWO-WAY VALVE TO SPIDER
"11,12"
684 A 0009971548 SEAL RING
TWO-WAY VALVE TO BRACKET
"11,12"
684 A 0009971548 SEAL RING
TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER
"11,12"
687 N 080705016003 NUT
TWO-WAY VALVE,CONNECTIONS:
"11,12"
687 N 080705016003 NUT
TWO-WAY VALVE TO SPIDER
"11,12"
687 N 080705016003 NUT
TWO-WAY VALVE TO BRACKET
"11,12"
687 N 080705016003 NUT
TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER
"11,12"
690 A 3084297027 THRUST RING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
690 A 3084297027 THRUST RING
TWO-WAY VALVE TO SPIDER
"11,12"
690 A 3084297027 THRUST RING
TWO-WAY VALVE TO BRACKET
"11,12"
690 A 3084297027 THRUST RING
TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER
"11,12"
693 A 3519907187 CROSS FITTING
TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER
696 A 0004312031 TEST CONNECTION
FROM CROSS FITTING TO CYLINDER
696 A 0004314531 TEST CONNECTION
FROM CROSS FITTING TO CYLINDER
699 A 3514208631 LINE
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
699 A 3514207729 LINE
FROM LEFT TRISTOP CYLINDER TO RIGHT TRISTOP CYLINDER,CONNECTION
"12"
699 A 3514207531 LINE
FROM LEFT TRISTOP CYLINDER TO RIGHT TRISTOP CYLINDER,CONNECTION
"12"
702 A 3514207631 LINE
FROM LEFT TRISTOP CYLINDER TO RIGHT TRISTOP CYLINDER,CONNECTION
"11"
702 A 3514207731 LINE
FROM LEFT TRISTOP CYLINDER TO RIGHT TRISTOP CYLINDER,CONNECTION
"11"
705 N 003861012007 GLAND
708 N 915017012100 UNION NUT
711 A 0009904770 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
711 A 3414297532 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
711 A 3419907670 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
711 A 0019903570 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
711 A 3519907870 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
714 A 3419907670 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
714 A 0009909470 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
714 A 3419907970 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
717 A 0019901170 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
717 A 0019903570 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
717 A 3519907870 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
720 A 0009971548 SEAL RING
TRISTOP CYLINDER
723 N 080705016003 NUT
TRISTOP CYLINDER
M 16X1,5
726 A 3084297027 THRUST RING
TRISTOP CYLINDER
729 A 0004312031 TEST CONNECTION
TRISTOP CYLINDER
729 A 0004314531 TEST CONNECTION
TRISTOP CYLINDER
732 A 0005455414 SWITCH
LEFT TRISTOP CYLINDER,CONNECTION:
732 A 3445457214 SWITCH
LEFT TRISTOP CYLINDER,CONNECTION:

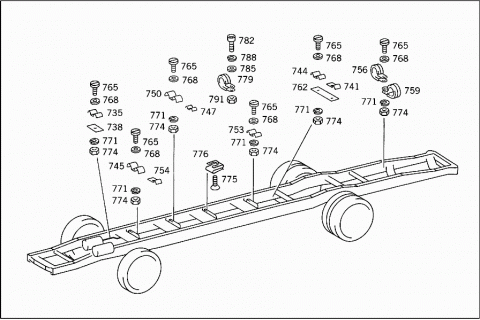

735 A 3419957032 CLAMP
FROM PROTECTIVE VALVE TO AIR RESERVOIR
738 A 3414318140 BRACKET
FROM PROTECTIVE VALVE TO AIR RESERVOIR
741 A 3419957320 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
744 A 3419957032 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
745 A 3419957420 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
747 A 3379950332 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
750 A 3219950332 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
753 A 3519957132 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
754 A 3129952420 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
756 N 916016022203 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
759 N 916016015202 CLAMP
COMPRESSED AIR LINES TO CROSS MEMBER
762 A 3514297540 BRACKET
COMPRESSED AIR LINES TO CROSS MEMBER
765 N 000084006423 SCREW
COMPRESSED AIR LINES TO CROSS MEMBER
M 6X20
768 N 000125006421 WASHER
COMPRESSED AIR LINES TO CROSS MEMBER
771 N 000127006203 LOCK WASHER
COMPRESSED AIR LINES TO CROSS MEMBER
774 N 000934006029 NUT
COMPRESSED AIR LINES TO CROSS MEMBER
775 N 000966006033 SCREW
COMPRESSED AIR LINES TO CROSS MEMBER
M 6X20
776 A 0009906391 SOCKET NUT
COMPRESSED AIR LINES TO CROSS MEMBER
779 N 916016006201 CLAMP
COMPRESSED AIR LINE MOUNTING
6/15 MM
779 N 916016012200 CLAMP
COMPRESSED AIR LINE MOUNTING
12/15 MM
779 N 916016015202 CLAMP
COMPRESSED AIR LINE MOUNTING
15/15 MM
779 N 916016022203 CLAMP
COMPRESSED AIR LINE MOUNTING
22/15 MM
782 N 000084006423 SCREW
CLAMP
M 6X20
785 N 000125006421 WASHER
CLAMP
788 N 000127006203 LOCK WASHER
CLAMP
791 N 000934006029 NUT
CLAMP
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
