Transporto priemonė: OH 1526; VIN numerio dalis: 351233
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

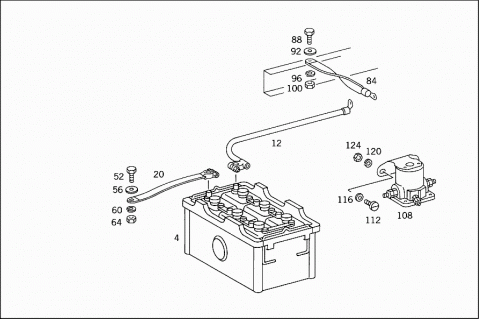

| 004 | A 0005413001 | BATTERY |
| LESS ACID | ||
| 12 V,180 AH | ||

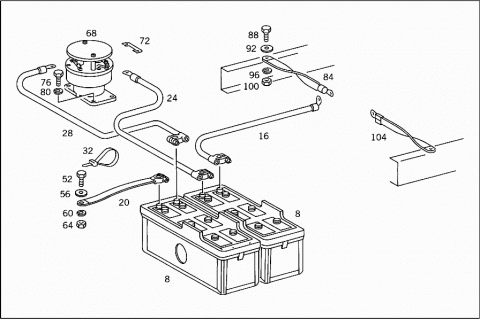

| 008 | A 3415417001 | BATTERY |
| LESS ACID | ||
| 12V135AH | ||
| 012 | A 3455400030 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 016 | A 3515407230 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 020 | A 3455400031 | NEG. CABLE |
| FROM BATTERY TO SIDE MEMBER | ||
| 024 | A 3515407331 | NEG. CABLE |
| FROM BATTERY I TO STARTING SWITCH | ||
| 028 | A 3515407330 | POSITIVE CABLE |
| FROM BATTERY II TO STARTING SWITCH | ||
| 032 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 032 | A 0019978490 | LOOM TIE |
| BATTERY CABLE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 718 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 722 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 726 | ||
| A 3515407038 | ELECTRIC CABLE | |
| 052 | N 000933012015 | SCREW |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| M 12X30 | ||
| 052 | N 000933012071 | SCREW |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| M 12X40 | ||
| 056 | N 009021013102 | WASHER |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 056 | N 009021013102 | WASHER |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 060 | N 000127012201 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 064 | N 000934012040 | NUT |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 068 | A 3455457108 | SWITCH |
| STARTING CHANGE-OVER SWITCH | ||
| 072 | A 3455457634 | FUSE |
| 076 | N 000933008274 | SCREW |
| STARTING CHANGE-OVER SWITCH | ||
| M 8X22 | ||
| 080 | N 912004008102 | LOCK WASHER |
| STARTING CHANGE-OVER SWITCH | ||
| 084 | A 3455400041 | GROUND STRAP |
| FROM RIGHT SIDE MEMBER TO STARTING MOTOR | ||
| 088 | N 000933010092 | SCREW |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| M 10X30 | ||
| 092 | N 009021010102 | WASHER |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 096 | N 000127010202 | LOCK WASHER |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 100 | N 000934010005 | NUT |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 104 | A 3525400241 | GROUND STRAP |
| FROM BELL HOUSING TO LEFT SIDE MEMBER | ||
| 108 | A 3455450005 | RELAY |
| STARTING | ||
| 112 | N 000084006110 | SCREW |
| RELAY TO BRACKET | ||
| M 6X16 | ||
| 116 | N 000125006421 | WASHER |
| RELAY TO BRACKET | ||
| 120 | N 000127006203 | LOCK WASHER |
| RELAY TO BRACKET | ||
| 124 | N 000934006000 | NUT |
| RELAY TO BRACKET | ||
| 128 | N 916016022203 | CLAMP |
| AT ALTERNATOR | ||
| 132 | N 000137005102 | SPRING WASHER |
| AT ALTERNATOR | ||
| 136 | N 000084005177 | SCREW |
| AT ALTERNATOR | ||
| M 5X16 | ||
| 138 | A 3515408436 | ELECTRIC CABLE |
| FROM ALTERNATOR TO CABLE CONNECTOR | ||
| 138 | A 3515409636 | ELECTRIC CABLE |
| FROM ALTERNATOR TO CABLE CONNECTOR | ||

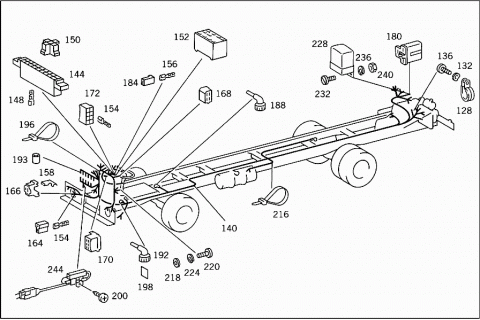

| 140 | A 3515408306 | CABLE HARNESS |
| Repalced by: A 3515409206 | ||
| 140 | A 3515409206 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 140 | A 3515408406 | CABLE HARNESS |
| Repalced by: A 3515409306 | ||
| 140 | A 3515409306 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 140 | A 3515408506 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 140 | A 3515408606 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 140 | A 3515407706 | CABLE HARNESS |
| Repalced by: A 3515409406 | ||
| 142 | A 3515409406 | CABLE HARNESS |
| Repalced by: A 3515409706 | ||
| 142 | A 3515409706 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3515407232 | ELECTRIC CABLE |
| MAIN CABLE HARNESS | ||
| 144 | A 3645457128 | PIN BUSHING HOUSING |
| 144 | A 3645457028 | PLUG |
| 146 | A 0015458628 | PLUG |
| A 3455457028 | PIN BUSHING HOUSING | |
| 148 | A 3645457026 | CONTACT SPRING |
| 150 | A 3445457228 | PLUG HOUSING |
| 152 | A 3455457128 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 154 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 154 | A 0005454026 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 156 | A 0005453726 | PIN BUSHING |
| 156 | A 0005454626 | PIN BUSHING |
| 158 | A 0005453626 | PIN BUSHING |
| OFFSET | ||
| 158 | A 0035451726 | PIN BUSHING |
| 160 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 162 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 164 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 166 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 168 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 170 | A 0015450528 | PLUG |
| 6-POLE | ||
| 172 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 174 | A 3515457128 | PLUG |
| 8-POLE | ||
| 174 | A 3515457228 | PLUG |
| 8-POLE | ||
| 176 | A 3515457328 | PLUG |
| 8-POLE | ||
| 176 | A 3515457428 | PLUG |
| 8-POLE | ||
| 180 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 180 | A 0385452528 | PLUG |
| 184 | A 0005451745 | BOOT |
| 184 | A 3645457145 | BOOT |
| 188 | A 0005400681 | PLUG SOCKET |
| 192 | A 0005400781 | PLUG SOCKET |
| A 0005400621 | TRAY | |
| 193 | A 0009970381 | GROMMET |
| 193 | A 0009970581 | GROMMET |
| 193 | A 0009970681 | GROMMET |
| 196 | A 3789977190 | LOOM TIE |
| 198 | A 3645457174 | PIN |
| PLUG HOUSING | ||
| 200 | N 007981002237 | SHEET METAL SCREW |
| PLUG HOUSING | ||
| 216 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 216 | A 0019978490 | LOOM TIE |
| MAIN CABLE HARNESS | ||
| 216 | A 0029972290 | LOOM TIE |
| MAIN CABLE HARNESS | ||
| 218 | A 3609902340 | WASHER |
| LOOM TIE | ||
| 220 | N 000084006110 | SCREW |
| GROUND CONNECTION TO WINDOW SILL | ||
| M 6X16 | ||
| 224 | N 000127006203 | LOCK WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 228 | A 3455477002 | REGULATOR AND CUT-OUT |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 228 | A 3411547306 | REGULATOR AND CUT-OUT |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 232 | N 000084006118 | SCREW |
| REGULATOR TO APPARATUS PANEL | ||
| M 6X25 | ||
| 236 | N 000127006203 | LOCK WASHER |
| REGULATOR TO APPARATUS PANEL | ||
| 240 | N 000934006000 | NUT |
| REGULATOR TO APPARATUS PANEL | ||
| 244 | A 0015452518 | RESISTOR |
| ALTERNATOR | ||
| 244 | A 0015452518 | RESISTOR |
| DECLUTCHING START RELAY | ||
| TO 351 540 92 06,93 06,94 06 | ||
| 244 | A 6885407065 | RESISTOR |
| ALTERNATOR | ||
| 244 | A 6885407065 | RESISTOR |
| DECLUTCHING START RELAY | ||
| TO 351 540 92 06,93 06,94 06 | ||
| 248 | A 0005461941 | CABLE CONNECTOR |
| 252 | N 000085004127 | SCREW |
| M 4X10 | ||
| 256 | N 912004004102 | LOCK WASHER |
| 260 | N 000084004423 | SCREW |
| M 4X16 | ||
| 264 | N 912004004102 | LOCK WASHER |
| 268 | N 000934004000 | NUT |
| 272 | A 3455457701 | FUSE BOX |
| 12-POLE | ||
| 272 | A 3455457701 | FUSE BOX |
| 12-POLE | ||
| 272 | A 3455457801 | FUSE BOX |
| 12-POLE | ||
| 272 | A 3455457801 | FUSE BOX |
| 12-POLE | ||
| 272 | A 3355450001 | FUSE BOX |
| 12-POLE | ||
| 276 | A 0005451203 | CAP |
| FUSE BOX | ||
| 276 | A 0005451203 | CAP |
| FUSE BOX | ||
| 280 | N 000084005403 | SCREW |
| FUSE BOX | ||
| 280 | N 000084005403 | SCREW |
| FUSE BOX | ||
| 284 | N 000934005008 | NUT |
| FUSE BOX | ||
| 284 | N 000934005008 | NUT |
| FUSE BOX | ||
| 286 | N 007981004322 | SHEET METAL SCREW |
| FUSE BOX | ||
| 288 | N 072581008101 | FUSE |
| 8 A | ||
| 288 | N 072581016100 | FUSE |
| 16 A | ||
| 292 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| M 4X12 | ||
| 296 | N 000127004205 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 300 | A 3515407807 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 304 | A 3515407907 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 308 | N 000933010072 | SCREW |
| GROUND CABLE TO BRACKET | ||
| M 10X70 | ||
| 312 | N 000127010202 | LOCK WASHER |
| GROUND CABLE TO BRACKET | ||
| 316 | N 000934010000 | NUT |
| GROUND CABLE TO BRACKET | ||

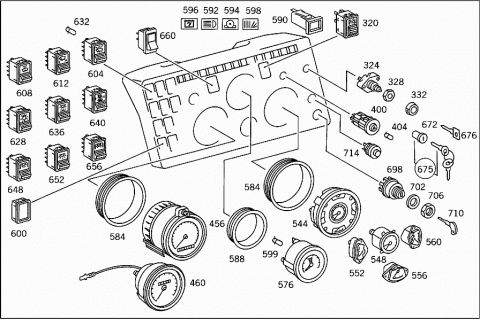

| 320 | A 3645427325 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 320 | A 3645427325 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 324 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 324 | A 3415427025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| "SCRAM" | ||
| 328 | A 0029906251 | NUT |
| POTENTIOMETER | ||
| 332 | A 0005421889 | KNOB |
| POTENTIOMETER | ||
| 388 | A 3085447132 | SENDER UNIT |
| Repalced by: A 3455447032 | ||
| 388 | A 3455447032 | SENDER UNIT |
| BLINKER SYSTEM | ||
| 388 | A 3455447032 | SENDER UNIT |
| BLINKER SYSTEM | ||
| 388 | A 0025441332 | SENDER UNIT |
| BLINKER SENDER UNIT | ||
| 392 | N 000084005159 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 392 | N 000084005159 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 396 | N 000934005008 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| 396 | N 000934005008 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| 400 | A 3645457524 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT SWITCH | ||
| 400 | A 3645457524 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT SWITCH | ||
| 404 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 404 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||

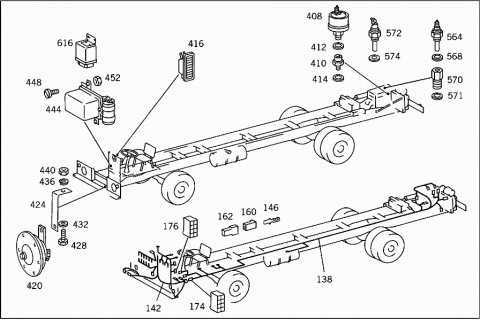

| 408 | A 0025421717 | SENDER UNIT |
| Repalced by: A 0015425617 | ||
| 408 | A 0015425617 | SENDER UNIT |
| Repalced by: A 0095424917 | ||
| 408 | A 0095424917 | SENDER UNIT |
| Repalced by: A 0015425617 | ||
| 408 | A 0015425617 | SENDER UNIT |
| 408 | A 0015425617 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 408 | A 0045428917 | SENDER UNIT |
| 408 | A 3455427317 | SENDER UNIT |
| 410 | A 3519907082 | THREADED UNION |
| TO 002 542 17 17 | ||
| 412 | N 007603018100 | SEAL RING |
| TO 002 542 17 17 | ||
| 414 | N 007603014104 | SEAL RING |
| OIL PRESSURE SWITCH WITH WARNING CONTACT | ||
| TO 001 542 56 17 | ||
| 416 | A 3455427023 | BUZZER |
| 416 | A 3455427023 | BUZZER |
| 420 | A 0035423220 | HORN |
| 12V;BOSCH | ||
| 420 | A 0025426420 | HORN |
| 12V;HELLA | ||
| 420 | A 3415427020 | HORN |
| Repalced by: A 3415427220 | ||
| 420 | A 3415427220 | HORN |
| 12 V;KOVAL | ||
| 420 | A 3415427120 | HORN |
| 12 V | ||
| 424 | A 3445460043 | BRACKET |
| HORN | ||
| 428 | N 000933010129 | SCREW |
| HORN TO ENGINE CROSS MEMBER | ||
| M 10X30 | ||
| 432 | N 000125010518 | WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 436 | N 000127010202 | LOCK WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 440 | N 000934010000 | NUT |
| HORN TO ENGINE CROSS MEMBER | ||
| 444 | A 0015421019 | RELAY |
| DECLUTCHING START RELAY | ||
| 448 | N 000084005159 | SCREW |
| DECLUTCHING START RELAY | ||
| M 5X12 | ||
| 452 | N 000934005008 | NUT |
| DECLUTCHING START RELAY | ||
| 456 | A 3445427410 | TACHOGRAPH |
| 460 | A 3085427006 | SPEEDOMETER |
| 460 | A 3085427006 | SPEEDOMETER |
| 464 | A 3515427107 | FLEXIBLE SHAFT |
| 464 | A 3515427107 | FLEXIBLE SHAFT |
| 464 | A 3905427707 | FLEXIBLE SHAFT |
| 468 | A 3515427307 | FLEXIBLE SHAFT |
| 468 | A 3515427407 | FLEXIBLE SHAFT |
| 468 | A 3515427507 | FLEXIBLE SHAFT |
| 468 | A 3515427607 | FLEXIBLE SHAFT |
| 468 | A 3905427607 | FLEXIBLE SHAFT |
| 472 | A 3219970081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 476 | A 3455420046 | CONNECTOR |
| 480 | A 0005420547 | COUPLER |
| 480 | A 3515427045 | INTERMEDIATE PIECE |
| A 3524281740 | BRACKET | |
| FLEXIBLE SHAFT MOUNTING | ||
| 484 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 484 | A 0019978490 | LOOM TIE |
| FLEXIBLE SHAFT TO FRAME SIDE MEMBER | ||
| 488 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 488 | N 916016012200 | CLAMP |
| FLEXIBLE SHAFT TO BRACKET | ||
| 492 | N 007985005170 | SCREW |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| M 5X16 | ||
| 492 | N 000084006197 | SCREW |
| CLAMP TO BRACKET | ||
| 496 | N 912004005100 | LOCK WASHER |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 496 | N 912004006100 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 500 | N 000934005000 | NUT |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 500 | N 000934006029 | NUT |
| CLAMP TO BRACKET | ||
| 504 | A 0005420630 | ANGLE DRIVE |
| 504 | A 0005422930 | ANGLE DRIVE |
| 504 | A 3455424430 | ANGLE DRIVE |
| 504 | A 0005425830 | ANGLE DRIVE |
| 504 | A 3455424830 | ANGLE DRIVE |
| 504 | A 3455422730 | ANGLE DRIVE |
| 504 | A 0015421930 | ANGLE DRIVE |
| 504 | A 0005426330 | ANGLE DRIVE |
| 504 | A 0025424530 | ANGLE DRIVE |
| 544 | A 3455407148 | INSTRUMENT CLUSTER |
| VDO | ||
| 548 | A 0015422908 | AIR PRESSURE GAUGE |
| 552 | A 0025422502 | OIL PRESSURE GAUGE |
| 556 | A 0025428903 | FUEL GAUGE DASH UNIT |
| 560 | A 0035428405 | TEMPERATURE GAUGE |
| 564 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 564 | A 3455427717 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 564 | A 0025425917 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 568 | N 007603014400 | SEAL RING |
| 570 | A 3519907068 | FITTING |
| TEMPERATURE SWITCH | ||
| 570 | A 3519907068 | FITTING |
| TEMPERATURE SWITCH | ||
| 571 | N 007603018400 | SEAL RING |
| TEMPERATURE SWITCH | ||
| 571 | N 007603018400 | SEAL RING |
| TEMPERATURE SWITCH | ||
| 572 | A 0025456324 | SWITCH,AUTOMATIC |
| TEMPERATURE | ||
| 572 | A 0025456324 | SWITCH,AUTOMATIC |
| TEMPERATURE | ||
| 572 | A 3455457324 | SWITCH,AUTOMATIC |
| TEMPERATURE | ||
| 572 | A 3455457324 | SWITCH,AUTOMATIC |
| TEMPERATURE | ||
| 574 | N 007603014400 | SEAL RING |
| TEMPERATURE SWITCH | ||
| 574 | N 007603014400 | SEAL RING |
| TEMPERATURE SWITCH | ||
| 576 | A 3455428116 | TACHOMETER |
| 576 | A 3455428416 | TACHOMETER |
| Repalced by: A 3455428316 | ||
| 576 | A 3455428316 | TACHOMETER |
| "VDO" | ||
| 576 | A 3455427916 | TACHOMETER |
| 584 | A 0005420481 | GROMMET |
| 584 | A 0005420481 | GROMMET |
| 584 | A 3515427181 | GROMMET |
| 584 | A 3515427181 | GROMMET |
| 588 | A 0005420581 | GROMMET |
| TACHOMETER | ||
| 588 | A 0005420581 | GROMMET |
| TACHOMETER | ||
| 588 | A 3515427281 | GROMMET |
| TACHOMETER | ||
| 588 | A 3515427281 | GROMMET |
| TACHOMETER | ||
| 590 | A 0015450615 | TELL-TALE LAMP |
| LESS LENS | ||
| 592 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 594 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 596 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 598 | A 0005452590 | LENS |
| AIR CLEANER | ||
| 599 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 12 V,3 W | ||
| 600 | A 3645457083 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 600 | A 3645457083 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 604 | A 3505458614 | SWITCH |
| (INTERMITTENT ACTION SWITCH) | ||
| 604 | A 3505458614 | SWITCH |
| (INTERMITTENT ACTION SWITCH) | ||
| 608 | A 3505458414 | SWITCH |
| PANE WASHER | ||
| 608 | A 3505458414 | SWITCH |
| PANE WASHER | ||
| 612 | A 3505457214 | SWITCH |
| PANE WIPER | ||
| 612 | A 3505457214 | SWITCH |
| PANE WIPER | ||
| 616 | A 3455458424 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 616 | A 3455458424 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 628 | A 3505458214 | SWITCH |
| HIGH/LOW BEAM | ||
| 628 | A 3505458214 | SWITCH |
| HIGH/LOW BEAM | ||
| 632 | N 072601012230 | BULB |
| PUSHBUTTON SWITCH | ||
| 632 | N 072601012230 | BULB |
| PUSHBUTTON SWITCH | ||
| 636 | A 3595458714 | SWITCH |
| READING LAMP | ||
| 636 | A 3595458714 | SWITCH |
| READING LAMP | ||
| 640 | A 3595457514 | SWITCH |
| BLOWER | ||
| 640 | A 3595457514 | SWITCH |
| BLOWER | ||
| 648 | A 3595457614 | SWITCH |
| INTERIOR LIGHTING | ||
| 652 | A 3595458314 | SWITCH |
| DRIVER'S LAMP | ||
| 652 | A 3595458314 | SWITCH |
| DRIVER'S LAMP | ||
| 656 | A 3595458514 | SWITCH |
| NIGHT-LIGHTING | ||
| 660 | A 3595458414 | SWITCH |
| COOLING | ||
| 660 | A 3595458414 | SWITCH |
| COOLING | ||
| 672 | A 3455457213 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| 672 | A 3455457213 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| 672 | A 3455457313 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| 672 | A 3455457313 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| 675 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| 675 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| 676 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 676 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 690 | A 3645467041 | CABLE CONNECTOR |
| 694 | N 007981004226 | SHEET METAL SCREW |
| 698 | A 0005453013 | SWITCH |
| SWITCH BOX | ||
| 702 | A 0005450376 | WASHER |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 706 | A 0005451072 | NUT |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 710 | A 0005451235 | KEY |
| 714 | A 3785457014 | SWITCH |
| STARTING MOTOR | ||
| 714 | A 3215450114 | SWITCH |
| STARTING MOTOR | ||
| 714 | A 0015450214 | SWITCH |
| STARTING MOTOR | ||
| 718 | A 3415457005 | RELAY |
| HIGH BEAM | ||
| 722 | N 000084005159 | SCREW |
| RELAY | ||
| 726 | N 000934005008 | NUT |
| RELAY | ||
| 730 | A 3445427119 | RELAY |
| Repalced by: A 3455427019 | ||
| 730 | A 3455427019 | RELAY |
| AIR CLEANER | ||
| 730 | A 3455427019 | RELAY |
| AIR CLEANER | ||
| 730 | A 3455427019 | RELAY |
| READING LAMP | ||
| 730 | A 3455427019 | RELAY |
| AIR CLEANER | ||
| 730 | A 3925457105 | RELAY |
| AIR CLEANER | ||
| 730 | A 3925457105 | RELAY |
| AIR CLEANER | ||
| 730 | A 3925457105 | RELAY |
| READING LAMP | ||
| 730 | A 3925457105 | RELAY |
| AIR CLEANER | ||
| 738 | A 3085457224 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 738 | A 3515457024 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
