Transporto priemonė: OH 1526; VIN numerio dalis: 351233

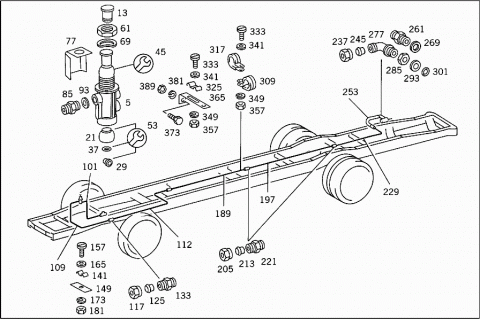

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
005	A 3454347101	VALVE
		"WABCO DO BRASIL"
005	A 0004342401	VALVE
		"WABCO"
013	A 0009972077	HANDLE
		TO 000 434 24 01
021	A 0004340586	CUP
		TO 000 434 24 01
021	A 0004317387	PROTECTIVE CAP
		TO 345 434 71 01
029	A 0003280191	CLEANER
		TO 000 434 24 01
037	A 0079972548	SEAL RING
		TO 000 434 24 01
045	H 983455860943	REPAIR KIT
	Repalced by: A 0034301281
045	A 0034301281	REPAIR KIT
		SMALL SCOPE
		TO 345 434 71 01
045	A 0005869743	REPAIR KIT
		LARGE SCOPE
		TO 345 434 71 01
053	A 0025869843	REPAIR KIT
		TO 000 434 24 01
061	N 080705026000	NUT
		VENT VALVE TO PEDESTAL FLOOR
		M 26X1.5
069	N 000137027202	SPRING WASHER
		VENT VALVE TO PEDESTAL FLOOR
077	A 3604340044	PROTECTIVE PLATE
		VENT VALVE TO PEDESTAL FLOOR
085	A 3454298136	CONNECTOR
		AT OPERATING VALVE
093	N 007603012111	SEAL RING
		AT OPERATING VALVE
101	A 3514208729	LINE
		FROM T-FITTING TO VENT VALVE, CONNECTION:
		"1" 6X0.7 MM
101	A 3514209031	LINE
		FROM T-FITTING TO VENT VALVE, CONNECTION:
		"1" 6X0.7 MM
109	A 3514208629	LINE
		FROM VENT VALVE CONNECTION "2" TO FITTING
		6X0.7 MM
109	A 3514208132	LINE
		FROM VENT VALVE CONNECTION "2" TO FITTING
112	A 3514208232	LINE
112	A 3514208332	LINE
117	N 915017006100	UNION NUT
125	N 003861006007	GLAND
133	N 003902006001	CONNECTION FITTING
141	A 3129950332	CLAMP
		COMPRESSED AIR LINE MOUNTING
149	A 3124761236	BRACKET
		COMPRESSED AIR LINE MOUNTING
157	N 000084006429	SCREW
		COMPRESSED AIR LINE MOUNTING
		M 6X16
165	N 000125006421	WASHER
		COMPRESSED AIR LINE MOUNTING
173	N 000127006203	LOCK WASHER
181	N 000934006029	NUT
		COMPRESSED AIR LINE MOUNTING
189	A 3514208529	LINE
		FROM DOUBLE FITTING I TO DOUBLE FITTING II
		6X0.7 MM
189	A 3514209549	LINE
		FROM DOUBLE FITTING I TO DOUBLE FITTING II
		6X0.7 MM
189	A 3514209449	LINE
		FROM DOUBLE FITTING I TO DOUBLE FITTING II
197	A 3514208429	LINE
		FROM DOUBLE FITTING II TO DOUBLE FITTING III
		6X0.7 MM
197	A 3514209149	LINE
		FROM DOUBLE FITTING II TO DOUBLE FITTING III
197	A 3514307029	LINE
		FROM DOUBLE FITTING II TO DOUBLE FITTING III
		6X0.7 MM
205	N 915017006100	UNION NUT
213	N 003861006007	GLAND
221	N 003902006001	CONNECTION FITTING
229	A 3514208329	LINE
		FROM DOUBLE FITTING III TO EXHAUST BRAKE CYLINDER
		6X0.7 MM
229	A 3514209249	LINE
		FROM DOUBLE FITTING III TO EXHAUST BRAKE CYLINDER
		6X0.7 MM
229	A 3514307129	LINE
		FROM DOUBLE FITTING III TO EXHAUST BRAKE CYLINDER
		6X0.7 MM
237	N 915017006100	UNION NUT
245	N 003861006007	GLAND
	N 003902006001	CONNECTION FITTING
253	A 3215420035	HOSE
261	A 3454298136	CONNECTOR
		EXHAUST BRAKE CYLINDER
269	N 007603012111	SEAL RING
		EXHAUST BRAKE CYLINDER
277	A 3454297438	ELBOW FITTING
		EXHAUST BRAKE CYLINDER
285	N 080705012003	NUT
		EXHAUST BRAKE CYLINDER
		M 12X1,5
293	A 0004290827	THRUST RING
	Repalced by: A 0009940103
293	A 0009940103	THRUST RING
		EXHAUST BRAKE CYLINDER
301	A 0019875046	SEALING CORD
		EXHAUST BRAKE CYLINDER
309	N 916016008200	CLAMP
		COMPRESSED AIR LINE MOUNTING
309	N 916016006201	CLAMP
		COMPRESSED AIR LINE MOUNTING
317	N 916016015202	CLAMP
		COMPRESSED AIR LINE MOUNTING
317	N 916016022203	CLAMP
325	A 3519957032	CLAMP
		COMPRESSED AIR LINE MOUNTING
333	N 000084006423	SCREW
		COMPRESSED AIR LINE MOUNTING
		M 6X20
	N 000966006033	SCREW
		COMPRESSED AIR LINE MOUNTING
		M 6X20
341	N 000125006421	WASHER
		COMPRESSED AIR LINE MOUNTING
349	N 000127006203	LOCK WASHER
		COMPRESSED AIR LINE MOUNTING
357	N 000934006029	NUT
		COMPRESSED AIR LINE MOUNTING
	A 0009906391	SOCKET NUT
		COMPRESSED AIR LINE MOUNTING
365	A 3524281740	BRACKET
373	N 000933010254	SCREW
		BRACKET TO SIDE MEMBER
		M 10X25
381	N 912004010102	LOCK WASHER
		BRACKET TO SIDE MEMBER
389	N 000934010046	NUT
		BRACKET TO SIDE MEMBER
