Transporto priemonė: OH 1526; VIN numerio dalis: 351233

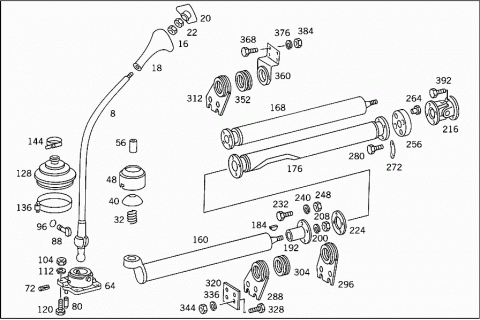

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3512607239 | SHIFT LEVER |
| 016 | N 000439010211 | NUT |
| 018 | A 3642687042 | KNOB |
| 018 | A 3942607042 | SHIFT LEVER KNOB |
| 020 | A 6202680557 | COVER |
| 020 | A 6202680457 | COVER |
| 022 | N 000934010004 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| M 10X1 | ||
| 032 | A 3179930501 | SPRING |
| 040 | A 3022670008 | SPHERICAL PIECE |
| 048 | A 3082680005 | COVER |
| 048 | A 3142680005 | COVER |
| 056 | A 3129970982 | HOSE |
| 064 | A 3222603214 | TRANSMISSION CASE COVER |
| 072 | N 001473005012 | GROOVED PIN |
| 080 | N 000007008221 | CYLINDRICAL PIN |
| 088 | A 3212670025 | SLIDING BLOCK |
| 088 | A 3442677025 | SLIDING BLOCK |
| 096 | N 009045008002 | SNAP RING |
| 104 | N 913004008004 | NUT |
| CASE COVER TO BEARING BRACKET | ||
| 112 | N 912004008104 | LOCK WASHER |
| CASE COVER TO BEARING BRACKET | ||
| 120 | N 000933008036 | SCREW |
| CASE COVER TO BEARING BRACKET | ||
| M8X20 | ||
| 128 | A 1362670296 | BOOT |
| A 3372670096 | BOOT | |
| 136 | N 900264005524 | LOOM TIE |
| 144 | N 900264005518 | LOOM TIE |
| 160 | A 3512607033 | SHIFTING ROD |
| FRONT | ||
| 160 | A 3522602933 | SHIFTING ROD |
| FRONT | ||
| 160 | A 3452607833 | SHIFTING ROD |
| FRONT | ||
| 7640 MM | ||
| 160 | A 3512607133 | SHIFTING ROD |
| FRONT | ||
| 168 | A 3512607233 | SHIFTING ROD |
| CENTRAL | ||
| 176 | A 3522604233 | SHIFTING ROD |
| REAR | ||
| 176 | A 3512607333 | SHIFTING ROD |
| REAR | ||
| 184 | N 006888005010 | WOODRUFF KEY |
| FLANGE TO SHIFTING TUBE | ||
| 192 | A 3212680228 | CONNECTOR |
| 200 | N 000127012201 | LOCK WASHER |
| FLANGE TO SHIFTING TUBE | ||
| 208 | N 000934012040 | NUT |
| FLANGE TO SHIFTING TUBE | ||
| 216 | A 3442687089 | JOINT |
| 216 | A 3442687289 | JOINT |
| 224 | A 3212680552 | SPACER WASHER |
| 2 MM | ||
| 224 | A 3212680452 | SPACER WASHER |
| 3 MM | ||
| 224 | A 3212680352 | SPACER WASHER |
| 5 MM | ||
| 232 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 240 | N 912004008102 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 248 | N 000934008000 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 256 | A 3222600075 | CONNECTOR |
| SHIFTING SHAFT | ||
| 264 | A 3222680150 | BUSHING |
| 272 | A 3222680073 | LOCK |
| CONNECTOR | ||
| 280 | A 3219900601 | SCREW |
| 288 | A 3522600084 | GUIDE |
| SHIFTING TUBE | ||
| NO.I | ||
| 288 | A 3512607084 | GUIDE |
| SHIFTING TUBE | ||
| NO.I | ||
| 296 | A 3522600684 | GUIDE |
| SHIFTING TUBE | ||
| NO.III | ||
| 296 | A 3522600684 | GUIDE |
| SHIFTING TUBE | ||
| NO.IV | ||
| 296 | A 3522600284 | GUIDE |
| SHIFTING TUBE | ||
| NO.III | ||
| 296 | A 3522600284 | GUIDE |
| SHIFTING TUBE | ||
| NO.II | ||
| 304 | A 3022680050 | BUSHING |
| NO.I/III | ||
| 304 | A 3022680050 | BUSHING |
| SHIFTING TUBE | ||
| I/II | ||
| 304 | A 3022680050 | BUSHING |
| SHIFTING TUBE | ||
| II | ||
| 304 | A 3022680050 | BUSHING |
| SHIFTING TUBE | ||
| III/IV | ||
| 312 | A 3512607184 | GUIDE |
| SHIFTING TUBE | ||
| NO.II | ||
| 312 | A 3452607084 | GUIDE |
| SHIFTING TUBE | ||
| 320 | A 3522681236 | BRACKET |
| SHIFTING TUBE | ||
| 328 | N 000933008152 | SCREW |
| SHIFTING TUBE | ||
| M 8X30 | ||
| 328 | N 000931008057 | SCREW |
| SHIFTING TUBE | ||
| M 8X40 | ||
| 336 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE | ||
| 344 | N 000934008045 | NUT |
| SHIFTING TUBE | ||
| 352 | A 3022680050 | BUSHING |
| SHIFTING TUBE | ||
| 360 | A 3512607162 | BRACKET |
| SHIFTING TUBE | ||
| 368 | N 000933008036 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M8X20 | ||
| 368 | N 000933008279 | SCREW |
| SHIFTING TUBE | ||
| 368 | N 000933008279 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 376 | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 384 | N 000934008045 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 392 | N 000933014004 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| M14X40 |
