Transporto priemonė: OH 1622; VIN numerio dalis: 396358

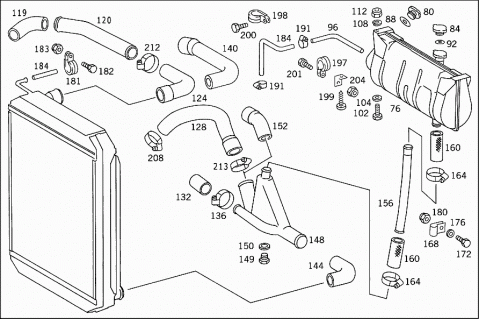

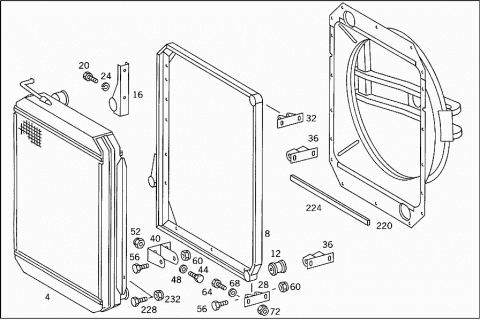

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0005019401 | RADIATOR |
| 004 | A 0005013001 | RADIATOR |
| 004 | A 0005015301 | RADIATOR |
| 004 | A 0015011901 | RADIATOR |
| 004 | A 0015015601 | RADIATOR |
| 004 | A 0015015401 | RADIATOR |
| 008 | A 3015000227 | SUPPORT |
| RADIATOR MOUNTING | ||
| 008 | A 3015001127 | SUPPORT |
| RADIATOR MOUNTING | ||
| 008 | A 3015000127 | SUPPORT |
| RADIATOR MOUNTING | ||
| 008 | A 3965000527 | SUPPORT |
| RADIATOR MOUNTING | ||
| A 3015000039 | REINFORCEMENT | |
| 012 | A 0009884211 | BUFFER |
| RADIATOR MOUNTING | ||
| 016 | A 3015000331 | BRACKET |
| RADIATOR BASE FRAME | ||
| 020 | N 304017008021 | SCREW |
| BRACKET TO BASE FRAME | ||
| 024 | N 912004008102 | LOCK WASHER |
| BRACKET TO BASE FRAME | ||
| 028 | A 3965000532 | STAY |
| RADIATOR BASE FRAME,LEFT BOTTOM | ||
| 028 | A 3965000632 | STAY |
| RADIATOR BASE FRAME,LEFT BOTTOM | ||
| 032 | A 3965000032 | STAY |
| RADIATOR BASE FRAME,LEFT TOP | ||
| 036 | A 3965000132 | STAY |
| RADIATOR BASE FRAME,LEFT,TOP AND BOTTOM | ||
| 036 | A 3965000132 | STAY |
| RADIATOR BASE FRAME,LEFT TOP | ||
| 040 | A 3965000432 | STAY |
| RADIATOR BASE FRAME,RIGHT BOTTOM | ||
| 040 | A 3965000332 | STAY |
| RADIATOR BASE FRAME,RIGHT BOTTOM | ||
| 044 | N 000933010105 | SCREW |
| STAY TO APPARATUS SUPPORT | ||
| M 10X25 | ||
| 044 | N 000933010200 | SCREW |
| STAY TO APPARATUS SUPPORT | ||
| M 10X30 | ||
| 048 | N 000125010532 | WASHER |
| STAY TO APPARATUS SUPPORT | ||
| 052 | N 910113010000 | NUT |
| STAY TO APPARATUS SUPPORT | ||
| 056 | N 000960012230 | SCREW |
| STAY TO RADIATOR BASE FRAME | ||
| 060 | N 913004012008 | NUT |
| STAY TO RADIATOR BASE FRAME | ||
| 064 | N 000961012097 | SCREW |
| STAY TO SIDE MEMBER | ||
| M 12X35 | ||
| 064 | N 000961012151 | SCREW |
| STAY TO SIDE MEMBER | ||
| M 12X30 | ||
| 068 | N 000125013008 | WASHER |
| STAY TO SIDE MEMBER | ||
| 072 | N 913004012008 | NUT |
| STAY TO SIDE MEMBER | ||
| 076 | A 3005000149 | TANK |
| COOLING WATER EXPANSION | ||
| 077 | A 3005000549 | TANK |
| Repalced by: A 3005000949 | ||
| 077 | A 3005000949 | TANK |
| COOLING WATER EXPANSION | ||
| 080 | A 0005013415 | RADIATOR CAP |
| LATERAL | ||
| TO 300 500 01 49 | ||
| 080 | A 0005014615 | RADIATOR CAP |
| LATERAL | ||
| TO 300 500 05 49; 300 500 09 49 | ||
| 080 | A 0005017215 | RADIATOR CAP |
| LATERAL | ||
| TO 300 500 05 49; 300 500 09 49 | ||
| 084 | A 0005013515 | RADIATOR CAP |
| TOP | ||
| 088 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM; TO 000 501 34 15 | ||
| 092 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM; TO 000 501 35 15 | ||
| 094 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 094 | A 0219977682 | HOSE |
| TO 300 500 05 49 | ||
| 096 | A 0005010010 | DRAIN PIPE |
| 097 | A 3965000231 | BRACKET |
| COOLING WATER EXPANSION TANK | ||
| 098 | A 3005010095 | SHIM |
| Repalced by: A 3815010495 | ||
| 098 | A 3815010495 | SHIM |
| COOLING WATER EXPANSION TANK | ||
| 099 | N 913004008004 | NUT |
| AT BRACKET | ||
| 100 | N 000125008423 | WASHER |
| AT BRACKET | ||
| 102 | N 304017008034 | SCREW |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| M 8X25 | ||
| 102 | N 000933008145 | SCREW |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| M 8X18 | ||
| 102 | N 000933008145 | SCREW |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 104 | N 000125008443 | WASHER |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 108 | N 912004008102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 112 | N 913004008004 | NUT |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 112 | N 913004008004 | NUT |
| EXPANSION TANK TO BRACKET ON APPARATUS SUPPORT | ||
| 113 | A 3575010095 | SHIM |
| 114 | A 3575010320 | BRACKET |
| BRACKET TO ENGINE PARTITION PANEL | ||
| 114 | A 3575010420 | BRACKET |
| BRACKET TO ENGINE PARTITION PANEL | ||
| 115 | N 001444006227 | PIN |
| STRAP TO SUPPORT | ||
| 116 | N 000094001617 | COTTER PIN |
| STRAP TO SUPPORT | ||
| 117 | A 3149870045 | LOCKING CAP |
| EXPANSION TANK | ||
| 118 | N 000000000666 | CLAMP |
| EXPANSION TANK | ||
| 119 | A 3965010482 | HOSE |
| Repalced by: A 3462030082 | ||
| 119 | A 3462030082 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 120 | A 3965010124 | COOLING WATER PIPE |
| 124 | A 3965010582 | HOSE |
| FROM COOLING WATER PIPE TO RADIATOR | ||
| 128 | A 3965010682 | HOSE |
| FROM BUBBLE SEPRATOR TO OIL COOLER | ||
| 128 | A 3965010982 | HOSE |
| FROM BUBBLE SEPARATOR TO WATER PUMP | ||
| 132 | A 3965010382 | HOSE |
| HEATING CONNECTION LOCK | ||
| 136 | N 000000002775 | CLAMP |
| HEATING CONNECTION LOCK | ||
| 40-60X13 MM | ||
| 140 | A 3015010582 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 144 | A 3015010182 | HOSE |
| FROM RADIATOR TO BUBBLE SEPARATOR | ||
| 148 | A 3965000469 | SEPARATOR |
| Repalced by: A 3965000569 | ||
| 148 | A 3965000569 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 149 | N 007604014101 | SCREW PLUG |
| 150 | N 007603014405 | SEAL RING |
| 152 | A 3015010282 | HOSE |
| FROM BUBBLE SEPARATOR TO WATER PUMP | ||
| 156 | A 3005010024 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 156 | A 3005011926 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 160 | N 900271038015 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 162 | A 3058321223 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 162 | A 3965010882 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 164 | N 000000002775 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 40-60X13 MM | ||
| 168 | N 916016038205 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 172 | N 304017006020 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 176 | N 000125006421 | WASHER |
| COOLING WATER LINE TO BRACKET | ||
| 180 | N 910113006001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| A 3965061340 | BRACKET | |
| FROM THERMOSTAT TO RADIATOR | ||
| 181 | N 916016045200 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| Repalced by: N 000000004044 | ||
| 181 | N 000000004044 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| 181 | N 916016022206 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| Repalced by: N 916016022203 | ||
| 181 | N 916016022203 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| 182 | N 304017008021 | SCREW |
| FROM THERMOSTAT TO RADIATOR | ||
| 182 | N 304017006020 | SCREW |
| FROM THERMOSTAT TO RADIATOR | ||
| 183 | N 913004008004 | NUT |
| FROM THERMOSTAT TO RADIATOR | ||
| 183 | N 913004006001 | NUT |
| FROM THERMOSTAT TO RADIATOR | ||
| 184 | N 900271012018 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 186 | A 3015011982 | HOSE |
| Repalced by: A 3025011482 | ||
| 186 | A 3025011482 | HOSE |
| Repalced by: A 3965011082 | ||
| 186 | A 3965011082 | HOSE |
| Repalced by: A 3465015782 | ||
| 186 | A 3465015782 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 186 | A 3028320423 | HOSE |
| Repalced by: A 3018320523 | ||
| 186 | A 3018320523 | HOSE |
| Repalced by: A 3965011182 | ||
| 186 | A 3965011182 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 187 | N 916016012200 | CLAMP |
| DE-AERATION LINE TO AIR LINE | ||
| 188 | A 3965011824 | COOLING WATER PIPE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 188 | A 3965011224 | COOLING WATER PIPE |
| Repalced by: A 3965013124 | ||
| 188 | A 3965013124 | COOLING WATER PIPE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 189 | N 916016012200 | CLAMP |
| DE-AERATION LINE | ||
| 190 | N 304017006016 | SCREW |
| DE-AERATION LINE | ||
| 191 | N 000000000666 | CLAMP |
| RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES | ||
| 192 | A 6224290240 | BRACKET |
| Repalced by: A 6205240340 | ||
| 192 | A 6205240340 | BRACKET |
| DE-AERATION LINE | ||
| 193 | N 916016022202 | CLAMP |
| AT BRACKET | ||
| 194 | N 000933008145 | SCREW |
| AT BRACKET | ||
| M8X18 | ||
| 195 | N 000125008443 | WASHER |
| AT BRACKET | ||
| 196 | N 913004008004 | NUT |
| AT BRACKET | ||
| 197 | N 916016022206 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| Repalced by: N 916016022203 | ||
| 197 | N 916016022203 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 197 | N 916016012202 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 198 | N 916016015202 | CLAMP |
| DE-AERATION HOSE TO COMPRESSED AIR LINE | ||
| 199 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 199 | N 000000000460 | SHEET METAL SCREW |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 200 | N 304017006016 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X16 | ||
| 201 | N 000933006127 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| M 6X25 | ||
| 204 | N 910113006001 | NUT |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 208 | N 000000000672 | CLAMP |
| HOSE FASTENING | ||
| 212 | N 000000000673 | CLAMP |
| HOSE FASTENING | ||
| 213 | N 000000000674 | CLAMP |
| HOSE FASTENING | ||
| 214 | A 3015010009 | OUTLET |
| HEATING FEED | ||
| 215 | N 917003040008 | GASKET |
| HEATING PIPE OUTLET TO CYLINDER CRANKCASE | ||
| 216 | N 304017010030 | HEXAGON HEAD BOLT |
| Repalced by: N 304017010053 | ||
| 216 | N 304017010053 | SCREW |
| HEATING PIPE OUTLET TO CYLINDER CRANKCASE | ||
| 217 | N 000137010201 | SPRING WASHER |
| HEATING PIPE OUTLET TO CYLINDER CRANKCASE | ||

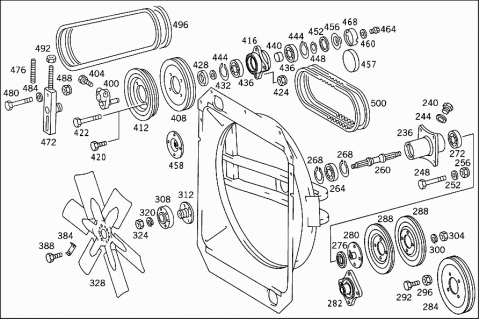

| 220 | A 3015000927 | SUPPORT |
| FAN | ||
| 220 | A 3965000227 | SUPPORT |
| FAN | ||
| 220 | A 3965000427 | SUPPORT |
| FAN | ||
| 224 | A 3012050180 | GASKET |
| Repalced by: A 3012050080 | ||
| 224 | A 3012050280 | GASKET |
| Repalced by: A 3012050080 | ||
| 224 | A 3012050080 | GASKET |
| 228 | N 304017008021 | SCREW |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 232 | N 913004008004 | NUT |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 236 | A 3012050005 | BEARING BODY |
| FAN DRIVE | ||
| 240 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 240 | N 007604010108 | SCREW PLUG |
| OIL FILLING | ||
| 244 | N 007603010110 | SEAL RING |
| OIL FILLING | ||
| 248 | N 304017008053 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 252 | N 000125008443 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 256 | N 913004008004 | NUT |
| BEARING BODY TO SUPPORT | ||
| 260 | A 3012050002 | FAN SHAFT |
| 264 | N 000625036304 | GROOVED BALL BEARING |
| FRONT | ||
| 268 | N 000472052000 | LOCK RING |
| FRONT | ||
| 272 | N 005412600304 | CYLINDR. ROLLER BEARING |
| REAR | ||
| 272 | A 0059819701 | CYLINDR. ROLLER BEARING |
| REAR | ||
| 276 | A 0019978447 | SEAL RING |
| FRONT AND REAR | ||
| 280 | A 3012050004 | HUB |
| REAR | ||
| 282 | A 3012050204 | HUB |
| REAR | ||
| 284 | A 3012060510 | PULLEY |
| FAN DRIVE | ||
| 284 | A 3012060010 | PULLEY |
| FAN DRIVE | ||
| 284 | A 6002060210 | PULLEY |
| FAN DRIVE | ||
| 288 | A 3012060310 | PULLEY |
| FAN DRIVE | ||
| 292 | N 304017008021 | SCREW |
| PULLEY TO HUB | ||
| 292 | N 304017008034 | SCREW |
| PULLEY TO HUB | ||
| 292 | N 304017008027 | SCREW |
| PULLEY TO HUB | ||
| 296 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 300 | N 912004016101 | LOCK WASHER |
| PULLEY TO FAN SHAFT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CHARGE AIR INTERCOOLER | ||
| 304 | N 000439016203 | NUT |
| PULLEY TO FAN SHAFT | ||
| 308 | A 3022050036 | FLANGE |
| 312 | A 3212050012 | HUB |
| FRONT | ||
| 316 | A 3222050204 | HUB |
| FRONT | ||
| 320 | N 912004016101 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 324 | N 000439016203 | NUT |
| HUB TO FAN SHAFT | ||
| 328 | A 3022000423 | FAN |

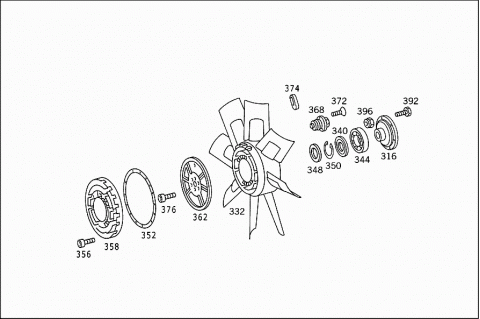

| 332 | A 0002055906 | FAN |
| Repalced by: A 0022054406 | ||
| 332 | A 0022054406 | FAN |
| Repalced by: A 0022056406 | ||
| 332 | A 0022056406 | FAN |
| WITH POWER SAVER FAN | ||
| 332 | A 0002055806 | FAN |
| Repalced by: A 0022051906 | ||
| 332 | A 0022051906 | FAN |
| Repalced by: A 0022056306 | ||
| 332 | A 0022056306 | FAN |
| WITH POWER SAVER FAN | ||
| 340 | A 0002060060 | SEAL RING |
| TO 000 205 59 06,58 06 | ||
| 344 | A 0049810525 | BALL BEARING |
| TO 000 205 59 06,58 06 | ||
| 344 | A 0059810125 | BALL BEARING |
| Repalced by: A 0059814825 | ||
| 344 | A 0059814825 | BALL BEARING |
| TO 002 205 44 06;63 06;64 06;19 06 | ||
| 348 | A 0002060051 | SPACER RING |
| TO 000 205 59 06,58 06 | ||
| 350 | A 0002050073 | LOCK |
| 100X2MM;TO 002 205 19 06;63 06;64 06 | ||
| 350 | A 0002050173 | LOCK |
| 100X2,1MM;TO 002 205 19 06;63 06;64 06 | ||
| 350 | A 0002050273 | LOCK |
| 100X2,2MM;TO 002 205 19 06;63 06;64 06 | ||
| 350 | A 0002050373 | LOCK |
| 100X2,3MM;TO 002 205 19 06;63 06;64 06 | ||
| 352 | A 0002060080 | GASKET |
| Repalced by: A 0002060580 | ||
| 352 | A 0002060580 | GASKET |
| TO 000 205 59 06,58 06 | ||
| 352 | A 0002060280 | GASKET |
| Repalced by: A 0002060780 | ||
| 352 | A 0002060780 | GASKET |
| TO 002 205 19 06;63 06;64 06 | ||
| 356 | N 000912006040 | SCREW |
| 358 | A 0002060428 | PRIMARY CUP |
| Repalced by: A 0002060628 | ||
| 358 | A 0002060628 | PRIMARY CUP |
| TO 000 205 59 06,58 06 | ||
| 358 | A 0002061228 | PRIMARY CUP |
| TO 002 205 44 06 | ||
| 362 | A 0002063503 | COVER |
| TO 002 205 44 06 | ||
| 368 | A 0002000072 | CLAMPING PIECE |
| TO 000 205 59 06,58 06 | ||
| 372 | N 000965004021 | SCREW |
| TO 000 205 59 06,58 06 | ||
| 374 | A 0002060118 | GUIDE |
| TO 002 205 19 06;63 06;64 06 | ||
| 376 | A 0002060071 | SCREW |
| TO 002 205 63 06;64 06 | ||
| 376 | A 0009907420 | SCREW |
| A 0005831835 | RECEPTACLE | |
| SILICONE GREASE; FILLING QUANTITY: | ||
| 70 CCM;TO 000 205 59 06;002 205 64 06 | ||
| A 0005831935 | RECEPTACLE | |
| TO 000 205 58 06 | ||
| A 0005832135 | RECEPTACLE | |
| SILICONE GREASE; FILLING QUANTITY: | ||
| 70 CCM;TO 002 205 19 06;63 06 | ||
| 384 | A 3159940030 | LOCK |
| FAN WITH FLANGE TO HUB | ||
| 388 | N 000931008266 | SCREW |
| FAN WITH FLANGE TO HUB | ||
| 392 | N 304017008024 | SCREW |
| FAN TO HUB | ||
| 396 | N 913004008005 | NUT |
| FAN TO HUB | ||
| 400 | A 3072000173 | LEVER |
| TIGHTENER PULLEY | ||
| 404 | N 308676012011 | SCREW |
| CLAMPING LEVER TO SUPPORT | ||
| 408 | A 3012060010 | PULLEY |
| 408 | A 3012060210 | PULLEY |
| 412 | A 3012060110 | PULLEY |
| 416 | A 3012060113 | HUB |
| PULLEY | ||
| 416 | A 3575060014 | HUB |
| PULLEY | ||
| 420 | N 304017008018 | SCREW |
| PULLEY TO HUB | ||
| 422 | N 000931008244 | SCREW |
| PULLEY TO HUB | ||
| 424 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 428 | A 0019978547 | SEAL RING |
| BELT TIGHTENER PULLEY TO BELT TIGHTENER SPINDLE | ||
| 428 | A 0219976847 | SEAL RING |
| PULLEY | ||
| 432 | A 3022050552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.2 MM | ||
| 432 | A 3022050652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 432 | A 3022050752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 436 | N 000625036304 | GROOVED BALL BEARING |
| CLAMPING LEVER | ||
| 436 | A 0079814925 | BALL BEARING |
| HUB | ||
| 440 | A 3012060053 | SPACER TUBE |
| HUB,INSIDE | ||
| 444 | N 000472052000 | LOCK RING |
| HUB,INSIDE | ||
| 52X2 MM | ||
| 448 | N 000471020001 | LOCK RING |
| HUB,INSIDE | ||
| 20X1.2 MM | ||
| 452 | N 915035000012 | SEAL RING |
| HUB,INSIDE | ||
| 52X60 MM | ||
| 456 | A 3012060157 | EXPANSION PLUG |
| HUB,INSIDE | ||
| 457 | A 3575010015 | EXPANSION PLUG |
| PULLEY | ||
| 458 | A 3022060157 | EXPANSION PLUG |
| TIGHTENER PULLEY | ||
| 460 | N 007603010110 | SEAL RING |
| HUB,INSIDE | ||
| 464 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 464 | N 007604010108 | SCREW PLUG |
| HUB,INSIDE | ||
| 468 | A 3012060072 | NUT |
| HUB,INSIDE | ||
| 472 | A 3012000039 | SUPPORT |
| (CLAMPING LEVER) | ||
| 476 | A 3019900005 | STUD |
| 480 | N 000931010264 | SCREW |
| SUPPORT TO FAN SUPPORT | ||
| 484 | N 000125010532 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 488 | N 910113010000 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 492 | N 000934012022 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 496 | A 0039975892 | V-BELT |
| TOOTHED | ||
| 12.5X1900 MM | ||
| 496 | A 0039976092 | V-BELT |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1900 MM | ||
| 496 | A 0079979592 | V-BELT |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1925 MM | ||
| 500 | A 0039970692 | V-BELT |
| TOOTHED | ||
| 12.5X1150 MM | ||
| 500 | A 0039970592 | V-BELT |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1150 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

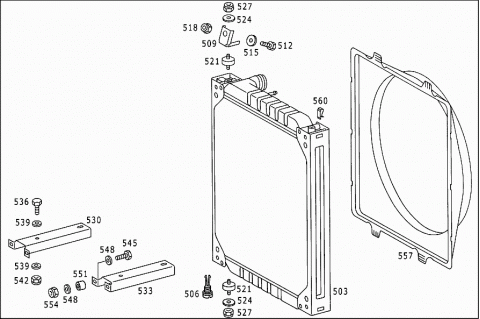

| RADIATOR,EXPANSION TANK AND COOLING HOSES | ||
| 503 | A 3565010901 | RADIATOR |
| WATER | ||
| 506 | A 0005000085 | SCREW |
| COOLING WATER DRAIN | ||
| 509 | A 3565040001 | SUPPORT |
| RADIATOR TO SUBSTRUCTURE | ||
| 512 | N 304017010019 | SCREW |
| SUPPORT TO SUBSTRUCTURE | ||
| 515 | A 3859900740 | WASHER |
| SUPPORT TO SUBSTRUCTURE | ||
| 518 | N 910113010000 | NUT |
| SUPPORT TO SUBSTRUCTURE | ||
| 521 | A 0009885411 | BUFFER |
| RADIATOR TO SUPPORT | ||
| 524 | A 1169901140 | WASHER |
| RADIATOR TO SUPPORT | ||
| 527 | N 910113010000 | NUT |
| RADIATOR TO SUPPORT | ||
| 530 | A 6976143230 | CONSOLE |
| Repalced by: A 3566143131 | ||
| 530 | A 3566143131 | CONSOLE |
| INSIDE | ||
| 533 | A 6976143330 | CONSOLE |
| Repalced by: A 3566143531 | ||
| 533 | A 3566143531 | CONSOLE |
| OUTSIDE | ||
| 536 | N 304017010019 | SCREW |
| CONSOLE TO APPARATUS SUPPORT | ||
| 539 | N 000125010538 | WASHER |
| CONSOLE TO APPARATUS SUPPORT | ||
| 542 | N 910113010000 | NUT |
| CONSOLE TO APPARATUS SUPPORT | ||
| 545 | N 304017008034 | SCREW |
| CONSOLE TO APPARATUS SUPPORT | ||
| M 8X25 | ||
| 545 | N 304017008018 | SCREW |
| CONSOLE TO APPARATUS SUPPORT | ||
| M 8X35 | ||
| 548 | N 000125008443 | WASHER |
| CONSOLE TO APPARATUS SUPPORT | ||
| 551 | A 6979920701 | BUSHING |
| CONSOLE TO APPARATUS SUPPORT | ||
| 554 | N 910113008003 | NUT |
| CONSOLE TO APPARATUS SUPPORT | ||
| 557 | A 6185000055 | FAN SHROUD |
| 560 | A 1235040246 | CLIP-TYPE NUT |
| FAN SHROUD TO RADIATOR | ||
| 563 | A 3575001049 | TANK |
| EXPANSION TANK | ||
| 566 | A 0005015815 | RADIATOR CAP |
| TOP | ||
| 569 | A 0005014615 | RADIATOR CAP |
| LATERAL | ||
| 569 | A 0005017215 | RADIATOR CAP |
| LATERAL | ||
| 572 | A 0005010480 | GASKET |
| INSIDE | ||
| 52 MM | ||
| 575 | A 0005010880 | GASKET |
| OUTSIDE | ||
| 37 MM | ||
| 578 | A 0009971538 | SIGHT GLASS |
| 581 | A 0009971638 | SIGHT GLASS |
| 584 | A 0159979848 | SEAL RING |
| 587 | A 0039978248 | SEAL RING |
| 590 | A 0189972882 | HOSE |
| OVERFLOW | ||
| 593 | N 007604022102 | SCREW PLUG |
| 596 | A 0129970948 | SEAL RING |
| 599 | A 3149870045 | LOCKING CAP |
| EXPANSION TANK | ||
| 602 | N 000000000665 | CLAMP |
| EXPANSION TANK | ||
| 605 | A 0005010155 | PIPE ADAPTER |
| WATER LEVEL SENSOR | ||
| 608 | A 0105422317 | SENDER UNIT |
| WATER LEVEL SENSOR | ||
| 611 | A 0129970948 | SEAL RING |
| SENDER UNIT TO COOLING WATER EXPANSION TANK | ||
| 614 | N 007603014403 | SEAL RING |
| SENDER UNIT TO PIPE ADAPTER | ||
| 617 | A 3568901571 | STRAP |
| COOLING WATER EXPANSION TANK | ||
| 620 | A 3568960697 | PAD |
| STRAP TO SUPPORT | ||
| 623 | N 009021006208 | WASHER |
| STRAP TO SUPPORT | ||
| 626 | N 304032006004 | NUT |
| STRAP TO SUPPORT | ||
| 629 | A 3565010482 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 632 | N 000000001468 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 635 | A 3565010682 | HOSE |
| FROM RADIATOR TO BUBBLE SEPARATOR | ||
| 638 | A 3565000572 | LINE |
| (BUBBLE SEPARATOR) | ||
| 641 | A 3565010082 | HOSE |
| FROM BUBBLE SEPARATOR TO ENGINE | ||
| 644 | N 000000001468 | CLAMP |
| HOSE FASTENING | ||
| 647 | N 000000000672 | CLAMP |
| HOSE FASTENING | ||
| 650 | A 6975044040 | BRACKET |
| (BUBBLE SEPARATOR) | ||
| 653 | N 304017006004 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 656 | N 000125006201 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 659 | N 912004006102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 662 | N 913010006200 | RIVETED NUT |
| BRACKET TO CROSS MEMBER | ||
| M 6X21.5 | ||
| 665 | N 000000001642 | CLAMP |
| SEPARATOR TO BRACKET | ||
| 668 | N 304017008034 | SCREW |
| SEPARATOR TO BRACKET | ||
| 671 | N 910113008003 | NUT |
| SEPARATOR TO BRACKET | ||
| 674 | A 3565011024 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| A 6975010425 | BREATHER PIPE | |
| FROM ENGINE TO EXPANSION TANK | ||
| 680 | N 900271038015 | HOSE |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 683 | A 3018320523 | HOSE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 686 | N 000000000668 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 689 | N 000000000665 | CLAMP |
| HOSE FASTENING | ||
| 692 | N 900271010015 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 695 | A 6975010325 | BREATHER PIPE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 698 | N 900271012018 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 701 | N 000000000665 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 704 | A 6975000531 | BRACKET |
| LINE MOUNTING | ||
| 707 | N 910143006001 | SCREW |
| BRACKET MOUNTING | ||
| M 6X16 | ||
| 710 | N 916016022206 | CLAMP |
| LINE MOUNTING | ||
| Repalced by: N 916016022203 | ||
| 710 | N 916016022203 | CLAMP |
| LINE MOUNTING | ||
| 713 | N 916016012200 | CLAMP |
| LINE MOUNTING | ||
| 716 | N 304017006016 | SCREW |
| CLAMP ON BRACKET | ||
| M 6X16 | ||
| 719 | N 304017006020 | SCREW |
| CLAMP ON BRACKET | ||
| M 6X20 | ||
| 722 | N 910113006000 | NUT |
| CLAMP ON BRACKET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CHARGE AIR INTERCOOLER | ||
| 725 | A 0005000403 | RADIATOR |
| (CHARGING AIR INTERCOOLER) | ||
| 728 | A 0009885411 | BUFFER |
| RADIATOR TO BUFFER | ||
| 731 | A 1169901140 | WASHER |
| RADIATOR TO BUFFER | ||
| 734 | N 910113010000 | NUT |
| RADIATOR TO BUFFER | ||
| 737 | A 3859900740 | WASHER |
| RADIATOR TO SUBSTRUCTURE | ||
| 740 | N 910113010000 | NUT |
| RADIATOR TO SUBSTRUCTURE | ||
| 743 | A 3568800603 | SUPPORT |
| CHARGE AIR COOLER ATTACHMENT,TOP | ||
| 746 | N 304017010028 | HEXAGON HEAD BOLT |
| SUPPORT TO APPARATUS SUPPORT | ||
| 749 | N 000125010538 | WASHER |
| SUPPORT TO APPARATUS SUPPORT | ||
| 752 | N 912004010102 | LOCK WASHER |
| SUPPORT TO APPARATUS SUPPORT | ||
| 755 | N 910113010000 | NUT |
| SUPPORT TO APPARATUS SUPPORT | ||
| 758 | A 0020946982 | HOSE |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 761 | A 3565001078 | PIPE ELBOW |
| CHARGING AIR INTERCOOLER INLET | ||
| 764 | A 0020945482 | CHARGE AIR HOSE |
| FROM PIPE ELBOW TO ENGINE | ||
| 767 | A 0059970690 | CLAMP |
| ACCORDION TUBE TO CHARGE AIR ELBOW | ||
| 770 | A 3565000131 | BRACKET |
| PIPE ELBOW | ||
| 773 | A 3225040212 | RUBBER MOUNTING |
| BRACKET TO SUBSTRUCTURE | ||
| 776 | A 3149900740 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 779 | N 910113008003 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 782 | N 304017008016 | SCREW |
| PIPE ELBOW TO BRACKET | ||
| 785 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 785 | N 000137008212 | SPRING WASHER |
| PIPE ELBOW TO BRACKET | ||
| 788 | A 3565010156 | PIPE ELBOW |
| CHARGING AIR INTERCOOLER OUTLET | ||
| 791 | A 3565010180 | GASKET |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 794 | N 304017010046 | SCREW |
| PIPE ELBOW TO CHARGING AIR INTERCOOLER | ||
| 797 | A 0020946382 | CHARGE AIR HOSE |
| (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING | ||
| 800 | N 000000000678 | CLAMP |
| ACCORDION TUBE TO CHARGE AIR ELBOW | ||
| Repalced by: N 000000005892 | ||
| 800 | N 000000005892 | CLAMP |
| ACCORDION TUBE TO CHARGE AIR ELBOW | ||
| 800 | A 0059970690 | CLAMP |
| HOSE TO PIPE ELBOW AND TO ENGINE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

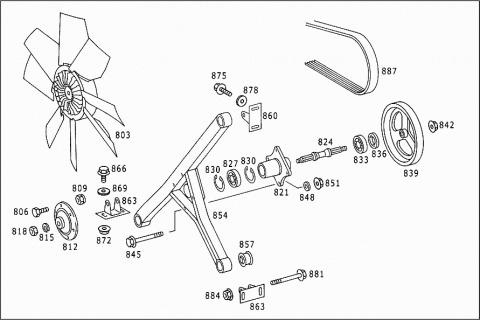

| FAN DRIVE | ||
| 803 | A 0032050706 | FAN |
| WITH POWER SAVER FAN | ||
| 806 | N 304017008024 | SCREW |
| FAN TO HUB | ||
| 809 | N 913004008005 | NUT |
| FAN TO HUB | ||
| 812 | A 3222050204 | HUB |
| FAN DRIVE | ||
| 815 | N 912004016101 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 818 | N 308675016000 | NUT |
| HUB TO FAN SHAFT | ||
| 821 | A 3575060022 | BEARING BODY |
| FAN DRIVE | ||
| 824 | A 3575060007 | SHAFT |
| FAN DRIVE | ||
| 827 | N 000625036304 | GROOVED BALL BEARING |
| ON FAN SIDE | ||
| 830 | N 000472052000 | LOCK RING |
| BEARING BODY TO SUPPORT | ||
| 833 | A 0059819701 | CYLINDR. ROLLER BEARING |
| 833 | N 005412600304 | CYLINDR. ROLLER BEARING |
| BEARING BODY TO SUPPORT | ||
| 836 | A 0019978447 | SEAL RING |
| BEARING BODY | ||
| 839 | A 3565060010 | PULLEY |
| FAN DRIVE | ||
| 842 | N 913023016000 | NUT |
| PULLEY | ||
| 845 | A 0019904704 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 848 | N 000125008443 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 851 | A 0009903250 | NUT |
| BEARING BODY TO SUPPORT | ||
| 854 | A 3562000639 | SUPPORT |
| FAN | ||
| 857 | A 0019880810 | RUBBER MOUNTING |
| SUPPORT TO BRACKET | ||
| 860 | A 3562000228 | BEARING BRACKET |
| LEFT TOP | ||
| 863 | A 3562000328 | BEARING BRACKET |
| LEFT AND RIGHT BOTTOM | ||
| 866 | A 0019908304 | SCREW |
| BEARING BRACKET TO SIDE PANEL | ||
| 869 | A 1169901140 | WASHER |
| BEARING BRACKET TO SIDE PANEL | ||
| 872 | A 0009906550 | NUT |
| BEARING BRACKET TO SIDE PANEL | ||
| 875 | N 910105010009 | SCREW |
| BEARING BRACKET TO CONSOLE ON FRAME SIDE MEMBER | ||
| 878 | A 1169901140 | WASHER |
| BEARING BRACKET TO CONSOLE ON FRAME SIDE MEMBER | ||
| 881 | A 0029903604 | SCREW |
| SUPPORT TO BEARING BRACKET | ||
| 884 | A 0009906750 | NUT |
| SUPPORT TO BEARING BRACKET | ||
| 887 | A 0109970992 | V-BELT |
| FAN DRIVE | ||
| 32.04 X 4145 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

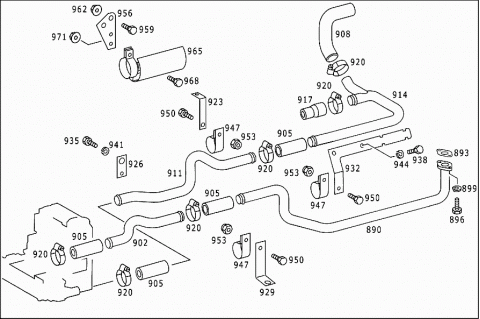

| TRANSMISSION COOLING | ||
| 890 | A 6975003572 | LINE |
| FEED; FROM ENGINE TO HEAT EXCHANGER | ||
| 893 | N 917003050002 | GASKET |
| COOLING WATER LINE TO OUTLET | ||
| 896 | N 304017010002 | SCREW |
| COOLING WATER LINE TO OUTLET | ||
| 899 | N 912004010102 | LOCK WASHER |
| COOLING WATER LINE TO OUTLET | ||
| 902 | A 6975014224 | COOLING WATER PIPE |
| FROM HOSE TO HOSE AT OIL COOLER | ||
| 905 | N 900271050012 | HOSE |
| FEED AND RETURN LINE CONNECTION | ||
| 908 | A 3015010782 | HOSE |
| RETURN LINE TO HEAT EXCHANGER | ||
| 911 | A 6975014324 | COOLING WATER PIPE |
| FROM HEAT EXCHANGER TO ENGINE,RETURN | ||
| 914 | A 6975014624 | COOLING WATER PIPE |
| RETURN; FROM HOSE TO HOSE | ||
| 917 | A 3015010682 | HOSE |
| RETURN LINE TO ENGINE | ||
| 920 | N 000000002775 | CLAMP |
| HOSE FASTENING | ||
| 40-60X13 MM | ||
| 923 | A 6975043640 | BRACKET |
| COOLING WATER LINE TO TRANSMISSION | ||
| 926 | A 6975043740 | BRACKET |
| COOLING WATER LINE TO TRANSMISSION | ||
| 929 | A 6975043540 | BRACKET |
| COOLING WATER LINE TO ENGINE | ||
| 932 | A 6975044140 | BRACKET |
| COOLING WATER LINE TO ENGINE | ||
| 935 | N 304017016011 | SCREW |
| BRACKET MOUNTING | ||
| 938 | N 304017014014 | SCREW |
| BRACKET MOUNTING | ||
| 941 | N 912004016101 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 944 | N 912004014100 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 947 | A 3009950044 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 950 | N 304017008034 | SCREW |
| CLAMP ON BRACKET | ||
| 953 | N 910113008003 | NUT |
| CLAMP ON BRACKET | ||
| 956 | A 6975243040 | BRACKET |
| HEAT SHIELD | ||
| 959 | N 308676012004 | SCREW |
| BRACKET TO ENGINE SUPPORT,FRONT | ||
| 962 | N 913023012002 | NUT |
| BRACKET TO ENGINE SUPPORT,FRONT | ||
| 965 | A 6484300062 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 968 | N 304017008034 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 971 | N 910113008003 | NUT |
| HEAT SHIELD TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
