Transporto priemonė: OH 1622; VIN numerio dalis: 396358
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3963200102 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "7" | ||
| 006 | A 3963200002 | FRONT SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "8" | ||
| 009 | A 3963200194 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3963250050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 012 | A 3523250150 | BUSHING |
| 015 | A 3963210112 | SPRING LEAF |
| NO.2 | ||
| 018 | A 3963210113 | SPRING LEAF |
| NO.3 | ||
| 018 | A 3963210013 | SPRING LEAF |
| NO.3 | ||
| 021 | A 3963210114 | SPRING LEAF |
| NO.4 | ||
| 021 | A 3963210014 | SPRING LEAF |
| NO.4 | ||
| 024 | A 3803220984 | SHIM |
| Repalced by: A 6173220484 | ||
| 024 | A 6173220484 | SHIM |
| 024 | A 3963220084 | SHIM |
| Repalced by: A 3533240135 | ||
| 024 | A 3533240135 | SPACER |
| 027 | N 004626012171 | SPRING BOLT |
| 030 | N 910113012005 | NUT |
| 033 | A 6173210233 | SPRING CLAMP |
| Repalced by: A 6753210133 | ||
| 033 | A 6753210133 | SPRING CLAMP |
| Repalced by: A 6763210033 | ||
| 033 | A 6763210033 | SPRING CLAMP |
| 036 | A 3963210433 | SPRING CLAMP |
| Repalced by: A 6753210133 | ||
| 036 | A 6753210133 | SPRING CLAMP |
| Repalced by: A 6763210033 | ||
| 036 | A 6763210033 | SPRING CLAMP |
| 039 | A 6173210135 | CLAMP |
| 042 | N 304017008027 | SCREW |
| SPRING CLAMP WITH CLAMP TO SPRING LEAVES NOS.4 ET 6 | ||
| 042 | N 304017008027 | SCREW |
| SPRING CLAMP WITH CLAMP TO SPRING LEAVES NOS.4 AND 7 | ||
| 045 | N 913004008004 | NUT |
| SPRING CLAMP WITH CLAMP TO SPRING LEAVES NOS.4 ET 6 | ||
| 045 | N 913004008004 | NUT |
| SPRING CLAMP WITH CLAMP TO SPRING LEAVES NOS.4 AND 7 | ||
| 048 | N 910006008024 | RIVET |
| CLAMP TO SPRING LEAF | ||
| 051 | A 3553200062 | SHACKLE |
| Repalced by: A 3963200062 | ||
| 051 | A 3963200062 | SHACKLE |
| FRONT SPRING | ||
| 054 | A 3963250050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 054 | A 3523250150 | BUSHING |
| 057 | A 3963200064 | SHACKLE PIN |
| PARTS KIT | ||
| 060 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 063 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 063 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 066 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 069 | A 3529900337 | BOLT |
| SPRING SUSPENSION | ||
| 072 | N 000125010532 | WASHER |
| SPRING SUSPENSION | ||
| 075 | N 910113010000 | NUT |
| SPRING SUSPENSION | ||
| 078 | A 3853220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 081 | A 3963210006 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 084 | A 3853310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 084 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 087 | A 0029903551 | NUT |
| Repalced by: N 000934018001 | ||
| 087 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

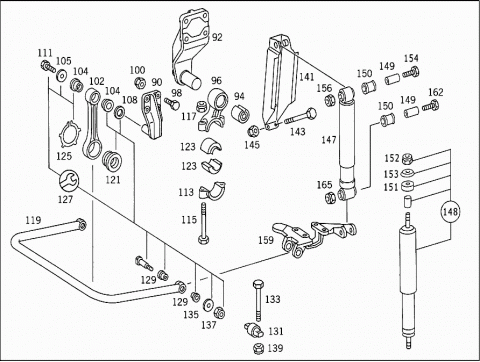

| 090 | A 3963232663 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| A 3963201578 | CONSOLE | |
| TORSION BAR,LEFT | ||
| A 3963201678 | CONSOLE | |
| TORSION BAR,RIGHT | ||
| 092 | A 3963233163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 094 | A 3963230150 | BUSHING |
| LINK TO CONSOLE | ||
| 096 | A 3963230116 | LINK |
| TORSION BAR,FRONT | ||
| 098 | N 000960014237 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 100 | N 910113014000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 102 | A 3963260047 | SHACKLE |
| TORSION BAR,FRONT | ||
| 104 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 105 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 108 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 111 | N 000961016081 | SCREW |
| SHACKLE TO BEARING BRACKET | ||
| 113 | A 3963230002 | COVER |
| LINK | ||
| 115 | N 308765016010 | SCREW |
| COVER TO LINK | ||
| 117 | N 910113016001 | NUT |
| COVER TO LINK | ||
| 119 | A 3963230165 | TORSION BAR |
| FRONT AXLE | ||
| 119 | A 3963200311 | TORSION BAR |
| FRONT AXLE | ||
| 121 | A 3933260481 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 123 | A 3963230050 | BUSHING |
| TORSION BAR TO LINK | ||
| 125 | N 000983085001 | LOCK RING |
| SHACKLE TO TORSION BAR | ||
| 127 | A 3893260074 | PIN |
| Repalced by: A 6233200041 | ||
| 127 | A 6233200041 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 129 | A 3873260050 | BUSHING |
| TORSION BAR TO BEARING BRACKET | ||
| 131 | A 3963260081 | RUBBER MOUNTING |
| TORSION BAR TO FRONT AXLE | ||
| 133 | N 000960014251 | SCREW |
| TORSION BAR TO FRONT AXLE | ||
| 135 | N 007349019002 | WASHER |
| TORSION BAR TO BEARING BRACKET | ||
| 137 | N 913004018004 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 139 | N 910113014000 | NUT |
| TORSION BAR TO FRONT AXLE | ||
| 141 | A 3963200343 | BRACKET |
| SHOCK ABSORBER,TOP | ||
| 143 | N 308765014009 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 145 | N 910113014000 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 147 | A 0043238600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 147 | A 0043238400 | SHOCK ABSORBER |
| Repalced by: A 0043238500 | ||
| 147 | A 0043238500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 148 | A 3023260500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 149 | A 0003230553 | SPACER TUBE |
| TOP AND BOTTOM | ||
| 149 | A 3179911040 | SPACER TUBE |
| TOP AND BOTTOM | ||
| 150 | A 0003234585 | RUBBER MOUNTING |
| Repalced by: A 0003230785 | ||
| 150 | A 0003230785 | RUBBER MOUNTING |
| TO 004 323 84 00,004 323 85 00, | ||
| 150 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 150 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 86 00 | ||
| Repalced by: A 0003238085 | ||
| 150 | A 0003238085 | RUBBER MOUNTING |
| TO 004 323 86 00 | ||
| 151 | A 3173230444 | RUBBER BUFFER |
| 152 | N 913001014003 | NUT |
| 153 | A 3173230667 | RETAINER |
| 154 | A 3979900001 | SCREW |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 156 | N 913004020003 | NUT |
| SHOCK ABSORBER TO TOP BRACKET | ||
| 159 | A 3963232763 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,LEFT BOTTOM | ||
| 159 | A 3963233263 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,LEFT BOTTOM | ||
| 159 | A 3963232863 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,RIGHT BOTTOM | ||
| 159 | A 3963233363 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,RIGHT BOTTOM | ||
| 162 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 165 | N 913004020003 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

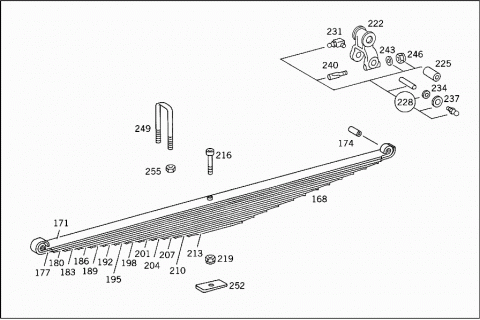

| 168 | A 3963200606 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "14" | ||
| 168 | A 3963200506 | REAR SPRING |
| (TRAPEZOIDAL SPRING);NUMBER OF LEAVES: | ||
| "13" | ||
| 171 | A 3963200193 | SPRING LEAF |
| Repalced by: A 3963200493 | ||
| 171 | A 3963200493 | SPRING LEAF |
| NO.1 | ||
| 171 | A 3963200093 | SPRING LEAF |
| Repalced by: A 3963200393 | ||
| 171 | A 3963200393 | SPRING LEAF |
| NO.1 | ||
| 174 | A 3963250050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 174 | A 3523250150 | BUSHING |
| 177 | A 3963240612 | SPRING LEAF |
| Repalced by: A 3963241312 | ||
| 177 | A 3963241312 | SPRING LEAF |
| NO.2 | ||
| 177 | A 3963240512 | SPRING LEAF |
| Repalced by: A 3963241212 | ||
| 177 | A 3963241212 | SPRING LEAF |
| NO.2 | ||
| 180 | A 3963240613 | SPRING LEAF |
| NO.3 | ||
| 180 | A 3963240513 | SPRING LEAF |
| NO.3 | ||
| 183 | A 3963240614 | SPRING LEAF |
| NO.4 | ||
| 183 | A 3963240514 | SPRING LEAF |
| NO.4 | ||
| 186 | A 3963240415 | SPRING LEAF |
| NO.5 | ||
| 186 | A 3963240315 | SPRING LEAF |
| NO.5 | ||
| 189 | A 3963240416 | SPRING LEAF |
| NO.6 | ||
| 189 | A 3963240316 | SPRING LEAF |
| NO.6 | ||
| 192 | A 3963240417 | SPRING LEAF |
| NO.7 | ||
| 192 | A 3963240317 | SPRING LEAF |
| NO.7 | ||
| 195 | A 3963240418 | SPRING LEAF |
| NO.8 | ||
| 195 | A 3963240318 | SPRING LEAF |
| NO.8 | ||
| 198 | A 3963240419 | SPRING LEAF |
| NO.9 | ||
| 198 | A 3963240319 | SPRING LEAF |
| NO.9 | ||
| 201 | A 3963240420 | SPRING LEAF |
| NO.10 | ||
| 201 | A 3963240320 | SPRING LEAF |
| NO.10 | ||
| 204 | A 3963240421 | SPRING LEAF |
| NO.11 | ||
| 204 | A 3963240321 | SPRING LEAF |
| NO.11 | ||
| 207 | A 3963240322 | SPRING LEAF |
| NO.12 | ||
| 207 | A 3963240222 | SPRING LEAF |
| NO.12 | ||
| 210 | A 3963240223 | SPRING LEAF |
| NO.13 | ||
| 210 | A 3963240123 | SPRING LEAF |
| NO.13 | ||
| 213 | A 3963240024 | SPRING LEAF |
| NO.14 | ||
| 216 | A 6173241471 | SPRING BOLT |
| 219 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 222 | A 3553200062 | SHACKLE |
| Repalced by: A 3963200062 | ||
| 222 | A 3963200062 | SHACKLE |
| REAR SPRING | ||
| 225 | A 3963250050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 225 | A 3523250150 | BUSHING |
| 228 | A 3963200064 | SHACKLE PIN |
| PARTS KIT | ||
| 231 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 234 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 234 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 237 | A 0029973040 | SEAL RING |
| SPRING SUSPENSION | ||
| 240 | A 3529900337 | BOLT |
| SPRING SUSPENSION | ||
| 243 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 243 | N 000125010532 | WASHER |
| SPRING SUSPENSION | ||
| 246 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 246 | N 910113010000 | NUT |
| SPRING SUSPENSION | ||
| 249 | A 3963510225 | U-BOLT |
| Repalced by: A 3963510525 | ||
| 249 | A 3963510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 252 | A 3963510028 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 252 | A 3963510128 | PAD |
| Repalced by: A 3853510628 | ||
| 252 | A 3853510628 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 255 | A 0029900751 | NUT |
| REAR SPRING TO REAR AXLE | ||

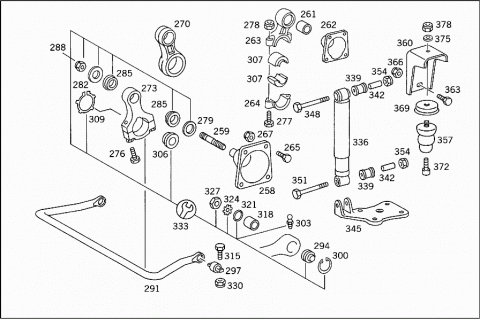

| 258 | A 3963200078 | CONSOLE |
| TORSION BAR,REAR | ||
| 259 | N 000939016033 | STUD BOLT |
| A 3963201878 | CONSOLE | |
| TORSION BAR,LEFT | ||
| A 3963201778 | CONSOLE | |
| TORSION BAR,RIGHT | ||
| 261 | A 3963230150 | BUSHING |
| LINK TO CONSOLE | ||
| 262 | A 3963260663 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 263 | A 3963230116 | LINK |
| TORSION BAR,REAR | ||
| 264 | A 3963230002 | COVER |
| LINK | ||
| 265 | N 000961014028 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 265 | N 000961014054 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 14X45 | ||
| 267 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 270 | A 3963260047 | SHACKLE |
| TORSION BAR,REAR | ||
| 273 | A 6993200263 | SHACKLE |
| TORSION BAR,REAR | ||
| 276 | N 308676016014 | SCREW |
| COVER TO SHACKLE | ||
| M16X65 | ||
| 277 | N 308765016002 | SCREW |
| COVER TO LINK | ||
| M16X90 | ||
| 278 | N 910113016001 | NUT |
| COVER TO LINK | ||
| 279 | A 3873230252 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 282 | A 3933260152 | SPACER WASHER |
| SHACKLE TO CONSOLE | ||
| 285 | A 0003260650 | BUSHING |
| SHACKLE TO CONSOLE | ||
| 288 | N 910113016002 | NUT |
| SHACKLE TO CONSOLE | ||
| 291 | A 3963260265 | TORSION BAR |
| REAR AXLE | ||
| 291 | A 3963260365 | TORSION BAR |
| Repalced by: A 3963200211 | ||
| 291 | A 3963200211 | TORSION BAR |
| Repalced by: A 3963200811 | ||
| 291 | A 3963200811 | TORSION BAR |
| REAR AXLE | ||
| 294 | A 0009810831 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 294 | A 0009811231 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 297 | A 3963260081 | RUBBER MOUNTING |
| TORSION BAR,REAR | ||
| 300 | N 000472055000 | LOCK RING |
| TORSION BAR,REAR | ||
| 303 | N 071412008302 | GREASE NIPPLE |
| AT TORSION BAR | ||
| 306 | A 3933260481 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 307 | A 3963230050 | BUSHING |
| LINK TO TORSION BAR | ||
| 309 | N 000983085001 | LOCK RING |
| SHACKLE TO TORSION BAR | ||
| 315 | N 000961014066 | SCREW |
| TORSION BAR TO REAR SPRING SADDLE | ||
| 318 | A 3523260153 | SPACER TUBE |
| TORSION BAR TO REAR SPRING SADDLE | ||
| 321 | A 3603230560 | SEAL RING |
| TORSION BAR TO REAR SPRING SADDLE | ||
| 324 | N 070952035101 | LOCK PLATE |
| TORSION BAR TO REAR SPRING SADDLE | ||
| 327 | N 070852035000 | NUT |
| TORSION BAR TO REAR SPRING SADDLE | ||
| 330 | N 910113014000 | NUT |
| TORSION BAR TO REAR SPRING SADDLE | ||
| 333 | A 3963260074 | PIN |
| Repalced by: A 3963200028 | ||
| 333 | A 3963200028 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 336 | A 0033266800 | SHOCK ABSORBER |
| Repalced by: A 0043260500 | ||
| 336 | A 0043260500 | SHOCK ABSORBER |
| REAR AXLE | ||
| 336 | A 0033268400 | SHOCK ABSORBER |
| REAR AXLE | ||
| 339 | A 0003230785 | RUBBER MOUNTING |
| TO 003 326 68 00, 004 326 05 00 | ||
| 339 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 339 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 84 00 | ||
| Repalced by: A 0003238085 | ||
| 339 | A 0003238085 | RUBBER MOUNTING |
| TO 003 326 84 00 | ||
| 342 | A 0003230553 | SPACER TUBE |
| 345 | A 3963260263 | BEARING BRACKET |
| LEFT SHOCK ABSORBER | ||
| 345 | A 3963260463 | BEARING BRACKET |
| LEFT SHOCK ABSORBER | ||
| 345 | A 3963260363 | BEARING BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 345 | A 3963260563 | BEARING BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 348 | A 3969900001 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 351 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 354 | N 913004020003 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 354 | N 913004020003 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 357 | A 0003200044 | RUBBER BUFFER |
| REAR SPRING STOP | ||
| 357 | A 3963250044 | RUBBER BUFFER |
| REAR SPRING STOP | ||
| 360 | A 3963250040 | BRACKET |
| RUBBER BUFFER | ||
| 360 | A 3963200543 | BRACKET |
| RUBBER BUFFER | ||
| 363 | N 000961014028 | SCREW |
| BRACKET TO FRAME | ||
| 363 | N 308676014020 | SCREW |
| BRACKET TO FRAME | ||
| 366 | N 910113014001 | NUT |
| BRACKET TO FRAME | ||
| 366 | N 910113014001 | NUT |
| 369 | A 3963250015 | SPRING CASE |
| RUBBER BUFFER | ||
| 369 | A 3963250315 | SPRING CASE |
| RUBBER BUFFER | ||
| 372 | N 000912012140 | SCREW |
| RUBBER BUFFER TO BRACKET | ||
| 375 | N 000125013008 | WASHER |
| 378 | N 913004012008 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 378 | N 910113010000 | NUT |
| RUBBER BUFFER TO REAR AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PNEUMATIC SUSPENSION | ||
| 400 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 400 | A 0009872727 | PLASTIC PIPE |
| 6X8 MM | ||
| 403 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 403 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 406 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 409 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 412 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 415 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 415 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 415 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 416 | A 0019904788 | BANJO UNION |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 418 | A 0009907990 | T-FITTING |
| BRANCH-OFF TO REAR AXLE LEVEL ADJUSTMENT DEVICE | ||
| 421 | A 3549970081 | GROMMET |
| COMPRESSED AIR LINE THRU FRAME | ||
| 32/27 MM | ||
| 421 | A 3969970281 | GROMMET |
| COMPRESSED AIR LINE THRU CONSOLE | ||
| 61/54 MM | ||
| 422 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 422 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 423 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 423 | A 0009872827 | PLASTIC PIPE |
| 9X12 MM | ||
| 424 | N 915017012100 | UNION NUT |
| LINE CONNECTIONS | ||
| Repalced by: N 000000006239 | ||
| 424 | N 000000006239 | UNION NUT |
| LINE CONNECTIONS | ||
| 425 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 425 | A 0019901967 | SEAL CONE |
| LINE CONNECTIONS | ||
| 426 | N 915062009000 | SLEEVE |
| LINE CONNECTIONS | ||
| 427 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 427 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 430 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||

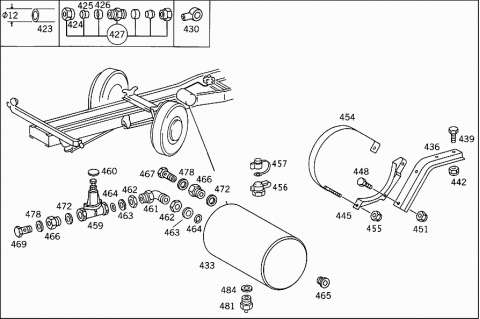

| 433 | A 0034321201 | RESERVOIR |
| COMPRESSED AIR | ||
| 436 | A 3964320016 | SUPPORT |
| BRACKET TO CROSS MEMBER | ||
| 439 | N 304017008021 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 442 | N 913004008004 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 445 | A 3874320540 | BRACKET |
| PNEUMATIC SUSPENSION AIR-RESERVOIR | ||
| 448 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| 451 | N 913004008004 | NUT |
| BRACKET TO SUPPORT | ||
| 454 | A 3874300640 | STRAP |
| AIR RESERVOIR | ||
| 455 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 456 | A 0004314531 | TEST CONNECTION |
| WITH INTERNAL THREAD | ||
| 457 | A 0009979486 | PROTECTIVE CAP |
| 459 | A 0014296544 | VALVE |
| Repalced by: A 0044293144 | ||
| 459 | A 0024290044 | VALVE |
| Repalced by: A 0044293144 | ||
| 459 | A 0044293144 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 459 | A 0024297044 | VALVE |
| Repalced by: A 0044293244 | ||
| 459 | A 0044293244 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| 460 | A 0004290645 | DIAPHRAGM |
| Repalced by: A 0004290745 | ||
| 460 | A 0004290745 | DIAPHRAGM |
| TO 004 429 32 44 | ||
| 461 | A 0004293838 | ELBOW FITTING |
| Repalced by: A 0004294638 | ||
| 461 | A 0004294638 | ELBOW FITTING |
| FROM AIR RESERVOIR TO PRESSURE RELIEF VALVE | ||
| 462 | N 074305022202 | NUT |
| FROM AIR RESERVOIR TO PRESSURE RELIEF VALVE | ||
| 463 | A 0004290227 | THRUST RING |
| FROM AIR RESERVOIR TO PRESSURE RELIEF VALVE | ||
| 464 | A 0009870446 | O-RING |
| FROM AIR RESERVOIR TO PRESSURE RELIEF VALVE | ||
| 465 | N 000908022011 | SCREW PLUG |
| AIR RESERVOIR | ||
| 466 | A 0009905168 | FITTING |
| CONNECTIONS: | ||
| "10,24" | ||
| 467 | N 915047012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTION: | ||
| "24" | ||
| 469 | N 915036012203 | HOLLOW SCREW |
| VALVE;CONNECTION | ||
| "10" | ||
| 472 | N 007603022403 | SEAL RING |
| AIR RESERVOIR | ||
| 472 | N 007603022403 | SEAL RING |
| VALVE;CONNECTION | ||
| "10" | ||
| 478 | N 007603016401 | SEAL RING |
| VALVE;CONNECTION | ||
| "10,24" | ||
| 481 | A 0004321107 | VALVE |
| DRAIN | ||
| Repalced by: A 0004322407 | ||
| 481 | A 0004322407 | DRAIN VALVE |
| DRAIN | ||
| Repalced by: A 0004322107 | ||
| 481 | A 0004322107 | DRAIN VALVE |
| DRAIN | ||
| 481 | A 0004322107 | VALVE |
| DRAIN | ||
| 481 | A 0004322407 | VALVE |
| DRAIN | ||
| Repalced by: A 0004322107 | ||
| 481 | A 0004322107 | DRAIN VALVE |
| DRAIN | ||
| 484 | N 007603022403 | SEAL RING |
| DRAIN VALVE TO AIR RESERVOIR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE | ||

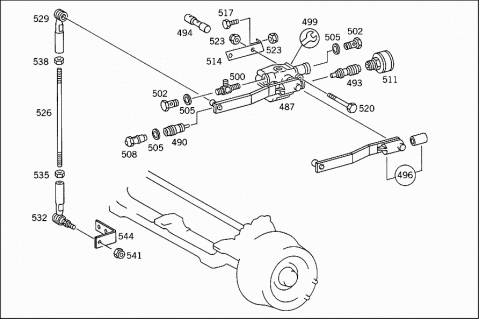

| 487 | A 0003283730 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 487 | A 0003283430 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 490 | A 0003281925 | VALVE |
| INTAKE | ||
| 493 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 493 | A 0003282125 | VALVE |
| EXHAUST | ||
| 494 | A 0003280014 | SHAFT |
| 87 MM | ||
| 496 | A 0003200027 | LEVER |
| Repalced by: A 0003200127 | ||
| 496 | A 0003200127 | LEVER |
| (PARTS KIT) | ||
| 499 | A 0003200467 | REPAIR KIT |
| Repalced by: A 0003200258 | ||
| 499 | A 0003200258 | REPAIR KIT |
| FRONT AXLE LEVEL ADJUSTMENT VALVE | ||
| 500 | A 3969900070 | T-FITTING |
| FRONT AXLE LEVEL ADJUSTMENT VALVE | ||
| 502 | N 915036008202 | HOLLOW SCREW |
| FRONT AXLE LEVEL ADJUSTMENT VALVE | ||
| 505 | N 007603012405 | SEAL RING |
| FRONT AXLE LEVEL ADJUSTMENT VALVE | ||
| 508 | A 0024293344 | VALVE |
| CHECK VALVE | ||
| 511 | A 0000750032 | FILTER |
| LEVEL ADJUSTMENT VALVE | ||
| 514 | A 3963280840 | BRACKET |
| LEVEL ADJUSTMENT VALVE | ||
| 514 | A 3963280940 | BRACKET |
| LEVEL ADJUSTMENT VALVE | ||
| 517 | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 520 | N 304014008002 | SCREW |
| LEVEL ADJUSTMENT VALVE TO BRACKET | ||
| 523 | N 913004008004 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 523 | N 913004008004 | NUT |
| LEVEL ADJUSTMENT VALVE TO BRACKET | ||
| 526 | N 900331008426 | PULL ROD |
| FROM LEVEL ADJUSTMENT VALVE TO FRONT AXLE | ||
| 529 | A 0004310767 | YOKE |
| L.H. THREAD | ||
| 532 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 535 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 538 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 541 | N 913004008004 | NUT |
| PULL ROD TO BRACKET | ||
| 544 | A 3013270040 | BRACKET |
| OPERATING ROD | ||
| 544 | A 3963270040 | BRACKET |
| LEFT OPERATING ROD | ||
| 544 | A 3963270140 | BRACKET |
| RIGHT OPERATING ROD | ||
| N 000931012149 | SCREW | |
| BRACKET TO FRONT AXLE | ||
| N 913002012004 | NUT | |
| BRACKET TO FRONT AXLE | ||
| 553 | A 3963270041 | SUPPORT |
| THRUST ARM,LEFT | ||
| 553 | A 3963270041 | SUPPORT |
| THRUST ARM,LEFT | ||
| 553 | A 3963270141 | SUPPORT |
| THRUST ARM,RIGHT | ||
| 553 | A 3963270141 | SUPPORT |
| THRUST ARM,RIGHT | ||
| 556 | A 0029909404 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 14X40 | ||
| 556 | N 000960014190 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 14X60 | ||
| 556 | A 0039900004 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 14X65 | ||
| 556 | N 000960014251 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 14X85 | ||
| 556 | N 000960014143 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 14X90 | ||
| 556 | A 0039900504 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 14X90 | ||
| 556 | A 0039900704 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 14X100 | ||
| 556 | N 000609016015 | FITTED SCREW |
| Repalced by: A 6229900014 | ||
| 556 | A 6229900014 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X60 | ||
| 556 | A 0009907014 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X64 | ||
| 556 | N 000609016016 | FITTED SCREW |
| SUPPORT TO FRAME | ||
| M 16X70 | ||
| 556 | A 0009907214 | SCREW |
| SUPPORT TO FRAME | ||
| M 16X74 | ||
| 556 | N 000609016017 | FITTED SCREW |
| Repalced by: A 3919900014 | ||
| 556 | A 3919900014 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X85 | ||
| 556 | A 0009907514 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X89 | ||
| 556 | N 000609016018 | FITTED SCREW |
| Repalced by: A 6229900114 | ||
| 556 | A 6229900114 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X95 | ||
| 556 | A 0009907714 | SCREW |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| M 16X99 | ||
| 559 | N 910113014000 | NUT |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| 559 | A 0009906950 | NUT |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| 559 | N 910113016001 | NUT |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| 559 | A 0009907150 | NUT |
| CROSS MEMBER AND SUPPORT TO SIDE MEMBERS | ||
| 562 | A 3963280341 | SUPPORT |
| (CROSS MEMBER) | ||
| 565 | A 3963280084 | SHIM |
| SUPPORT TO CROSS MEMBER | ||
| 568 | N 000961014027 | SCREW |
| CROSS MEMBER TO CROSS MEMBER | ||
| M 14X30 | ||
| 571 | N 308676016013 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 16X40 | ||
| 574 | N 910113014001 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 574 | N 910113016001 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 577 | A 3963270441 | SUPPORT |
| THRUST ROD TO CROSS MEMBER | ||
| 580 | N 308676014020 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 583 | A 3963200678 | CONSOLE |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 584 | A 3963270541 | SUPPORT |
| AIR-SPRING-BELLOWS SUPPORT | ||
| 586 | N 000961014028 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| 586 | N 000961014116 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X50 | ||
| 586 | N 000961014054 | SCREW |
| CONSOLE TO REINFORCEMENT ANGLE AND TO SIDE MEMBER | ||
| M 14X45 | ||
| 586 | N 000961014103 | SCREW |
| SUPPORT TO REINFORCEMENT ANGLE AND TO SIDE MEMBER | ||
| M 14X55 | ||
| N 000961014126 | SCREW | |
| SUPPORT TO SUPPORT | ||
| M 14X60 | ||
| 592 | N 910113014001 | NUT |
| CONSOLE TO REINFORCEMENT ANGLE AND TO SIDE MEMBER | ||
| 592 | N 910113014000 | NUT |
| CONSOLE TO REINFORCEMENT ANGLE AND TO SIDE MEMBER | ||
| 593 | A 6584310140 | BRACKET |
| REINFORCEMENT | ||
| 593 | A 3964291540 | BRACKET |
| REINFORCEMENT | ||
| 594 | N 000961010045 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 595 | A 3963200034 | SUPPORT |
| Repalced by: A 3963280841 | ||
| 595 | A 3963280841 | SUPPORT |
| AIR SPRING BELLOWS | ||
| 598 | N 000961012151 | SCREW |
| AIR SPRING BELLOWS SUPPORT TO CONSOLE | ||
| 601 | N 000961014027 | SCREW |
| AIR SPRING BELLOWS SUPPORT TO CONSOLE | ||
| 601 | N 000961014116 | SCREW |
| AIR SPRING BELLOWS SUPPORT TO SUPPORT | ||
| 602 | N 000125013008 | WASHER |
| 603 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 603 | N 000125015019 | WASHER |
| AIR SPRING BELLOWS SUPPORT TO CONSOLE | ||
| 603 | A 3609901840 | WASHER |
| AIR SPRING BELLOWS SUPPORT TO SUPPORT | ||
| 604 | N 913004012008 | NUT |
| AIR SPRING BELLOWS SUPPORT TO CONSOLE | ||
| 606 | N 910113014001 | NUT |
| AIR SPRING BELLOWS SUPPORT TO CONSOLE | ||
| 606 | N 910113014000 | NUT |
| AIR SPRING BELLOWS SUPPORT TO SUPPORT | ||
| 607 | N 915039010202 | HOLLOW SCREW FITTING |
| LEFT AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 608 | N 007603014405 | SEAL RING |
| LEFT AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 609 | A 0004312031 | TEST CONNECTION |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 609 | A 0004314531 | TEST CONNECTION |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 609 | A 0004314831 | TEST CONNECTION |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 609 | A 0004316131 | TEST CONNECTION |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 610 | N 915036008202 | HOLLOW SCREW |
| RIGHT AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 613 | N 007603014405 | SEAL RING |
| RIGHT AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 618 | A 3963280240 | BRACKET |
| REINFORCEMENT | ||
| 619 | A 3963280185 | REINFORCEMENT |
| BRACKET TO SUPPORT | ||
| 622 | A 3963280184 | SHIM |
| REINFORCEMENT TO SUPPORT | ||
| 625 | N 000961012151 | SCREW |
| BRACKET TO AIR SPRING BELLOWS SUPPORT | ||
| 628 | N 000961014100 | SCREW |
| BRACKET TO AIR SPRING BELLOWS SUPPORT | ||
| M 14X30 | ||
| 628 | N 308676014020 | SCREW |
| BRACKET AND REINFORCEMENT TO AIR-SPRING-BELLOWS SUPPORT | ||
| M 14X35 | ||
| 631 | N 308676016015 | SCREW |
| REINFORCEMENT AND SHIM TO SUPPORT | ||
| 634 | N 913004012008 | NUT |
| BRACKET TO AIR SPRING BELLOWS SUPPORT | ||
| 637 | N 910113014001 | NUT |
| BRACKET AND REINFORCEMENT TO AIR-SPRING-BELLOWS SUPPORT | ||
| 640 | N 910113016002 | NUT |
| REINFORCEMENT AND SHIM TO SUPPORT | ||
| 641 | A 3963200335 | PLATE |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 642 | N 910113022001 | NUT |
| TOP PLATE TO FRONT AXLE CROSS MEMBER | ||
| Repalced by: N 910113022000 | ||
| 642 | N 910113022000 | NUT |
| TOP PLATE TO FRONT AXLE CROSS MEMBER | ||
| 643 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 643 | A 0003270101 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 643 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 643 | A 0003270201 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 643 | A 0003270301 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 646 | A 3053240308 | HELPER SPRING |
| 649 | A 3073200175 | SPRING BRACKET |
| Repalced by: A 3573200134 | ||
| 649 | A 3573200134 | SUPPORT |
| BOTTOM | ||
| 649 | A 3573201534 | SUPPORT |
| BOTTOM | ||
| 652 | A 3073200943 | BRACKET |
| Repalced by: A 3073200843 | ||
| 652 | A 3073200843 | BRACKET |
| AIR SPRING BELLOWS TO FRONT AXLE | ||
| 655 | N 001472010004 | GROOVED PIN |
| 658 | N 000961020035 | SCREW |
| BRACKET TO SPRING BRACKET | ||
| 661 | N 912004020100 | LOCK WASHER |
| BRACKET TO SPRING BRACKET | ||
| 664 | A 3003200070 | REAR SUBFRAME |
| Repalced by: A 3963200534 | ||
| 664 | A 3963200534 | SUPPORT |
| Repalced by: A 3963230035 | ||
| 664 | A 3963230035 | SUPPORT |
| AIR SPRING BELLOWS,SHOCK ABSORBER | ||
| 667 | N 000939014023 | STUD BOLT |
| 670 | N 910113014000 | NUT |
| SPRING BRACKET TO FRONT AXLE BEAM | ||

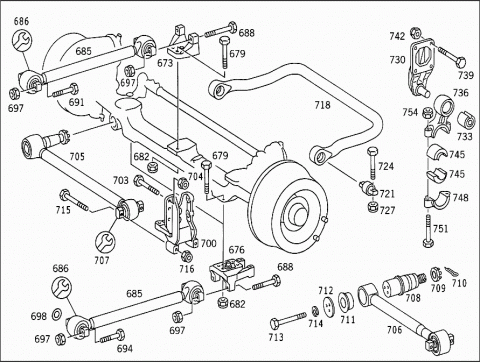

| 673 | A 3573300113 | BEARING BRACKET |
| THRUST ARM | ||
| 676 | A 3963202178 | CONSOLE |
| THRUST ARM | ||
| 679 | N 000960018142 | SCREW |
| BEARING BODY TO FRONT AXLE | ||
| 682 | N 913004018004 | NUT |
| BEARING BODY TO FRONT AXLE | ||
| 685 | A 3963300011 | THRUST ARM |
| Repalced by: A 3963300111 | ||
| 685 | A 3963300111 | THRUST ARM |
| 686 | A 0003300075 | REPAIR KIT |
| THRUST ARM | ||
| 688 | N 000960016057 | SCREW |
| THRUST ARM TO BEARING BODY | ||
| M 16X80 | ||
| 691 | N 308765016000 | SCREW |
| Repalced by: N 308765016018 | ||
| 691 | N 308765016018 | SCREW |
| THRUST ARM TO SUPPORT | ||
| M 16X195 | ||
| 694 | N 000960016277 | SCREW |
| Repalced by: N 308765016011 | ||
| 694 | N 308765016011 | SCREW |
| THRUST ARM TO SUPPORT | ||
| M 16X110 | ||
| 697 | N 910113016001 | NUT |
| THRUST ARM TO SUPPORT | ||
| 698 | A 3579900040 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 698 | A 3579900140 | WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 698 | A 3579900340 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 700 | A 3963270241 | SUPPORT |
| TRANSVERSE CONTROL ARM | ||
| 700 | A 3963270341 | SUPPORT |
| TRANSVERSE CONTROL ARM | ||
| 703 | N 308676016004 | SCREW |
| SUPPORT TO FRAME | ||
| 703 | N 308676016004 | SCREW |
| 703 | N 000960016237 | SCREW |
| SUPPORT TO FRAME | ||
| 704 | N 910113016001 | NUT |
| SUPPORT TO FRAME | ||
| 705 | A 3963300007 | TRANSVERSE CONTROL ARM |
| Repalced by: A 3963300107 | ||
| 705 | A 3963300107 | TRANSVERSE CONTROL ARM |
| 705 | A 3963300107 | TRANSVERSE CONTROL ARM |
| 706 | A 3573301711 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 707 | A 0003300075 | REPAIR KIT |
| WITH BALL PIVOT | ||
| 707 | A 0003300007 | REPAIR KIT |
| TRANSVERSE CONTROL ARM | ||
| 708 | A 3073330030 | PIN |
| CONTROL ARM TO FRONT AXLE | ||
| TO 357 330 17 11 | ||
| 709 | N 000937040001 | NUT |
| CONTROL ARM TO FRONT AXLE | ||
| TO 357 330 17 11 | ||
| 710 | N 000094006320 | COTTER PIN |
| CONTROL ARM TO FRONT AXLE | ||
| TO 357 330 17 11 | ||
| 711 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY,TO BODY,TO PIN,AND TO FRONT AXLE | ||
| TO 357 330 17 11 | ||
| 712 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY,TO BODY,TO PIN,AND TO FRONT AXLE | ||
| TO 357 330 17 11 | ||
| 713 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY,TO BODY,TO PIN,AND TO FRONT AXLE | ||
| TO 357 330 17 11 | ||
| 714 | N 912004012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY,TO BODY,TO PIN,AND TO FRONT AXLE | ||
| TO 357 330 17 11 | ||
| 715 | N 000960016209 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 716 | N 910113016001 | NUT |
| CONTROL ARM TO SUPPORT | ||
| 718 | A 3963200411 | TORSION BAR |
| FRONT AXLE | ||
| 721 | A 3963260081 | RUBBER MOUNTING |
| TORSION BAR TO FRONT AXLE | ||
| 724 | N 000960014143 | SCREW |
| TORSION BAR TO FRONT AXLE | ||
| 727 | N 910113014000 | NUT |
| TORSION BAR TO FRONT AXLE | ||
| A 3963201978 | CONSOLE | |
| TORSION BAR,LEFT | ||
| A 3963202078 | CONSOLE | |
| TORSION BAR,RIGHT | ||
| 730 | A 3963233663 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 733 | A 3963230150 | BUSHING |
| LINK TO CONSOLE | ||
| 736 | A 3963230116 | LINK |
| TORSION BAR,FRONT | ||
| 739 | N 000960014237 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 739 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 739 | N 308676016007 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 742 | N 910113014000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 742 | N 910113016001 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 745 | A 3963230050 | BUSHING |
| TORSION BAR TO LINK | ||
| 748 | A 3963230002 | COVER |
| TORSION BAR TO LINK | ||
| 751 | N 000960016269 | SCREW |
| Repalced by: N 308765016010 | ||
| 751 | N 308765016010 | SCREW |
| COVER TO LINK | ||
| 754 | N 910113016001 | NUT |
| COVER TO LINK | ||
| 757 | A 3073230200 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 757 | A 3963200030 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 760 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 760 | A 3179911040 | SPACER TUBE |
| 760 | A 3969910040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 763 | A 3073230044 | RUBBER BUFFER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 766 | A 3173230667 | RETAINER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 769 | N 913001014002 | NUT |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 769 | N 910113014001 | NUT |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE | ||

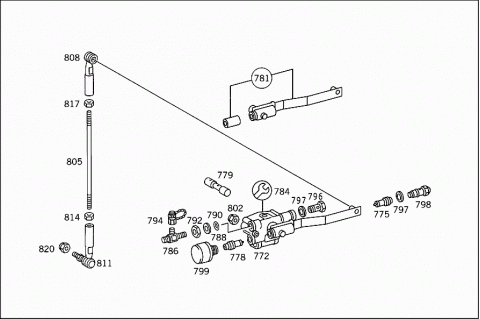

| 772 | A 0003282030 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,LEFT | ||
| 772 | A 0003282130 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,RIGHT | ||
| 775 | A 0003281925 | VALVE |
| INTAKE | ||
| 778 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 778 | A 0003282125 | VALVE |
| EXHAUST | ||
| 779 | A 0003280014 | SHAFT |
| 87 MM | ||
| 781 | A 0003200027 | LEVER |
| Repalced by: A 0003200127 | ||
| 781 | A 0003200127 | LEVER |
| (PARTS KIT) | ||
| 784 | A 0003200467 | REPAIR KIT |
| Repalced by: A 0003200258 | ||
| 784 | A 0003200258 | REPAIR KIT |
| LEVEL ADJUSTMENT VALVE | ||
| 786 | A 0019902570 | T-FITTING |
| FRONT LEVEL ADJUSTMENT VALVE,REAR AXLE | ||
| 788 | A 0004290827 | THRUST RING |
| FRONT LEVEL ADJUSTMENT VALVE,REAR AXLE | ||
| 790 | A 0019875046 | SEALING CORD |
| FRONT LEVEL ADJUSTMENT VALVE,REAR AXLE | ||
| 792 | N 080705012003 | NUT |
| FRONT LEVEL ADJUSTMENT VALVE,REAR AXLE | ||
| 794 | A 0004312031 | TEST CONNECTION |
| FRONT LEVEL ADJUSTMENT VALVE,REAR AXLE | ||
| 794 | A 0004314531 | TEST CONNECTION |
| FRONT LEVEL ADJUSTMENT VALVE,REAR AXLE | ||
| 794 | A 0004314831 | TEST CONNECTION |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 794 | A 0004316131 | TEST CONNECTION |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 796 | N 915036010108 | HOLLOW SCREW |
| REAR LEVEL ADJUSTMENT VALVE,REAR AXLE | ||
| 797 | N 007603012405 | SEAL RING |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 798 | A 0024293344 | VALVE |
| CHECK VALVE | ||
| 799 | A 0000750032 | FILTER |
| LEVEL ADJUSTMENT VALVE BREATHING | ||
| 802 | N 913004008004 | NUT |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 805 | N 900331008428 | PULL ROD |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 808 | A 0004310767 | YOKE |
| L.H. THREAD | ||
| 811 | A 0004310667 | YOKE |
| R.H. THREAD | ||
| 814 | N 304035008001 | NUT |
| R.H. THREAD | ||
| 817 | N 304035008002 | NUT |
| L.H. THREAD | ||
| 820 | N 913004008004 | NUT |
| PULL ROD TO AXLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE,FRONT | ||
| 823 | A 3963200778 | CONSOLE |
| Repalced by: A 3963500232 | ||
| 823 | A 3963500232 | SUPPORT |
| AIR SPRING BELLOWS,FRONT LEFT | ||
| 823 | A 3963500232 | SUPPORT |
| AIR SPRING BELLOWS,FRONT LEFT | ||
| 823 | A 3963500232 | SUPPORT |
| AIR SPRING BELLOWS,FRONT LEFT | ||
| 823 | A 3963200878 | CONSOLE |
| Repalced by: A 3963500332 | ||
| 823 | A 3963500332 | SUPPORT |
| AIR SPRING BELLOWS,FRONT RIGHT | ||
| 823 | A 3963500332 | SUPPORT |
| AIR SPRING BELLOWS,FRONT LEFT | ||
| 826 | N 000609016015 | FITTED SCREW |
| Repalced by: A 6229900014 | ||
| 826 | A 6229900014 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X60 | ||
| 826 | A 0009907014 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X64 | ||
| 826 | N 000609016022 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X55 | ||
| 826 | N 000609016022 | FITTED SCREW |
| 826 | A 0009906814 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X59 | ||
| 826 | N 000609016019 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X135 | ||
| 826 | A 0009908214 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X139 | ||
| 826 | A 0009908214 | SCREW |
| 826 | N 000609016023 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X110 | ||
| 826 | N 000609016023 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X110 | ||
| 826 | N 000609016026 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X120 | ||
| 826 | N 000609016026 | FITTED SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 16X120 | ||
| 829 | A 0029903404 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 12X55 | ||
| 829 | N 000961012205 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 12X50 | ||
| 829 | N 308676012018 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 12X75 | ||
| 829 | A 0029903804 | SCREW |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| M 12X80 | ||
| 832 | N 910113016001 | NUT |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| 832 | A 0009907150 | NUT |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| 832 | A 0009906750 | NUT |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| 835 | N 910113012003 | HEXAGON NUT |
| CROSS MEMBER AND CONSOLE TO FRAME | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE,REAR | ||
| 838 | A 3963200978 | CONSOLE |
| AIR SPRING BELLOWS,REAR LEFT | ||
| 838 | A 3963201078 | CONSOLE |
| AIR SPRING BELLOWS,REAR RIGHT | ||
| 841 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 841 | A 9429901304 | SCREW |
| GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS | ||
| M 14X40 | ||
| 841 | N 308676014012 | SCREW |
| CONSOLE AND CROSS MEMBER TO SIDE MEMBER | ||
| M 14X45 | ||
| 844 | N 910113014000 | NUT |
| CONSOLE AND CROSS MEMBER TO SIDE MEMBER | ||
| 845 | A 3963281340 | BRACKET |
| SPLASH GUARD TO AIR-SPRING-BELLOWS CONSOLE | ||
| 846 | A 3968820004 | SPLASH GUARD |
| AIR SPRING BELLOWS SUPPORT | ||
| 847 | N 304017006020 | SCREW |
| BRACKET TO CONSOLE | ||
| M 6X20 | ||
| 847 | N 000933006127 | SCREW |
| BRACKET TO CONSOLE | ||
| M 6X25 | ||
| 848 | N 000125006421 | WASHER |
| BRACKET TO CONSOLE | ||
| 849 | N 913004006001 | NUT |
| BRACKET TO CONSOLE | ||
| 850 | N 915036010108 | HOLLOW SCREW |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 851 | N 007603014405 | SEAL RING |
| AIR SPRING BELLOWS,CONNECTION: | ||
| "20" | ||
| 853 | A 3963280541 | SUPPORT |
| REAR AXLE,REAR | ||
| 856 | N 308676012012 | HEXAGON HEAD BOLT |
| SUPPORT TO CONSOLE | ||
| 859 | N 000125013008 | WASHER |
| 862 | N 913004012008 | NUT |
| SUPPORT TO CONSOLE | ||
| 863 | A 3963200335 | PLATE |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 864 | N 910113022001 | NUT |
| PLATE TO CONSOLE | ||
| Repalced by: N 910113022000 | ||
| 864 | N 910113022000 | NUT |
| PLATE TO CONSOLE | ||
| 865 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 865 | A 0003270101 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 865 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 865 | A 0003270201 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 865 | A 0003270301 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 868 | A 3053240108 | HELPER SPRING |
| REAR AXLE | ||
| 871 | A 3073200175 | SPRING BRACKET |
| Repalced by: A 3573200134 | ||
| 871 | A 3573200134 | SUPPORT |
| BOTTOM | ||
| 871 | A 3573201534 | SUPPORT |
| BOTTOM | ||
| 874 | A 3573201075 | SPRING BRACKET |
| Repalced by: A 3573201775 | ||
| 874 | A 3573201775 | SPRING BRACKET |
| Repalced by: A 3573201875 | ||
| 874 | A 3573201875 | SPRING BRACKET |
| AIR SPRING BELLOWS AND REAR AXLE SHOCK ABSORBER | ||
| 877 | A 3573510025 | U-BOLT |
| Repalced by: A 3573510125 | ||
| 877 | A 3573510125 | U-BOLT |
| SPRING BRACKET TO REAR AXLE | ||
| 880 | A 3573250176 | WASHER |
| Repalced by: A 3573250376 | ||
| 880 | A 3573250376 | WASHER |
| SPRING BRACKET TO REAR AXLE | ||
| 883 | N 913004024004 | NUT |
| SPRING BRACKET TO REAR AXLE | ||
| A 0029904022 | SCREW | |
| SPRING BRACKET TO REAR AXLE | ||
| 886 | A 3963200234 | SUPPORT |
| REAR AXLE,FRONT | ||
| 889 | A 3963520041 | BEARING BODY |
| TRIANGULAR CONTROL ARM,LEFT TORSION BAR | ||
| 889 | A 3963520141 | BEARING BODY |
| TRIANGULAR CONTROL ARM,RIGHT TORSION BAR | ||
| 890 | A 3963280441 | SUPPORT |
| Repalced by: A 3963280741 | ||
| 890 | A 3963280741 | SUPPORT |
| 892 | A 3963280284 | SHIM |
| BEARING BODY TO CONSOLE | ||
| 895 | N 000960012342 | SCREW |
| Repalced by: N 308676012015 | ||
| 895 | N 308676012015 | SCREW |
| SUPPORT AND BEARING BODY TO CONSOLE | ||
| 898 | N 000960014194 | SCREW |
| SUPPORT AND BEARING BODY TO CONSOLE | ||
| M 14X60 | ||
| 901 | N 000960014249 | SCREW |
| BEARING BODY TO SUPPORT | ||
| M 14X55 | ||
| 904 | N 000125013008 | WASHER |
| 907 | N 000125015019 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 910 | N 913004012008 | NUT |
| SUPPORT AND BEARING BODY TO CONSOLE | ||
| 913 | N 910113014001 | NUT |
| SUPPORT AND BEARING BODY TO CONSOLE | ||
| 913 | N 910113014001 | NUT |
| BEARING BODY TO SUPPORT | ||
| 914 | A 3963281740 | BRACKET |
| SPLASH GUARD TO AIR-SPRING-BELLOWS SUPPORT | ||
| 915 | A 3968820004 | SPLASH GUARD |
| AIR SPRING BELLOWS SUPPORT | ||
| 916 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 917 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 918 | N 304017006020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 6X20 | ||
| 918 | N 000933006127 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 6X25 | ||
| 919 | N 000125006421 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 920 | N 913004006001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 921 | A 3963520241 | BEARING BODY |
| UPPER CONTROL ARM | ||
| 922 | A 3173510350 | BUSHING |
| BEARING BODY TO REAR AXLE | ||
| 923 | A 3179900019 | SCREW |
| BEARING BODY TO REAR AXLE | ||
| 924 | A 3963500005 | CONTROL ARM |
| WISHBONE CONTROL ARM | ||
| 925 | A 0003500513 | REPAIR KIT |
| CENTRAL JOINT | ||
| 926 | A 0003500613 | REPAIR KIT |
| WITH SPHERICAL PIECE | ||
| 927 | N 308676020015 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| 928 | N 000137020205 | SPRING WASHER |
| CONTROL ARM TO BEARING BODY | ||
| 929 | A 3963500006 | CONTROL ARM |
| REAR AXLE,BOTTOM | ||
| 930 | A 0003500413 | REPAIR KIT |
| CONTROL ARM | ||
| 931 | A 3173331164 | RUBBER RING |
| CONTROL ARM TO SUPPORT | ||
| 932 | A 3173330162 | THRUST WASHER |
| CONTROL ARM TO SUPPORT | ||
| 933 | A 3079900014 | SCREW |
| CONTROL ARM TO SUPPORT | ||
| 935 | N 912004012100 | LOCK WASHER |
| CONTROL ARM TO SUPPORT | ||
| 937 | N 000960020092 | SCREW |
| Repalced by: N 308765020014 | ||
| 937 | N 308765020014 | HEXAGON HEAD BOLT |
| CONTROL ARM TO BEARING BRACKET | ||
| 938 | A 3933280152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 938 | A 3933280352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 939 | N 913004020003 | NUT |
| CONTROL ARM TO BEARING BRACKET | ||
| 941 | A 3963260565 | TORSION BAR |
| Repalced by: A 3963200611 | ||
| 941 | A 3963200611 | TORSION BAR |
| Repalced by: A 3963200911 | ||
| 941 | A 3963200911 | TORSION BAR |
| REAR AXLE | ||
| 943 | A 3963260069 | LEVER |
| REAR AXLE TORSION BAR | ||
| 943 | A 3963260169 | LEVER |
| REAR AXLE TORSION BAR | ||
| 945 | A 3963260050 | BUSHING |
| LEVER TO TORSION BAR | ||
| 946 | A 3963200635 | PLATE |
| Repalced by: A 3963200735 | ||
| 946 | A 3963200735 | PLATE |
| LEVER TO TORSION BAR | ||
| 947 | N 900055037200 | LOCK RING |
| LEVER TO TORSION BAR | ||
| 948 | N 000960016237 | SCREW |
| LEVER TO TORSION BAR | ||
| M 16X60 | ||
| 949 | N 000912016075 | SCREW |
| LEVER TO TORSION BAR | ||
| M 16X60 | ||
| 950 | A 3963230002 | COVER |
| TORSION BAR TO BEARING BODY | ||
| 951 | A 3963230050 | BUSHING |
| TORSION BAR TO BEARING BODY | ||
| 952 | N 308765016010 | SCREW |
| TORSION BAR TO BEARING BODY | ||
| 953 | N 910113016001 | NUT |
| TORSION BAR TO BEARING BODY | ||
| 955 | N 000960018087 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 957 | A 3213230167 | RETAINER |
| TOP | ||
| 959 | A 3203230044 | RUBBER BUFFER |
| TORSION BAR TO REAR AXLE | ||
| 961 | A 3219910340 | SPACER TUBE |
| 963 | A 3213230267 | RETAINER |
| BOTTOM | ||
| 965 | N 910113018004 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 967 | A 3963200443 | BRACKET |
| SHOCK ABSORBER | ||
| 969 | N 000961012016 | SCREW |
| SHOCK ABSORBER BRACKET TO CONSOLE | ||
| 971 | N 910113012003 | HEXAGON NUT |
| SHOCK ABSORBER BRACKET TO CONSOLE | ||
| 973 | A 3073260100 | SHOCK ABSORBER |
| Repalced by: A 3573200131 | ||
| 973 | A 3573200131 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 974 | A 0003260062 | THRUST WASHER |
| Repalced by: A 3173230667 | ||
| 974 | A 3173230667 | RETAINER |
| SHOCK ABSORBER | ||
| 975 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 977 | A 3073230044 | RUBBER BUFFER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 979 | A 3173230667 | RETAINER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 981 | N 913001014003 | NUT |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
