Transporto priemonė: OH 1622 L; VIN numerio dalis: 396456
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

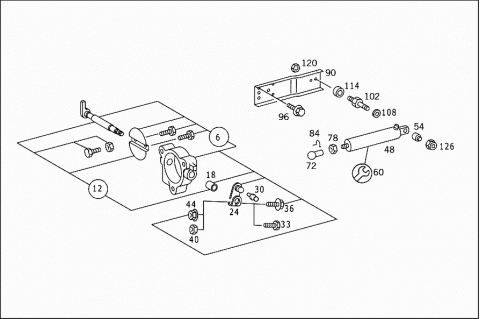

| 006 | A 3661400953 | THROTTLE HOUSING |
| Repalced by: A 3661402353 | ||
| 006 | A 3661402353 | THROTTLE HOUSING |
| Repalced by: A 3661405353 | ||
| 006 | A 3661405353 | THROTTLE HOUSING |
| PARTS KIT | ||
| 012 | A 3661400163 | VALVE |
| Repalced by: A 3661401163 | ||
| 012 | A 3661401163 | VALVE |
| PARTS KIT | ||
| 018 | A 4031440550 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 024 | A 3661400032 | LEVER |
| Repalced by: A 3661400232 | ||
| 024 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 030 | N 071803013208 | BALL PIVOT |
| 033 | N 000933006124 | SCREW |
| LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 036 | N 910105006005 | SCREW |
| Repalced by: N 000000001479 | ||
| 036 | N 000000001479 | SCREW |
| LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 040 | N 000934006007 | NUT |
| LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 044 | N 913023006001 | NUT |
| LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 048 | A 0004304226 | CYLINDER |
| Repalced by: A 0004303026 | ||
| 048 | A 0004303026 | CYLINDER |
| Repalced by: A 0004304826 | ||
| 048 | A 0004304826 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 048 | A 0004303226 | CYLINDER |
| Repalced by: A 0004304926 | ||
| 048 | A 0004304926 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 048 | A 0004306026 | CYLINDER |
| Repalced by: A 0004305926 | ||
| 048 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| TECHNOMATIK | ||
| Repalced by: A 0004307926 | ||
| 048 | A 0004307926 | WORKING CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| TECHNOMATIK | ||
| 054 | A 0004340550 | BUSHING |
| Repalced by: A 0004340850 | ||
| 054 | A 0004340850 | BUSHING |
| TO 000 430 30 26/32 26 | ||
| 054 | A 4421440050 | BUSHING |
| TO 000 430 48 26/49 26 | ||
| 060 | A 0004308460 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,SZ 1130 I/74963,000 430 30 26 | ||
| 060 | A 0004305426 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,000 430 48 26 | ||
| 072 | A 4039910222 | BALL SOCKET |
| POWER CYLINDER TO THROTTLE VALVE LEVER | ||
| 072 | A 3769917022 | BALL SOCKET |
| POWER CYLINDER TO THROTTLE VALVE LEVER | ||
| 078 | N 304035008001 | NUT |
| POWER CYLINDER TO THROTTLE VALVE LEVER | ||
| 084 | N 071805013402 | CIRCLIP |
| POWER CYLINDER TO THROTTLE VALVE LEVER | ||
| 090 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 090 | A 3661440440 | BRACKET |
| POWER CYLINDER | ||
| 096 | N 914126008037 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 102 | A 4221440174 | PIN |
| Repalced by: A 4421440574 | ||
| 102 | A 4421440574 | PIN |
| POWER CYLINDER TO BRACKET | ||
| 102 | A 4421440274 | PIN |
| POWER CYLINDER TO BRACKET | ||
| 108 | N 007349008003 | WASHER |
| POWER CYLINDER TO BRACKET | ||
| 114 | N 000125008443 | WASHER |
| POWER CYLINDER TO BRACKET | ||
| 114 | A 0039902940 | WASHER |
| SHIFTING CYLINDER | ||
| 120 | N 000934008010 | NUT |
| POWER CYLINDER TO BRACKET | ||
| 126 | N 913004008004 | NUT |
| POWER CYLINDER TO BRACKET | ||
| 129 | A 3964921030 | PROTECTIVE PLATE |
| POWER CYLINDER | ||
| 132 | A 3964920630 | PROTECTIVE PLATE |
| POWER CYLINDER | ||
| 135 | N 304017008016 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 138 | N 009021008213 | WASHER |
| HEAT SHIELD TO BRACKET | ||
| 141 | N 913004008004 | NUT |
| HEAT SHIELD TO BRACKET | ||
| 144 | A 3964922141 | BRACKET |
| HEAT SHIELD | ||
| 147 | A 3964922041 | BRACKET |
| HEAT SHIELD | ||
| 150 | N 304017006016 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 153 | N 009021006208 | WASHER |
| HEAT SHIELD TO BRACKET | ||
| 156 | N 913004006001 | NUT |
| HEAT SHIELD TO BRACKET | ||
| 159 | A 3964920133 | PIPE ELBOW |
| FRONT | ||
| 162 | A 3964900219 | EXHAUST PIPE |
| FRONT LEFT | ||
| 162 | A 3964900419 | EXHAUST PIPE |
| Repalced by: A 3964900819 | ||
| 162 | A 3964900819 | EXHAUST PIPE |
| FRONT LEFT | ||
| 162 | A 3964900019 | EXHAUST PIPE |
| FRONT LEFT | ||
| 165 | A 3964900319 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 165 | A 3964900519 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 165 | A 3964900119 | EXHAUST PIPE |
| FRONT RIGHT | ||
| 165 | A 3964920233 | PIPE ELBOW |
| FRONT RIGHT | ||

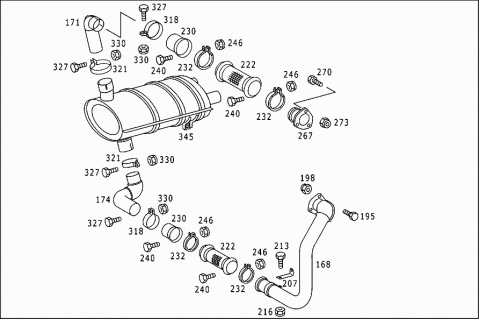

| 168 | A 3964901119 | EXHAUST PIPE |
| FRONT LEFT | ||
| 171 | A 3964900919 | EXHAUST PIPE |
| 174 | A 3964901019 | EXHAUST PIPE |
| RIGHT BOTTOM | ||
| 177 | A 3964920004 | REAR EXHAUST PIPE |
| TOP | ||
| 180 | A 3964900630 | PROTECTIVE PLATE |
| CONNECTOR | ||
| 183 | A 3964900440 | BRACKET |
| CONNECTOR | ||
| 186 | N 000933006207 | SCREW |
| CONNECTOR | ||
| 189 | N 000137006204 | SPRING WASHER |
| CONNECTOR | ||
| 192 | N 000961012208 | SCREW |
| PIPE ELBOW AND THROTTLE HOUSING TO EXHAUST MANIFOLD | ||
| M 12 X 75 | ||
| 195 | N 308676012011 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12 X 50 | ||
| 195 | N 000960012342 | SCREW |
| Repalced by: N 308676012015 | ||
| 195 | N 308676012015 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12 X 45 | ||
| 198 | N 910113012006 | NUT |
| PIPE ELBOW AND THROTTLE HOUSING TO EXHAUST MANIFOLD | ||
| 198 | N 910113012006 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 201 | A 3964920341 | BRACKET |
| FRONT EXHAUST PIPE TO CLUTCH BELL | ||
| 204 | A 3964922441 | BRACKET |
| Repalced by: A 6994927041 | ||
| 204 | A 6994927041 | BRACKET |
| FRONT EXHAUST PIPE TO CLUTCH BELL | ||
| 207 | A 3964923341 | BRACKET |
| FRONT EXHAUST PIPE TO CLUTCH BELL | ||
| 210 | N 071555075502 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 213 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 216 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 218 | A 6204900465 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE | ||
| 220 | A 6204900365 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE | ||
| 222 | A 6554900165 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE | ||
| 225 | A 6204920208 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 230 | A 6174920008 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 230 | A 3964920008 | COLLAR |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 232 | A 6209970590 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 234 | A 6209970490 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 240 | N 000933008161 | SCREW |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 240 | N 304017008027 | SCREW |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 246 | N 913004008004 | NUT |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 252 | A 3964900425 | CONNECTOR |
| 258 | A 3964900325 | CONNECTOR |
| LEFT | ||
| 258 | A 3964900725 | CONNECTOR |
| Repalced by: A 3964901225 | ||
| 258 | A 3964901225 | CONNECTOR |
| LEFT | ||
| 258 | A 3964900025 | CONNECTOR |
| LEFT | ||
| 264 | A 3964900125 | CONNECTOR |
| RIGHT | ||
| 264 | A 3964900125 | CONNECTOR |
| RIGHT | ||
| A 3964920809 | CONNECTOR | |
| RIGHT | ||
| 264 | A 3964920909 | CONNECTOR |
| RIGHT | ||
| 267 | A 3964901325 | CONNECTOR |
| RIGHT | ||
| 270 | N 000960012342 | SCREW |
| Repalced by: N 308676012015 | ||
| 270 | N 308676012015 | SCREW |
| FROM CONNECTOR TO PIPE ELBOW | ||
| 273 | N 910113012006 | NUT |
| FROM CONNECTOR TO PIPE ELBOW | ||
| 276 | A 3964920741 | BRACKET |
| CONNECTOR | ||
| 279 | N 000933012064 | SCREW |
| BRACKET TO FRAME | ||
| 282 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 285 | A 3964920941 | BRACKET |
| RIGHT CONNECTOR | ||
| 288 | A 3964921641 | BRACKET |
| RIGHT CONNECTOR | ||
| A 3964922641 | BRACKET | |
| Repalced by: A 3964920041 | ||
| A 3964920041 | BRACKET | |
| RIGHT CONNECTOR | ||
| 288 | A 3964920041 | BRACKET |
| RIGHT CONNECTOR | ||
| 289 | A 3964921041 | BRACKET |
| RIGHT CONNECTOR | ||
| 290 | N 304017010002 | SCREW |
| BRACKET TO FRAME | ||
| 291 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 292 | N 071555075502 | CLAMP |
| CONNECTOR TO BRACKET | ||
| 293 | N 304017010002 | SCREW |
| CONNECTOR TO BRACKET | ||
| 294 | N 910113010000 | NUT |
| CONNECTOR TO BRACKET | ||
| 297 | A 3964920141 | BRACKET |
| RIGHT CONNECTOR | ||
| 297 | A 3964920141 | BRACKET |
| RIGHT CONNECTOR | ||
| A 3964921741 | BRACKET | |
| RIGHT CONNECTOR | ||
| A 3964921841 | BRACKET | |
| RIGHT CONNECTOR | ||
| 300 | N 000933010105 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 306 | N 910113010000 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 312 | A 6204920940 | CLAMP |
| CONNECTOR TO BRACKET | ||
| 312 | A 6204920940 | CLAMP |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 315 | A 6204920340 | CLAMP |
| EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 318 | N 071555090502 | CLAMP |
| SLIDING PIECE TO EXHAUST PIPE | ||
| 321 | N 071555094502 | CLAMP |
| EXHAUST PIPE TO FRONT EXHAUST MUFFLER | ||
| 324 | A 6204920840 | CLAMP |
| CONNECTOR TO BRACKET | ||
| 327 | N 304017010002 | SCREW |
| CLAMP ON BRACKET | ||
| 330 | N 910113010000 | NUT |
| CLAMP ON BRACKET | ||

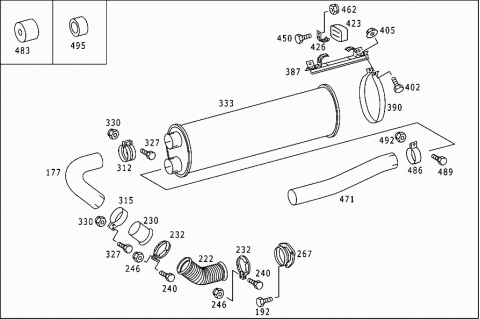

| 333 | A 6774900001 | EXHAUST MUFFLER |

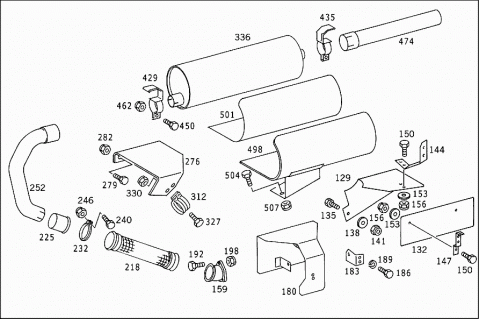

| 336 | A 3974900101 | EXHAUST MUFFLER |

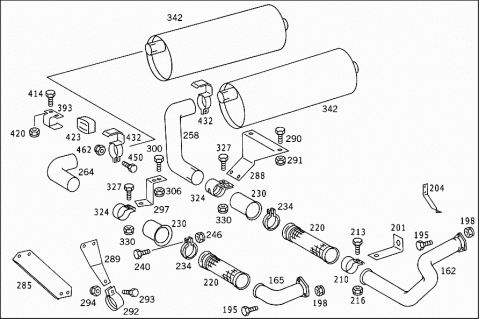

| 342 | A 6204900001 | EXHAUST MUFFLER |
| 345 | A 3964900101 | EXHAUST MUFFLER |
| 348 | A 3014910118 | PLATE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 351 | A 3014910053 | SPACER TUBE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 354 | A 3004910115 | CONSOLE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 357 | N 304017008034 | SCREW |
| CONSOLE TO EXHAUST MUFFLER | ||
| 360 | N 000125008443 | WASHER |
| CONSOLE TO EXHAUST MUFFLER | ||
| 363 | N 999901008000 | NUT |
| CONSOLE TO EXHAUST MUFFLER | ||
| 366 | A 3004910183 | INSULATION |
| CONSOLE TO EXHAUST MUFFLER | ||
| 366 | A 3004910283 | INSULATION |
| CONSOLE TO EXHAUST MUFFLER | ||
| 369 | A 3964921141 | BRACKET |
| EXHAUST MUFFLER,FRONT | ||
| 372 | N 308676014008 | SCREW |
| BRACKET TO FRAME | ||
| 375 | N 910113014000 | NUT |
| BRACKET TO FRAME | ||
| 378 | A 3965500338 | SUPPORT |
| EXHAUST MUFFLER,REAR | ||
| 381 | N 000961012025 | SCREW |
| REAR SUPPORT TO FRAME | ||
| 381 | N 000961012164 | SCREW |
| SUPPORT TO CONSOLE | ||
| 384 | N 913004012008 | NUT |
| REAR SUPPORT TO FRAME | ||
| 384 | N 913004012008 | NUT |
| SUPPORT TO CONSOLE | ||
| 387 | A 3964900034 | SUPPORT |
| EXHAUST MUFFLER | ||
| 390 | A 6744912641 | BRACKET |
| Repalced by: A 6744914541 | ||
| 390 | A 6744914541 | STRAP |
| EXHAUST MUFFLER | ||
| 393 | A 6174911316 | SUPPORT |
| EXHAUST MUFFLER | ||
| 396 | A 3014910015 | CONSOLE |
| EXHAUST PIPE TO SUBSTRUCTURE | ||
| 399 | A 3964920016 | SUPPORT |
| EXHAUST PIPE TO SUBSTRUCTURE | ||
| 402 | N 000933010164 | SCREW |
| BRACKET TO EXHAUST MUFFLER | ||
| 405 | N 910113010000 | NUT |
| BRACKET TO EXHAUST MUFFLER | ||
| 408 | A 3964900330 | PROTECTIVE PLATE |
| 408 | A 3964900930 | PROTECTIVE PLATE |
| 408 | A 3964902030 | PROTECTIVE PLATE |
| 408 | A 3964902130 | PROTECTIVE PLATE |
| 411 | A 3004910030 | PROTECTIVE PLATE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 414 | N 000933010128 | SCREW |
| SUPPORT TO BRACKET AND TO SUPPORT, RESP. | ||
| 414 | N 000933010128 | SCREW |
| PROTECTIVE PLATE TO SUPPORT | ||
| 414 | N 000933010105 | SCREW |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET AND TO SUPPORT | ||
| 414 | N 304017010002 | SCREW |
| EXHAUST PIPE TO SUBSTRUCTURE | ||
| 417 | N 000125010532 | WASHER |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET AND TO SUPPORT | ||
| 417 | N 000125010532 | WASHER |
| PROTECTIVE PLATE TO SUPPORT | ||
| 417 | N 007989011201 | WASHER |
| EXHAUST PIPE TO SUBSTRUCTURE | ||
| 420 | N 910113010000 | NUT |
| SUPPORT TO BRACKET AND TO SUPPORT, RESP. | ||
| 420 | N 910113010000 | NUT |
| SUPPORT AND PROTECTIVE PLATE TO BRACKET AND TO SUPPORT | ||
| 420 | N 910113010000 | NUT |
| PROTECTIVE PLATE TO SUPPORT | ||
| 420 | N 910113010000 | NUT |
| EXHAUST PIPE TO SUBSTRUCTURE | ||
| 423 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUPPORT | ||
| 426 | A 3964923241 | BRACKET |
| EXHAUST MUFFLER | ||
| 429 | A 3964900240 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 432 | A 3964900040 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 435 | A 3964900340 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 438 | A 3964900140 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 441 | A 3965510040 | BRACKET |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 441 | A 3965500338 | SUPPORT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 444 | A 3964923441 | BRACKET |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 447 | A 3964900840 | BRACKET |
| AT CONSOLE | ||
| 450 | N 000933010105 | SCREW |
| BRACKET TO EXHAUST MUFFLER | ||
| M 10X25 | ||
| 450 | N 000933010128 | SCREW |
| BRACKET TO EXHAUST MUFFLER | ||
| M 10X20 | ||
| 453 | N 000933010128 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 453 | N 000933010128 | SCREW |
| BRACKET ON CONSOLE | ||
| 456 | N 000933012064 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| M 12X25 | ||
| 459 | N 000933014002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X28 | ||
| 462 | N 910113010000 | NUT |
| BRACKET TO EXHAUST MUFFLER | ||
| 462 | N 910113010000 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 465 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 468 | N 913004012008 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 471 | A 3964920514 | END PIECE |
| 474 | A 3964920114 | END PIECE |
| 477 | A 3004920014 | END PIECE |
| 480 | A 3964920014 | END PIECE |
| Repalced by: A 3604921907 | ||
| 480 | A 3604921907 | CONNECTOR |
| TAIL PIPE | ||
| A 3964923141 | BRACKET | |
| TAIL PIPE | ||
| 483 | A 0019879640 | RUBBER BUFFER |
| END PIECE TO SUPPORT | ||
| 486 | N 071555090502 | CLAMP |
| END PIECE TO SUPPORT | ||
| 489 | N 304017008021 | SCREW |
| END PIECE TO SUPPORT | ||
| 492 | N 913004008004 | NUT |
| END PIECE TO SUPPORT | ||
| 495 | A 3013280050 | BUSHING |
| Repalced by: A 4405520053 | ||
| 495 | A 4405520053 | SPACER TUBE |
| END PIECE TO SUPPORT | ||
| 498 | A 3964900030 | PROTECTIVE PLATE |
| (HEAT SHIELD) | ||
| 501 | A 3964920083 | INSULATION |
| 504 | N 000961012164 | SCREW |
| HEAT SHIELD TO APPARATUS SUPPORT AND TO FRAME | ||
| 507 | N 913004012008 | NUT |
| HEAT SHIELD TO APPARATUS SUPPORT AND TO FRAME | ||
| 510 | A 3964920614 | END PIECE |
| 513 | A 3034930643 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 516 | N 000933010105 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 519 | N 000934010014 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 522 | N 007513003207 | TAPPING SCREW |
| CHROMIUM JACKET TO REAR EXHAUST PIPE | ||
| 525 | A 3964924041 | BRACKET |
| TAIL PIPE TO BRACKET | ||
| 528 | A 0019875240 | RUBBER BUFFER |
| TAIL PIPE TO BRACKET | ||
| 531 | A 3964923941 | BRACKET |
| TAIL PIPE TO BRACKET | ||
| 534 | A 3189950135 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 537 | N 913004008004 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 540 | N 000933010105 | SCREW |
| CLAMP TO BRACKET | ||
| 543 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| 546 | N 000933010128 | SCREW |
| TAIL PIPE BEARING TO CONSOLE | ||
| 549 | N 910113010000 | NUT |
| TAIL PIPE BEARING TO CONSOLE | ||

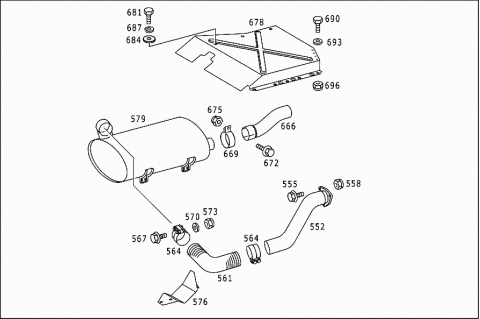

| 552 | A 6184900019 | EXHAUST PIPE |
| FROM THROTTLE HOUSING TO FLEXIBLE METAL TUBE | ||
| 555 | A 0029907104 | SCREW |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 558 | N 999901012000 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 561 | A 3574920959 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO MUFFLER | ||
| 564 | A 3574921240 | CLAMP |
| EXHAUST PIPE ON METAL HOSE AND MUFFLER | ||
| 567 | A 0019908604 | SCREW |
| Repalced by: N 910105010011 | ||
| 567 | N 910105010011 | HEXAGON HEAD BOLT |
| CLAMP TO EXHAUST PIPE | ||
| 570 | N 000125010532 | WASHER |
| CLAMP TO EXHAUST PIPE | ||
| 573 | N 999901010000 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 576 | A 3564900030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 579 | A 6184900001 | EXHAUST MUFFLER |
| 579 | A 6184900501 | EXHAUST MUFFLER |

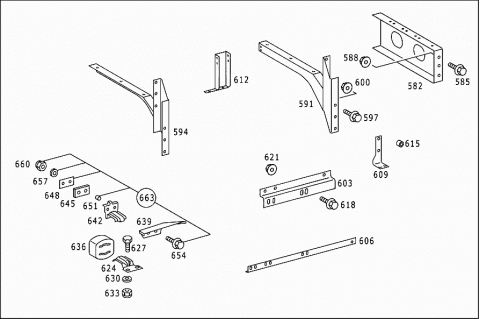

| 582 | A 6975503338 | SUPPORT |
| BRACKET TO SIDE MEMBER | ||
| 585 | A 0029902804 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 588 | A 0009906750 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 591 | A 6974903040 | BRACKET |
| LEFT | ||
| 594 | A 6974903140 | BRACKET |
| RIGHT | ||
| 597 | A 0029902804 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 597 | A 0029902704 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X30 | ||
| 600 | A 0009906750 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 603 | A 6974923016 | SUPPORT |
| OUTSIDE | ||
| 606 | A 6974923116 | SUPPORT |
| INSIDE | ||
| 609 | A 6974923841 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 612 | A 6974903240 | BRACKET |
| CONSOLE TO CONSOLE | ||
| 615 | A 6974923053 | SPACER TUBE |
| BRACKET TO SIDE MEMBER | ||
| 618 | A 0029902804 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 618 | A 0029902804 | SCREW |
| CONSOLE TO CONSOLE | ||
| M 12X35 | ||
| 618 | A 0029902704 | SCREW |
| CONSOLE TO CONSOLE | ||
| M 12X30 | ||
| 618 | A 0019908704 | SCREW |
| CONSOLE TO CONSOLE | ||
| M 10X45 | ||
| 618 | N 910105010009 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 618 | A 0019903704 | SCREW |
| CONSOLE TO CONSOLE | ||
| M 8X20 | ||
| 621 | A 0009906750 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 621 | A 0009906750 | NUT |
| CONSOLE TO CONSOLE | ||
| 621 | A 0009906550 | NUT |
| CONSOLE TO CONSOLE | ||
| 621 | A 0009906350 | NUT |
| CONSOLE TO CONSOLE | ||
| 624 | A 3014910015 | CONSOLE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 627 | A 0019908304 | SCREW |
| CONSOLE TO SUBSTRUCTURE | ||
| 630 | N 000125010532 | WASHER |
| CONSOLE TO SUBSTRUCTURE | ||
| 633 | N 999901010000 | NUT |
| CONSOLE TO SUBSTRUCTURE | ||
| 636 | A 3004920082 | DAMPING PAD |
| CONSOLE TO CONSOLE | ||
| 639 | A 3004910030 | PROTECTIVE PLATE |
| HEAT INSULATION OF RUBBER PARTS | ||
| 642 | A 3004910115 | CONSOLE |
| EXHAUST MUFFLER SUSPENSION | ||
| 645 | A 3004910183 | INSULATION |
| EXHAUST MUFFLER SUSPENSION | ||
| 645 | A 3004910283 | INSULATION |
| EXHAUST MUFFLER SUSPENSION | ||
| 648 | A 3014910118 | PLATE |
| EXHAUST MUFFLER SUSPENSION | ||
| 651 | A 3014910053 | SPACER TUBE |
| EXHAUST MUFFLER SUSPENSION | ||
| 654 | A 0019904104 | SCREW |
| Repalced by: N 910142008009 | ||
| 654 | N 910142008009 | SCREW |
| EXHAUST MUFFLER SUSPENSION | ||
| 657 | N 000125008443 | WASHER |
| EXHAUST MUFFLER SUSPENSION | ||
| 660 | N 999901008000 | NUT |
| EXHAUST MUFFLER SUSPENSION | ||
| 663 | A 3014900037 | SUSPENSION |
| PARTS KIT | ||
| 666 | A 6974903021 | EXHAUST PIPE |
| TAIL PIPE | ||
| 669 | N 071555094502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 672 | A 0019908504 | SCREW |
| CLAMP TO EXHAUST PIPE | ||
| 675 | N 999901010000 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 678 | A 6974903030 | PROTECTIVE PLATE |
| (HEAT SHIELD) EXHAUST TAIL PIPE | ||
| 681 | N 304017008007 | SCREW |
| HEAT SHIELD MOUNTING,FRONT | ||
| M 8X20 | ||
| 684 | N 009021008205 | WASHER |
| HEAT SHIELD MOUNTING,FRONT | ||
| 687 | N 912004008102 | LOCK WASHER |
| HEAT SHIELD MOUNTING,FRONT | ||
| 690 | N 304017010028 | HEXAGON HEAD BOLT |
| HEAT SHIELD MOUNTING, REAR | ||
| M10X20 | ||
| 693 | N 000125010532 | WASHER |
| HEAT SHIELD MOUNTING, REAR | ||
| 696 | N 910113010000 | NUT |
| HEAT SHIELD MOUNTING, REAR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
