Transporto priemonė: OH 1622 L; VIN numerio dalis: 396456

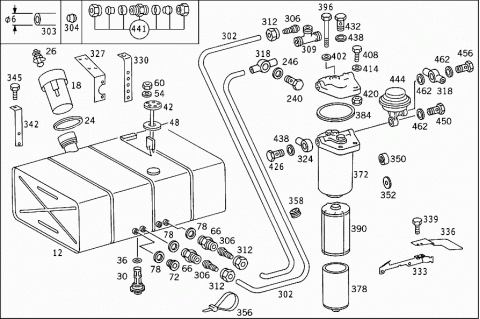

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 3964701801 | FUEL TANK |
| 200 L | ||
| 012 | A 3964702301 | FUEL TANK |
| 200 L | ||
| 012 | A 3964702401 | FUEL TANK |
| 200 L | ||
| 018 | A 0004716630 | FILLER CAP |
| 024 | A 0004710980 | GASKET |
| Repalced by: A 0004712780 | ||
| 024 | A 0004712780 | GASKET |
| 026 | A 0004700993 | VALVE |
| 030 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 030 | A 3074700106 | FUEL STRAINER |
| FUEL TANK | ||
| 036 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 042 | A 0005426117 | SENDER UNIT |
| FUEL GAUGE | ||
| 048 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 054 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 060 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 066 | N 003901010001 | SCREW-IN FITTING |
| FEED LINE AND RETURN LINE | ||
| 072 | N 000908014009 | SCREW PLUG |
| AT TANK | ||
| 078 | N 007603014405 | SEAL RING |
| AT TANK | ||

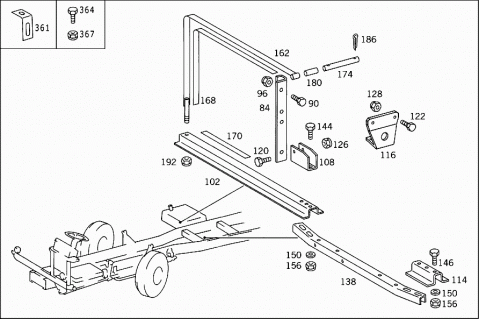

| 084 | A 3964750003 | CONSOLE |
| FUEL TANK | ||
| 084 | A 3964750003 | CONSOLE |
| FUEL TANK | ||
| 084 | A 3964750403 | CONSOLE |
| FUEL TANK | ||
| 084 | A 3964750503 | CONSOLE |
| FUEL TANK | ||
| 090 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 090 | N 000961014111 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 096 | N 913004012008 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 096 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 102 | A 3964750203 | CONSOLE |
| Repalced by: A 3964750101 | ||
| 102 | A 3964750101 | SUPPORT |
| FUEL TANK | ||
| 102 | A 3964750203 | CONSOLE |
| Repalced by: A 3964750101 | ||
| 102 | A 3964750101 | SUPPORT |
| FUEL TANK | ||
| 102 | A 3964750101 | SUPPORT |
| FUEL TANK | ||
| 108 | A 3964750103 | CONSOLE |
| TOP | ||
| 114 | A 3964750303 | CONSOLE |
| BOTTOM | ||
| 114 | A 3964750303 | CONSOLE |
| BOTTOM | ||
| 116 | A 3964750440 | BRACKET |
| SUPPORT TO CONSOLE | ||
| 120 | N 000961010010 | SCREW |
| CONSOLE TO CONSOLE | ||
| 122 | N 000961012164 | SCREW |
| BRACKET TO CONSOLE | ||
| 122 | N 000961012164 | SCREW |
| BRACKET TO FRAME | ||
| 126 | N 910113010002 | HEXAGON NUT |
| CONSOLE TO CONSOLE | ||
| 128 | N 913004012008 | NUT |
| BRACKET TO CONSOLE | ||
| 128 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 138 | A 3964750140 | BRACKET |
| FRONT | ||
| 138 | A 3964750040 | BRACKET |
| REAR | ||
| 144 | N 000961012097 | SCREW |
| BRACKET TO CONSOLE | ||
| M 12X35 | ||
| 146 | N 000961012151 | SCREW |
| BRACKET TO CONSOLE | ||
| M 12X30 | ||
| 146 | N 000961012164 | SCREW |
| BRACKET TO CONSOLE | ||
| 150 | N 000125013008 | WASHER |
| BRACKET TO CONSOLE | ||
| 156 | N 913004012008 | NUT |
| BRACKET TO CONSOLE | ||
| 162 | A 3964700040 | STRAP |
| FUEL TANK | ||
| 168 | A 3634750120 | PAD |
| FUEL TANK TO CONSOLE | ||
| 170 | A 3634750320 | PAD |
| FUEL TANK TO CONSOLE | ||
| 174 | N 001443016204 | PIN |
| FUEL TANK TO CONSOLE | ||
| 180 | A 3819910940 | SPACER TUBE |
| FUEL TANK TO CONSOLE | ||
| 186 | N 000094004056 | COTTER PIN |
| FUEL TANK TO CONSOLE | ||
| 192 | N 913004012008 | NUT |
| FUEL TANK TO CONSOLE | ||
| 240 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 246 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 302 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 8X11 MM | ||
| 302 | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 8X11 MM | ||
| 303 | N 073379006203 | HOSE |
| AT FEED PUMP | ||
| 304 | N 915062004000 | SLEEVE |
| FOR HOSE | ||
| 306 | A 0019974972 | FITTING |
| FEED LINE AND RETURN LINE | ||
| 306 | A 0019974972 | FITTING |
| FEED LINE AND RETURN LINE | ||
| 306 | A 0019975272 | FITTING |
| FEED LINE AND RETURN LINE | ||
| 309 | N 915021010000 | FITTING |
| FOR RETURN LINE | ||
| 312 | N 915017010200 | UNION NUT |
| FEED LINE AND RETURN LINE | ||
| 312 | N 915017010200 | UNION NUT |
| FEED LINE AND RETURN LINE | ||
| 318 | A 0009908188 | BANJO UNION |
| FEED LINE AND RETURN LINE | ||
| 324 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 324 | N 000000000363 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| 324 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 324 | N 000000000363 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 8/14 MM | ||
| 327 | A 6154760336 | BRACKET |
| LINE MOUNTING | ||
| 330 | A 3604292940 | BRACKET |
| LINE MOUNTING | ||
| 333 | A 3964700081 | BRACKET |
| LINE MOUNTING | ||
| 336 | A 3964760046 | PROTECTIVE PLATE |
| PROTECTIVE PLATE TO BRACKET | ||
| 339 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| 342 | A 3965011620 | BRACKET |
| BRACKET TO ENGINE | ||
| 345 | N 000933010105 | SCREW |
| BRACKET TO ENGINE | ||
| 350 | A 3609902440 | WASHER |
| Repalced by: A 3609902340 | ||
| 350 | A 3609902340 | WASHER |
| FUEL LINE TO CONSOLE | ||
| 352 | N 009021008213 | WASHER |
| FUEL LINE TO CONSOLE | ||
| 356 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 356 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 356 | A 0019978390 | CABLE TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 358 | A 3859970081 | GROMMET |
| ELECTRIC CABLE THRU FRAME | ||
| 361 | A 6205240340 | BRACKET |
| FOR CROSS MEMBER NO.5 | ||
| 364 | N 000933012064 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 367 | N 913004012008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 372 | A 0014779801 | FUEL FILTER |
| 378 | A 4220900007 | HOUSING |
| 384 | A 0004773180 | SEAL RING |
| 390 | A 4220900051 | FILTER ELEMENT |
| Repalced by: A 0000901451 | ||
| 390 | A 0000901451 | TS FILTER INSERT |
| 396 | N 000931008251 | SCREW |
| 402 | N 007603008109 | SEAL RING |
| 408 | N 000961012122 | SCREW |
| FUEL FILTER TO APPARATUS SUPPORT | ||
| 414 | N 000125013008 | WASHER |
| FUEL FILTER TO APPARATUS SUPPORT | ||
| 420 | N 913004012008 | NUT |
| FUEL FILTER TO APPARATUS SUPPORT | ||
| 426 | N 915036010108 | HOLLOW SCREW |
| FEED LINE TO FUEL FILTER | ||
| 432 | A 3529970772 | HOLLOW SCREW |
| Repalced by: A 6159900263 | ||
| 432 | A 6159900263 | HOLLOW SCREW |
| RETURN LINE TO FUEL FILTER | ||
| 438 | N 007603014405 | SEAL RING |
| FUEL LINE TO FUEL FILTER | ||
| 441 | A 0049971672 | FITTING |
| FUEL LINE AT ENGINE FEED | ||
| 444 | A 0000911190 | PUMP |
| (MANUAL AUXILIARY PUMP) | ||
| 450 | A 0009906863 | HOLLOW SCREW |
| HAND PUMP TO FUEL FILTER | ||
| 450 | A 4219900063 | HOLLOW SCREW |
| HAND PUMP TO FUEL FILTER | ||
| 456 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO HAND PUMP | ||
| 462 | N 007603014405 | SEAL RING |
| FUEL LINE TO HAND PUMP | ||
