Transporto priemonė: OH 1622 L; VIN numerio dalis: 396456
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

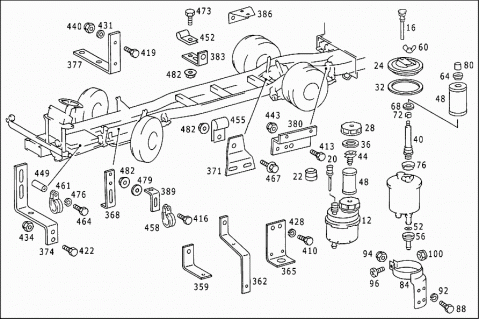

| 012 | A 0004663802 | TANK |
| Repalced by: A 0004664502 | ||
| 012 | A 0004664502 | TANK |
| OIL | ||
| 016 | A 0004660218 | PIPE |
| TO 000 466 38 02 | ||
| 020 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 020 | A 0004660867 | OIL DIPSTICK |
| TO 000 466 45 02 | ||
| 022 | A 1233270059 | PROTECTIVE CAP |
| 024 | A 0004662005 | COVER |
| TO 000 466 38 02 | ||
| 028 | A 0004660068 | FILLER CAP |
| TO 000 466 45 02 | ||
| 032 | A 0004660260 | SEAL RING |
| TO 000 466 38 02 | ||
| 036 | A 0004661760 | SEAL RING |
| TO 000 466 45 02 | ||
| 040 | A 0014664465 | FILTER CARRIER |
| TO 000 466 38 02 | ||
| 044 | A 0004660740 | BRACKET |
| TO 000 466 45 02 | ||
| 048 | A 0004660604 | FILTER |
| 052 | A 0059970848 | SEAL RING |
| TO 000 466 38 02 | ||
| 056 | A 0004660558 | CONNECTOR |
| TO 000 466 38 02 | ||
| 060 | N 000315008006 | NUT |
| TO 000 466 38 02 | ||
| 064 | A 0004660675 | CENTERING RING |
| TO 000 466 38 02 | ||
| 068 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 068 | A 9402680552 | SPACER WASHER |
| TO 000 466 38 02 | ||
| 072 | A 0004660153 | SPACER TUBE |
| TO 000 466 38 02 | ||
| 076 | A 0004660238 | COVER PLATE |
| TO 000 466 38 02 | ||
| 080 | A 0009870643 | RUBBER SLEEVE |
| TO 000 466 38 02 | ||
| 084 | A 3964600435 | BRACKET |
| OIL TANK | ||
| 088 | N 000933010128 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 092 | N 912004010102 | LOCK WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 094 | N 910113010000 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 096 | N 007985006139 | SCREW |
| OIL TANK TO BRACKET | ||
| 100 | N 913002006009 | NUT |
| OIL TANK TO BRACKET | ||
| 104 | A 3834660181 | HOSE |
| SUCTION LINE | ||
| 106 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 106 | A 3859971582 | HOSE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 106 | A 3859971582 | HOSE |
| OIL LINE CONNECTION | ||
| 108 | A 3964661065 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 112 | N 000000000667 | CLAMP |
| HOSE TO SUCTION LINE AND TO OIL TANK | ||
| 116 | A 3964602824 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 116 | A 3964602524 | LINE |
| Repalced by: A 0004291601 | ||
| 116 | A 0004291601 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 116 | A 3964602524 | LINE |
| Repalced by: A 0004291601 | ||
| 116 | A 0004291601 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 116 | A 3964602524 | LINE |
| Repalced by: A 0004291601 | ||
| 116 | A 0004291601 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 116 | A 3964600924 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 116 | A 3964600924 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 116 | A 3964600924 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 116 | A 3964600924 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 122 | A 3964603424 | LINE |
| Repalced by: A 0004291601 | ||
| 122 | A 0004291601 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||

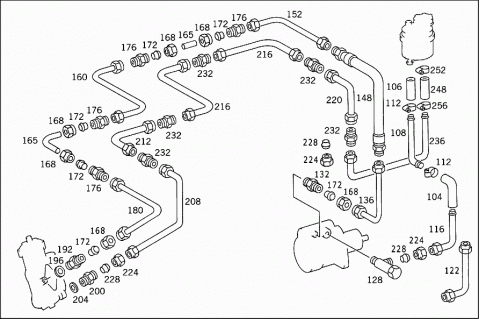

| 128 | A 0009907168 | FITTING |
| SUCTION LINE TO OIL PUMP | ||
| 132 | A 3529970671 | FITTING |
| DELIVERY LINE TO PUMP | ||
| 136 | A 3964602724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 136 | A 3964602624 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 136 | A 3964602624 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 136 | A 3964602624 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 136 | A 3964601024 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 136 | A 3964601024 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 136 | A 3964601024 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 136 | A 3964603224 | LINE |
| Repalced by: A 0005516256 | ||
| 136 | A 0005516256 | TUBE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 136 | A 3964603724 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 148 | A 3059971682 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 148 | A 3579972782 | HOSE |
| (DELIVERY LINE),FROM PUMP TO STEERING | ||
| 152 | A 3964601224 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 152 | A 3964601224 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 152 | A 3964603324 | LINE |
| Repalced by: A 0005516256 | ||
| 152 | A 0005516256 | TUBE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 160 | A 3964601424 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 165 | A 3964601324 | LINE |
| Repalced by: A 0005516256 | ||
| 165 | A 3964601524 | LINE |
| Repalced by: A 0005516256 | ||
| 165 | A 0005516256 | TUBE |
| DELIVERY LINE | ||
| 15X1.5 MM | ||
| 168 | N 915017015100 | UNION NUT |
| DELIVERY LINE | ||
| 172 | N 003861015004 | GLAND |
| DELIVERY LINE | ||
| 176 | N 003902015002 | CONNECTION FITTING |
| BETWEEN THE LINES | ||
| 180 | A 3964602324 | LINE |
| Repalced by: A 3964602924 | ||
| 180 | A 3964602924 | LINE |
| FROM CONNECTION FITTING TO STEERING | ||
| 180 | A 3964601624 | LINE |
| FROM CONNECTION FITTING TO STEERING | ||
| 192 | A 3529970671 | FITTING |
| DELIVERY LINE TO STEERING | ||
| 196 | N 007603016103 | SEAL RING |
| DELIVERY LINE TO STEERING | ||
| 200 | A 3529970571 | FITTING |
| RETURN LINE TO STEERING | ||
| 204 | N 007603018101 | SEAL RING |
| RETURN LINE TO STEERING | ||
| 208 | A 3964602424 | LINE |
| Repalced by: A 3964603024 | ||
| 208 | A 3964603024 | LINE |
| Repalced by: A 0004291601 | ||
| 208 | A 0004291601 | LINE |
| FROM STEERING TO CONNECTOR I | ||
| 208 | A 3964601724 | LINE |
| Repalced by: A 0004291601 | ||
| 208 | A 0004291601 | LINE |
| FROM STEERING TO CONNECTOR I | ||
| 212 | A 3964601824 | LINE |
| Repalced by: A 0004291601 | ||
| 212 | A 3964602024 | LINE |
| Repalced by: A 0004291601 | ||
| 212 | A 0004291601 | LINE |
| RETURN LINE | ||
| 22X1.5 MM | ||
| 216 | A 3964601924 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 216 | A 3964601924 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 220 | A 3964602124 | LINE |
| Repalced by: A 0004291601 | ||
| 220 | A 0004291601 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 220 | A 3964602124 | LINE |
| Repalced by: A 0004291601 | ||
| 220 | A 0004291601 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 220 | A 3964602124 | LINE |
| Repalced by: A 0004291601 | ||
| 220 | A 0004291601 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 220 | A 3964602124 | LINE |
| Repalced by: A 0004291601 | ||
| 220 | A 0004291601 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 220 | A 3964603824 | LINE |
| Repalced by: A 0004291601 | ||
| 220 | A 0004291601 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 224 | N 915017022100 | UNION NUT |
| RETURN LINE | ||
| Repalced by: N 000000006243 | ||
| 224 | N 000000006243 | NUT |
| RETURN LINE | ||
| 228 | A 0019901267 | SEAL CONE |
| RETURN LINE | ||
| 232 | N 003902022001 | FITTING |
| BETWEEN THE LINES | ||
| 236 | A 3964602224 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 236 | A 3964602224 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 236 | A 3964602224 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 236 | A 3964603924 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 236 | A 3964603524 | LINE |
| Repalced by: A 0004291601 | ||
| 236 | A 0004291601 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 248 | A 3574660081 | HOSE |
| FROM RETURN LINE TO OIL TANK | ||
| 252 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 256 | N 000000000666 | CLAMP |
| HOSE TO OIL TANK | ||

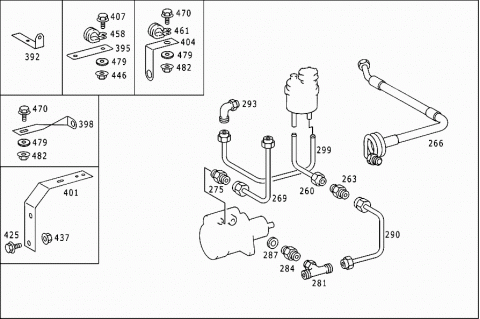

| 260 | A 6974603088 | LINE |
| (SUCTION LINE),FROM OIL TANK TO PUMP | ||
| 263 | N 003902022001 | FITTING |
| LINE CONNECTIONS | ||
| 266 | A 0169973782 | HOSE |
| Repalced by: A 0269972582 | ||
| 266 | A 0269972582 | EXPANSION HOSE |
| SUCTION LINE TO OIL PUMP | ||
| 269 | A 6974603188 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| A 6974603888 | LINE | |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 275 | N 003902015002 | CONNECTION FITTING |
| BETWEEN THE LINES | ||
| A 6974603988 | LINE | |
| Repalced by: A 0005516256 | ||
| A 0005516256 | TUBE | |
| FROM CONNECTION FITTING TO STEERING | ||
| 281 | N 003953015100 | FITTING |
| DELIVERY LINE TO STEERING | ||
| 284 | N 003901022006 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| 287 | N 007603026104 | SEAL RING |
| RETURN LINE TO STEERING | ||
| 290 | A 3564607388 | LINE |
| FROM STEERING TO CONNECTOR I | ||
| 293 | N 003952022100 | FITTING |
| BETWEEN THE LINES | ||
| A 6974604088 | LINE | |
| Repalced by: A 0004291601 | ||
| A 0004291601 | LINE | |
| RETURN LINE TO STEERING | ||
| 299 | A 6974603588 | LINE |
| FROM RETURN LINE TO OIL TANK | ||
| 302 | A 6999973172 | FITTING |
| RETURN LINE TO STEERING | ||
| 305 | A 6999973072 | FITTING |
| WITH BRANCH-OFF TOWARDS PRESSURE LIMIT VALVE | ||

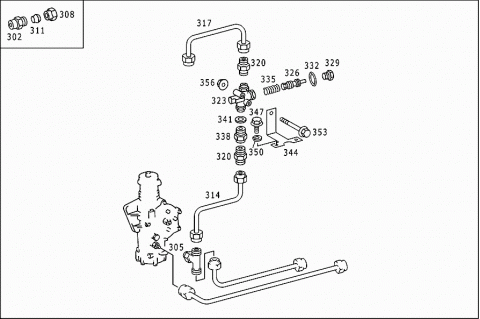

| 308 | N 915017022100 | UNION NUT |
| RETURN LINE | ||
| Repalced by: N 000000006243 | ||
| 308 | N 000000006243 | NUT |
| RETURN LINE | ||
| 311 | A 0019901267 | SEAL CONE |
| RETURN LINE | ||
| 314 | A 6974604188 | LINE |
| T-PIECE,STEERING TO PRESSURE LIMITAT. VALVE, CIRCUIT II | ||
| 317 | A 6974604288 | LINE |
| CUT-IN-VALVE-TO-STEERING-T-FITTING RETURN LINE | ||
| 320 | N 003901015005 | SCREW-IN FITTING |
| PRESSURE LIMIT VALVE | ||
| 323 | A 0004664391 | VALVE |
| (PRESSURE LIMIT VALVE) | ||
| 120 BAR | ||
| 326 | A 0004667283 | PISTON |
| 329 | A 0019978830 | SCREW PLUG |
| 332 | A 0119970445 | SEAL RING |
| 335 | A 0029935201 | SPRING |
| 338 | A 0059974272 | FITTING |
| 341 | N 007603026104 | SEAL RING |
| 344 | A 6974663340 | BRACKET |
| PRESSURE LIMIT VALVE | ||
| 347 | A 0019908104 | SCREW |
| BRACKET TO STEERING GEAR | ||
| M 10X20 | ||
| 350 | N 912004010102 | LOCK WASHER |
| BRACKET TO STEERING GEAR | ||
| 353 | A 0019909204 | SCREW |
| VALVE TO BRACKET | ||
| 356 | A 0009906550 | NUT |
| VALVE TO BRACKET | ||
| 359 | A 3964661440 | BRACKET |
| LINE MOUNTING | ||
| 362 | A 6194660140 | BRACKET |
| LINE MOUNTING | ||
| 365 | A 6164290340 | BRACKET |
| LINE MOUNTING | ||
| 368 | A 3184280240 | BRACKET |
| LINE MOUNTING | ||
| 371 | A 3964660740 | BRACKET |
| LINE MOUNTING | ||
| 374 | A 3964660840 | BRACKET |
| LINE MOUNTING | ||
| 377 | A 3964661140 | BRACKET |
| LINE MOUNTING | ||
| 380 | A 3964661240 | BRACKET |
| LINE MOUNTING | ||
| 383 | A 3812951940 | BRACKET |
| LINE MOUNTING | ||
| 386 | A 3963010244 | ANGLE |
| LINE MOUNTING | ||
| 389 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 389 | A 3464296040 | BRACKET |
| LINE MOUNTING | ||
| 389 | A 3964661340 | BRACKET |
| Repalced by: A 3812951940 | ||
| 389 | A 3812951940 | BRACKET |
| LINE MOUNTING | ||
| 392 | A 3564660040 | BRACKET |
| LINE MOUNTING | ||
| 395 | A 6974663440 | BRACKET |
| LINE MOUNTING | ||
| 398 | A 6974663240 | BRACKET |
| LINE MOUNTING | ||
| 401 | A 6974663040 | BRACKET |
| LINE MOUNTING | ||
| 404 | A 6974663140 | BRACKET |
| LINE MOUNTING | ||
| 407 | A 0019901404 | SCREW |
| BRACKET MOUNTING | ||
| M 6X20 | ||
| 410 | N 304017008021 | SCREW |
| BRACKET MOUNTING | ||
| M 8X20 | ||
| 410 | N 304017008021 | SCREW |
| BRACKET MOUNTING | ||
| M 8X22 | ||
| 413 | N 304017008034 | SCREW |
| BRACKET MOUNTING | ||
| M 8X25 | ||
| 416 | N 304017010028 | HEXAGON HEAD BOLT |
| BRACKET MOUNTING | ||
| M10X20 | ||
| 419 | N 304017010019 | SCREW |
| BRACKET MOUNTING | ||
| M 10X25 | ||
| 419 | N 304017010046 | SCREW |
| BRACKET MOUNTING | ||
| M 10X35 | ||
| 422 | N 308676014020 | SCREW |
| BRACKET MOUNTING | ||
| 425 | A 0029909304 | SCREW |
| BRACKET MOUNTING | ||
| M 14X35 | ||
| 428 | N 912004008102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 428 | N 912004010102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 431 | N 000125010532 | WASHER |
| BRACKET MOUNTING | ||
| 434 | N 910113014001 | NUT |
| BRACKET MOUNTING | ||
| 437 | A 0009906950 | NUT |
| BRACKET MOUNTING | ||
| 440 | N 910113010000 | NUT |
| BRACKET MOUNTING | ||
| 443 | N 910113008003 | NUT |
| BRACKET MOUNTING | ||
| 446 | A 0009906250 | NUT |
| BRACKET MOUNTING | ||
| 449 | A 3464295540 | BRACKET |
| Repalced by: A 3464296040 | ||
| 449 | A 3529910340 | SPACER TUBE |
| LINE MOUNTING | ||
| 452 | A 3609950701 | CLAMP |
| SUCTION/DELIVERY/RETURN LINES | ||
| 455 | A 6739950001 | CLAMP |
| SUCTION/DELIVERY/RETURN LINES | ||
| 458 | N 916016022206 | CLAMP |
| SUCTION/DELIVERY/RETURN LINES | ||
| Repalced by: N 916016022203 | ||
| 458 | N 916016022203 | CLAMP |
| SUCTION/DELIVERY/RETURN LINES | ||
| 458 | N 916016022206 | CLAMP |
| SUCTION/DELIVERY/RETURN LINES | ||
| Repalced by: N 916016022203 | ||
| 458 | N 916016022203 | CLAMP |
| SUCTION/DELIVERY/RETURN LINES | ||
| 458 | N 916016022202 | CLAMP |
| SUCTION/DELIVERY/RETURN LINES | ||
| 461 | N 916016015202 | CLAMP |
| SUCTION/DELIVERY/RETURN LINES | ||
| 464 | N 304017008023 | SCREW |
| CLAMP MOUNTING | ||
| M 8X20 | ||
| 467 | A 0019901404 | SCREW |
| CLAMP MOUNTING | ||
| M 6X20 | ||
| 470 | A 0019901404 | SCREW |
| CLAMP MOUNTING | ||
| M 6X20 | ||
| 473 | N 000933006124 | SCREW |
| CLAMP MOUNTING | ||
| M 6X30 | ||
| 476 | N 912004008102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 479 | N 009021006208 | WASHER |
| CLAMP MOUNTING | ||
| 479 | N 009021006208 | WASHER |
| CLAMP MOUNTING | ||
| 482 | A 0009906250 | NUT |
| CLAMP MOUNTING | ||
| 482 | A 0009906250 | NUT |
| CLAMP MOUNTING | ||

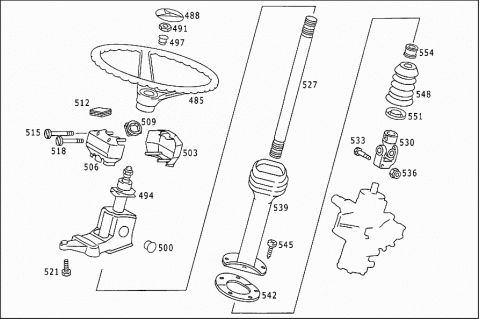

| 485 | A 3834640201 | STEERING WHEEL |
| 488 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 491 | N 308675022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 494 | A 3014600231 | STEERING COLUMN BRACKET |
| 494 | A 3004600031 | STEERING COLUMN BRACKET |
| 494 | A 3014600431 | STEERING COLUMN BRACKET |
| 494 | A 3004600131 | STEERING COLUMN BRACKET |
| 497 | A 3819971186 | PLUG |
| TOP | ||
| 500 | A 3839970286 | PLUG |
| BOTTOM LATERAL | ||
| 503 | A 3814620043 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 503 | A 3814620443 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 503 | A 6204620143 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 506 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 506 | A 3814620543 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 506 | A 6204620043 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 509 | A 3574620096 | BOOT |
| STEERING COLUMN PANELLING | ||
| 512 | A 3574620196 | BOOT |
| STEERING COLUMN PANELLING | ||
| 515 | A 3819900221 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X75.5 | ||
| 518 | A 3019900021 | SCREW |
| Repalced by: A 3819900321 | ||
| 518 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 521 | N 000933010145 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 527 | A 3964620101 | STEERING SHAFT |
| 527 | A 3964620201 | STEERING SHAFT |
| 530 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 530 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 530 | A 0004600057 | UNIVERSAL JOINT |
| 530 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 530 | A 0004600157 | UNIVERSAL JOINT |
| 533 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| M 8X42 | ||
| 533 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| 533 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| M 8X38 | ||
| 536 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| 539 | A 3074610097 | PROTECTIVE SLEEVE |
| STEERING SHAFT THRU CAB | ||
| 539 | A 3964610097 | PROTECTIVE SLEEVE |
| STEERING SHAFT THRU CAB | ||
| 542 | A 3964620024 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 542 | A 3964620124 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 542 | A 3964620224 | REINFORCEMENT |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 545 | N 007981004345 | SHEET METAL SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 548 | A 3814621196 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 551 | A 3814620475 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| 554 | A 3974620060 | SEAL RING |
| UNIVERSAL JOINT COVERING | ||

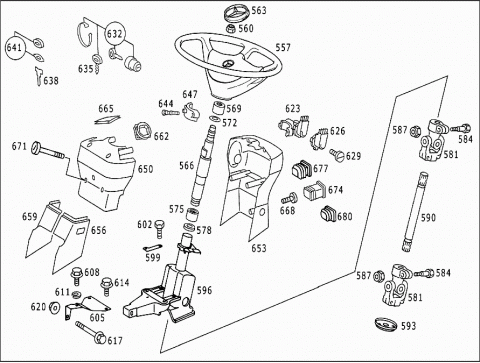

| 557 | A 6754640001 | STEERING WHEEL |
| 560 | N 308675022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 563 | A 0004640632 | BADGE |
| STEERING WHEEL | ||
| 566 | A 3014601209 | STEERING SHAFT |
| TOP | ||
| 569 | A 0129818510 | NEEDLE BEARING |
| STEERING SHAFT, TOP | ||
| 569 | A 0139815910 | NEEDLE BEARING |
| STEERING SHAFT, TOP | ||
| 572 | A 3574620075 | WASHER |
| STEERING SHAFT, TOP | ||
| 575 | A 0119815110 | NEEDLE BEARING |
| STEERING SHAFT, BOTTOM | ||
| 575 | A 0129818310 | NEEDLE BEARING |
| STEERING SHAFT, BOTTOM | ||
| 578 | A 3224620023 | COVER |
| STEERING SHAFT, BOTTOM | ||
| 581 | A 0004600157 | UNIVERSAL JOINT |
| STEERING SHAFT | ||
| 581 | A 0004600057 | UNIVERSAL JOINT |
| STEERING SHAFT | ||
| 584 | A 3819900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X42 | ||
| 587 | N 910113008001 | NUT |
| STEERING SHAFT TO JOINT | ||
| 590 | A 3964620101 | STEERING SHAFT |
| 590 | A 3964620201 | STEERING SHAFT |
| 593 | A 9424620875 | WASHER |
| AT STEERING GEAR | ||
| 596 | A 3564605231 | STEERING COLUMN BRACKET |
| 599 | A 3564620739 | BRACKET |
| LEFT AND RIGHT | ||
| 602 | N 304017006018 | SCREW |
| BRACKET TO STEERING COLUMN BRACKET | ||
| 605 | A 6974623039 | BRACKET |
| AT STEERING COLUMN | ||
| 608 | A 0019908104 | SCREW |
| BRACKET MOUNTING | ||
| M 10X20 | ||
| 611 | N 912004010102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 614 | A 0019908504 | SCREW |
| STEERING COLUMN TO CAB | ||
| M 10X35 | ||
| 617 | A 0019909004 | SCREW |
| STEERING COLUMN TO CAB | ||
| M 10X60 | ||
| 620 | A 0009906550 | NUT |
| STEERING COLUMN TO CAB | ||
| 623 | A 6704620430 | STEERING LOCK |
| LESS TUMBLER | ||
| 626 | A 6675450108 | SWITCH |
| IGNITION SWITCH | ||
| 629 | N 914116004202 | SCREW |
| SWITCH BOX TO STEERING LOCK | ||
| 632 | A 6674600404 | TUMBLER |
| WITH LOCK DEFINED | ||
| 632 | A 6674600304 | TUMBLER |
| WORKSHOP VERSION,WITH KEY; ANY LOCK | ||
| 635 | A 0007600606 | KEY |
| STEERING LOCK | ||
| YMOS | ||
| 638 | A 0007665306 | KEY |
| BLANK | ||
| YMOS | ||
| 641 | A 0007664406 | KEY HEAD |
| 644 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 647 | A 6734621139 | BRACKET |
| BRACKET TO STEERING COLUMN END | ||
| 650 | A 6504620443 | SHELL |
| STEERING COLUMN PANELLING,FRONT | ||
| 653 | A 6554620143 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 656 | A 3564620243 | SHELL |
| STEERING COLUMN PANELLING,REAR | ||
| 659 | A 3564620343 | SHELL |
| STEERING COLUMN PANELLING,RIGHT | ||
| 662 | A 3574620096 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 665 | A 3574620196 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 668 | N 000084005411 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X12 | ||
| 668 | N 000084005117 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X26 | ||
| 671 | A 3019900021 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X95 | ||
| 674 | A 6504620086 | GROMMET |
| STEERING COLUMN PANELLING | ||
| 674 | A 6504620186 | GROMMET |
| STEERING COLUMN PANELLING | ||
| 677 | A 6504620486 | GROMMET |
| STEERING COLUMN PANELLING | ||
| 680 | A 6504620586 | GROMMET |
| STEERING COLUMN PANELLING | ||
| 680 | A 6504620686 | GROMMET |
| STEERING COLUMN PANELLING | ||

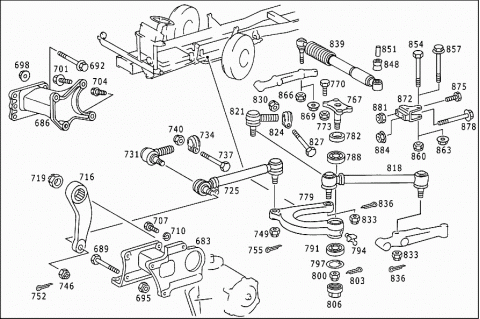

| 683 | A 3964610140 | STEERING SUPPORT |
| STEERING TO FRAME | ||
| 683 | A 3964610240 | STEERING SUPPORT |
| STEERING TO FRAME | ||
| 686 | A 6584610140 | STEERING SUPPORT |
| STEERING TO FRAME | ||
| 689 | N 000960014229 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X55 | ||
| 689 | N 000960014237 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 692 | A 0039904204 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 695 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 698 | A 0009907150 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 701 | A 0049909004 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 704 | A 0009909714 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 707 | N 000961016096 | SCREW |
| Repalced by: N 308676016007 | ||
| 707 | N 308676016007 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 710 | N 912004016101 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||

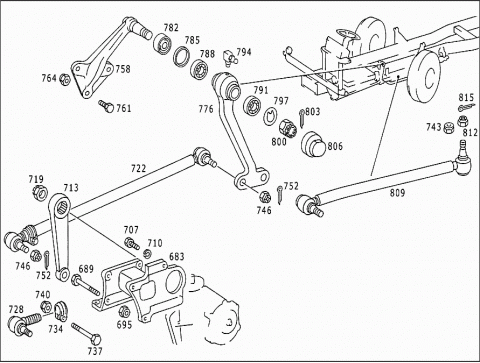

| 713 | A 3964630001 | PITMAN ARM |
| 713 | A 3964630101 | PITMAN ARM |
| 716 | A 3964630201 | PITMAN ARM |
| 716 | A 3964630301 | PITMAN ARM |
| 716 | A 3964630401 | PITMAN ARM |
| 716 | A 3964630501 | PITMAN ARM |
| 719 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 719 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 722 | A 3964603005 | DRAG LINK |
| Repalced by: A 3964604805 | ||
| 722 | A 3964604805 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| LEMFOERDER | ||
| 722 | A 3964603105 | DRAG LINK |
| Repalced by: A 3964604905 | ||
| 722 | A 3964604905 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| LEMFOERDER | ||
| 725 | A 3964605405 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| LEMFOERDER | ||
| 725 | A 3964605505 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| LEMFOERDER | ||
| 725 | A 3964605805 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| LEMFOERDER | ||
| 725 | A 3964605905 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| LEMFOERDER | ||
| 728 | A 0004600348 | DRAG LINK END |
| Repalced by: A 0004602848 | ||
| 728 | A 0004602848 | DRAG LINK END |
| Repalced by: A 0014600848 | ||
| 728 | A 0014600848 | DRAG LINK END |
| Repalced by: A 0014602248 | ||
| 728 | A 0014602248 | DRAG LINK END |
| Repalced by: A 0014607748 | ||
| 728 | A 0014607748 | DRAG LINK END |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 731 | A 0004605248 | DRAG LINK END |
| R.H. THREAD | ||
| 734 | A 0003382545 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 737 | N 000960012077 | SCREW |
| Repalced by: N 308676012017 | ||
| 737 | N 308676012017 | SCREW |
| CLAMP TO DRAG LINK | ||
| 740 | N 913004012008 | NUT |
| CLAMP TO DRAG LINK | ||
| 743 | A 0019905451 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 746 | N 000937024002 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 749 | N 000937020014 | NUT |
| DRAG LINK TO STEERING INTERMEDIATE ARM | ||
| 752 | N 000094005035 | COTTER PIN |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 755 | N 000094004065 | COTTER PIN |
| DRAG LINK TO STEERING INTERMEDIATE ARM | ||
| 758 | A 3964610040 | STEERING SUPPORT |
| (STEERING INTERMEDIATE BRACKET) | ||
| 758 | A 3964610340 | STEERING SUPPORT |
| (STEERING INTERMEDIATE BRACKET) | ||
| 761 | N 308676014012 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X45 | ||
| 761 | N 308676014002 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X80 | ||
| 761 | N 000961014116 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 14X50 | ||
| 764 | N 910113014000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 767 | A 3174630011 | TRUNNION BEARING |
| STEERING INTERMEDIATE ARM | ||
| 770 | N 308676014012 | SCREW |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 773 | N 910113014000 | NUT |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 776 | A 3554630210 | STEERING INTERMEDIATE ARM |
| STEERING | ||
| 779 | A 3574630410 | STEERING INTERMEDIATE ARM |
| STEERING | ||
| 779 | A 3574630510 | STEERING INTERMEDIATE ARM |
| STEERING | ||
| 782 | A 0079976446 | SEAL RING |
| STEERING INTERMEDIATE ARM BEARING | ||
| 785 | A 3174630052 | SPACER WASHER |
| STEERING INTERMEDIATE ARM BEARING | ||
| 788 | N 000720030206 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM BEARING | ||
| 791 | A 0059819105 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM BEARING | ||
| 794 | N 071412010300 | GREASE NIPPLE |
| STEERING INTERMEDIATE ARM | ||
| 797 | A 3174630062 | THRUST WASHER |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 800 | N 000937020001 | NUT |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 803 | N 000094004065 | COTTER PIN |
| INTERMEDIATE LEVER TO STEERING SUPPORT | ||
| 806 | A 3214630033 | CAP |
| STEERING INTERMEDIATE ARM | ||
| 809 | A 3964602705 | DRAG LINK |
| Repalced by: A 3964604605 | ||
| 809 | A 3964604605 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO STEERING ARM | ||
| LEMFOERDER | ||
| 809 | A 3964605205 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO STEERING ARM | ||
| LEMFOERDER | ||
| 809 | A 3964602805 | DRAG LINK |
| Repalced by: A 3964604705 | ||
| 809 | A 3964604705 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO STEERING ARM | ||
| LEMFOERDER | ||
| 809 | A 3964605305 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO STEERING ARM | ||
| LEMFOERDER | ||
| 812 | N 000937024002 | NUT |
| DRAG LINK TO STEERING ARM | ||
| 815 | N 000094005045 | COTTER PIN |
| DRAG LINK TO STEERING ARM | ||
| 818 | A 3574601005 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO STEERING ARM | ||
| 821 | A 0013300135 | JOINT |
| TO BE SCREWED INTO DRAG LINK | ||
| 824 | A 4619955044 | CLAMP |
| JOINT TO DRAG LINK | ||
| 827 | N 000960010072 | SCREW |
| CLAMP TO DRAG LINK | ||
| 830 | A 0004630472 | NUT |
| CLAMP TO DRAG LINK | ||
| 833 | N 000937020001 | NUT |
| DRAG LINK TO INTERMEDIATE ARM & TO STEERING ARM | ||
| 836 | N 000094004065 | COTTER PIN |
| DRAG LINK TO INTERMEDIATE ARM & TO STEERING ARM | ||
| 839 | A 0004636132 | SHOCK ABSORBER |
| Repalced by: A 0004636232 | ||
| 839 | A 0004636232 | SHOCK ABSORBER |
| Repalced by: A 0004636432 | ||
| 839 | A 0004636432 | SHOCK ABSORBER |
| STEERING | ||
| 839 | A 0004636432 | SHOCK ABSORBER |
| STEERING | ||
| A 0003233444 | RUBBER BUFFER | |
| A 0003233444 | RUBBER BUFFER | |
| A 0003238750 | BUSHING | |
| A 0003238750 | BUSHING | |
| 848 | A 0004630565 | RUBBER RING |
| 848 | A 0004630565 | RUBBER RING |
| 851 | A 0004630050 | BUSHING |
| 851 | A 0004630050 | BUSHING |
| 854 | N 308676014014 | SCREW |
| STEERING SHOCK ABSORBER TO BRACKET | ||
| 857 | A 0039900204 | SCREW |
| STEERING SHOCK ABSORBER TO BRACKET | ||
| 860 | N 910113014000 | NUT |
| STEERING SHOCK ABSORBER TO BRACKET | ||
| 863 | A 0009906950 | NUT |
| STEERING SHOCK ABSORBER TO BRACKET | ||
| 866 | N 910113014000 | NUT |
| STEERING SHOCK ABSORBER TO STEERING ARM | ||
| 869 | A 0009906950 | NUT |
| STEERING SHOCK ABSORBER TO STEERING ARM | ||
| 872 | A 3024600235 | BRACKET |
| STEERING SHOCK ABSORBER TO FRONT AXLE | ||
| 872 | A 3024600235 | BRACKET |
| STEERING SHOCK ABSORBER TO FRONT AXLE | ||
| 875 | N 308765012003 | SCREW |
| (BEARING BRACKET) SHOCK ABSORBER TO FRONT AXLE | ||
| 878 | A 0029904104 | SCREW |
| (BEARING BRACKET) SHOCK ABSORBER TO FRONT AXLE | ||
| 881 | N 913004012008 | NUT |
| (BEARING BRACKET) SHOCK ABSORBER TO FRONT AXLE | ||
| 884 | A 0009906750 | NUT |
| (BEARING BRACKET) SHOCK ABSORBER TO FRONT AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
