Transporto priemonė: OH 1625; VIN numerio dalis: 396378
Grupė: 52 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|

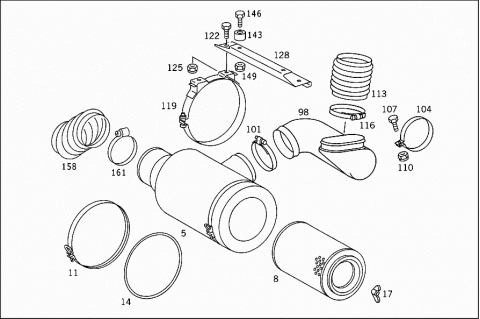

| 005 | A 3960940101 | AIR CLEANER |
| 008 | A 0030940504 | FILTER ELEMENT |
| 011 | A 0000940015 | RETAINING RING |
| 014 | A 0009973548 | SEAL RING |
| 017 | A 0000940675 | NUT |
| Repalced by: A 0000940575 | ||
| 017 | A 0000940575 | NUT |

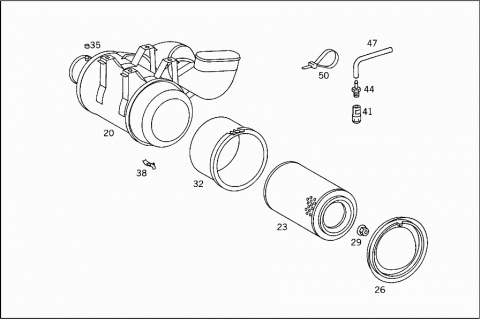

| 020 | A 0140943902 | AIR CLEANER |
| 023 | A 0010944704 | FILTER ELEMENT |
| 026 | A 0010943206 | COVER |
| 029 | A 0009901550 | NUT |
| 032 | A 0000942105 | AIR BAFFLE |
| 035 | A 0000940276 | WASHER |
| FELT | ||
| 038 | A 0000941255 | FASTENER |
| 041 | A 0000942868 | VACUUM BOX |
| (MAINTENANCE INDICATOR) | ||
| 044 | A 0029977772 | FITTING |
| VACUUM INDICATOR | ||
| 044 | A 0000940267 | THREADED NIPPLE |
| VACUUM INDICATOR | ||
| 047 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 047 | A 0009872727 | PLASTIC PIPE |
| VACUUM INDICATOR | ||
| 8 MM | ||
| 050 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||

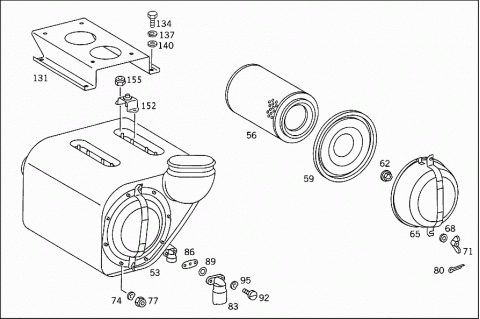

| 053 | A 0110947002 | AIR CLEANER |
| 056 | A 0010944704 | FILTER ELEMENT |
| 059 | A 0010943206 | COVER |
| 062 | A 0009901550 | NUT |
| 065 | A 0000947503 | FILTER BOWL |
| 068 | N 000125010532 | WASHER |
| 071 | A 0000940675 | NUT |
| Repalced by: A 0000940575 | ||
| 071 | A 0000940575 | NUT |
| 071 | N 000315008006 | NUT |
| 074 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 074 | N 000137008212 | SPRING WASHER |
| 077 | N 913004008004 | NUT |
| 080 | N 000094003219 | COTTER PIN |
| 083 | A 0000941868 | MAINTENANCE INDICATOR |
| 086 | A 0010941180 | GASKET |
| 089 | A 0000940276 | WASHER |
| FELT | ||
| 092 | N 000084006137 | SCREW |
| 095 | N 000137006204 | SPRING WASHER |
| 098 | A 3965280408 | AIR INTAKE PIPE |
| AIR INTAKE | ||
| TO 396 094 01 01 | ||
| 101 | N 916017140000 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| TO 396 094 01 01 | ||
| 104 | A 3965280043 | CLAMP |
| AIR INTAKE PIPE TO STRAP | ||
| TO 396 094 01 01 | ||
| 107 | N 304017008018 | SCREW |
| AIR INTAKE PIPE TO STRAP | ||
| TO 396 094 01 01 | ||
| 110 | N 913004008004 | NUT |
| AIR INTAKE PIPE TO STRAP | ||
| TO 396 094 01 01 | ||
| 113 | A 3015280182 | HOSE |
| AIR INTAKE | ||
| 116 | N 916017160000 | CLAMP |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||
| 119 | A 3960940021 | STRAP |
| AIR CLEANER TO BRACKET | ||
| TO 396 094 01 01 | ||
| 122 | N 308676012038 | SCREW |
| STRAP TO BRACKET | ||
| TO 396 094 01 01 | ||
| 125 | N 913004012008 | NUT |
| STRAP TO BRACKET | ||
| TO 396 094 01 01 | ||
| 128 | A 3965280340 | BRACKET |
| AIR CLEANER,LEFT | ||
| 128 | A 3965280440 | BRACKET |
| AIR CLEANER,RIGHT | ||
| 131 | A 3965200041 | BRACKET |
| AIR CLEANER | ||
| 134 | N 304017008016 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 137 | N 912004008102 | LOCK WASHER |
| AIR CLEANER TO BRACKET | ||
| 140 | N 000125008443 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 143 | A 6255240053 | SPACER TUBE |
| Repalced by: A 9519900040 | ||
| 143 | A 9519900040 | WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 146 | N 304017008027 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 149 | N 913004008004 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 152 | A 0009881911 | BUFFER |
| Repalced by: A 0009885511 | ||
| 152 | A 0009885511 | BUFFER |
| AIR CLEANER | ||
| 155 | N 913004008004 | NUT |
| BUFFER TO AIR CLEANER | ||
| 158 | A 3965280082 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 161 | N 000000000678 | CLAMP |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||
| Repalced by: N 000000005892 | ||
| 161 | N 000000005892 | CLAMP |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||

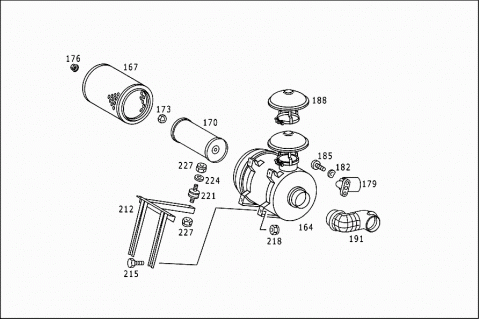

| 164 | A 0170942702 | AIR CLEANER |
| 164 | A 0170942702 | AIR CLEANER |
| 167 | A 0030941504 | FILTER ELEMENT |
| 167 | A 0030941504 | FILTER ELEMENT |
| 170 | A 0030941604 | FILTER ELEMENT |
| 170 | A 0030941604 | FILTER ELEMENT |
| 173 | N 308675016001 | NUT |
| 173 | N 308675016001 | NUT |
| 176 | A 0009901550 | NUT |
| 176 | A 0009901550 | NUT |
| 179 | A 0000941868 | MAINTENANCE INDICATOR |
| (MAINTENANCE INDICATOR) | ||
| 179 | A 0000941868 | MAINTENANCE INDICATOR |
| (MAINTENANCE INDICATOR) | ||
| 182 | N 000137006108 | SPRING WASHER |
| MAINTENANCE INDICATOR TO BRACKET | ||
| 182 | N 000137006108 | SPRING WASHER |
| MAINTENANCE INDICATOR TO BRACKET | ||
| 185 | N 000084006197 | SCREW |
| MAINTENANCE INDICATOR TO BRACKET | ||
| 185 | N 000084006197 | SCREW |
| MAINTENANCE INDICATOR TO BRACKET | ||
| 188 | A 0000940189 | CAP |
| AIR CLEANER | ||
| 188 | A 0000940189 | CAP |
| AIR CLEANER | ||
| 191 | A 3565280308 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||

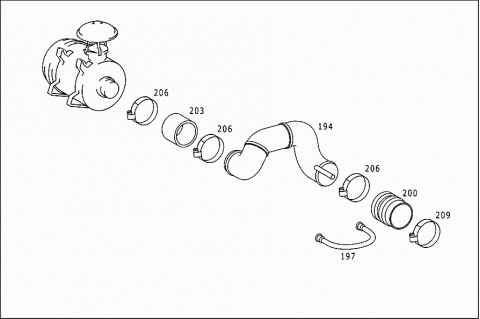

| 194 | A 3965280508 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 197 | A 3005280008 | AIR INTAKE PIPE |
| CONNECTING PIPE TO INTAKE MANIFOLD | ||
| 200 | A 3005280082 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 203 | N 900271132006 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 206 | N 000000000678 | CLAMP |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||
| Repalced by: N 000000005892 | ||
| 206 | N 000000005892 | CLAMP |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||
| 209 | N 916017120000 | CLAMP |
| HOSE TO AIR INTAKE PIPE | ||
| 212 | A 6975203041 | BRACKET |
| AIR CLEANER | ||
| 215 | N 304017008021 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| M 8X20 | ||
| 218 | N 910113008003 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 221 | A 3225040212 | RUBBER MOUNTING |
| AIR CLEANER TO BRACKET | ||
| 221 | A 3225040212 | RUBBER MOUNTING |
| AIR CLEANER TO BRACKET | ||
| 224 | N 000125008443 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 224 | N 000125008443 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 227 | N 910113008003 | NUT |
| AIR CLEANER TO BRACKET | ||
| 227 | N 910113008003 | NUT |
| AIR CLEANER TO BRACKET | ||
| 227 | N 910113008003 | NUT |
| BUFFER TO AIR CLEANER | ||
| 227 | N 910113008003 | NUT |
| BUFFER TO AIR CLEANER | ||
| 230 | A 3965200175 | PANELLING |
| FRONT | ||
| 230 | A 3965200675 | PANELLING |
| FRONT | ||
| 233 | A 3965201275 | PANELLING |
| FRONT | ||
| 236 | A 3965240030 | PANELLING |
| ENGINE | ||
| 239 | A 3965201075 | PANELLING |
| ENGINE COWLING | ||
| 242 | A 3965201175 | PANELLING |
| ENGINE COWLING | ||
| 245 | A 3965200075 | PANELLING |
| BOTTOM | ||
| 245 | A 3965200275 | PANELLING |
| BOTTOM | ||
| 245 | A 3965200775 | PANELLING |
| BOTTOM | ||
| 245 | A 3965200875 | PANELLING |
| 248 | A 3965200375 | PANELLING |
| CIRCULATING AIR | ||
| 248 | A 3965200375 | PANELLING |
| 251 | A 3965200475 | PANELLING |
| REAR TOP | ||
| 254 | N 007981005211 | SHEET METAL SCREW |
| FRONT PANELLING TO APPARATUS SUPPORT | ||
| 257 | N 304017006016 | SCREW |
| BOTTOM PANELLING TO APPARATUS SUPPORT | ||
| 260 | N 000933006207 | SCREW |
| PANELLING TO APPARATUS SUPPORT & FRONT PANELLING | ||
| 263 | N 912004006102 | LOCK WASHER |
| PANELLING TO APPARATUS SUPPORT & FRONT PANELLING | ||
| 266 | N 000125006421 | WASHER |
| PANELLING TO APPARATUS SUPPORT & FRONT PANELLING | ||
| 266 | N 000125006421 | WASHER |
| BOTTOM PANELLING TO APPARATUS SUPPORT | ||
| 269 | N 913004006001 | NUT |
| BOTTOM PANELLING TO APPARATUS SUPPORT | ||
| 272 | A 0009873272 | EDGE GUARD SECTION |
| Repalced by: A 0029873572 | ||
| 272 | A 0029873572 | EDGE GUARD SECTION |
| Repalced by: A 0009871972 | ||
| 272 | A 0009871972 | EDGE GUARD SECTION |
| 275 | A 6975203024 | ANTINOISE CAPSULE |
| 278 | N 304017008021 | SCREW |
| ANTINOISE CAPSULE TO BRACKET | ||
| 281 | N 912004008110 | LOCK WASHER |
| ANTINOISE CAPSULE TO BRACKET | ||
| 284 | A 6975243096 | GUIDE |
| LINE MOUNTING | ||
| 287 | N 308676012004 | SCREW |
| BRACKET MOUNTING | ||
| 290 | N 913023012002 | NUT |
| BRACKET MOUNTING | ||
| 293 | A 3965250040 | BRACKET |
| TAIL LAMP BRACKET | ||
| 296 | A 0029909304 | SCREW |
| TAIL LAMP BRACKET TO FRAME | ||
| 299 | A 0009906950 | NUT |
| TAIL LAMP BRACKET TO FRAME | ||
