Transporto priemonė: OH 1625 L MBSA; VIN numerio dalis: 396478
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

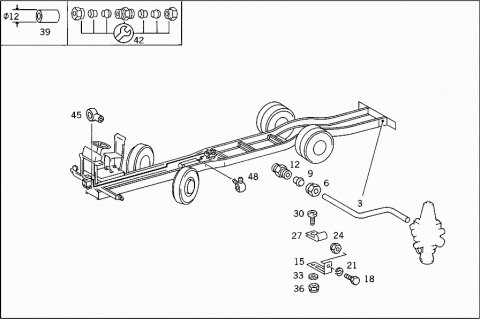

| 003 | A 0005516256 | TUBE |
| AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 15 MM | ||
| 006 | N 915017015100 | UNION NUT |
| 009 | N 003861015004 | GLAND |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR AIR COMPRESSOR CONNECTION,SEE GROUP 13 | ||
| 012 | N 003902015002 | CONNECTION FITTING |
| BETWEEN THE LINES | ||
| 015 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 015 | A 3184280240 | BRACKET |
| COMPRESSED AIR LINE TO ENGINE | ||
| 018 | N 000933008147 | SCREW |
| BRACKET TO BRACKET | ||
| 021 | N 912004008102 | LOCK WASHER |
| BRACKET TO BRACKET | ||
| 024 | N 913004008008 | NUT |
| BRACKET TO BRACKET | ||
| 027 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 027 | A 6739950001 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 027 | A 3609950501 | CLAMP |
| Repalced by: A 3609952001 | ||
| 027 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 027 | A 6739950001 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 030 | N 007985006145 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 033 | N 000125006421 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 036 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 036 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 039 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 039 | A 0009872827 | PLASTIC PIPE |
| BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE | ||
| 9X12 MM | ||
| 039 | A 0009872827 | PLASTIC PIPE |
| BRAKE VALVE,SERVICE BRAKE,AIR RESERVOIR,RELAY VALVE | ||
| 9X12 MM | ||
| 039 | A 0009872827 | PLASTIC PIPE |
| AIR CLEANER | ||
| 9X12 MM | ||
| 039 | A 0009872827 | PLASTIC PIPE |
| FROM TRISTOP CYLINDER TO RELAY VALVE | ||
| 9X12 MM | ||
| 042 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 042 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 045 | N 915052009009 | BANJO UNION |
| Repalced by: N 915052009009 | ||
| 045 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 048 | A 0019901088 | BANJO UNION |
| AIR RESERVOIR,CONNECTIONS: | ||
| 31,32 | ||
| 048 | A 0019901088 | BANJO UNION |
| TRISTOP CYLINDER;CONNECTIONS: | ||
| "11,12" | ||

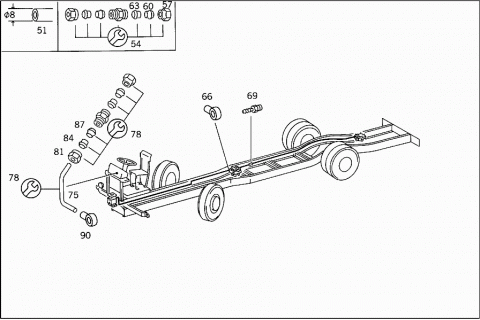

| 051 | A 0089979082 | HOSE |
| BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE | ||
| 6X8 MM | ||
| 051 | A 0089979082 | HOSE |
| BRAKE VALVE,SERVICE BRAKE,AIR RESERVOIR,RELAY VALVE | ||
| 6X8 MM | ||
| 051 | A 0089979082 | HOSE |
| REFILLING CONNECTION | ||
| 6X8 MM | ||
| 051 | A 0089979082 | HOSE |
| REAR AXLE BREATHING | ||
| 6X8 MM | ||
| 054 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 054 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 057 | N 915017008100 | UNION NUT |
| 060 | N 003861008005 | GLAND |
| 063 | N 915062006000 | SLEEVE |
| 066 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 066 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 066 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 069 | N 915059006002 | FITTING |
| CONNECTION OF COMPRESSED AIR LINES | ||
| 075 | A 0089976082 | HOSE |
| PRESSURE GAUGE | ||
| 4X6 MM | ||
| 078 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 081 | N 915017006100 | UNION NUT |
| 084 | N 003861006007 | GLAND |
| 087 | N 915062004000 | SLEEVE |
| 090 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||

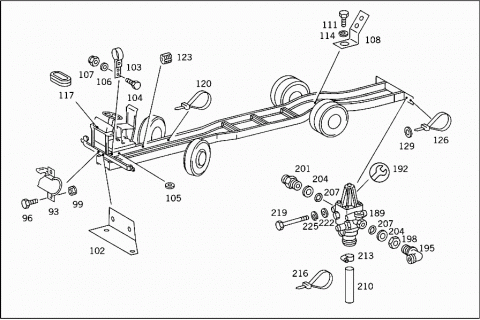

| 093 | A 6204201986 | BRACKET |
| COMPRESSED AIR LINES TO CROSS MEMBER | ||
| 096 | N 000961014110 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 099 | N 913004014002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 102 | A 3964290440 | BRACKET |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| 103 | A 3964290940 | BRACKET |
| Repalced by: A 6514310240 | ||
| 103 | A 6514310240 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 104 | N 000933008154 | SCREW |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 105 | A 3609902340 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 105 | A 3609902440 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 106 | N 009021008205 | WASHER |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 107 | N 913004008004 | NUT |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 108 | A 3964290140 | BRACKET |
| BRAKE LINE TO REAR AXLE | ||
| A 3964291140 | BRACKET | |
| BRAKE LINE TO REAR AXLE | ||
| A 3964291340 | BRACKET | |
| BRAKE LINE TO REAR AXLE | ||
| 111 | N 000961012047 | SCREW |
| BRACKET TO REAR AXLE | ||
| 111 | N 000933008212 | SCREW |
| BRACKET TO REAR AXLE | ||
| 114 | N 912004012100 | LOCK WASHER |
| BRACKET TO REAR AXLE | ||
| 114 | N 912004008102 | LOCK WASHER |
| BRACKET TO REAR AXLE | ||
| 117 | A 3859970181 | GROMMET |
| COMPRESSED AIR LINE | ||
| 120 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 123 | A 3875462143 | BRACKET |
| LINE MOUNTING | ||
| 126 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 129 | N 000125008418 | WASHER |
| LINE MOUNTING | ||

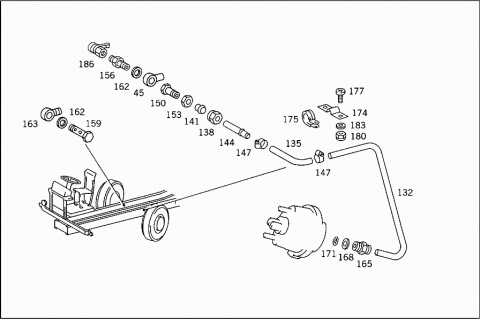

| 132 | A 6194290801 | LINE |
| Repalced by: A 6254293501 | ||
| 132 | A 6254293501 | LINE |
| LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 135 | N 916027011014 | HOSE |
| LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 138 | N 915017012100 | UNION NUT |
| LEFT AND RIGHT BRAKE HOSES | ||
| 141 | N 003861012007 | GLAND |
| LEFT AND RIGHT BRAKE HOSES | ||
| 144 | A 0004290541 | FITTING |
| LEFT AND RIGHT BRAKE HOSES | ||
| 147 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 147 | N 000000000666 | CLAMP |
| LEFT AND RIGHT BRAKE HOSES | ||
| 16-27X13 MM | ||
| 150 | A 0004296934 | ADAPTER FITTING |
| COMPRESSED AIR LINE THRU FRAME | ||
| A 0009907871 | ELBOW FITTING | |
| COMPRESSED AIR LINE THRU FRAME | ||
| N 000125019004 | WASHER | |
| COMPRESSED AIR LINE THRU FRAME | ||
| 153 | N 080705018002 | NUT |
| ADAPTER FITTING TO SIDE MEMBER | ||
| 156 | N 915039012205 | HOLLOW SCREW FITTING |
| LEFT BRAKE LINE | ||
| 159 | N 915047012203 | HOLLOW SCREW |
| RIGHT BRAKE LINE | ||
| A 0029901270 | T-FITTING | |
| REAR BRAKE LINE TO FRAME | ||
| A 0019900970 | T-FITTING | |
| REAR BRAKE LINE TO FRAME | ||
| 162 | N 007603016401 | SEAL RING |
| BRAKE LINE | ||
| 163 | A 0019900788 | BANJO UNION |
| BRAKE LINE | ||
| 165 | A 0029971572 | FITTING |
| FRONT AXLE,DIAPHRAGM CYLINDER | ||
| 168 | A 0004290927 | THRUST RING |
| FRONT AXLE,DIAPHRAGM CYLINDER | ||
| 171 | A 0009971548 | SEAL RING |
| FRONT AXLE,DIAPHRAGM CYLINDER | ||
| 174 | A 3159955010 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 175 | N 916016012201 | CLAMP |
| COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER | ||
| 177 | N 007985006145 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 180 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 180 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 180 | N 913004008004 | NUT |
| COMPRESSED AIR LINE TO DIAPHRAGM CYLINDER | ||
| 183 | N 009021006205 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 186 | A 0004316131 | TEST CONNECTION |
| FRONT AXLE BRAKE CIRCUIT | ||
| WIRA | ||
| 186 | A 0004316131 | TEST CONNECTION |
| REAR AXLE BRAKE CIRCUIT | ||
| WIRA | ||
| 186 | A 0004316131 | TEST CONNECTION |
| PARKING BRAKE | ||
| WIRA | ||
| 186 | A 0004316131 | TEST CONNECTION |
| AIR RESERVOIR,CONNECTIONS: | ||
| 31,32 | ||
| 189 | A 0024314906 | PRESSURE REGULATOR |
| WABCO | ||
| 189 | A 0024314306 | PRESSURE REGULATOR |
| BOSCH | ||
| 189 | A 0024318306 | PRESSURE REGULATOR |
| KNORR | ||
| 192 | A 0014304960 | REPAIR KIT |
| PRESSURE REGULATOR | ||
| TO 002 431 49 06,WABCO 975 303 460 0 | ||
| 192 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 192 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 192 | A 0004300407 | REPAIR KIT |
| TO 002 431 83 06,KNORR 90309 | ||
| 195 | A 0029902271 | ELBOW FITTING |
| PRESSURE REGULATOR | ||
| 198 | N 074305022202 | NUT |
| PRESSURE REGULATOR | ||
| 201 | A 0029978972 | FITTING |
| PRESSURE REGULATOR | ||
| 204 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "10,20" | ||
| 204 | N 007603022403 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "20" | ||
| 207 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTIONS: | ||
| "10,20" | ||
| 210 | A 0159975082 | HOSE |
| PRESSURE REGULATOR,CONNECTION: | ||
| "30" | ||
| 213 | N 916026020001 | CLAMP |
| PRESSURE REGULATOR,CONNECTION: | ||
| "30" | ||
| A 3604292940 | BRACKET | |
| BREATHER LINE | ||
| 216 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 219 | N 000931008251 | SCREW |
| PRESSURE REGULATOR TO LEFT SUPPORT | ||
| 222 | N 000125008418 | WASHER |
| PRESSURE REGULATOR TO LEFT SUPPORT | ||
| 225 | N 912004008102 | LOCK WASHER |
| PRESSURE REGULATOR TO LEFT SUPPORT | ||

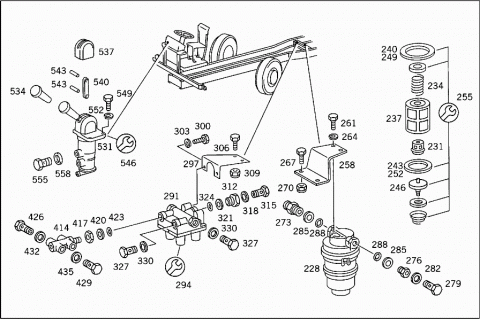

| 228 | A 0004292595 | AIR CLEANER |
| BOSCH | ||
| 228 | A 0004292695 | AIR CLEANER |
| KNORR | ||
| 228 | A 0004292795 | AIR CLEANER |
| WABCO | ||
| 228 | A 0004292895 | AIR CLEANER |
| GRAU | ||
| 231 | A 0004290597 | FILTER ELEMENT |
| TO 000 429 27 95,WABCO | ||
| 234 | A 0059930901 | SPRING |
| TO 000 429 27 95,WABCO | ||
| 237 | A 0004290497 | FILTER ELEMENT |
| TO 000 429 27 95,WABCO | ||
| 237 | A 0004290397 | FILTER ELEMENT |
| TO 000 429 28 95,GRAU | ||
| 237 | A 0004290797 | FILTER ELEMENT |
| TO 000 429 25 95,BOSCH | ||
| 240 | A 0089978048 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 240 | A 0019974048 | SEAL RING |
| TO 000 429 25 95,BOSCH | ||
| 243 | A 0059972748 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 243 | A 0119974048 | SEAL RING |
| TO 000 429 25 95,BOSCH | ||
| 246 | A 0004290845 | DIAPHRAGM |
| TO 000 429 28 95,GRAU | ||
| 246 | A 0004291045 | DIAPHRAGM |
| TO 000 429 25 95,BOSCH | ||
| 249 | A 0049972248 | SEAL RING |
| Repalced by: A 0289972348 | ||
| 249 | A 0289972348 | SEAL RING |
| 100X3 MM,TO 000 429 27 95,WABCO | ||
| 252 | A 0009870746 | SEALING CORD |
| 75X3 MM,TO 000 429 27 95,WABCO | ||
| 255 | A 0004204455 | REPAIR KIT |
| WABCO | ||
| A 0004300369 | REPAIR KIT | |
| TO 000 429 26 95,KNORR | ||
| 258 | A 3964290640 | BRACKET |
| AIR CLEANER | ||
| 261 | N 000933010164 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 264 | N 912004010102 | LOCK WASHER |
| AIR CLEANER TO BRACKET | ||
| 267 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 270 | N 913004010008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 273 | A 0029978972 | FITTING |
| AIR CLEANER,CONNECTION: | ||
| "10" | ||
| 276 | A 0009905168 | FITTING |
| AIR CLEANER,CONNECTION: | ||
| "20" | ||
| 279 | N 915036012203 | HOLLOW SCREW |
| AIR CLEANER,CONNECTION: | ||
| "20" | ||
| 282 | N 007603016401 | SEAL RING |
| AIR CLEANER,CONNECTION: | ||
| "20" | ||
| 282 | N 007603022403 | SEAL RING |
| AIR CLEANER;CONNECTIONS: | ||
| "10,20" | ||
| 285 | A 0004290227 | THRUST RING |
| AIR CLEANER;CONNECTIONS: | ||
| "10,20" | ||
| 288 | A 0009870446 | SEALING CORD |
| AIR CLEANER;CONNECTIONS: | ||
| "10,20" | ||
| 291 | A 0014319306 | VALVE |
| Repalced by: A 0034314106 | ||
| 291 | A 0034314106 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| BOSCH | ||
| 291 | A 0024314006 | VALVE |
| Repalced by: A 0034314706 | ||
| 291 | A 0034314706 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| WABCO | ||
| 294 | A 0035860943 | REPAIR KIT |
| WABCO | ||
| 294 | A 0004304706 | GASKET KIT |
| TO 001 431 93 06,BOSCH 62401 | ||
| 294 | A 0004304706 | GASKET KIT |
| BOSCH;413 | ||
| 294 | A 0004300260 | REPAIR KIT |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| TO 001 431 93 06,BOSCH 62201 | ||
| 297 | A 3964310540 | BRACKET |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 300 | N 000933008212 | SCREW |
| PROTECTIVE VALVE TO BRACKET | ||
| 303 | N 912004008102 | LOCK WASHER |
| PROTECTIVE VALVE TO BRACKET | ||
| 306 | N 000933008147 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 309 | N 913004008004 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 312 | A 0009905168 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 315 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 318 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 318 | N 007603022403 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 321 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 324 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "10" | ||
| 327 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "21,22" | ||
| N 915036012203 | HOLLOW SCREW | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| N 915047012203 | HOLLOW SCREW | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| " 24" | ||
| N 915040012207 | HOLLOW SCREW FITTING | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 330 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "21,22,24" | ||
| 333 | A 0034291044 | VALVE |
| (REFILLING VALVE),EMERGENCY RELEASE | ||
| 333 | A 0044293744 | VALVE |
| (REFILLING VALVE),EMERGENCY RELEASE | ||
| "23" | ||
| 336 | A 0019908168 | FITTING |
| REFILLING VALVE,CONNECTION: | ||
| "10" | ||
| 339 | N 080705012003 | NUT |
| REFILLING VALVE TO CONSOLE | ||
| 342 | N 000125013008 | WASHER |
| REFILLING VALVE TO CONSOLE | ||
| 345 | N 915036008202 | HOLLOW SCREW |
| REFILLING VALVE,CONNECTION: | ||
| "10" | ||
| 348 | N 007603012405 | SEAL RING |
| REFILLING VALVE,CONNECTION: | ||
| "10" | ||
| 351 | A 0024315405 | BRAKE VALVE |
| TWO-CIRCUIT BRAKE VALVE | ||
| 354 | A 0004306260 | REPAIR KIT |
| Repalced by: A 0014300460 | ||
| 354 | A 0014300460 | REPAIR KIT |
| TWO-CIRCUIT BRAKE VALVE | ||
| 357 | N 000933008154 | SCREW |
| BRAKE VALVE TO PEDAL UNIT | ||
| 360 | N 915039012205 | HOLLOW SCREW FITTING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "21,22" | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 54,FIG.NO.: | ||
| 924 | ||
| 366 | N 915036012203 | HOLLOW SCREW |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,12" | ||
| 366 | N 915036008202 | HOLLOW SCREW |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,12" | ||
| 369 | N 007603016401 | SEAL RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,12,21,22" | ||
| 369 | N 007603012405 | SEAL RING |
| TWO-CIRCUIT BRAKE VALVE,CONNECTIONS: | ||
| "11,12" | ||
| 372 | A 0004322101 | RESERVOIR |
| Repalced by: A 0034322301 | ||
| 372 | A 0034322301 | RESERVOIR |
| COMPRESSED AIR | ||
| 40 L,EURO | ||
| 375 | A 6204320018 | BASE |
| AIR RESERVOIR TO BRACKET | ||
| 378 | A 3964300040 | STRAP |
| AIR RESERVOIR TO BRACKET | ||
| 381 | N 913004010008 | NUT |
| AIR RESERVOIR TO BRACKET | ||
| 384 | A 0009905168 | FITTING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,22,31,32" | ||
| 387 | N 000908022001 | SCREW PLUG |
| AIR RESERVOIR,CONNECTION: | ||
| "21" | ||
| 390 | A 0004290227 | THRUST RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,21,22,31,32" | ||
| 393 | A 0009870446 | SEALING CORD |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,21,22,31,32" | ||
| 396 | N 915039012205 | HOLLOW SCREW FITTING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "31,32" | ||
| 399 | N 915036012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,22" | ||
| 402 | N 007603022403 | SEAL RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,12,21,22,31,32" | ||
| 402 | N 007603016401 | SEAL RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "12,21,22,31,32" | ||
| 405 | A 0004321107 | VALVE |
| (DRAIN VALVE),AIR RESERVOIR | ||
| 405 | A 0004322107 | VALVE |
| (DRAIN VALVE),AIR RESERVOIR | ||
| 405 | A 0004322407 | VALVE |
| (DRAIN VALVE),AIR RESERVOIR | ||
| 408 | A 0004290227 | THRUST RING |
| DRAIN VALVE TO AIR RESERVOIR | ||
| 408 | N 007603022403 | SEAL RING |
| DRAIN VALVE TO AIR RESERVOIR | ||
| 411 | A 0009870446 | SEALING CORD |
| DRAIN VALVE TO AIR RESERVOIR | ||
| 414 | A 0034297444 | VALVE |
| (CHECK VALVE) | ||
| 417 | N 080705016003 | NUT |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 420 | A 0004290927 | THRUST RING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 423 | A 0009971548 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 426 | N 915036012203 | HOLLOW SCREW |
| CHECK VALVE,CONNECTIONS: | ||
| "21,22" | ||
| 429 | N 915036010204 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "23" | ||
| 432 | N 007603016401 | SEAL RING |
| CHECK VALVE,CONNECTIONS: | ||
| "21,22" | ||
| 435 | N 007603014405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "23" | ||
| 438 | A 0014296844 | VALVE |
| Repalced by: A 0024299244 | ||
| 438 | A 0024299244 | VALVE |
| (RELAY VALVE) | ||
| WABCO | ||
| 438 | A 0034291644 | VALVE |
| Repalced by: A 0024299244 | ||
| 438 | A 0024299244 | VALVE |
| (RELAY VALVE) | ||
| WABCO | ||
| 438 | A 0034295344 | VALVE |
| Repalced by: A 0024299244 | ||
| 438 | A 0024299244 | VALVE |
| (RELAY VALVE) | ||
| WABCO | ||
| 438 | A 0014299144 | VALVE |
| Repalced by: A 0024299244 | ||
| 438 | A 0024299244 | VALVE |
| (RELAY VALVE) | ||
| WABCO | ||
| 441 | A 0004312788 | VALVE SEAT |
| TO 001 429 91 44,GRAU | ||
| 444 | A 0004311980 | GASKET |
| 34X2X6 MM,TO 001 429 91 44,GRAU | ||
| 447 | A 0059972648 | SEAL RING |
| 22.3X2.4 MM,TO 001 429 91 44,GRAU | ||
| 450 | A 0014311660 | SEAL RING |
| 28X2 MM,TO 001 429 91 44,GRAU | ||
| 453 | A 0059972748 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 456 | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 91 44,GRAU | ||
| 459 | A 0005865742 | REPAIR KIT |
| WABCO | ||
| 459 | A 0004305460 | REPAIR KIT |
| WABCO | ||
| 459 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 459 | A 0004201071 | VALVE |
| GASKET KIT | ||
| BOSCH; UP TO 03.82 | ||
| 459 | A 0004201271 | VALVE |
| GASKET KIT | ||
| BOSCH; FROM 04.82 | ||
| 459 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 459 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| BOSCH | ||
| 459 | A 0025863542 | REPAIR KIT |
| KNORR | ||
| 462 | A 3634311740 | BRACKET |
| RELAY VALVE | ||
| 465 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 468 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 471 | N 913004008004 | NUT |
| RELAY VALVE TO BRACKET | ||
| 474 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 477 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 480 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 483 | N 000908016001 | SCREW PLUG |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 486 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 489 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 492 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE;CONNECTIONS: | ||
| "10,20,40" | ||
| 495 | N 007603016401 | SEAL RING |
| RELAY VALVE;CONNECTIONS: | ||
| "10,20,40" | ||
| 495 | N 007603022403 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 498 | N 916027011014 | HOSE |
| FROM COMPRESSED AIR LINE TO REAR WHEEL BRAKE CYLINDER | ||
| 501 | N 915017012100 | UNION NUT |
| LEFT AND RIGHT BRAKE HOSES | ||
| 504 | N 003861012007 | GLAND |
| LEFT AND RIGHT BRAKE HOSES | ||
| 507 | A 0004290541 | FITTING |
| LEFT AND RIGHT BRAKE HOSES | ||
| 510 | N 074304016201 | FITTING |
| LEFT AND RIGHT BRAKE HOSES | ||
| 513 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 513 | N 000000000666 | CLAMP |
| LEFT AND RIGHT BRAKE HOSES | ||
| 16-27X13 MM | ||
| 516 | N 915039012206 | HOLLOW SCREW FITTING |
| TRISTOP CYLINDER;CONNECTIONS: | ||
| "11,12" | ||
| 519 | N 915039012205 | HOLLOW SCREW FITTING |
| TRISTOP CYLINDER;CONNECTIONS: | ||
| 11,12" | ||
| 522 | N 915040012206 | HOLLOW SCREW FITTING |
| RIGHT TRISTOP CYLINDER,CONNECTION: | ||
| "12" | ||
| N 915047012203 | HOLLOW SCREW | |
| TRISTOP CYLINDER;CONNECTION: | ||
| "11" | ||
| 525 | A 0019900788 | BANJO UNION |
| RIGHT TRISTOP CYLINDER,CONNECTION: | ||
| "12" | ||
| 528 | N 007603016401 | SEAL RING |
| TRISTOP CYLINDER;CONNECTIONS: | ||
| "11,12" | ||
| 531 | A 0014306581 | VALVE |
| (PARKING BRAKE VALVE) | ||
| WABCO | ||
| 531 | A 0024300381 | VALVE |
| (PARKING BRAKE VALVE) | ||
| BOSCH | ||
| 531 | A 0014301881 | VALVE |
| (PARKING BRAKE VALVE) | ||
| KNORR | ||
| 534 | A 0009972777 | HANDLE |
| TO 001 430 65 81,WABCO | ||
| 534 | A 0009972877 | HANDLE |
| TO 002 430 03 81,BOSCH | ||
| 534 | A 0004300227 | HANDLE |
| TO 001 430 18 81,KNORR | ||
| 537 | A 0014310887 | PROTECTIVE CAP |
| TO 001 430 65 81,WABCO | ||
| 537 | A 0014311287 | PROTECTIVE CAP |
| TO 001 430 13 81,KNORR | ||
| 540 | A 0004311064 | ACTUATING PART |
| TO 002 430 03 81,BOSCH | ||
| 543 | A 0009911501 | PIN |
| TO 002 430 03 81,BOSCH | ||
| 543 | A 0009911601 | PIN |
| TO 002 430 03 81,BOSCH | ||
| 546 | A 0025867443 | REPAIR KIT |
| Repalced by: A 0034303181 | ||
| 546 | A 0034303181 | REPAIR KIT |
| TO 001 430 65 81,WABCO | ||
| 546 | A 0004301760 | REPAIR KIT |
| TO 002 430 03 81,BOSCH | ||
| 546 | A 0004300360 | REPAIR KIT |
| TO 001 430 18 81,KNORR | ||
| 549 | N 007985008119 | SCREW |
| PARKING BRAKE VALVE TO WINDOW SILL | ||
| 552 | N 912006008000 | LOCK WASHER |
| PARKING BRAKE VALVE TO WINDOW SILL | ||
| 555 | N 915036010204 | HOLLOW SCREW |
| PARKING BRAKE VALVE,CONNECTIONS: | ||
| "11,21" | ||
| 558 | N 007603014405 | SEAL RING |
| PARKING BRAKE VALVE,CONNECTIONS: | ||
| "11,21" | ||
| A 3819972686 | PLUG | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
